Summary of Contents for LG Hausys FCS001

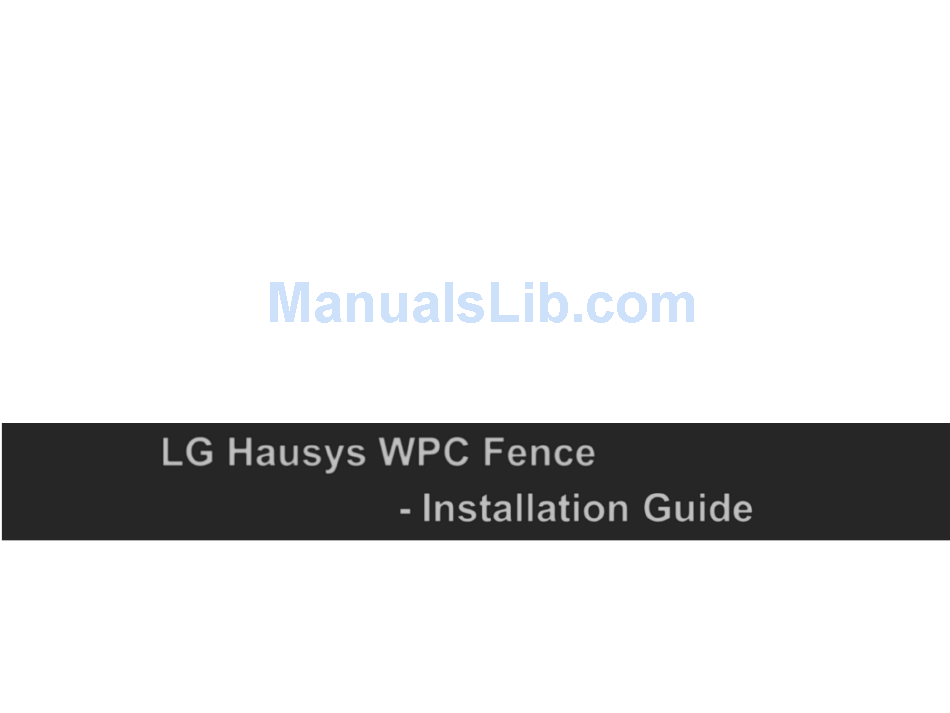

- Page 1 LG Hausys WPC Fence - Installation Guide...
-
Page 2: Horizontal Type
LG Hausys WPC Fence type Horizontal type (Unit specification) Model : FCS001 1.2M(H)X1.5M(W) Composition - 2 post profile - 4 railings (horizontal) 1 unit Vertical type (Unit specification) Model : FCS003 1.2M(H)X1.5M(W) Composition - 2 post profile... - Page 3 (1) Main materials WPC post profile Color Table Model : PN97 Profile size : 97mm X 97mm X 1.2M(L) Color available Cherry : Cherry, Oak, walnut WPC railings profile (vertical, horizontal) Model : LN43 ...
- Page 4 Plate : 160*160 Steel Enforcement For Post Profile (Set) enforcement Pipe : 75*75*1200(H) (coated by Zinc) ½ Inch Not supplied Anchor Bolt Steel Φ12.7, L100 By LG Hausys Steel 81.5*51.7*27.5 Movable Movable (coated by Bracket 51.7*81.5*55.5 Left-Right Aluminium) Steel 81.5*51.7*27.5 Movable...
- Page 5 Item Image Size (mm) Material Remark Fixed Bracket Horizontal to assemble 110*50*33 Aluminium horizontal Fence Type railings Fixed Bracket Vertical To assemble 80*80*33 Aluminium horizontal Fence Type railings 105*105*54 Aluminium Head (Top) Cap 175*175*60 Bottom Cap 103.5*103.5*50 Aluminium (Skirt) 174.2*174.2*60 Fixed Bracket 55.6*25.6*40 Basic...
- Page 6 Item Image Size (mm) Material Remark C Shape-Steel Reinforcement For horizontal 60*30*1.2T (Coated by Profile railings Zinc) reinforcement for vertical 50*25*920 Vertical inside Steel fixed rail railings Φ6 (Option) Foam Layer 72*42*5T Foam Aluminium Solar Light (Case) 105*105*54 Option Solar Light...
- Page 7 I. Installation of post on the ground Post Reinforcement profile Install fence post (by distance 1,500mm) WPC Post-profile (PN97) Post Reinforcement Post Reinforcement WPC Post(PN97) WPC Post Bottom Anchor Bolt...
- Page 8 II. Fix Railing (Use Fixed Bracket for assembling railings) Installing Vis Railings Fixed Bracket (for Horizontal railing)
- Page 9 III. Finishing to cover top hole of post Install Head-Cap on the top of post Head (Top) Cap bolt...
- Page 10 IV. In case of fixing railings in slope or curved area condition Movable Bracket /Up-Down (For Slope) Movable Bracket ㅡ (Up-Down Type) Movable Bracket/Left-Light Movable Bracket (Left-Right Type)
