Tools needed for build:
•
40 W Soldering Iron
•
Wire Cutters / Stripper
•
Needle Nose Pliers
•
Phillips Head Screwdriver
•
Small Flat Head Screwdriver
•
AC/DC Multimeter with Resistance Reading
•
44 Rosin Core Solder
Lay out parts for a quick inventory (Photo 1)
•
Compare physical inventory to the included bill of materials. Packaging mistakes are rare for Mojo but
double check us before you start your build.
Install chassis mounted hardware
•
Tube Sockets - Install so that they all face the same direction (noting pin #1 orientation)
•
Power Transformer - Make sure to mount the PT so that the label faces toward tube sockets. This will be
helpful for anyone looking at the transformer model number without having to take the chassis out of the
amp.
•
Output Transformer - Feed wires through grommets and note wire locations.
•
Install Potentiometers.
•
Install Input, Output Jacks, and Switches.
•
Fuse Holder - Install fuse at same time so you won't forget.
•
Pilot Light Assembly (Lens and Bulb)
©Mojotone
Tweed Super
Style Amp Kit Manual 2012
®
®
Mojotone Tweed Super
Amp Kit Instruction Manual

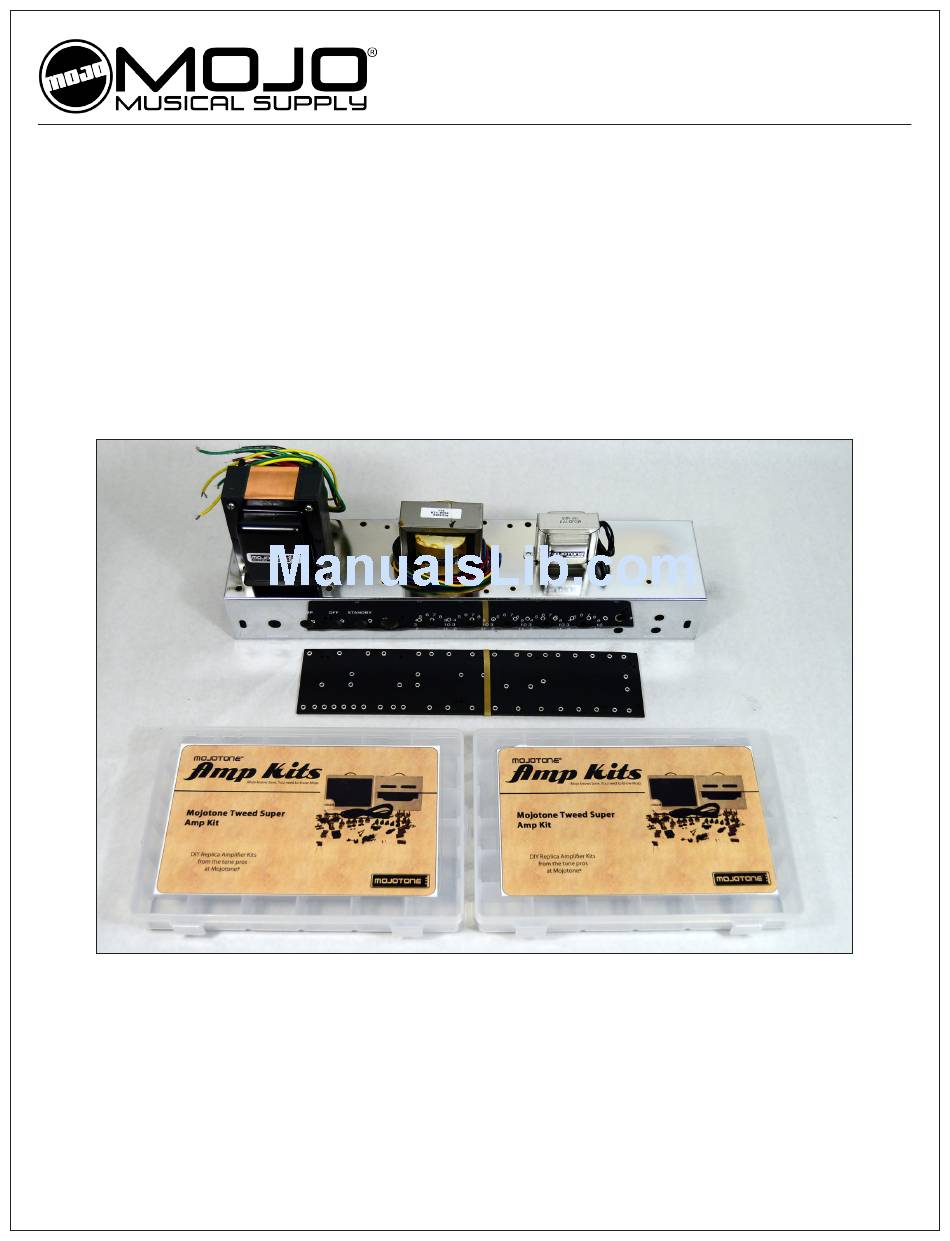

Photo 1 - Lay out parts for quick inventory
Style
®
Page 1
Advertisement
Table of Contents
Related Manuals for Mojo mojotone tweed super style
Summary of Contents for Mojo mojotone tweed super style
- Page 1 Lay out parts for a quick inventory (Photo 1) • Compare physical inventory to the included bill of materials. Packaging mistakes are rare for Mojo but double check us before you start your build. Photo 1 - Lay out parts for quick inventory Install chassis mounted hardware •...
- Page 2 Photo 2 - Installing Chassis Mounted Hardware Photo 3 - Installing Chassis Mounted Hardware Photo 4 - Installing Chassis Mounted Hardware ©Mojotone Tweed Super Style Amp Kit Manual 2012 Page 2 ® ®...
- Page 3 Fiberboard Assembly Tech Tip - Always use a clean tip on your soldering iron to make positive, clean solder joints, (“cold” solder joints can be a major problem in hand-wired amps) • Always try to rely more on the schematic than the wiring diagram in any circuit. •...
- Page 4 Internal Wiring • Follow the color coded wiring diagram closely, twist the filament wires (6.3v heater wires) together from transformer and between tube sockets to reduce hum from 120ac voltage. • Have enough of the power cord inside chassis to reach fuse, switch and ground •...
- Page 5 Photo 8 - Internal Wiring Photo 9 - Internal Wiring Photo 10 - Internal Wiring ©Mojotone Tweed Super Style Amp Kit Manual 2012 Page 5 ® ®...
-
Page 6: Testing The Amp
Always use a multimeter to check the residual voltage in the cap to make sure it is fully discharged. Feel free to call Mojo at 1-800-927-Mojo (6656) at any time if you any questions regarding your kit. Thanks for choosing Mojo and don’t forget to crank it up!! **WARNING** The Voltages found inside your amp can cause serious harm or even death.
