Summary of Contents for TruVue 75369

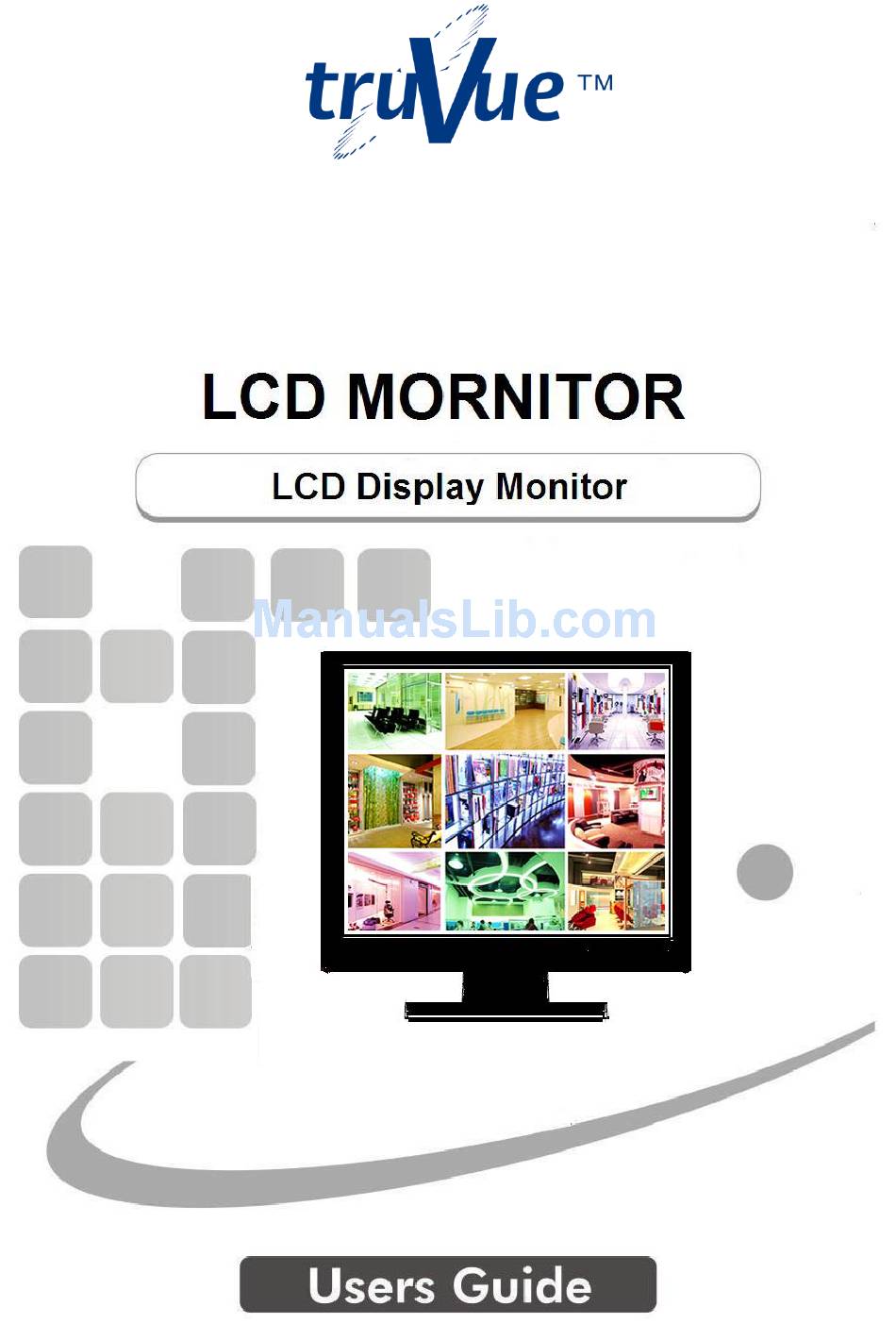

  • Page 1 75369...

  • Page 2: Introduction And Package Contents

    Introduction and Package Contents Introduction Congratulations on your purchase. You can expect only the sharpest and most brilliant colour images from this monitor. Featuring easy to use OSD controls and built in speakers, you will find this monitor both easy to use and a pleasure to look at. Package Contents ...
  • Page 3 Specifications (75369) Size 19” Composite Output (BNC) x 2 Composite Input (BNC) x 2 Single Connector (VGA) x 1, (RCA) x 2 (PC Audio) x 1, (HDMI) x 1 Speaker 1.5W x 2 Display Mode Video 1/ Video 2/ PC/ HDMI...
  • Page 4 VGA Timing Item Resolution H Freq.(kHz) V Freq.(Hz) 640x400@70 31.460 70.080 640x480@60 31.469 59.940 640x480@72 37.861 72.809 640x480@75 37.500 75.000 720x400@70 31.460 70.080 800x600@56 35.156 56.250 800x600@60 37.879 60.317 800x600@72 48.077 72.188 800x600@75 46.875 75.000 1024x768@60 48.363 60.004 1024x768@70 56.476 70.069 1024x768@75 60.023...

  • Page 5: Monitor And Osd Control

    Monitor and OSD Control Monitor and OSD Control The LCD color monitor has a simple control layout for controlling the monitor and OSD (On Screen Display) functions. The table below summarizes the control keys and their related functions. 6-Key feature Keys Function Description Toggle the display between standby mode and on.

  • Page 6: Osd Control Function List

    OSD Control Function List OSD Menu Picture Mode 1. Picture Mode Press -/ OR +/ to select the picture mode “User, Standard, Movie, Vivid ” 2. Contrast This is used to set the brightness of the screen. Press -/ OR +/ to adjust the parameter.

  • Page 7: Setting Mode

    Setting Mode AV/HDMI Mode VGA Mode 1. Language Press -/ OR +/ to select language. 2. H. Position Move the display picture left or right. Press -/ OR +/ to adjust the parameter. 3. H Zoom Adjust the H-size of the display picture Press -/ OR +/ to adjust the parameter.
  • Page 8 Caring for Your LCD Monitor Caring for your LCD Monitor The LCD color monitor is a sensitive piece of electronic equipment. Proper care can prevent accidentally damaging the LCD panel or the monitor itself. By following these guidelines you can ensure many years of trouble free use. 1.

  • Page 9: Frequently Asked Questions

    Frequently Asked Questions Power button does not respond  Check the power cord to ensure that it is securely plugged into the monitor base and also into the electrical outlet.  Ensure there is electrical power coming from the AC outlet. Use another device to check for power.

  • Page 10: Regulations And Maintenance

    Regulations and Maintenance FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 11 Precautions ＊ Read all of these instructions and save them for later use. ＊ Follow all warnings and instructions on the product. ＊ Product Do not cover or block the vent holes in the case. Do not insert sharp objects or spill liquid into the LCD monitor through cabinet slots.
