RF ValProbe®
User's Manual
Amphenol
Advanced Sensors
®

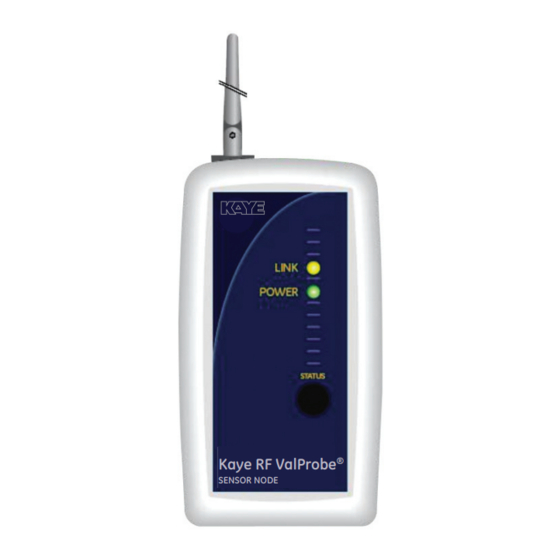

Kaye RF ValProbe
e
SENSOR NODE
Validation
M5010 Rev. G
April 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF ValProbe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kaye RF ValProbe

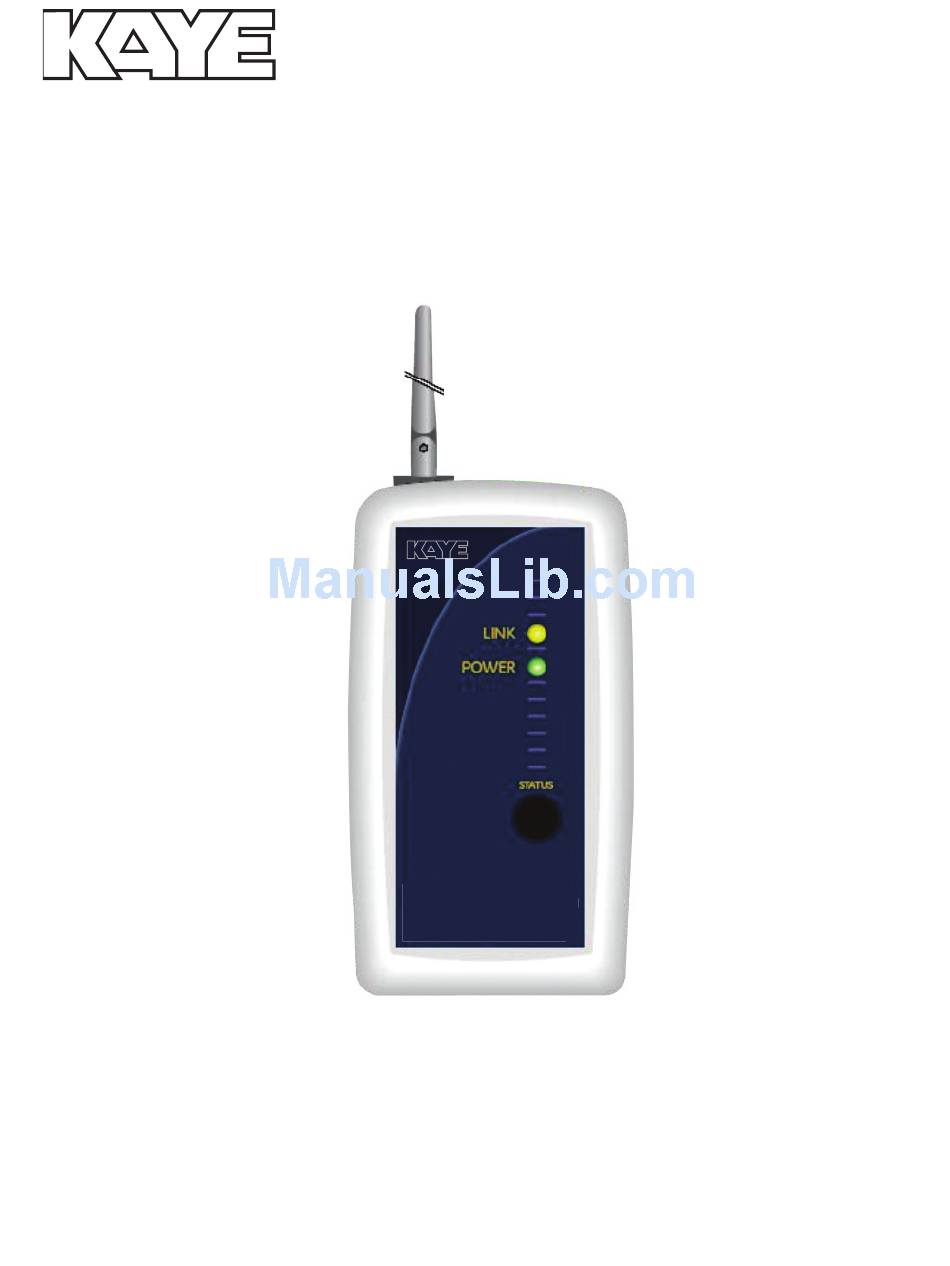

  • Page 1 Validation RF ValProbe® User’s Manual ® Kaye RF ValProbe SENSOR NODE Amphenol M5010 Rev. G April 2014 Advanced Sensors...
  • Page 3 RF ValProbe® Wireless Thermal Validation System User’s Manual M5010 Rev. G April 2014 Amphenol Copyright © 2014 Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, PA 15857-3333, USA Advanced Sensors Web: www.amphenol-sensors.com...

  • Page 4: Table Of Contents

    1.1.4 The Kaye RF ValProbe Base Station ........3 1.1.5 Kaye RF ValProbe Temperature/Humidity Loggers ......4 1.1.6 The Logger Batteries .
  • Page 5 2.7 Accessing the Kaye RF ValProbe Online Help ....... . .
  • Page 6 A.5.3 Base Station Operating ..........57 RF ValProbe® User’s Manual...
  • Page 7 C.2.2 The Risks and Your Role in Reducing Them ....... . 77 RF ValProbe® User’s Manual...

  • Page 8: Chapter 1. Setting Up The Rf Valprobe

    Do not use this equipment in environments other than those listed in the User's Guide. 1.1.3 Overview The Kaye RF ValProbe system is a wireless thermal validation system that collects temperature and humidity data. The Kaye RF ValProbe system is designed for accurate, convenient, and reliable process validation of environmental chambers and storage areas.
  • Page 9 Chapter 1. Setting Up the RF ValProbe 1.1.3 Overview (cont.) The system consists of Kaye RF ValProbe Loggers, a Kaye RF ValProbe Base Station, and Windows-based software for programming and reading the Loggers, calibrating Loggers, verifying their calibration, and generating reports (see Figure 1 below).

  • Page 10: The Kaye Rf Valprobe Base Station

    The RF ValProbe Base Station acts as the communications link between the wireless Loggers and the RF ValProbe software on the computer. When connected to the computer via a standard USB, Ethernet, or USB-Ethernet adapter, the Base Station programs, reads and collects data from up to 100 Loggers per study.

  • Page 11: Kaye Rf Valprobe Temperature/Humidity Loggers

    Chapter 1. Setting Up the RF ValProbe 1.1.5 Kaye RF ValProbe Temperature/Humidity Loggers The wireless RF ValProbe Loggers use an external temperature sensor. • The humidity sensor covers a range from 10% to 90% RH, with accuracy of ±2.0% at 25°C.
  • Page 12 Base Station and stored simultaneously in the Logger and Base Station memories. When prompted by the RF ValProbe software, the Loggers send this data to the computer via the Base Station for reading into a study, report creation and data calculation.
  • Page 13 Chapter 1. Setting Up the RF ValProbe 1.1.5 Kaye RF ValProbe Temperature/Humidity Loggers (cont.) You can attach auxiliary inputs (contact, voltage or current) into the socket on top of the probe. If you select a Logger model with an external probe, the probe is attached to the Logger through an outlet on the side.

  • Page 14: The Logger Batteries

    Chapter 1. Setting Up the RF ValProbe 1.1.6 The Logger Batteries The Logger is powered by two 1.5 V, AA lithium batteries (Kaye #200-084), shipped with the Logger. To replace the batteries, first shut off the Logger by sliding the power switch (shown in Figure 4 below) to the left.

  • Page 15: 6Aresetting The Battery Capacity Setting

    In addition, individual battery characteristics and capacity vary inherently from one battery to another by up to 10%. The RF ValProbe software tracks each Logger's battery life to within 10% of a potential low-voltage occurrence to help prevent interrupted or incomplete studies.

  • Page 16: Calibration

    1.2.2 Verifying Calibration The Kaye RF ValProbe software allows you to verify Logger calibration at one or two setpoints. For Humidity/Temperature Loggers, each sensor type must be verified independently. You may want to verify that the Loggers are within their specification before running a study;...

  • Page 17: Required Equipment

    For example, if you verify calibration for a Logger's humidity sensor using a calibration chamber with a measurement uncertainty of ±1.5% RH, and the Kaye chamber has a measurement uncertainty of ±1.0% RH, you may obtain a deviation greater than the 2.0% RH specified by the factory as the accuracy of the sensor.

  • Page 18: 3Atemperature Sensors

    IRTD probe. Note: During calibration, the IRTD remains connected (via an RS-232C port) to the PC running RF ValProbe software, and to the temperature chamber or bath. It does not link directly to the RF ValProbe.

  • Page 19: Setting Up The Rf Valprobe System

    Ethernet connections. The rear of the Base Station appears similar to Figure 5 below. The newer Base Stations do not have the USB port, but a high-speed USB-Ethernet cable, included in your RF ValProbe, will connect the Ethernet port on the Base Station to the USB port on the PC.
  • Page 20 100-240 VAC outlet. A green light next to the power outlet on the Base Station indicates that the station is powered up. IMPORTANT: The external power supply included with your RF ValProbe is fitted with an of destination. AC power cord suitable for the country •...

  • Page 21: Connecting An External Sensor And Auxiliary Inputs

    Chapter 1. Setting Up the RF ValProbe 1.3.2 Connecting an External Sensor and Auxiliary Inputs If any of your Loggers are designed for use with an external sensor, that sensor will have been shipped in the same package as your Logger.

  • Page 22: Setting Up The Loggers

    Note: All Base Stations and Loggers are shipped with an initial Network ID of 0. To change the Base Station Network ID, install the RF ValProbe software and refer to “Selecting a Communications Option and Establishing Preferences” on page 36.

  • Page 23: Logger Installation Guidelines

    Chapter 1. Setting Up the RF ValProbe 1.3.4 Logger Installation Guidelines You can now position the Loggers. Each Logger must be no more than 300 ft. distant from the Base Station and the other Loggers. Kaye offers several recommendations for logger placement: •...

  • Page 24: Chapter 2. Installing And Using Rf Valprobe Software

    Software 2.1 Introduction Before using the Kaye RF ValProbe system, you have to install the RF ValProbe software on your PC and perform some basic system administration tasks. The RF ValProbe software includes a Password Maintenance utility that allows a user with System Administrator permission to create and maintain user accounts and set site options.

  • Page 25: Pc Requirements

    Chapter 2. Installing and Using RF ValProbe Software 2.2 PC Requirements To run the RF ValProbe Windows-based software, your PC should meet the following minimum requirements: • Pentium or equivalent microprocessor with 1 GHz processor speed and at least 1 GB •...

  • Page 26: Installing Rf Valprobe Software

    Note: Network installations may not use the distribution set. Instead, users must create a customized network folder. • If you are installing Kaye RF ValProbe to a network drive (from which you will install it to individual PCs), proceed to “Installation for a Network Application” on the next page.

  • Page 27: Installation For A Network Application

    The folder should be protected against data deletion. 2. Insert the RF ValProbe CD into your CD-ROM drive. If the installation does not automatically begin, complete the following steps: •...

  • Page 28: 1Asetting Up Site Options

    Setting up Site Options When you start up the program for the first time, you will first set up the System Administrator Site Options, which provide more flexibility while running the RF ValProbe software. You can enable any combination that your site supports.
  • Page 29 • Disable the password system. User IDs and passwords will not be required to use the software. If you select this option, the Kaye RF ValProbe system will not enable compliance Note: with 21CFR Part 11 requirements for electronic records.

  • Page 30: 1Bestablishing Site Preferences

    3. Follow the on-screen instructions to complete the installation to the first PC. Once you have completed installing Kaye RF ValProbe to the network PC, and setting up user accounts, you can install Kaye RF ValProbe from the network to other PCs.

  • Page 31: Installation For A Standalone Application

    , and then click Setup.exe Open. 3. Click on the appropriate installation path to install Kaye RF ValProbe to your PC. 4. Follow the on-screen instructions to perform the installation. 5. Once installation has completed, the Kaye RF ValProbe Initialization program will run automatically.

  • Page 32: Starting The Rf Valprobe System

    Kaye User ID Kaye is the default System Administrator user ID. The User ID text box is case sensitive, so make sure you enter the default user ID exactly as it appears here. To access the Password Maintenance utility after your initial login, click...
  • Page 33 Chapter 2. Installing and Using RF ValProbe Software 2.4 Starting RF ValProbe (cont.) 7. Click . The screen appears, as shown in Password Maintenance Add New User Figure 9 below. Figure 9: Password Maintenance Add New User Screen You are now ready to create your own System Administrator account and add users to the system.

  • Page 34: Creating User Accounts

    Administrator account is created, the default account you used to log on to the system (Kaye/411) will be deleted. You will then be logged in under the user name you create. Note: It is good practice to establish more than one individual as a System Administrator.
  • Page 35 Chapter 2. Installing and Using RF ValProbe Software 2.5.1 Creating a New System Administrator Account (cont.) To create a new System Administrator account: 1. The screen should be displayed after you logged Password Maintenance Add New User in to the system for the first time using the default System Administrator account.

  • Page 36: Creating Operator Accounts

    Chapter 2. Installing and Using RF ValProbe Software 2.5.1 Creating a New System Administrator Account (cont.) Figure 10: Password Maintenance Screen 2.5.2 Creating Operator Accounts Now that you have created your own System Administrator account, you are ready to add user accounts.
  • Page 37 The user name is associated with the user ID/password combination that you enter in steps 3 and 4. The user ID/password combination is used to identify the user to the RF ValProbe software. The name you enter here appears in the active user list.
  • Page 38 You can de-select this feature once the user is ready to use the system (see the Kaye RF ValProbe online Help for instructions on editing user accounts). Select this option if you want to disable the user account.
  • Page 39 Chapter 2. Installing and Using RF ValProbe Software 2.5.2 Creating Operator Accounts (cont.) Figure 12: Password Maintenance Screen 9. Repeat steps 1 through 8 to add more users to the system. RF ValProbe® User’s Manual...

  • Page 40: Printing The User List

    2.5.4 Selecting Site Options The Password Maintenance utility provides site options that give users more flexibility while running the Kaye RF ValProbe software. To access the site options from the Password Maintenance screen, click . The File >Options...
  • Page 41 As the System Administrator, you can select options that will: • Disable the user identification requirement. IMPORTANT: If you disable the user identification requirement, the Kaye RF ValProbe system does not meet FDA regulations for electronic signatures (21 CFR Part 11).Kaye recommends that you always require user identification.
  • Page 42 Chapter 2. Installing and Using RF ValProbe Software 2.5.4 Setting Site Options (cont.) To set site options: 1. Select the check box next to any option to enable that option. To set the number of days until passwords expire, use the spin buttons to set the number of days in 30-day increments, or enter a number from 1 to 366 in the box.

  • Page 43: Selecting A Communications Option And Establishing Preferences

    Chapter 2. Installing and Using RF ValProbe Software 2.5.5 Selecting a Communications Option and Establishing Preferences The Kaye RF ValProbe Base Station is the communications link between the Kaye RF ValProbe Loggers and your computer. After installing the Kaye RF ValProbe software and connecting the Base Station to your PC via USB, you must select or confirm a communications option in order for the Base Station to communicate with your PC.
  • Page 44 3. To select the units in which you wish to display temperature (Celsius or Fahrenheit), click on the appropriate radio button. Note: This selection applies to the entire RF ValProbe --both the Base Station and Loggers. 4. If you are connecting an IRTD to the PC, click on the COM port to which you will connect the IRTD from the pull-down list.

  • Page 45: Setting Up The Usb Connection

    Chapter 2. Installing and Using RF ValProbe Software 2.5 Selecting a Communications Option and Establishing Preference (cont.). • To set up a USB connection, see below. • To set up an Ethernet connection, go to page 40. 2.5.1 Setting Up the USB Connection First, be sure you have selected the USB option for your Base Station on the Preferences screen.
  • Page 46 Chapter 2. Installing and Using RF ValProbe Software 2.5.1 Setting Up the USB Connection (cont.) b. A default network ID of 0 has been programmed into the Base Station. You can use this ID or enter a new Network ID, from 0 to 9 or A to F.

  • Page 47: Setting Up The Ethernet Connection

    Chapter 2. Installing and Using RF ValProbe Software 2.5.2 Setting Up the Ethernet Connection Note: If you plan to use an Ethernet connection, please be sure the Ethernet cable is no longer than 30 m to the nearest hub/switch. If you switch the Base Station to Ethernet mode, the Base Station acquires the IP address by DHCP from your network during startup.
  • Page 48 Chapter 2. Installing and Using RF ValProbe Software 2.5.2 Setting Up the Ethernet Connection (cont.) c. Users can either accept the network ID programmed into the Base Station or enter a new Network ID, from 0 to 9, or A to F. (The default ID is 0.) •...

  • Page 49: Viewing The Rf Valprobe Hardware Inputs

    Chapter 2. Installing and Using RF ValProbe Software 2.6 Viewing the RF ValProbe Hardware Inputs Once you have set up your Loggers and Base Stations and established your Preferences, you can view the RF ValProbe system on the tab, to ensure that the system is Hardware functioning properly.
  • Page 50 2.6 Viewing the RF ValProbe Hardware Inputs (cont.) Figure 20: Hardware Screen with Data Inputs Established As the RF ValProbe locates and retrieves data for Loggers via the Base Station, it displays Logger status via a variety of brief messages: •...
  • Page 51 Chapter 2. Installing and Using RF ValProbe Software 2.6 Viewing the RF ValProbe Hardware Inputs (cont.) • Read -- The system is reading the Logger samples. • Done -- The reading is complete. • Configuring -- The system is uploading or sending calibration/verification information to the Logger.
  • Page 52 Chapter 2. Installing and Using RF ValProbe Software 2.6 Viewing the RF ValProbe Hardware Inputs (cont.) Data logging begins when you have started the Graph option. To plot the data collected prior to starting the real time graph, click the History Graph check box; the software will read historical data from the Base Station and plot it in the real time graph.
  • Page 53 Chapter 2. Installing and Using RF ValProbe Software 2.6 Viewing the RF ValProbe Hardware Inputs (cont.) • To customize your view of the Hardware screen, click on the Customize Column icon , or click from the View Layout View Options>Customize Column Layout Options menu.
  • Page 54 Chapter 2. Installing and Using RF ValProbe Software 2.6 Viewing the RF ValProbe Hardware Inputs (cont.) • To view and graph the RF Strength of the various RF strengths of signal paths, click from the File menu. The Logger Network Strength Graph screen Map RF Strength opens, displaying the paths and their signal strengths.

  • Page 55: Accessing The Kaye Rf Valprobe Online Help

    The RF ValProbe online Help provides step-by-step instructions for using the software, including: programming Loggers, reading Loggers, creating reports, and performing calibration verification. Note: The Kaye RF ValProbe online Help requires Internet Explorer 4.0 or later (5.0 or later is recommended). To access online Help: •...

  • Page 56: Tabs

    Help window. When you Show/Hide access Help for individual screens within the Kaye ValProbe software, you can use the Show button to access the Contents, Index, Search, and Favorites tabs. Use the Hide button to view a topic only and provide more room on your screen.

  • Page 57: Screen-Level Help

    Search feature are highlighted in the topic text 2.7.3 Screen-Level Help You can also access online Help for individual screens in the RF ValProbe software by clicking the button in the lower right corner of the screen, or by pressing F1.

  • Page 58: Appendix A. Specifications

    Appendix A. Specifications Appendix A. Specifications A.1 RF ValProbe System Specifications A.1.1 RF System Operating Frequency 2.4 GHz A.1.2 RF Certification USA, Canada, European Union, China, India, Brazil, Argentina, Japan, Australia, Israel, Indonesia, Singapore, South Korea, South Africa. For other countries, contact factory.

  • Page 59: Base Station

    A.2.1 Connections Ethernet and USB 2.0, full speed Note: Connections are mutually exclusive. A.2.2 Power Power Adaptor Input: 100 to 240 Volts AC 50-60 Hz input A.2.3 Indicators Power, network communications RF ValProbe® User’s Manual...

  • Page 60: Logger

    T/RH with external temperature sensor T/RH with external temperature sensor, 4/20 mA input, contact closure T/RH with external temperature sensor, 0-10 V input, contact closure T with two external temperature sensors T with five external temperature sensors RF ValProbe® User’s Manual...

  • Page 61: Environmental

    ±2.0°C, @ -196°C For 2 and 5 Channel Temperature Loggers: ±0.1C range -80°C to 130°C A.3.2f 2% from 10 to 90%RH 5% from 0 to 10%, 90 to 100%RH 3% at 40°C, 75%RH Certificate states ICH Points RF ValProbe® User’s Manual...

  • Page 62: A.3.2Gauxiliary Inputs

    3.8 to 22 mA Input, 16 bit A/D input, accuracy: 0.5% FS 0 to 10 V input, 16 bit A/D input, accuracy: 0.5% FS Contact Closure A.3.3d Sensor Sampling Rate 5 seconds maximum, 12 hours minimum RF ValProbe® User’s Manual...

  • Page 63: A.3.4 Battery

    Type: Kaye (p/n 200-084) 2 AA lithium batteries- 3000 mAH CAUTION! If it becomes necessary to replace a Logger battery, use only a Kaye #200-084 1.5 V lithium battery. Use of any other battery will void your Logger warranty.

  • Page 64: A.4 Environmental/Emc

    10 to 90% RH non-condensing Storage Vibration 2g RMS Random 10-1000 Hz A.5.2 Logger Operating Specifications -40°C to +65°C 10-90% RH non-condensing Operating Vibration 1g RMS Random 10-1000 Hz A.5.3 Base Station Operating 0°C to +50°C 10-85% RH non-condensing RF ValProbe® User’s Manual...
  • Page 65 Appendix A. Specifications RF ValProbe® User’s Manual...

  • Page 66: Appendix B. Using The Opc Server And Client

    Appendix B. Using the OPC Server and Client B.1 Introduction When used with a group of RF ValProbe Base Stations and loggers, the Kaye OPC Server (version 4.1 and subsequent versions) enables real-time monitoring of up to 8 Base Stations and their associated Loggers over the Ethernet from remote computers. If users have RF ValProbe Base Stations connected to the Ethernet, they can read the measurements of Loggers associated with these base stations via the OPC Client.

  • Page 67: Locating Base Stations On Network

    Appendix B. Using the OPC Server and Client B.2 Installing the OPC Server (cont.) Note: XML-DA is not available for RF ValProbe, so RF ValProbe users should uncheck this box. 5. The Wizard now asks if you wish to start copying the program files. Click...
  • Page 68 Clear • Click on to save the database for future reference and close the screen, or • Click on to close the window (without saving the database) and return to the Cancel main OPC Server. RF ValProbe® User’s Manual...

  • Page 69: Setting Up A Communication Channel

    Appendix B. Using the OPC Server and Client B.4 Setting up a Communication Channel To set up your RF ValProbe on the network, you must first set up a communication channel. Right-click on the root, and select first and then Address Space as shown in Figure 29 below.

  • Page 70: Setting Up A New Device

    Apply B.5 Setting up a New Device Once you have set up the communication channel, you can now set up your RF ValProbe. IMPORTANT: Be sure to install your RF ValProbe Base Station and place your Loggers in the desired locations before setting up the RF ValProbe on the OPC Server.
  • Page 71 10 seconds. The default monitoring interval is 15 seconds. If the transmission starts to lose data, Kaye recommends increasing the monitoring interval. Table 2 on page 68 shows the relationship between the monitoring interval, number of sensors, and frame size.

  • Page 72: Viewing Sensor Data

    Appendix B. Using the OPC Server and Client B.5.1 Viewing Sensor Data Once you have set up your RF ValProbe on the OPC Server, you will find that two buttons on the Device window are enabled: permits users to Sensors...
  • Page 73 Repeater box. To send data to the OPC Historian database of this server for storage up to a month, click on the Historize box to the right of the logger entry. (After 30 days, the oldest data will be overwritten.) RF ValProbe® User’s Manual...

  • Page 74: Optimizing Network Performance

    “Selected” box next to the appropriate sensor ID number. When you have finished selecting sensors, click on the “Change Battery for Selected Sensors” button. The OPC Server resets the battery life settings. Note: To reset the battery life setting via the Logger, refer to page 8. RF ValProbe® User’s Manual...
  • Page 75 150 equals 4.7 sec. Users can select frame sizes from 50 to 450 slots.The recommended frame size is three times the number of sensors monitored. For successful data transmissions, Kaye recommends that the monitoring interval (specified in the Device window on page 63) be at least three times longer than the frame size.
  • Page 76 Click to return to the Device window. You have now set up your RF ValProbe and sensors for viewing on the Sensors window and the OPC Client. Note: Once you set or change parameters in the Advanced window, the server will issue a command to reset the system.

  • Page 77: Viewing Measurement Units

    Once you have added a device to the OPC server, the Server retrieves sensor or channel information on units and attributes from the RF ValProbe firmware and stores it in the configuration database. You can then easily check which types of units and attributes are on any sensor.

  • Page 78: Setting Up The Opc Test Client

    OPC Server. (For real-time monitoring, users can set up their own OPC Clients, or Kaye can provide a custom solution.) To open the OPC Test Client, open the Windows Start Menu. From the Programs Menu, click on...
  • Page 79 The bottom pane displays the available tags (corresponding to the available parameters for display). Right-click on one tag, and three options appear: • enables you to change the name of the tag. Edit Item ID RF ValProbe® User’s Manual...
  • Page 80 Once you have added the tags to the right window, open the File menu and click on Update Tags and Return to Explorer The main Client window reopens, with the tags displaying current data in the right pane, as shown in Figure 39 on the next page. RF ValProbe® User’s Manual...
  • Page 81 Appendix B. Using the OPC Server and Client B.7 Setting Up the OPC Client (cont.) Figure 39: OPC Client, Displaying Data RF ValProbe® User’s Manual...

  • Page 82: Appendix C. Environmental Compliance

    The crossed-out wheeled bin symbol invites you to use those systems. If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration. Contact your Amphenol Thermometrics, Inc. team for additional take-back information. RF ValProbe® User’s Manual...

  • Page 83: Battery Disposal

    In addition, the marking must include the chemical symbols of specific levels of toxic metals as follows: • Cadmium (Cd) over 0.002% • Lead (Pb) over 0.004% • Mercury (Hg) over 0.0005% RF ValProbe® User’s Manual...

  • Page 84: The Risks And Your Role In Reducing Them

    • Mercury creates hazardous vapors at room temperature. Exposure to high concentrations of mercury vapor can cause a variety of severe symptoms. Risks include chronic inflammation of mouth and gums, personality change, nervousness, fever, and rashes. RF ValProbe® User’s Manual...
  • Page 85 Appendix C. Environmental Compliance [no content intended for this page - proceed to next page] RF ValProbe® User’s Manual...
  • Page 86 Advanced Option in OPC Server ......... . . 67 RF ValProbe® User’s Manual...
  • Page 87 Show/Hide ............49 RF ValProbe® User’s Manual...
  • Page 88 Ethernet on Preferences Screen..........37 RF ValProbe® User’s Manual...
  • Page 89 COM Port (in Preferences) ..........37 RF ValProbe® User’s Manual...
  • Page 90 Setting on Loggers ........... . 15 RF ValProbe® User’s Manual...
  • Page 91 OPC Server for RF ValProbe ........
  • Page 92 Warranty ............89 RF ValProbe® User’s Manual...
  • Page 93 Account, Creating ........... . . 27 RF ValProbe® User’s Manual...
  • Page 94 WEEE Directive ............75 RF ValProbe® User’s Manual...
  • Page 95 Index RF ValProbe® User’s Manual...
  • Page 96 The warranties set forth herein are exclusive and are in lieu of all other warranties whether statutory, express or implied (including warranties or merchantability and fitness for a particular purpose, and warranties arising from course of dealing or usage or trade). RF ValProbe® User’s Manual...

  • Page 97: Return Policy

    Upon receipt of the owner’s approval to proceed, the instrument will be repaired and returned. RF ValProbe® User’s Manual...
  • Page 99 'HFODUDWLRQ RI &RQIRUPLW\ 3DJH  RI  1R 'R&  5HY & 1DPH $SSURYHG .D\H 5) 9DOSUREH 0DWW 6FKZDEHQEDXHU 6WXDUW :HOOV 1RGH 5) %DVH 6WDWLRQ 5) 5HYLVLRQ 'DWH 1DPH $SSURYHG 'HVFULSWLRQ )HE *DU\ .R]LQVNL * .R]LQVNL 2ULJLQDO 0 6FKZDEHQEDXHU 0DU 6 :HOOV 8SGDWHG IURP *( WR $PSKHQRO 0 6FKZDEHQEDXHU...
  • Page 100 'HFODUDWLRQ RI &RQIRUPLW\ 1R 'R&  5HY & 3DJH  RI  .D\H 5) 9DOSUREH 1RGH 5) %DVH 6WDWLRQ 5)...
  • Page 101 For Brazil Models Only • Anatel – Agência Nacional de Telecomunicações This Product Contains Transmitter Module IC ID: 5853A-M2135. This device complies with Resolução nº365/2004, certificate MT-0100/2007 issued by OCD – Master Associação de Avaliação de Conformidade Telecom.
  • Page 103 Customer Support Centers U.S.A. U.S.A. For Sales and Services For Technical Support: (Repair/Calibration): Amphenol Thermometrics, Inc. Amphenol Thermometrics, Inc. St Marys Center St Marys Center 967 Windfall Road 967 Windfall Road St Marys, Pennsylvania 15857 St Marys, Pennsylvania 15857 U.S.A. U.S.A.
