DVTECH Solution VP-602HHTU User Manual

Presentation switcher with hdmi and vga solutions
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V
P
-
6
0
2
H
H
T
U
V
P
-
6
0
2
H
H
T
U
V
P
-
6
0
2
H
H
T
U

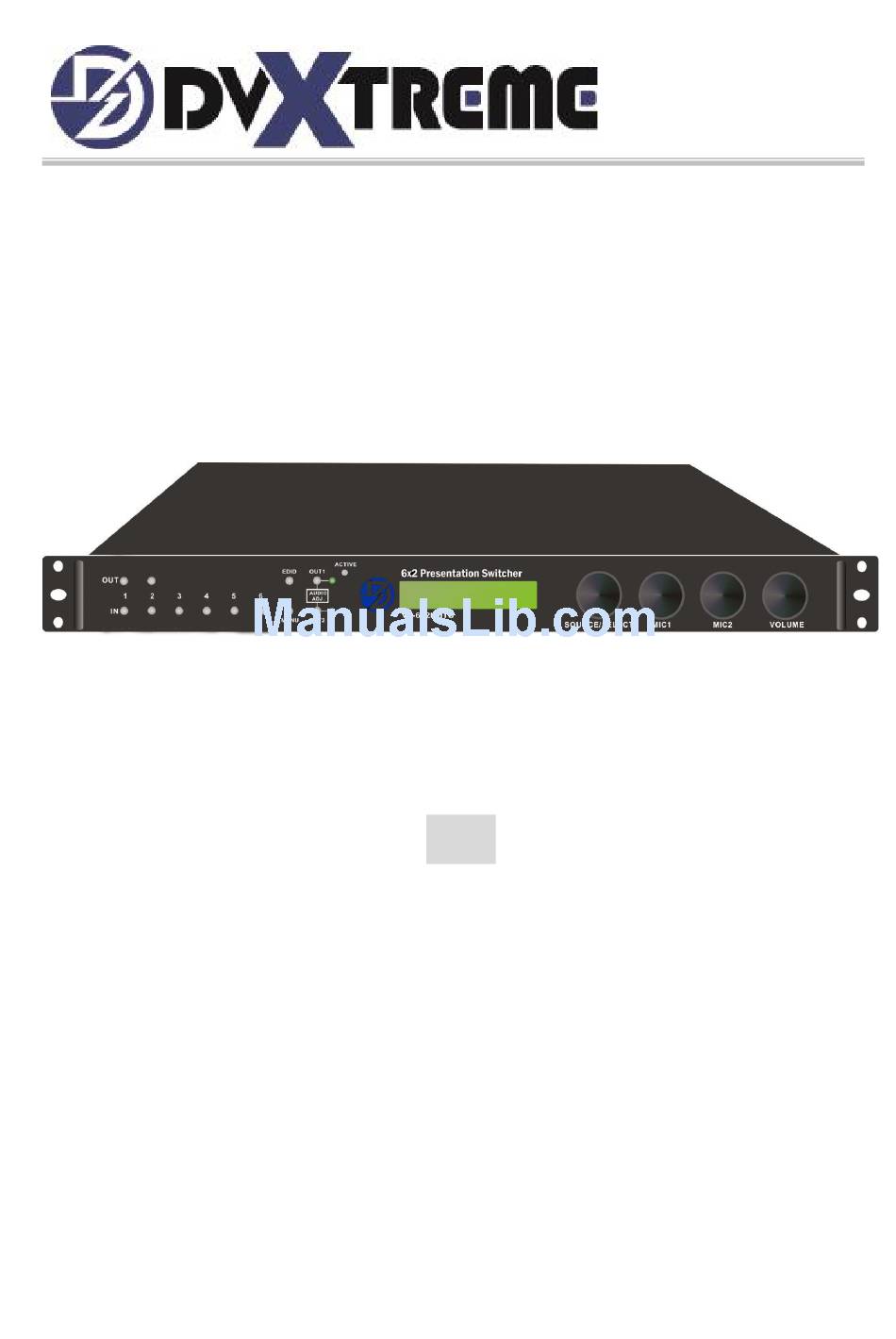

User Manual

Presentation Switcher
with HDMI and VGA solutions
6x2
VP-602HHTU
V.2015VP-602HHTU.00
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-602HHTU and is the answer not in the manual?

Questions and answers

Summary of Contents for DVTECH Solution VP-602HHTU

  • Page 1: User Manual

    User Manual Presentation Switcher with HDMI and VGA solutions VP-602HHTU V.2015VP-602HHTU.00...

  • Page 2: Copyright And Trademarks

    COPYRIGHT AND TRADEMARKS All rights reserved by © DVTECH Solution Corp. No part of this document may be reproduced in any form or by any means without written permission from the product manufacturer. Changes are periodically made to the information in this document.

  • Page 3: Before You Begin

    BEFORE YOU BEGIN  Follow all instructions marked on the device during using.  Provide proper ventilation and air circulation and do not use near water.  It is better to keep it in a dry environment.  Place the device on a stable surface (example cart, stand, table, etc.). ...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Copyright and Trademarks ......................1 Before You Begin .......................... 2 Table of Contents .......................... 3 Chapter 1 Switcher System Overview ..................5 1.1 Introduction ........................5 1.2 Packing ..........................6 Chapter 2 Features ........................7 Chapter 3 Specifications ......................8 Chapter 4 Device Installation ......................
  • Page 5 7.2.3 EDID Command ....................39 7.2.4 Audio Commands ..................... 39 7.2.5 Restore Default Command................41 Chapter 8 Troubleshooting ......................42 Appendix A HDBaseT Firmware Upgrade ................44 VE-70HHTW-F HDBaseT F/W Upgrade ................. 44 Switcher HDBaseT F/W Upgrade ..................46 Appendix B Extender ......................... 49 Features ..........................

  • Page 6: Chapter 1 Switcher System Overview

    IR receiver connected to rear panel for user to control the VP-602HHTU with a IR controller. The Switcher provides the utilize TCP/IP and RS232 rear panel allowing users to control the switcher through a browser on the PC.

  • Page 7: Packing

    1.2 Packing VP-602HHTU Switcher *1 Power Cord *1 CD *1...

  • Page 8: Chapter 2 Features

    CHAPTER 2 FEATURES  3*HDMI In (Up to 4K*2K@30fps or YC 4:2:0 4K*2K@60fps)  3*VGA In + 3*3.5 Stereo Audio Inputs Associated with Each VGA Connection (VGA Support Resolution Shown Below) VGA Input (Support Video Modes) 640*480, 800*600, 1024*768, 1152*864, 1280*600, 1280*720, 60Hz 1280*768, 1280*800, 1280*960, 1280*1024, 1360*768, 1366*768, 1400*1050, 1440*900, 1600*900, 1600*1200, 1680*1050, 1920*1080...

  • Page 9: Chapter 3 Specifications

    CHAPTER 3 SPECIFICATIONS Hardware LCD Module Pushbuttons Knob Input Connector HDMI Type A*3/VGA*3 Output Connector HDMI Type A*2 /RJ-45*2 IR IN 3.5 Phone Jack*2 IR OUT 3.5 Phone Jack*2 RS-232 3.5 Phone Jack*2 MIC Input XLR Connector*2 Audio Input 3.5 Phone Jack*3 RCA Connector (R,L)*2 sets Audio Output Digital Optical Toslink*2...

  • Page 10: Chapter 4 Device Installation

    CHAPTER 4 DEVICE INSTALLATION The Switcher has a black metallic housing. It can be placed on a sturdy desk directly or installed on a rack. Attach the rubber feet to the bottom of Switcher, Place the Switcher on a sturdy, level surface that can support Switcher’s weight.

  • Page 11: Chapter 5 Front/Rear Panels

    CHAPTER 5 FRONT/REAR PANELS 5.1 Front Panel Figure 5-1 VP-602HHTU Switcher Front Panel The Switcher supports up to 8 switching keys (Input*6/Output*2) on the Front Panel. These keys allow you to configure the connected signal quickly and indicate the connection status clearly showing on the LCD display.
  • Page 12 LCD Display Description * HDMI Output Channel 01: Specify the signal comes from Input Channel 2. * HDMI Output Channel 02: Specify the signal comes from Input Channel 1. * VOL1 and VOL2: Specify the sound output for AUD OUT 1 and 2 are level 17 and 25.

  • Page 13: Rear Panel

    5.2 Rear Panel Figure 5-6 VP-602HHTU Switcher Rear Panel The Switcher supports up to 6 input jacks (HDMI x 3 VGA+Audio set x 3), MIC input port*2 and multiple output interfaces on the rear panel. The input interfaces allowing you to connect to different equipments including CD/DVD players, Blue Ray player, PS3, Video Camera, STB and so on.
  • Page 14  AUD OUT 1~2 sets: These ports are complied with SPDIF and R/L audio connecters that are connected to the audio output device. SPDIF ports: The Switcher supports the signal transmitted over either a coaxial cable with RCA connectors or a fiber optic cable with Toslink connectors to keep the signal transmission fidelity in a short-distance.
  • Page 15 Blue return  MIC1, 2: The Switcher supports at least 2 microphones connection.  48V LED: The Switcher supports the microphone with 48V phantom power. When you want to connect a 48V Condenser microphone, you can press the MENU key on the front panel to switch the LCD screen to microphone configuration screen, then press IN key 1 or 2 to select microphone input port 1 or 2 for a 48V phantom power.

  • Page 16: Chapter 6 Connections

    CHAPTER 6 CONNECTIONS Figure 6-1 Switcher Connections 6.1 Input Connections Use the HDMI/VGA+Audio connecting cable to connect the Input serial jack (IN1~3/ IN4~6) to the output source jack of the Blu-ray/DVD player displays/graphics workstations/PC. Notebook Figure 6-2 Input Connections...

  • Page 17: Output Connections

    6.2 Output Connections Use the HDMI cable to connect the output jack (OUT1 ~ OUT2 with HDMI interface) on the rear panel to the input jack of the projector, video recorder, display, HD TV or multiplexer directly. Or use the Cat.5e cable to connect the output RJ-45 jack (OUT1 ~ OUT2 with RJ-45 interface) on the rear panel to the LINK IN jack of the Extender.

  • Page 18: Remote Control Connection

    6.4 Remote Control Connection Use the RS-232 connecting cable to connect the computer serial communication port (COM1 or COM2) to the RS-232 communication port of the Switcher. The computer can then be used to control the Switcher after installing of application software. Aside from using the front panel keys for switching operation, you are also permitted to use the RS-232 connection port for a remote operation.

  • Page 19: Ir Pass-Through Connection

    6.5 IR Pass-Through Connection The Switcher provides an IR Receiver cable and IR Blaster cable accessories for IR pass-through; on the other hand, it also provides you an extended IR pass-through transmission through Extender. Supports you an IR channel to control the TV-end of your Switcher and Remote. Supports all kinds of IR frequency band 6.5.1 Normal IR Connection The Switcher provides you an IR receiver for more convenient to react to the controller.

  • Page 20: Extended Ir Connection

    6.5.2 Extended IR Connection Extended Connection: You can extend the signal connection through the Extender described as below. Figure 6-7 IR Extended Connection 6.6 Power Connection Use the included power cord to connect from the power port on the rear panel of the Switcher to the outlet.

  • Page 21: Ports And Switchers

    6.7 Ports and Switchers The Switcher provides standard RS-232 serial communication port as well as LAN for remotely managing. Besides the front panel is ideally for the local switching, managing and setting operation, the Switcher also provides Dip switcher for locally settings. 6.7.1 RS-232 The RS-232 Pin functions are described as below: Pin No.
  • Page 22 Figure 6-8 (b) Figure 6-9  The Switcher RS-232 port is defined by DCE.

  • Page 23: Hdbaset Output Port

    6.7.2 HDBaseT Output Port The Switcher supports RJ-45 registered jacks using 8P8C modular connector, which specifies the physical male and female connectors as well as the pin assignments of the wires in a LAN cable. (A common LAN cable is available.) Figure 6-10 LAN (HDBT) Port 6.7.3 Output LED The Switcher supports HDBaseT output for a long distance signal transmission.

  • Page 24: Output Cable

    6.7.4 Output Cable HDBaseT was designed to provide Full HD performance up to 100/70 meters of Cat.5e or superior cables. In a typical installation, the cable is stretched to its full length between the HDBaseT Transmitter device and the HDBaseT Receiver device. However sometimes, especially, in demonstrations or in a lab environment, the cable is rolled randomly in small turns for convenience.

  • Page 25: Dip Switcher For 3 Pins

    6.7.5 DIP Switcher for 3 Pins Figure 6-12 DIP Switcher for 3 Pins A. DIP Switcher Pin 1: Switch between RS-232 port and LAN port connection. The default value is up specified “UP (OFF)” for LAN port connection. DOWN (ON): RS232 UP (OFF): LAN B.

  • Page 26: Chapter 7 Remote Configurations

     Please switch the DIP Switcher PIN 1 to UP (OFF) for LAN configuration. 7.1.1 Command List and Reboot Once the connection with Switcher is established, the VP-602HHTU Telnet prompt screen will appear, type help [Enter] to show the command list.

  • Page 27: Ip/Telnet Configuration

    Display the TCP/IP configuration VP-602HHTU> ipconfig [Enter] Current IP: 192.168.0.3 Current IP Mask: 255.255.255.0 Current Gateway: 192.168.0.1 Renew the IP Address VP-602HHTU> setip [ip addr] [Enter] [ip addr]: xxx.xxx.xxx.xxx Example: Set IP address: 192.168.0.2 VP-602HHTU> setip 192.168.0.2 [Enter] VP-602HHTU> setip IP address: 192.168.0.2 Renew the Subnet Mask VP-602HHTU>...
  • Page 28 Renew the DNS Servers VP-602HHTU> setdns [ip addr] [Enter] [ip addr]: xxx.xxx.xxx.xxx Example: Set DNS IP address: 192.168.0.1 VP-602HHTU> setdns 8.8.8.8 [Enter] VP-602HHTU> setdns DNS IP:8.8.8.8 Set DHCP Enable or Disable VP-602HHTU> sethdcp [status] [Enter] [status]: 0: Disable 1: Enable Example: Set DHCP to disable.

  • Page 29: Device Configuration

    VP-602HHTU> route [Enter] Output 01: Input = 03 Output 02: Input = 05 Route configurations VP-602HHTU> route [xx] [yy] [Enter] xx – select output port, 0: select all outputs yy – select input port, 0: disconnect Example: 1. Set the output 2 and input 5.
  • Page 30 VP-602HHTU> route 6 [Enter] Output 01: Input = 06 Output 02: Input = 06 VP-602HHTU> route [xx] [yy0] [yy1] …[yyn] [Enter] Route output sequentially to the corresponding input. Route output to the specified input yy0. Route next 1 output to the specified input yy1.
  • Page 31 Audio 02, 04, 06 and 08 are specified for AUD OUT 2 (source/MIC1/ MIC2/volume knob). Audio mute settings VP-602HHTU> mute [xx] [yy] [Enter] xx – select audio signal, 0: select all audio signals yy – 1: mute, 0: unmute Example: 1.
  • Page 32 Audio 06: Volume is muted Audio 07: Volume is muted Audio 08: Volume is muted VP-602HHTU> mute [xx] [yy0] [yy1] … [yyn] [Enter] Set audio sequentially to the corresponding volume status Set audio xx volume status to yy0 Set next 1 audio volume status to yy1 Set next n audio volume status to yyn, n <= 8...
  • Page 33 Audio 02, 04, 06 and 08 are specified for AUD OUT 2 (source/MIC1/ MIC2/volume knob). Audio volume settings VP-602HHTU> vol [xx] [yy] [Enter] Set specified audio volume level xx – select audio signal port, 0: select all signals index yy –...
  • Page 34 Set the specified audio to specific volume level. Set the audio 2 volume level to 1 and others to specific values sequentially. VP-602HHTU> vol 2 1 2 3 4 5 6 7 [Enter] Audio 01: Volume = 20 Audio 02: Volume = 1...
  • Page 35 EDID management VP-602HHTU> edid <input> <edid> [Enter] <input>: select input port, 0: select all inputs <edid>: select edid source, 0: default 1080P and 2ch audio  VP-602HHTU does not support EDID adjustment of individual input port. EDID Value 1080P OUT1...

  • Page 36: Av Matrix Protocol Command

    AV Matrix Protocol <API> version 2.30 Device Firmware version 1.0.00 7.1.4 AV Matrix Protocol Command Send AV Matrix protocol command <API> VP-602HHTU> avm <instruction> <index> <value> [Enter] <instruction>: AVM Protocol Byte 2 <index>: AVM Protocol Byte 3 <value>: AVM Protocol Byte 4 Example: VP-602HHTU>...

  • Page 37: Rs-232 Commands

    7.2 RS-232 Commands You can also operate and configure the Switcher via a remote terminal session using RS-232. Follow the steps as below to log into the Switcher by means of a RS-232 session (the example as below is for Hyper Terminal): 1.

  • Page 38: Commands List And Status

    7.2.1 Commands List and Status Once the connection with Switcher is established, type help in the Hyper Terminal screen to show the command list. Show the command list Show the Status of Your Switcher...

  • Page 39: Hdmi Command

    7.2.2 HDMI Command HDMI Output Setup Command Example: Set output 1 signal comes from input 5.

  • Page 40: Edid Command

    7.2.3 EDID Command EDID Setup Command Example: Set resolution copied from EDID output 2. For EDID value configurations, please refer to 7.1.3 Device Configuration. 7.2.4 Audio Commands Audio Mute Command Example: Set audio out 1 (audio out integrated status) to mute. The audio out 1 will show you the integrated volume status is mute.
  • Page 41 Example: Set audio out 2 (source status) to unmute. The audio out 2 will show you the source volume level presently. Audio Volume Command Example: Set audio out 2 volume level (audio out integrated volume) to 30. Example:...

  • Page 42: Restore Default Command

    Set the MIC1 volume level for audio out 2 to 25. (Input source: MIC1 volume level=30, Output port: audio out 2) 7.2.5 Restore Default Command Restore to Factory Default Settings...

  • Page 43: Chapter 8 Troubleshooting

    CHAPTER 8 TROUBLESHOOTING 1. What to do if LCD is fail in display? Answer: Check the connection of power cord is not loosening and the power cord is in a good status having no any damage. Check the power source is normally. 2.
  • Page 44 6. What to do if the Switcher panel keys and communication ports are out of order? Answer: Check if the equipment power input is in good contact and the computer communication ports are in good order. If yes, it could be some internal failure of the product, please send for repair by qualified technical engineer.

  • Page 45: Appendix A Hdbaset Firmware Upgrade

    APPENDIX A HDBASET FIRMWARE UPGRADE Process the Update TX_xxx.bat or UpdateRX_xxx.bat file to upgrade firmware. (xxx is specified for firmware version) These files are used for upgrading the VS010TX/VS010RX IC in your devices. The UpdateTX_xxx.bat file is used to upgrade the Switcher or D.A system (the VS010TX IC in your Switcher) firmware.
  • Page 46 4. On the control PC, process the UpdateRX_23090-C.bat file to upgrade firmware. (The update file name is only for reference, it will be different based on version.) 5. Final, the update is finished as below.

  • Page 47: Switcher Hdbaset F/W Upgrade

    Switcher HDBaseT F/W Upgrade Follow the steps as below to upgrade the Switcher firmware: 1. Connect the control PC and VE-70HHTW-F with a RS-232 cable. 2. Connect the TV and VE-70HHTW-F with a HDMI cable. 3. Connect the DVD Player and Switcher with a HDMI cable.
  • Page 48 4. Connect the LAN cable to the LINK IN port on the panel of Switcher. The other end of the LAN cable connected to the OUTPUT port of Switcher. 5. Connect the DC 12V adapter. 6. Enable the Switcher, TV and DVD player power, and play the video comes from the DVD Player.
  • Page 49 8. On the control PC, process the UpdateTX_23090-C.bat file to upgrade firmware. (The update file name is only for reference, it will be different based on version.) 9. Final, the update is finish as below. 10. Each procedure only updates one port; please follow the same procedures to update other OUT ports.

  • Page 50: Appendix B Extender

    APPENDIX B EXTENDER The extension of HDMI video signal device supports up to 70 meters away by using an Extender and Cat.5e cable. HDMI Extender is ideal for:  Test bench facilities  Data Center  Help desks VE-70HHTW-F Extender Side View Side View...

  • Page 51: Features

    Through the RS-232 connection to upgrade REMOTE Receiver unit. Through the LAN Connection to upgrade LOCAL Transmitter (VP-602HHTU). NORMAL Extend the RS-232 Signal Transmission Features  Through the Extender, you can use the output of the Switcher to display identical image and extension of HDMI signal up to 70 meters on HDTV ...

  • Page 52: Specifications

    Specifications Hardware HDMI OUT HDMI A-Type Female x 1 LINK RJ-45 Connector x 1 3.5ψ Stereo Jack x 1 IR OUT 3.5ψ Stereo Jack x 1 IR IN 2 Pins Dip Switch F/W Upgrade Setting RS-232 Connector DB9 Female x 1 (For F/W Upgrade) LED indicators MODE/LINK/HDCP/POWER Power Supply...

  • Page 53: Ir Receiver Cable Directions

    IR Receiver Cable Directions Put IR Receiver cable into the Receiver “IR IN” port and place the IR Receiver Cable, so that you can aim at it easily with your IR remote controller. IR Receiver Cable: IR Blaster Cable Directions Plug IR Blaster cable into Receiver “IR OUT”...

  • Page 54: Wiring Information For Link Connector

    Wiring Information for Link Connector You can also refer to 6.7.2 HDBaseT Output Port Conductor RJ-45 Pin Color Code for Identification Assignment Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown...

  • Page 55: Appendix C Firmware Upgrade

    APPENDIX C FIRMWARE UPGRADE This Chapter will introduce you how to upgrade firmware on your web browser. For firmware upgrade, you have to upload the firmware file to your web server and then renew it to your device from web server. Open the Browser on your PC, key in the default IP address: http://192.168.0.3 to login the AV MATRIX Setup configuration menu.

  • Page 56: F/W Upgrade

    F/W Upgrade The Switcher allows you to upgrade firmware General, Module and Manual. Besides, the firmware upgrade will not stop even though the web connection is fail suddenly. Please check with the LCD screen to confirm the firmware upgrade has been finished successfully or wait at least 2 minutes then power off to restart your PC.

  • Page 57: Module Upgrade

    3. When the upload is successful, the following information will appear. Click “OK” to continue. 4. Click “Upgrade” to upgrade. When the upgrade is successful, the following information will appear, Click “OK” to complete the upgrade. Module Upgrade 1. Click “F/W Upgrade” to enter the F/W Upgrade menu. Click “Browser” to select upgraded .mfw firmware, then click “Upload”...
  • Page 58 3. Select the suitable Module No. from the drop-down menu. Click “Upgrade” to upgrade. 4. Click “Upgrade” to upgrade. When the upgrade is successful, the following information will appear, Click “OK” to complete the upgrade.

  • Page 59: Manual Upgrade

    Manual Upgrade 1. Click “F/W Upgrade” to enter the F/W Upgrade menu. Click “Browser” to select upgraded .bin or .enc firmware, then click “Upload” to upload the firmware to web server. 2. Click “OK” to continue. 3. Select the 0: General or 1: Module from the drop-down menu. Click “Upgrade” to upgrade.
  • Page 60 4. Click “Upgrade” to upgrade. When the upgrade is successful, the following information will appear, Click “OK” to complete the upgrade.

  • Page 61: Network

    Network 1. Click “Network” to enter the Network Settings information menu. After renewing the relative network settings, click “Apply” to save, and then click “Reboot” to take new settings effect. 2. Or click “Restore default” to restore all settings to the factory default values.

  • Page 62: Ipm Upgrade

    IPM Upgrade Click “Upgrade” to enter the IP Module Upgrade menu. Enter the TFTP Server IP and upgrade File Name, click “Apply” to save and then click “IPM Upgrade” to take the settings effect.  Before upgrading the IP module, you can use the existed TFTP Server or set up a TFTP Server by yourself to put the Firmware file on.
