Summary of Contents for Technicolor TCV2480A

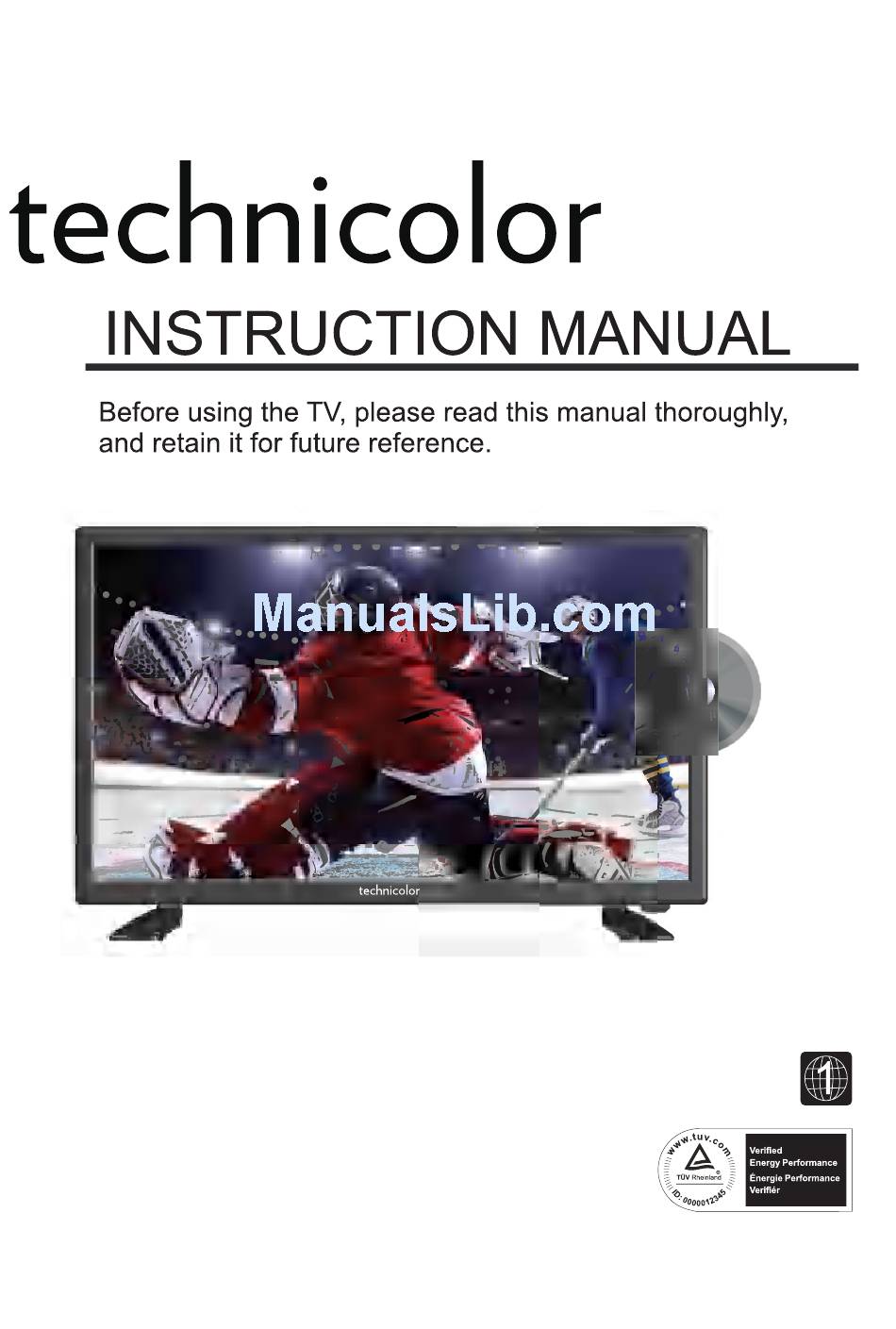

  • Page 1 Model:TCV2480A...
  • Page 2 ENERGY SAVING MODE...
  • Page 4 S A F E T Y P R E C A UT IO N P L A C E ME NT I NF O R MAT IO N CAUTION MARKING WAS LOCATED AT THE REAR OF THE APPARATUS. Do not use this unit in places that are extremely hot, cold, dusty or humid.
  • Page 5 Energy saving mode...

  • Page 6: Getting Started

    ACCESSORIES Please check and identify the supplied accessories. Remote control ......................... Remote control Battery(AAA) ........................Warranty Card ........................ Instruction Manual ......................2Base stands and 4 base stand screws ................x 1 Power adaptor ............................G E T T ING S TA R T E D US ING T HE R E MOT E C O NT R O L ·Point the remote control at the remote sensor located on the unit.

  • Page 7: Remote Control

    CONTROL REFERENCE GUIDE REMOTE CONTROL 1.STANDBY To switch on the TV or make the TV into standby mode. 2.MUTE Press this button to mute or restore sound. 3.0-9 Allows you to change the channel of the TV. Switches back and forth between the current and previous channels,or to edit the program list of your DVD disc in DVD mode.
  • Page 8 CONTROL REFERENCE GUIDE REMOTE CONTROL 21.EJECT To eject a disc. 22.TITLE To goto the title menu if the DVD disc has a title page. 23.D.MENU To show the menu of the DVD disc. 24.D.SETUP Press this button to show the DVD SETUP menu. Press this button to play or pause the DVD you’re watching.

  • Page 9: Front View

    CONTROL REFERENCE GUIDE FRONT VIEW 1.Color Screen 2.Remote Sensor Do not block this sensor or the remote control will not work. 3.Standby Indicator Indicates whether the unit is ON or in STANDBY (OFF) mode. Light in red he unit is in STANDBY. Light in blue The unit is turned ON.

  • Page 10: Side View

    SIDE VIEW Press to eject a disc. Press this start pause or resume playback of a disc. 9.Disc Slot Insert discs to disc slot (Right direction put the mirror side of the disc facing yourself...

  • Page 11: Connecting A Tv Antenna Cable Satellite

    CONNECTIONS CONNECTING A TV ANTENNA CABLE SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system NOTE For receiving over-the-air TV broadcasts, we recommend that you use an external fixed antenna.
  • Page 12 CONNECTIONS CONNECTING A HIGH-DEFINITION (HD) SOURCE USING COMPONENT CONNECTION High-Definition (HD) Devices with component video output must be connected to the Y PbPr input. Connect the component video cable and audio cable (not included) as shown. Make sure you connect the component video cable and audio cable from the other equipment COMPONENT OUT and AUDIO OUT to the unit COMPONENT IN.
  • Page 13 CONNECTIONS CONNECTING A Connect the 15-pin D-SUB PC/VGA connector from your computer to the 15-pin D-SUB PC/VGA input on this unit using a monitor cable and an audio cable (not included) as shown. Make sure you connect the cable from the computer AUDIO - PC OUT ) to this unit AUDIO - PC IN...
  • Page 15 4” 4”...
  • Page 16 Please Run Channel Auto Scan INPUT SOURCE ,DVD Component HDMI DV D...
  • Page 17 Good Good...
  • Page 18 temp.
  • Page 19 TV SETUP...
  • Page 20 TV SETUP...
  • Page 21 TV SETUP...
  • Page 22 Clock 2012/11/20 04:08 PM Clock 2012/11/20 04:08 PM Clock 2012/11/20 04:08 PM...
  • Page 23 TV SETUP Auto adjust success Adjust...
  • Page 24 TV SETUP Auto adjust success Auto adjust success Adjust Adjust Auto adjust success Auto adjust success Adjust...
  • Page 25 TV SETUP...
  • Page 27 TV SETUP...
  • Page 28 TV SETUP...
  • Page 29 TV SETUP...
  • Page 32 Insert the disc to the disc slot (mirror side of the disc has to face yourselef),the player SKIP (PREVIOUS/NEXT)
  • Page 35 2.You can directly press 0-9 number button to highlight a chapter/track.If you want the chapters / tracks greater than 10,you can press the 10+ button and press the corresponding number button(s) for the chapter/track you want.
  • Page 37 Edge to center Move In From Top...
  • Page 40 (The default password:123456 or the universal password:136900)

  • Page 43: Specification

    SPECIFICATION Model Description 24“LED TV / DVD COMBO Panel Type LED Panel Diagonal Size 24 inches 16 9 : Screen Format Resolution 1366 x 768 Panel Brightness 180cd/ Contrast 3000:1 View Angle 176(H)/176(V) Response Time 8.5 ms Maximum Color 16.7M colors Color System ATSC/QAM/NTSC Sound System...

  • Page 44: Troubleshooting Guide

    TROUBLESHOOTING GUIDE SYMPTOM CAUSE AND REMEDY No power. Make sure the power cord is connected. Turn on the unit. Remove any obstacles between the remote and the unit. The remote does not Use the remote near the unit. function. Point the remote at the remote sensor on the unit. Replace the batteries in the remote with new ones.
  • Page 45 TROUBLESHOOTING GUIDE SYMPTOM CAUSE AND REMEDY Bad Picture (snow, Check the location of the antenna and adjust it if necessary. multiple images Make sure the antenna cable is firmly connected. distortion,blurry) Make sure all input cables are firmly connected. No sound. Increase the volume.
