Steamist Plumbing Installation Instructions Plumbing Installation Instructions

Steambath Generator
Important: Locate Publication No. 199 "Steam Bath Important Safety Instructions". This publication includes a Warning
label that the contractor must install on the wall near the entrance to the steam room in a highly visible location. This
!
label and its additional safety information are packaged with the generator in the envelope containing the installation
instructions. If it is lost or missing contact Steamist (201-933-0700) for a replacement Publication No. 199. This publica-
tion along with all documents must be left with the owner.
The Steamist "SM" Generator comes factory assembled,
carefully wired and tested.
WARNING: All electrical power should be turned OFF when
working with Steam Generator.
IMPORTANT: The Plumbing Installation must conform to local
and national codes.
1.
Pre-Installation
a) Be sure that the proper size Steam Generator has been
selected by using the sizing page in the "Full Line
Brochure," "Pricing Guide," "The Generator Sizing
Guide," "Architectural Guidelines," or in the Residential
Systems/Steambath Product Information section of the
Steamist website - www.steamist.com.
CAUTION: An improperly sized Steam Generator may NOT
produce the amount of steam necessary to reach selected
temperature.
b) For optimum performance, the Steam Generator should
be located as close as possible to the Steamroom,
Shower or tub enclosure using a ¾" copper pipe (1/2"
copper pipe is also acceptable, but not preferred). If the
steam pipe exceeds ten feet, it should be insulated using
appropriate pipe insulation rated for a minimum of 212º F.
Maximum steam pipe distance should not exceed a total
of fifty linear feet. Refer to Installation Suggestions on
page 4.
CAUTION: Do NOT install near flammable material such as
paints, thinners, gasoline, etc.
CAUTION: Steam generators must NOT be installed outdoors, in
moist, humid areas, in areas prone to freezing, or extreme heat
such as an unventilated attic. To do so will void the warranty.
c) The steam line and safety valve reach a temperature of
212°F during operation and should be appropriately
protected to prevent personal injury by accidental
contact.
2.
Plumbing Rough-in
Plumbing rough-in is required for the water supply and
steam line; this should be completed before the walls
are closed. For operation, the "SM" Steam Generator
requires a ⅜" O.D. copper tubing to the fitting on the
generator for water inlet and a ¾" copper or brass pipe
for steam outlet.
NOTE: Safety Valve should be connected using a union to a
minimum ¾" indirect waste or as required by local plumbing
IMPORTANT: The warranty of this product is voided if it is used in a commercial application or for anything other than a residential
steambath installation. This product is not intended for use with Home Automation systems.
05/16
®
codes. In the unlikely event this valve should open, the
discharge must be directed to prevent damage to the home.
Do NOT connect the Safety Valve output to the steam line.
a) Water Inlet - Rough in a water line, 120 PSI max,
to the hot or cold supply. A shut off valve with a
3/8" connection to the steam generator is to be
provided at the generator location (see Figure 4 on
page 3).
b) Steam Outlet - Rough in the steam line using a ¾"
Brass pipe or Copper tube with sweated fittings
only. Do NOT use plastic pipe or fittings. Do not
use any push-fit, snap-fit or anything else that is
not specifically rated for 212ºF steam. Do NOT use
Black Iron or Galvanized pipe to avoid rust and
discoloration to steam room. The steam head
location should be 12" to 18" above the steam
room floor or 6" above a rim of a bathtub and as far
from the seating area as possible.
CAUTION: No shutoff valve can be installed in the steam
line. Do NOT create traps or valleys in this line which would
trap condensation and block the flow of steam. The steam
pipe should be pitched toward the Steam Generator
allowing condensation to run back toward the Steam
Generator (preferred), or toward the steamhead. If the
steam generator is equipped with a drain valve, do NOT
connect the drain pipe to the steam line.

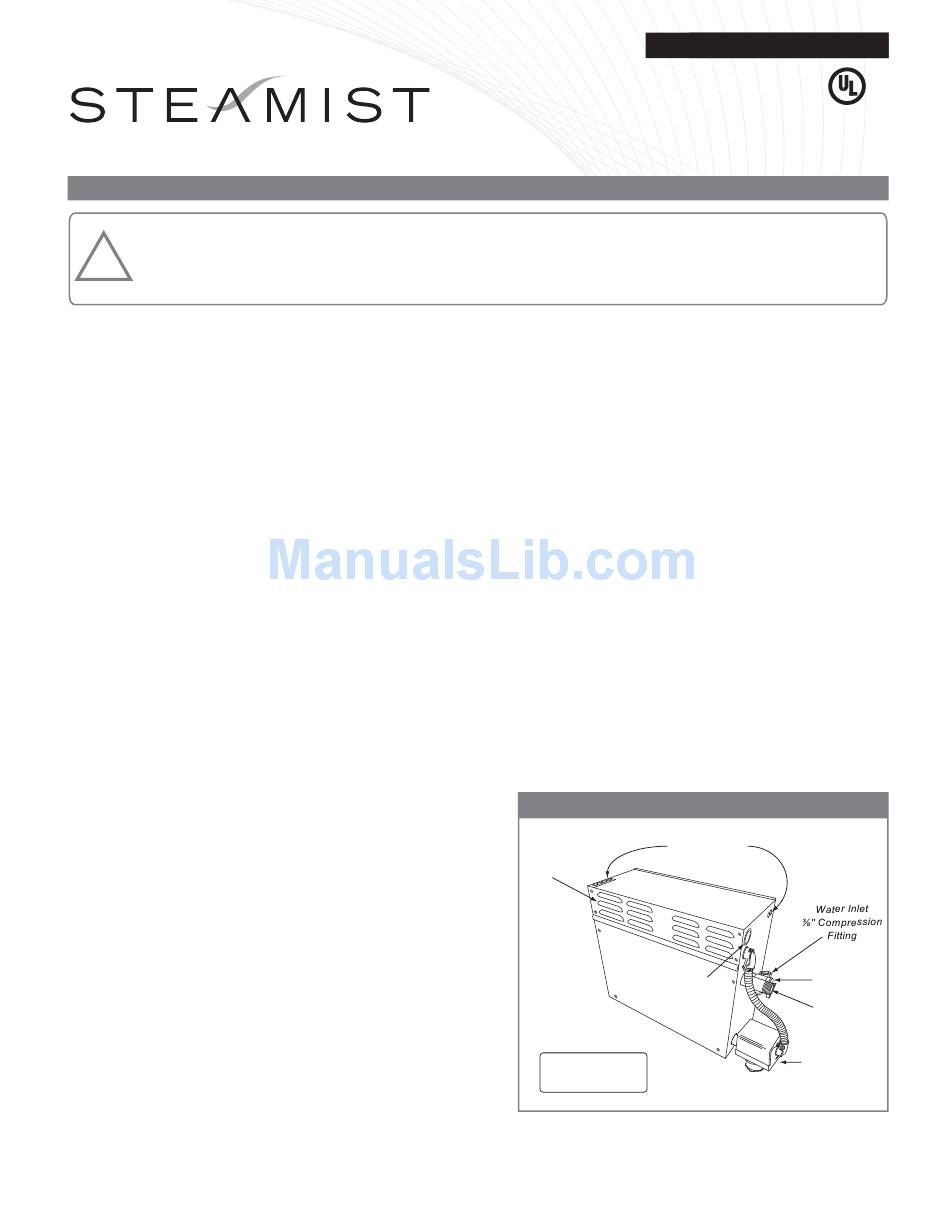

Figure 1 - Steam Generator
Electrical
Panel Cover
Install Upright
and Level
- 1 -
Plumbing Installation Instructions
Model: SM-11
Knockouts for
Control Cable
Knockouts for
Relief Valve
Electrical
Supply Line
Optional Auto
Drain Installed
Model SM-900
Pub. No. 326-R
C US
®
¾" Safety
¾" Steam
Outlet
