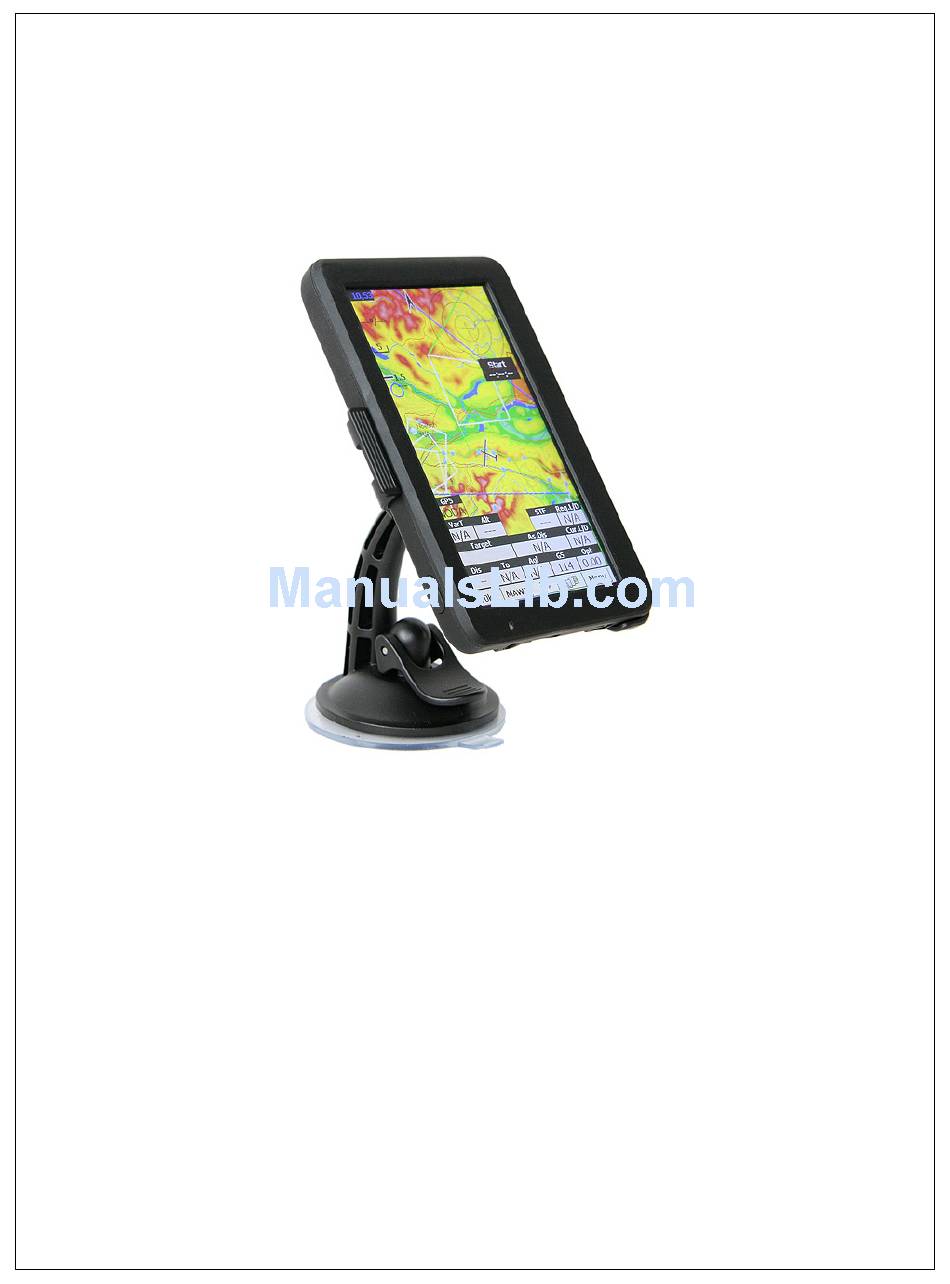

  • Page 1 Manual for Oudie 2 and Oudie IGC version 6.0 Last modified 27.11.2014 © 2003 - 2014 ... Naviter d.o.o.

  • Page 2: Table Of Contents

    ................................30 Task ................................31 2 Glider position ........................... 31 3 Arrow towards the North ........................... 31 4 Wind vector ........................... 32 5 Glideslope indicator ........................... 32 6 Speed to Fly indicator ........................... 32 © 2003 - 2014 ... Naviter d.o.o.
  • Page 3 ........................... 49 13 Exit ........................... 50 14 Team ........................... 50 15 Save Settings ........................... 50 16 Flarm points ........................... 50 17 Switch Profile ........................... 51 18 ConnectMe ........................... 51 19 Logbook ........................... 51 © 2003 - 2014 ... Naviter d.o.o.
  • Page 4 21 Miscellaneous (Misc) ........................... 68 22 Hardware ........................... 68 Term inal ................................69 23 LX1600 ........................... 69 24 Vario ........................... 71 25 Oudie Live ........................... 71 Part IX Windows Mobile tips and tricks Index © 2003 - 2014 ... Naviter d.o.o.
  • Page 5 Part...

  • Page 6: Part I Introduction

    Naviter is a Slovenian based software company. We focus on highly featured and easy to use software for glider pilots. The needs of glider pilots worldwide are what we are interested in.

  • Page 7: Registering Seeyou Mobile

    To be able to use SeeYou Mobile without interruption you should register SeeYou Mobile. A registration key can be purchased online (http://www.naviter.com) or through our distributors worldwide. The registration key allows you to install any upgrades free within the specified period. After this time, you can still use SeeYou Mobile without limitations.
  • Page 8 Part...

  • Page 9: Part Ii Getting Started

    To remove SeeYou Mobile from your device, you should go to Start > Settings > System > Remove Programs. Select Naviter SeeYou Mobile and press the Remove button. It will remove the program files, registry settings, terrain, airspace and waypoint files while recorded flights will remain on your device.

  • Page 10: Running Seeyou Mobile For The First Time

    Settings > Commands The default actions for hardware buttons are . Up = Previous waypoint . Down = Next waypoint . Left = Previous page . Right = Next page . Calendar = MacCready down © 2003 - 2014 ... Naviter d.o.o.

  • Page 11: Copying Files To Seeyou Mobile

    This is the same procedure as in the other Map views in SeeYou. Fourth page shows progress in transferring or saving files. Once the transfer has completed successfully, you may close Mobile wizard with the Finish button. © 2003 - 2014 ... Naviter d.o.o.

  • Page 12: Learning To Use Seeyou Mobile

    SeeYou Mobile at home without even having to buy a Pocket PC before you decide that you would like to use SeeYou Mobile in flight. © 2003 - 2014 ... Naviter d.o.o.

  • Page 13: Connecting To The Gps Source

    Examples for external wired GPS units: LX NAV V7, S80 are fully supported. Cables are available from Naviter or LX NAV. LX Navigation . Cables: LX Navigation supplies cables, mounts and splitters to connect their instruments with PDA. We suggest you use these cables.
  • Page 14 We suggest you make a soft reset before the flight and NOT use the TomTom software during the flight. See also our Support forum Asus GPS Mouse . Connects without setting up anything beyond the default settings. See also: Getting Started © 2003 - 2014 ... Naviter d.o.o.
  • Page 15 Part...

  • Page 16: Part Iii How To

    You have 10 seconds to select a profile. If you do nothing, the profile you used last is loaded. 4. After you have loaded the profile for the first time you will want to set it up © 2003 - 2014 ... Naviter d.o.o.

  • Page 17: Set Takeoff Altitude

    An Oudie 2 without being connected to an external source of pressure data will only use GPS altitude. There is little to nothing you can do with that and this is the reason why such flights are ok to record the joy and excitement about the flight but are insufficient to provide proof or staying outside official airspace regardless if this is in a competition or on a record flight.

  • Page 18: Manage Airspace Warnings

    The altitude difference is negative if you are below horizontally nearest airsapce. It is positive if you are above and "Inside" if you are about to hit the lateral borders of the airspace in © 2003 - 2014 ... Naviter d.o.o.

  • Page 19: Using Thermal Assistant

    MC, yellow is in between. The arrow is pointing towards the maximum of the lift in the previous circle while the length of the arrow is how "strong" the advice is to move your circle elsewhere. The © 2003 - 2014 ... Naviter d.o.o.

  • Page 20: Entering The Task

    Tutorial will focus on entering the demo task. The default one in the evaluation version of SeeYou Mobile. The task will become a 500km FAI triangle in the south-eastern © 2003 - 2014 ... Naviter d.o.o.
  • Page 21 "Corvara". Press OK. Repeat this procedure until all waypoints including the finish are entered: If your default Observation Zone settings in Menu > Settings > Task > Observation Zone > Type > Start/ © 2003 - 2014 ... Naviter d.o.o.
  • Page 22 Start from the main screen and select Menu > Next > Save Settings > tick the "Save profile" and "Save waypoints and tasks" checkboxes (if they are both enabled), then tap "Yes". "Save Settings" button is a new addition to SeeYou Mobile 3.1 and later. It may be positioned elsewhere © 2003 - 2014 ... Naviter d.o.o.

  • Page 23: Flying Badge, Record And Racing Tasks

    The nice part is that it is insensitive to the MC setting, glider polar, wind calculation, setting for bugs and ballast. All of them can be wrong when you try to math © 2003 - 2014 ... Naviter d.o.o.

  • Page 24: Flying Assigned Area Tasks

    If you have a rough idea about what you are going to do, go to Menu > Task >Tools > Map or tap on the screen and select the Task tab © 2003 - 2014 ... Naviter d.o.o.
  • Page 25 You are on glide slope when Current L/D is higher than Required L/D. The calculation already includes reserve altitude. The nice part is that it is insensitive to the MC setting, glider © 2003 - 2014 ... Naviter d.o.o.

  • Page 26: Flying With The Fai Triangle Assistant

    The only difference is that the second point you turn represents the first point from the above example and the third one is the final one from which you fly home. © 2003 - 2014 ... Naviter d.o.o.

  • Page 27: Flarm Radar

    SeeYou Mobile is able to read the output from Flarm devices and present a radar-like system which displays other Flarms with correct visibility/privacy settings in vicinity. Flarms that have privacy enabled are hidden. The screen may look like this: © 2003 - 2014 ... Naviter d.o.o.
  • Page 28 Additionally when you exit SeeYou Mobile these friendly names will be stored on your PDA for the future. It is a simple text file, so feel free to share it with friends. Further customization is possible through Settings > Flarm dialog See also: Getting Started Settings > Flarm © 2003 - 2014 ... Naviter d.o.o.

  • Page 29: Use Vario In Oudie Igc

    Once you have installed the Oudie Live app please follow the instructions on the smartphone to pair the two devices. If you wish to replay the tutorial on the phone press the "?" button at the top of the screen. Here it is: © 2003 - 2014 ... Naviter d.o.o.
  • Page 30 SeeYou Mobile As simple as that. © 2003 - 2014 ... Naviter d.o.o.
  • Page 31 Part...

  • Page 32: Part Iv Map Page

    Zoom levels, details of the map and its own Navboxes. This is useful because you can switch from an overview map. Overview of the most important features of the Map view: © 2003 - 2014 ... Naviter d.o.o.

  • Page 33: Cursor Info

    You will get a list of points sorted on distance (+-15 degrees from the direction of the drag) Columns are sortable in the Goto dialog. Click on the column header to sort ascending or descending on © 2003 - 2014 ... Naviter d.o.o.

  • Page 34: Flarm

    Always, Today, 5 minutes or turning them back on with the Activate button. By turning on the Show all checkbox all airspace from the airspace file is listed. This helps you turn © 2003 - 2014 ... Naviter d.o.o.

  • Page 35: Task

    When panning the map freely, the arrow gets a caption "Pan mode". Tapping once on this symbol returns the view back to the glider and original map orientation. See also: Map orientation © 2003 - 2014 ... Naviter d.o.o.

  • Page 36: Wind Vector

    SeeYou Mobile uses the CIT maps to display terrain and topographic features. These are the same maps also used in the desktop version of SeeYou. Map preferences can be setup through the Setup Map dialog © 2003 - 2014 ... Naviter d.o.o.

  • Page 37: Flight Trace

    , you can control the speed and position of the airplane symbol by jumping around the replayed IGC file. Tap on the animation rate box in the upper right corner of the Map page to © 2003 - 2014 ... Naviter d.o.o.

  • Page 38: Task Bar

    What it does is it adds 5 more shortcut buttons available in addition to all the hardware buttons on the PDA device. You can setup what each of the buttons in the Menu does through the Settings > Commands dialog. Change the actions for Toolbtn1 through Toolbtn5. © 2003 - 2014 ... Naviter d.o.o.
  • Page 39 Part...

  • Page 40: Part V Information Page

    Position panel shows present position, local date and time and Team code if setup. Altitude panel shows Altitude QNH, Flight Level altitude and Height over ground Sunrise and Sunset panel shows local sunrise and sunset (UTC Offset must be set correctly). © 2003 - 2014 ... Naviter d.o.o.
  • Page 41 Part...

  • Page 42: Part Vi Statistics Page

    Distance is the same as Optimized distance in the "Opt" navbox. Task statistics gives averages achieved since the start of the Declared task Last 60 minutes statistics gives averages achieved on the Declared task or the Optimized task in the last hour. © 2003 - 2014 ... Naviter d.o.o.
  • Page 43 Part...

  • Page 44: Part Vii Menu

    Settings dialog where all of the preferences of SeeYou Mobile can be setup. Note that some settings like Map and Navboxes are separate for Map 1 and Map 2 views while others like © 2003 - 2014 ... Naviter d.o.o.

  • Page 45: Display Options

    You are first taken to a Map window with a white notification at the top. Click anyhwere to add a waypoint at that location. Or click on the notification to add a waypoint at your current location. © 2003 - 2014 ... Naviter d.o.o.

  • Page 46: Zoom

    . Groundspeed difference when groundspeed and track are received from the GPS . Combination of Groundspeed and straight flight when true air speed is received from the instrument. In this case, the wind is updated in straight flight as well. © 2003 - 2014 ... Naviter d.o.o.

  • Page 47: Mccready & Altitude

    Vario volume. Such instruments are LX 1600 and Cambridge 302. Vario mute This functionality is only available on Oudie IGC. If you untick this box the Oudie will give you an uncompensated vario sound. Great for when all other instruments have failed. © 2003 - 2014 ... Naviter d.o.o.

  • Page 48: Goto

    Pressing the Details button will open a new window where you can read waypoint details and edit waypoint properties. It will close automatically after 10 seconds or when you press the OK/Goto button. © 2003 - 2014 ... Naviter d.o.o.

  • Page 49: Details Overview

    ">>" button once. Use the ++, +, - and -- buttons to change values quickly and without the use of the keyboard. See also: Goto dialog Details overview Edit Waypoint Waypoint filter © 2003 - 2014 ... Naviter d.o.o.

  • Page 50: Waypoint Filter

    Details overview Edit Waypoint Waypoint filter 7.11 Task The task dialog allows you to edit and enter the task in list view. There is a shortcut to this dialog in the Command bar. © 2003 - 2014 ... Naviter d.o.o.

  • Page 51: List Edit

    . Cancel to discard any changes . Edit to Edit point , Delete point, Insert point, Invert task, Copy task , Delete task or setup Task Options List to change to graphical view. © 2003 - 2014 ... Naviter d.o.o.

  • Page 52: Edit Point

    You can name a task. This is particularly useful at a competition briefing where you can name it Task A and Task B. Task time is essential for flying the Assigned Area tasks. It is used to calculate required speed to finish © 2003 - 2014 ... Naviter d.o.o.

  • Page 53: Upload Task Declaration

    7.12 About Through the About dialog you can enter the registration key. It will then display your serial number and the date until you can upgrade SeeYou Mobile free. Upgrades are available through http://www.naviter. © 2003 - 2014 ... Naviter d.o.o.

  • Page 54: Exit

    SeeYou Mobile. 7.16 Flarm points Shows a list of currently visible Flarm targets. You can choose one to navigate to by pressing Goto or edit the properties of that point by choosing Edit. © 2003 - 2014 ... Naviter d.o.o.

  • Page 55: Switch Profile

    To see statistic from your flight go to Menu > Next > Logbook > select flight >Tools > Statistic. If you wish you can replay your flight as well directly from Logbook: Menu > Next > Logbook > select flight >Tools > Replay flight © 2003 - 2014 ... Naviter d.o.o.
  • Page 56 Part VIII...

  • Page 57: Part Viii Settings

    100m apart. With the setting at High, you get exactly what you are used to in the desktop SeeYou version. We recommend using Medium setting for the older 200MHz processors while the new 400MHz processors are fine with the setting at High. Scheme © 2003 - 2014 ... Naviter d.o.o.

  • Page 58: Scheme Properties

    Combo box Hide airspace above enables you to exclude airspace with lower limit higher than the height you select to show on the map screen. This helps declutter the screen in complex airspace. © 2003 - 2014 ... Naviter d.o.o.

  • Page 59: Waypoints (Wpts)

    Length in minutes. If Show vario check box is checked, then the flight track is colored with vario readings. If Show track checkbox is not checked, then the trace will not be drawn. © 2003 - 2014 ... Naviter d.o.o.

  • Page 60: Olc & Fai Area

    Observation zone properties are setup with the same philosophy as in SeeYou. You can setup Fill and Color properties for the display of the observation zone on the Map page. You can separately design the Line only, Direction, Angle12, Radius1, Angle1, Radius2, Angle2 © 2003 - 2014 ... Naviter d.o.o.

  • Page 61: Navboxes

    . GPS Status (GPS) = It displays the status of the GPS signal. It can be either NODATA, BAD, OK, 2D, 3D/x . Battery info (Bat) = Displays battery status. It can be either Full, Chrg (Charging), Ext (External) or a © 2003 - 2014 ... Naviter d.o.o.
  • Page 62 . Current wind (Wind) = Current wind measurment . Current wind component (cWind) = Wind component in current direction of the flight. Positive values are tailwind, negative values are headwind. Two numbers are displayed. First number is difference © 2003 - 2014 ... Naviter d.o.o.
  • Page 63 . Engine running will reset optimization when "engine" is stopped. Tap on the navbox changes the state of the "engine" . Sideview When Select multiple is checked you can tap on a single navbox to select it and keep selected the ones © 2003 - 2014 ... Naviter d.o.o.

  • Page 64: Edit

    0 to 100 % in 10 % step. Text Outline property could be used for Navbox text or by default with tap on Value only button. © 2003 - 2014 ... Naviter d.o.o.

  • Page 65: Symbols

    There is three types of warnings in SeeYou Mobile 1. Airspace warnings 2. Altitude warnings 3. Flarm warnings Airspace Warning is activated by two triggers. First warning is when the projected point of the flight is © 2003 - 2014 ... Naviter d.o.o.

  • Page 66: Thermal

    500 m Thermal Assistant is deactivated. Thermal Assistant could be completely disabled with Use thermal assistant checkbox. See also: Getting started - Thermal Assistant Menu (with a shortcut to show the Thermal Assistant regardless of the variables) © 2003 - 2014 ... Naviter d.o.o.

  • Page 67: Polar

    Set to imperial sets up ml, ft, mph, kts, mph, inHg, lb/ft2, DDMMSS Set to British sets up km, kts, km/h, lb/ft2, inHg, °F, ft, lbs, DDMMSS 8.13 Fonts The fonts dialog allows you to change preferences of the fonts in Oudie 3. © 2003 - 2014 ... Naviter d.o.o.

  • Page 68: Input

    Serial You will need the Serial input to be checked to fly. On the Oudie 2 you are expected to choose the COM 1 to use internal GPS or COM 4 or Bluetooth if you are connecting to an external source.

  • Page 69: Port Settings

    RTS = Request To Send. This option should normally be unchecked Oudie 2: Use COM 1 for internal GPS, COM 4 for external GPS and pressure data. Use the Bluetooth button on the previous page to setup a Bluetooth input.

  • Page 70: Log

    0 = default orientation (Portrait on PDA, landscape on PNA) 90 = 90 degrees clock-wise from the default orientation 180 = upside down from the portrait orientation 270 = 90 degrees anti-clockwise from the default orientation © 2003 - 2014 ... Naviter d.o.o.

  • Page 71: Flarm

    If you were previously navigating towards the aircraft in question, the Target remains blank after this period. Show Labels: defines whether or not the labels with Friendly name (if entered), altitude and average vario are visible. © 2003 - 2014 ... Naviter d.o.o.

  • Page 72: Miscellaneous (Misc)

    A dialog will pop up in that case to let you know that a device was recognized. MacCready, Ballast, Bugs settings may be sent or received to some devices. Uncheck Receive from © 2003 - 2014 ... Naviter d.o.o.

  • Page 73: Terminal

    Pause button pauses receiving of NMEA data. Stamp will add a timestamp to each NMEA sentence which makes it easier to debug. Save... button will save the log which you would perhaps like to send to support@naviter.com if there is a problem you are debugging.
  • Page 74 . SC Vol allows you to select between noisy (Vol H) and more silent sound (Vol L) in Speed command . Test button allows you to see and hear what you have setup. You must be positively connected to LX 1600 in order to test its audio settings. © 2003 - 2014 ... Naviter d.o.o.

  • Page 75: Vario

    Please make sure to read the "How to connect Oudie to Internet" chapter first. Once you have paired your Oudie with your smartphone you can setup the available services such as SeeYou Cloud, LiveTrack24 and more to come. © 2003 - 2014 ... Naviter d.o.o.
  • Page 76 Part...

  • Page 77: Part Ix Windows Mobile Tips And Tricks

    SeeYou Mobile, so Tap and Hold is normally used to perform special tasks on the map. An example is moving the Nav-boxes or accessing the Flight parameters by tapping and holding the Glideslope indicator. Similar use is assigned to tapping and holding the Wind and North indicators. © 2003 - 2014 ... Naviter d.o.o.

  • Page 78: Index

    Altitude QNH 32, 53 Altitude reserve collision Always Color 33, 55, 56 Angle1 48, 56 Colorize Angle12 48, 56 Colors 60, 67 Angle2 48, 56 Animation COM port Animation speed COM speed Apply Combination © 2003 - 2014 ... Naviter d.o.o.
  • Page 79 East Up friendly name Edit 45, 48 Edit Point 47, 48 - G - Edit Waypoint Elev Elevation Garmin Enter the task 19, 20 Getting Started 5, 15 Entering the task glide slope Glider © 2003 - 2014 ... Naviter d.o.o.
  • Page 80 - L - Mobile Wizard move multi LabelOne multiple LabelTwo multiple files Lake Landable 44, 46 - N - Languages last 60 minutes Navbox 33, 57 layers Navboxes 6, 19, 20, 28, 57 Leg Sp. © 2003 - 2014 ... Naviter d.o.o.
  • Page 81 Port settings 9, 64, 65, 69 position 31, 36 Save Position drift Save As Prev Scheme Printtechnik SDI Posigraph profile 12, 68 Second Edition Profiles sector proximity SeeYou SeeYou Mobile SeeYou Mobile Simulator © 2003 - 2014 ... Naviter d.o.o.
  • Page 82 6, 29, 31, 46, 49 - U - Task arrival altitude Task arrival time task bar 34, 66 Task declaration Uninstall Task Delta time units Task established time Upgrades Task options Upload Task remaining distance Upload Task © 2003 - 2014 ... Naviter d.o.o.
  • Page 83 Windows CE 3.0 Windows Mobile 2003 Windows Mobile 5.0 Windows Mobile 6.0 Wing loading Wpts - X - X-Scale ARM - Y - yellow 33, 44 - Z - Zoom 6, 42, 47 © 2003 - 2014 ... Naviter d.o.o.
