Summary of Contents for Eibmarkt EIB/KNX

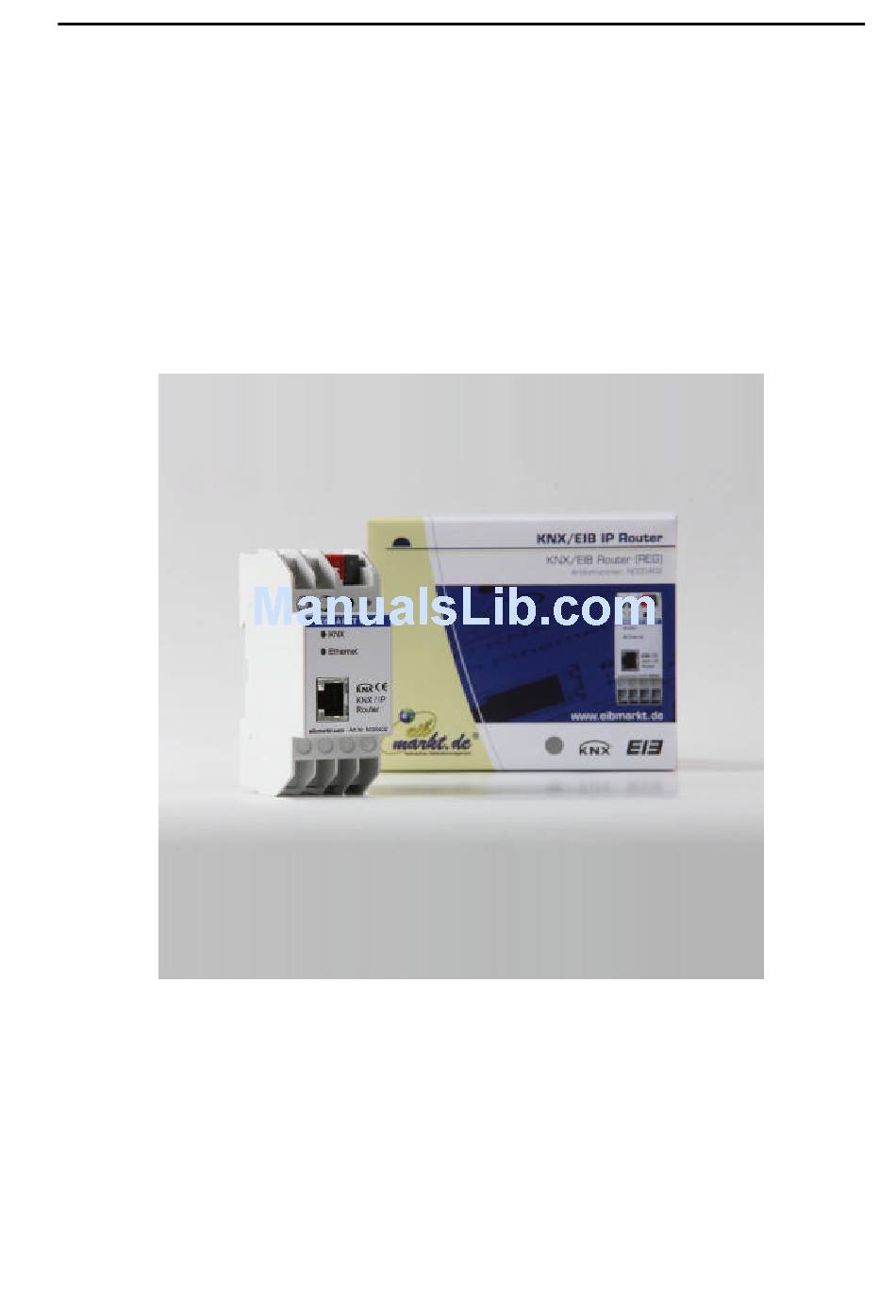

- Page 1 © 1997 – 2010 EIBMARKT GmbH EIB/KNX IP Router mit Power over Ethernet (PoE) IP-Router / Interface between LAN and EIB/KNX bus (Quelle: © EIBMARKT GmbH, Reference no.: N000402) Page 1...
- Page 2 RS232 or USB interface. It has an external 12 V to 24 V power supply or can alternatively be powered via Power-over-Ethernet (IEEE 802.3af). The EIB/KNX IP Router has a filter table and is able to buffer up to 150 telegrams. Page 2...
- Page 3 © 1997 – 2010 EIBMARKT GmbH Note: The Power over Ethernet supply is standardized acc. to Standard PoE (IEEE 802.3af) and integrated via RJ45. We can recommend a PoE Ethernet Switch from Netgear, e.g. FS108P. The device disposes of 8 ports, four of which are equipped with Power over Ethernet (IEEE802.3af, 48 VDC).
-
Page 4: Technical Data
© 1997 – 2010 EIBMARKT GmbH Technical data Electrical safety • Protection (EN 60529): IP 20 • Safety extra low voltage SELV DC 24 V EMC requirements • Complies with EN 61000-6-2, EN 61000-6-3 and EN 50090-2-2 Environmental requirements • Ambient temp. operating: - 5 ... + 45 °C •... - Page 5 © 1997 – 2010 EIBMARKT GmbH Operating and installation manual Coupler function (KNXnet/IP routing) The EIB/KNX IP Router can operate as a line and/or backbone coupler. In both cases, the LAN (IP) acts as a backbone KNX IP Router as a line coupler...
- Page 6 © 1997 – 2010 EIBMARKT GmbH KNX IP Router as a backbone coupler Page 6...
- Page 7 Attention: If the EIB/KNX IP Router is used as a backbone coupler (x.0.0), there must be no KNX IP Router in the topology beneath it. For example, if a KNX IP Router has the physical address of 1.0.0, there must be no KNX IP Router with the address 1.1.0.
- Page 8 © 1997 – 2010 EIBMARKT GmbH If the EIB/KNX IP Router is used as a line coupler (x.y.0), there must be no KNX IP Router in the topology above it. For example, if a KNX IP Router has the physical address of 1.1.0, there must be no KNX IP Router with the address 1.0.0.
- Page 9 © 1997 – 2010 EIBMARKT GmbH Support of unparameterized interfaces: An interface can be used with a physical address that does not fit into the line topology (e.g. for putting the device into operation). Parameters: disable, enable Monitoring bus voltage failure: If a KNX/EIB failure is detected, it is reported on the IP.
- Page 10 IP address of the PC: 192.168.1.30 Subnet of the PC: 255.255.255.0 The EIB/KNX IP Router is located in the same local LAN, i.e. it uses the same subnet. The subnet constrains the IP addresses that can be assigned. In this example, the IP address of the IP router must be 192.168.1.xx, where xx can be a number from 1 to 254 (with the...
- Page 11 © 1997 – 2010 EIBMARKT GmbH Routing (KNX -> IP) Group telegrams (main group 0 to 13): Block: No group telegrams of this main group are routed to IP. Route: All group telegrams of this main group are routed to IP independent of the filter table.
- Page 12 © 1997 – 2010 EIBMARKT GmbH Filter: The physical address is used to check whether the received physically addressed telegram should be routed to IP. Broadcast telegrams: Block: No received broadcast telegrams are routed to IP. Route: All received broadcast telegrams are routed to IP.
- Page 13 © 1997 – 2010 EIBMARKT GmbH Routing (IP -> KNX) Group telegrams (main groups 0 to 13): Block: No group telegrams of these main groups are routed to KNX/EIB. Route: All group telegrams of this main group are routed to KNX/EIBG independent of the filter table.
- Page 14 Enable: The received broadcast telegram is resent up to three times in case of a fault. ETS Connection Manager If the IP configuration of the EIB/KNX IP Router is valid, the router can be used as an interface to KNX/EIB. To use this function, select the Communication tab under Extras ->...
- Page 15 KNXnet/IP devices. All devices found are displayed. Select the required device. To be able to access KNX/EIB, the EIB/KNX IP Router requires an additional physical address. This second physical address is only used for bus access and must be set up separately: Select the Communication tab under Extras ->...
- Page 16 © 1997 – 2010 EIBMARKT GmbH Installation and connection The EIB/KNX IP Router is designed for installation in a rack with a depth of 2 units. It contains the following display and control elements: 1: Connector for external power supply...
