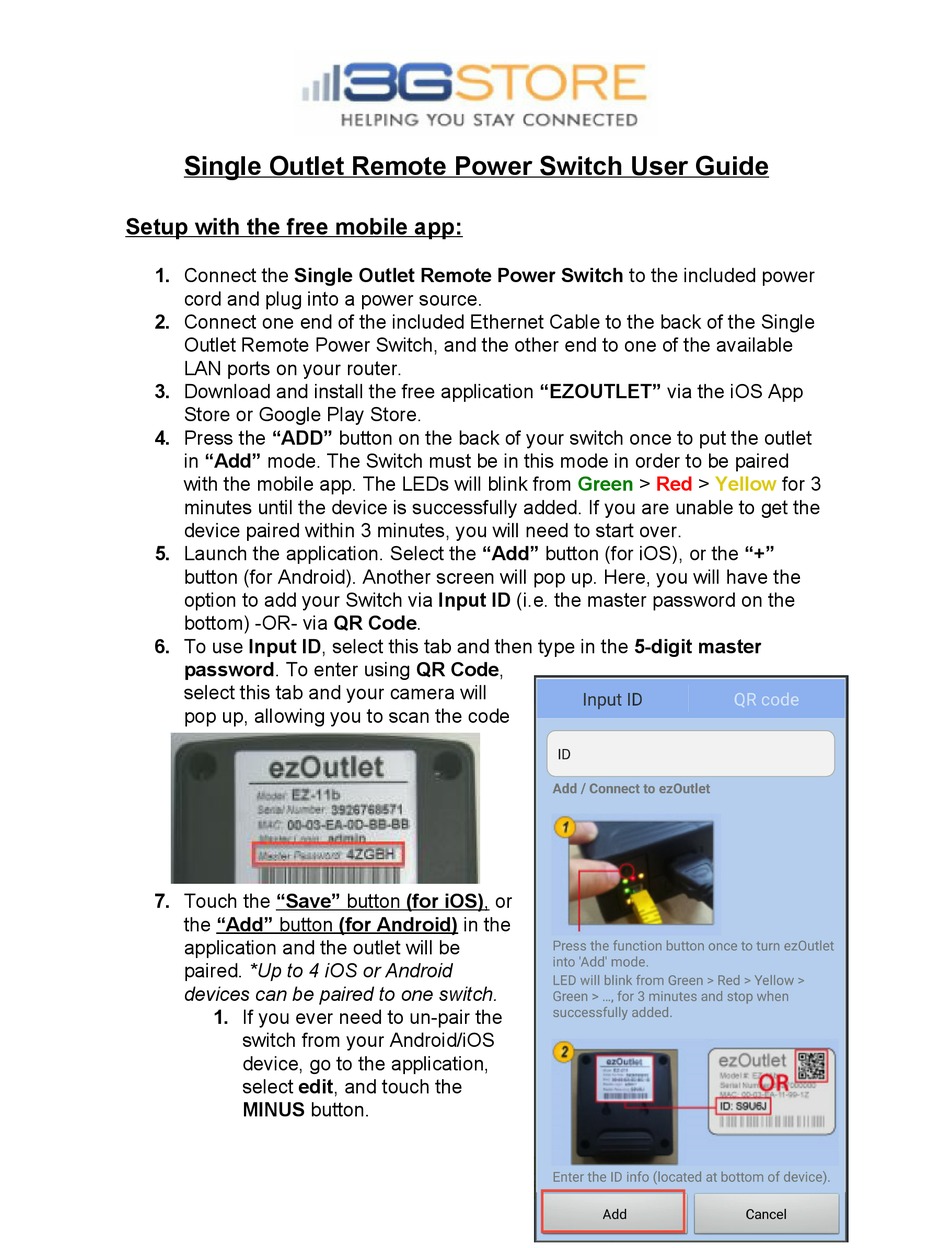

Single Outlet Remote Power Switch User Guide
Setup with the free mobile app:

1. Connect the ​ S ingle Outlet Remote Power Switch​   to the included power
cord and plug into a power source.
2. Connect one end of the included Ethernet Cable to the back of the Single
Outlet Remote Power Switch, and the other end to one of the available
LAN ports on your router.
3. Download and install the free application ​ " EZOUTLET"​   via the iOS App
Store or Google Play Store.
4. Press the ​ " ADD"​   button on the back of your switch once to put the outlet
in ​ " Add"​   mode. The Switch must be in this mode in order to be paired
with the mobile app. The LEDs will blink from ​
minutes until the device is successfully added. If you are unable to get the
device paired within 3 minutes, you will need to start over.
5. Launch the application. Select the ​ " Add"​   button (for iOS), or the ​ " +"
button (for Android). Another screen will pop up. Here, you will have the
option to add your Switch via ​ I nput ID ​ ( i.e. the master password on the
bottom) ­OR­ via ​ Q R Code​ .
6. To use ​ I nput ID​ ,  select this tab and then type in the​   5­digit master
password​ .  To enter using ​ Q R Code​ ,
select this tab and your camera will
pop up, allowing you to scan the code



7. Touch the ​ " Save"​   button ​ ( for iOS)​ , ​   or
the ​ " Add"​   button ​ ( for Android)​   in the
application and the outlet will be
paired. ​ * Up to 4 iOS or Android
devices can be paired to one switch.
1. If you ever need to un­pair the
switch from your Android/iOS
device, go to the application,
select ​ e dit​ ,  and touch the
MINUS​   button.

G reen​
  > ​
R ed​





  > ​
Y ellow​
  for 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ez-11b and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mega System Tech ez-11b

  • Page 1   Single Outlet Remote Power Switch User Guide    Setup with the free mobile app:    1. Connect the ​ S ingle Outlet Remote Power Switch​   to the included power  cord and plug into a power source.  2. Connect one end of the included Ethernet Cable to the back of the Single  Outlet Remote Power Switch, and the other end to one of the available  LAN ports on your router.   3. Download and install the free application ​ “ EZOUTLET”​   via the iOS App  Store or Google Play Store.   4. Press the ​ “ ADD”​   button on the back of your switch once to put the outlet  in ​ “ Add”​   mode. The Switch must be in this mode in order to be paired  with the mobile app. The LEDs will blink from ​ G reen​   > ​ R ed​  ...
  • Page 2   2. TO REMOVE ALL APP USERS:​   press and hold the ​ “ ADD”​   button  on the switch ​ f or 15 seconds​ .  The ​ Y ELLOW​   light will flash once,  and the ​ s witch will restart​ .   **​ N OTE: ​ T HIS WILL ALSO DO A FACTORY RESET AND CLEAR  ALL SETTINGS. If you do not want to reset the settings, see ​ p age  7 section 5 ​ f or how to save/restore settings BEFORE the reset.    Software Setup (Windows only):   1. Visit ​ ttp://3Gstore.com/ipswitchupdates  2. Download the ​ U tility software​   (Windows Only) and install on a PC that is  on the same local network as the switch. ...
  • Page 3   current status of the outlet; the number of users paired with the mobile  app, firmware, and hardware versions.   Key Points: *​ S ee screenshot below:  a. Connected​ :  tells you whether the switch is connected to the  Internet  b. Connected/Total (users)​ :  Shows how many users out of 4 (the  user limit) are paired to the switch via the mobile app.  c. Outlet Status​ :  tells you whether the outlet is powered ON or OFF  d. Outlet Control​ :  allows you to manually power the outlet ON or  OFF, as well as RESET  e. Ver​ :  This is the current version   f. ID​ :  The ID number associated with the outlet. This is necessary for  adding the outlet to the EZoutlet mobile app           ...
  • Page 4   2. ‘Settings’ section:​   This section allows you to change the default  configuration: ​ ( see screenshot next page)  a. Hostname:​   give your outlet a unique name  b. DHCP:​   Select ​ ‘ ON’​   to allow the outlet to obtain an IP address from  your router using DHCP  Select ​ ‘ OFF’​   and fields ​ c  thru e​   will open to allow you to manually  assign an IP address, Subnet Mask and Gateway IP  c. IP Address:​   Give your outlet a static IP address ​ * note: unless you  are setting a DHCP reservation on your router, it is best to use an  IP address that is outside the DHCP pool range – this will avoid any  IP conflicts  d.
  • Page 5   l. Reset Only: ​ T his setting allows you to enable the ability to  MANUALLY​   turn ​ O N/OFF​   or ​ R ESET​   the outlet even when the  OUTLET MODE​   is set to ​ A UTO RESET  i. ON: ​ T he Outlet cannot be manually controlled ​ U NLESS​   the  OUTLET MODE​   is set to ​ M ANUAL CONTROL  ii. OFF: ​ T he outlet CAN be manually controlled and will STILL  auto reset when it detects an Internet outage  m. Time Zone: ​ S elect the time zone for the outlet location  **AFTER MAKING CHANGES, SELECT ​...
  • Page 6   3. ‘Schedule’ section:​   ​ T his allows the user to create scheduling rules  to turn the outlet ​ O N, OFF or RESET​   at a certain time on the specified  day(s). When the ‘​ O N’​   box is selected, the outlet will turn on. When the  ‘​ O FF​ ’  box is selected, the outlet will turn off. When ​ ‘ RESET​ ’  is selected,  the outlet will turn the outlet OFF and then back. ​ * Up to 6 schedule rules  can be configured – Time read in 24­hour format  a. Example (see screenshot below):​   User wants to power the outlet  OFF every Sunday at 11pm and power it back ON every Monday at  9am. Then, they also want to RESET every Friday at noon  b. Be sure to select ‘APPLY’ once you’ve configured your  schedule(s).​   Select ‘​ R EVERT’​   to reset all schedule rules   ...
  • Page 7   4. ‘Ping Address’ section:  This section allows you to enter 1  address with the option to HTTP  (TCP) or Ping. Leave the field blank  to ping the predefined IPs. Click    CONFIRM ​ t o apply an IP address.   5. ‘Save/Restore’ section:​   ​ T his is where the user can manually  restart the Switch, reset settings to factory default, save their current  settings, and restore settings from a previously saved file.      Firmware Upgrade/ Factory Reset:  Factory Reset Procedure: ​ P ress and hold the ​ A dd ​ b utton for 15 seconds,  then let go. *This will remove any settings you may have configured, including  the Ping Address, schedules and connected app users.     *NOTE: ​   Firmware can ONLY be done using the iOS/Android application,  while on the local network. Firmware cannot be downgraded or upgraded to  the version of your choice. When upgrading, it will automatically upgrade the  outlet to the most current version of firmware. Upgrading will also factory  reset a majority of the settings. This includes the Ping Address and ...
  • Page 8   Switch’s LAN IP itself), ​ o r manually​   (if for some reason the outlet  CANNOT be found by the app.   5. For AUTO:​   First, select your outlet from the  list. *If you don’t see it appear, click the  ‘Search’ ​ b utton. Once an outlet is selected,  simply click the ​ ‘ Upgrade’ ​ b utton. Upgrade  takes about 1 minute and once finished, you’ll  get an ​ O K ​ b utton letting you know it’s complete    6. For MANUAL: ​ S elect the ​ ‘ Manual’ ​ b utton on  the top right and then enter in the Switch’s LAN  IP. Follow the onscreen instructions to  proceed. The upgrade takes about 1 minute  and once finished, you’ll get an ​ O K ​ b utton  letting you know it’s complete ...
