Summary of Contents for Ultraflex T71FC
- Page 1 Installation and maintenance manual STEERING SYSTEMS T71FC T72FC page 2 pag. 13 page 25 PARTNER (Dr./Dis./Des. n° 26347/a 17/02/2015)
- Page 2 Products for pleasure boats are constantly tested to check their conformity with the 2013/53/EU. "ULTRAFLEX has over 80 years of experience in the marine industry and is a world leader in the production of mechanical, hydraulic and electronic steering systems, control boxes and steering wheels for any kind of pleasure, fishing or commercial boats.
-
Page 3: Table Of Contents
HELM POSITIONING........................8 CONNECTION OF THE CABLE TO THE HELM................8 SECTION 4 - SAFETY WARNINGS SAFETY RULES DURING INSTALLATION AND USE............10 CLOTHING.............................10 SECTION 5 - MAINTENANCE ROUTINE MAINTENANCE.........................11 EXTRAORDINARY MAINTENANCE.....................11 SECTION 6 - DISMANTLING DISMANTLING..........................11 page 3 of 35 T71FC-T72FC STEERING SYSTEMS... -
Page 4: Manual Use And Symbols Used
We recommend training the staff in charge of the product installation and checking their knowledge. STERN The picture aside explains the meaning of some STARBOARD PORT nautical words contained in this manual. page 4 of 35 - T71FC-T72FC STEERING SYSTEMS... -
Page 5: Introduction
We remind you that only marked steering systems must be used on the boats marked . We inform you that the ULTRAFLEX warranty is null if some ULTRAFLEX components are installed on a steering system together with products of other brands. page 5... -
Page 6: Description Of The Product And Warnings For The Correct Use

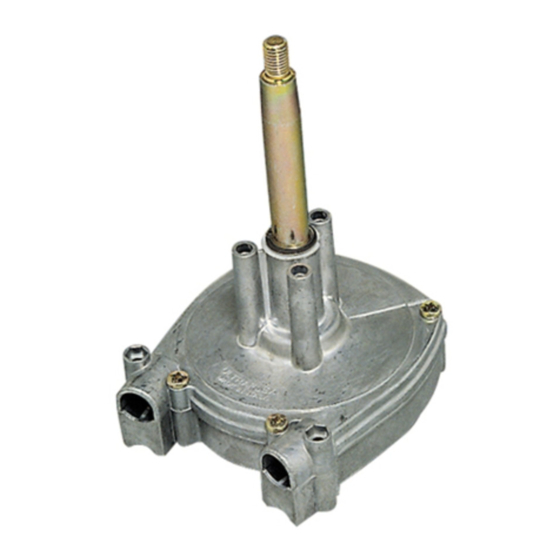

T71FC and T72FC mechanical steering systems are designed to control boats equipped with outboard, inboard or power assisted stern drive engines. Steering system T71FC is used for single cable steering helms, while steering system T72FC is used for dual cable steering helms. Both systems must be used with ULTRAFLEX M66 steering cables. -
Page 7: Section 2 - Transport
1 retrieving pipe 2 screws M6 T72FC T72FC 1 helm 2 retrieving bushings 2 retrieving pipes 2 screws M6 T71FC T72FC CAUTION The packaging must be disposed of according to the existing laws. page 7 of 35 T71FC-T72FC STEERING SYSTEMS... -
Page 8: Section 3 - Installation
10mm [0,39”] 3.2 Helm positioning To install the helm on the boat, please refer to the assembly instructions supplied with ULTRAFLEX X34 and X35 bezel kits. 3.3 Connection of the cable to the helm Determine the correct entry position of the cable into the helm according to the proper steering system. - Page 9 DANGER This control must be carried out before the boat is operated in the water. Make sure the direction of the steering wheel rotation corresponds to the boat direction. page 9 of 35 T71FC-T72FC STEERING SYSTEMS...
-
Page 10: Section 4 - Safety Warnings
4.1 Safety rules during installation and use OBSERVE STRICTLY the following safety rules: ULTRAFLEX declines all responsibility in case the user does not follow these rules and it is not responsible for negligence while using the system. DANGER DO NOT PUT YOUR HANDS BETWEEN MOVING PARTS. -
Page 11: Section 5 - Maintenance
When for any reason, the system is put out of service, it is necessary to follow some rules in order to respect the environment. Conduits, pipelines, plastic or non-metallic components must be disassembled and disposed of separately. page 11 of 35 T71FC-T72FC STEERING SYSTEMS... - Page 12 ULTRAFLEX S.p.A. 16015 Casella (Genova) Italia - Via Crose, 2...
