Summary of Contents for Fujitec MO-1330

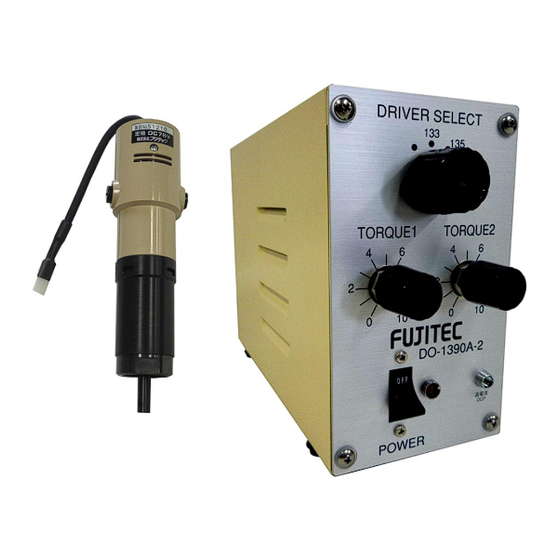

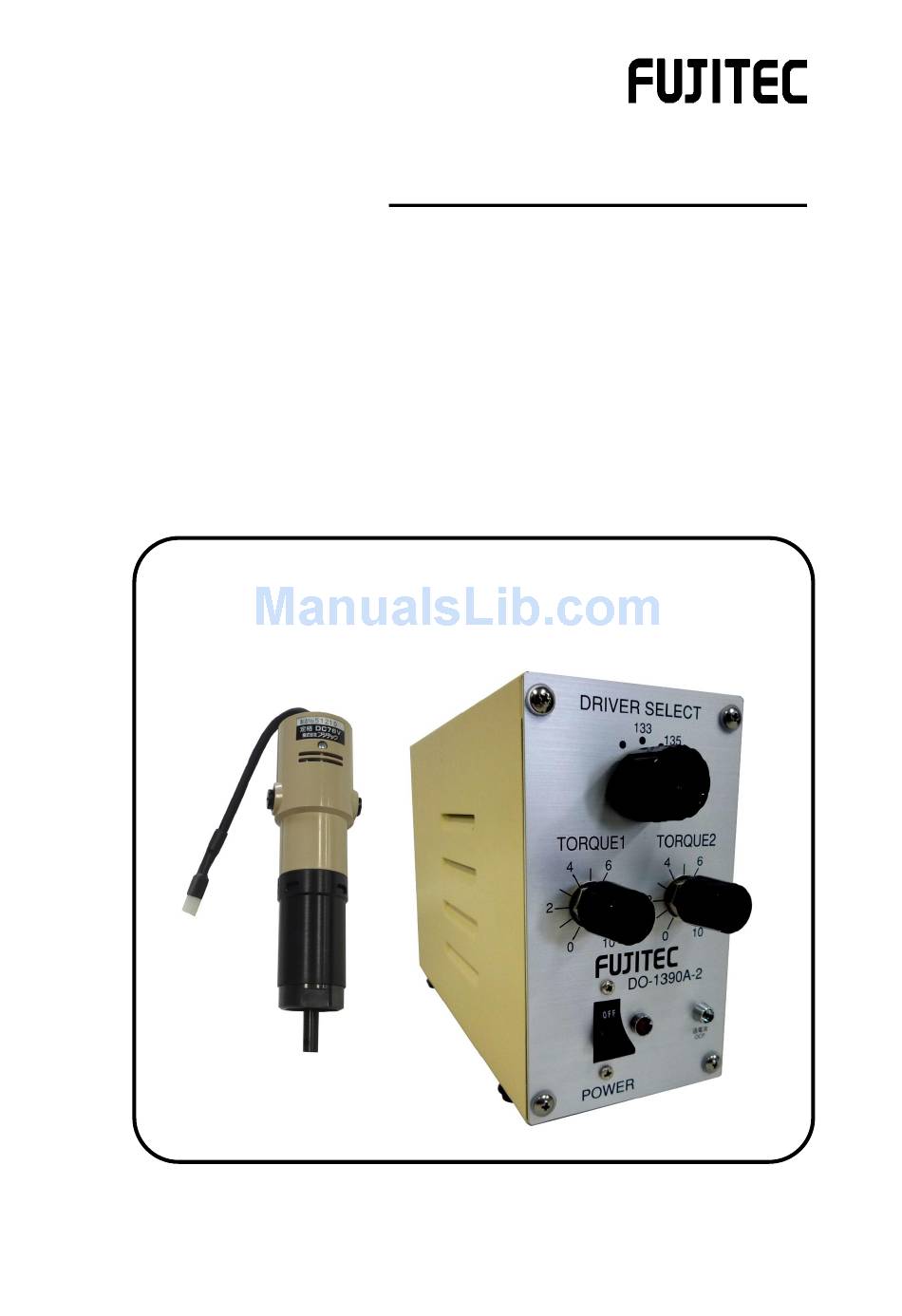

- Page 1 INSTRUCTION MANUAL Electric Screwdriver MO-1330 MO-1350 Controller DO-1390A CO-1390A-2 FUDOC-110630...
-
Page 2: Table Of Contents
Thank you very much for your purchasing. Electric Screwdriver (MO-1330, MO-1350,DO-1390A,DO-1390A-2). Please study this instruction manual for the correct use of the unit and preserve it so that you may refer to it when you come across anything unfamiliar. - CONTENTS －... -
Page 3: １．Parts Identification
１．Parts Identification 1 Screwdriver unit（MO-1330､MO-1350A） Note）※（ ）The size is applied to special type MO-1330. Terminal （CONNECTOR FOR DRIVER） CONNECTOR（OSU） １５４５Ｐ ② Brush Cap （OSU） １３８０ＴＬ Spanner ( opposete 32mm ) ※（φ3H7） φ3.5H7 ④Output shaft ③Holder ※Output axis φ6 Specification ① ①... - Page 4 Controller（DO-13390A）For MO-1330･1350 ⑩Adjustment at motor lock ①Screw driver select switch ⑦Fuse holder ⑥ Metal outlet ②Torque volume ⑤ Overcurrent indicator ⑨ Power ④Power indicator ③Power switch ⑧Metal outlet ①Screwdriver select switch Set to screwdriver model No. ②Torque volume Used to change torque.
-
Page 5: Controller（Do-1390A)
Controller（DO-1390A-2） For MO-1330・1350 ⑫Adjustment at motor lock ⑨Fuse holder ①Screwdriver select switch ⑧ Metal outlet(2p) ⑦Torque switch ②Torque volume1 ③Torque volume2 ⑥Overcurrent indicator lamp ⑤Power indicator ④Power switch ⑩Metal outlet ⑪Power cord ①Screwdriver select switch Set to screwdriver model No. -
Page 6: ２． Precautions For Use
③ Plug screwdriver cord into metal outlet (2P) on the back of controller. 【Caution】Be sure to use exclusive controller. ※DO-1390A,DO-1390A-2 ： 2P metal outlet (For MO-1330・1350) ④ Connect input signal (start signal ) to input/output terminal (metal outlet ,5P ) on the back of controller. -
Page 7: Inspection Before Operation Start Check If That
① Set screwdriver select switch in the front of controller in accordance with model No. of electric screwdriver used. ※MO-1330→133，MO-1350→135（DO-1390A、DO-1390A-2） 【Caution】If screwdriver's model No. does not coincide with the selected No. on the swich, screwdriver may not work or motor may be burned. -
Page 8: Daily Maintenance
5．Maintenance Before starting cleaning, be sure to turn OFF power switch on controller. If the unit is to be disused for an Extended period, keep power cord unplugged. ■Daily maintenance Clean off dust and dirt form the unit with new cloth. If dirt is very heavy, clean it off with cloth moistened by industrial alcohol. -
Page 9: Adjustment
０ ４ ６ ８ ２ １０ （Volume） Product No. Output torque No-load rotational speed （N・m） A※ 130～450 MO-1330 0.73～3.20 B※ 170～640 0.48～2.33 C※ 590～2050 0.16～0.90 D※ 280～1060 0.27～1.55 130～450 MO-1350 1.19～4.80 ※ When X character attaches to the part, the output axis become φ 6h8. - Page 10 6．Motion Timing Chart Star signal Electric screwdriver Complate signal (Contact A) Complate signal (Contact B) 7．Troubleshooting ※If any trouble should occur , perform the following troubleshooting. If the troubleshooting below cannot solve the problem , please consult with your dealer. Imperfect repair not only may affect machine performance but also may result in dangerous accidents.
- Page 11 M4～M5 Applicable Tapping screw 3～4 2.5～4 2～3 2.3～3 3.3～4.5 Weight（ｇ） Lenght（ｍｍ） （including output shaft） Rated input DC23～76V Controllers ※DO-1390A，DO-1390A-2（For MO-1330，1350） Rated input Rated output Weight External dimensions Ambient temperature D L H AC100V DC23～76V 1,000ｇ 0℃～40℃ 50/60Hz 75×185×134mm 【Note】 Electric screwdrivers mentioned in this manual employs a fastening control system which utilizes lock torque obtained when motor is bound.
-
Page 12: ９． Do-1390A 1-Phase,2-Phase Torque-Changing Controller
９．DO-1390A 1-phase , 2- phase Torque-changing Controller 1 Adjustment for Torque ( DO-1390A-2 ) For 2 types of torque , output ( of screwdriver ) to torque volume (of DO-1390A-2 ) are as follows: （Ex Fastening with 2 types of torque） Aptitudes of screw and workpiece Patterns Aptitudes and Notes... -
Page 13: Motion Timing Chart
3 Motion Timing Chart ①Changing torque after the output of fastening complete signal. 5P Metal Outlet 1-5 Start signal Screwdriver Torque 1 (1-2) Torque 2 (1-3) Changing Torque 3P Nylon Connector Complete signal 5P Metal Outlet 2-3 ( contact A ) 5P Mtal Outlet 2-4 Complete signal ( contact B ) -
Page 14: １１．Appendix
１１．Appendix ■ Movement Principle of Electric Screwdriver Controller ( DO-1390A ) ①Block chatr Motor Electric current Detector( Torque detection) Constant-voltage regulated power supply circuit ( torque changeable) Switching circuit Comparat Reference Holding cirucuit Delay cirucuit Complate ②Electric current waveform Ｉ ：Motor starting current ０... - Page 15 ■ Electric screwdriver torque measurement. ①Definition of dynamic / static torque ※Static torque (Theoretical torque ) : means torque generated through motor's electrical energy ( Stall torque of motor ) Type How to measure Torque waverorm Electric screwdriver Torque Input inverter (Max static torque...
- Page 16 ■ Theory of electic screwdriver torque ①Relation between dynamic torque and static torque. Torque generated by screwdeiver varies depending on scwer types ( iron tapping, plastic tapping, Static torque machine screw ) and torque measurement methods Torque checker as shown in the chart on the right. Iron The relationship between these torque values is not board...
- Page 17 Item No. 年 月 日 Dated purchased Dealer TEL: FUJITEC CO ., LTD 1-10-6 Ryoke, Nakaku, Hmamamatsu-city Shizuoka-ken 430-0852, JAPAN TEL : 053-462-3636 FAX : 053-462-1818 Ver.04-100414...
Need help?
Do you have a question about the MO-1330 and is the answer not in the manual?
Questions and answers
how can i get the feedback using the screwdriver and plc when torque is achived
You can get feedback from the Fujitec MO-1330 when torque is achieved by using the "Complete signal" from the 5P Metal Outlet. Specifically:
- Use pin 2-3 (contact A) or 2-4 (contact B) on the 5P Metal Outlet to receive the complete signal.
- Connect this signal to the PLC to detect when the torque has been achieved.
This signal indicates that the fastening process is complete.
