Elfnet D311-180A Installation Instructions

Electromagnetic lock

Advertisement

Quick Links

Model:
D311-180A/B
D311-280A/B

Electromagnetic Lock Specification:

Power supply
Operation current
Door sensor
Operation delay time
Application
Holding forces
Operation temperature
Warranty
Weight

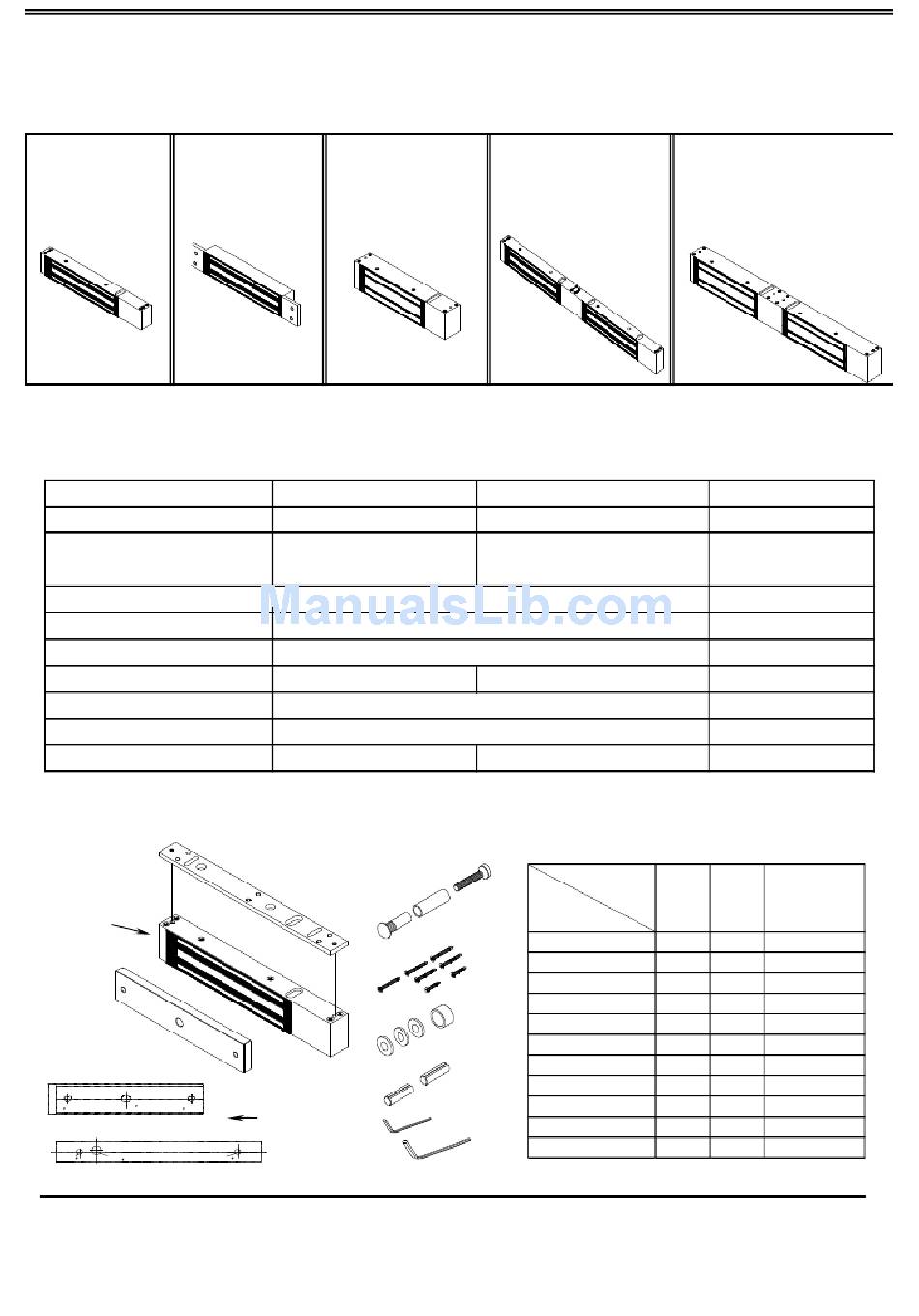

Electromagnetic lock accessories diagram :

Body
A rm a tu re(M i n i)
6.4m m
x 12 .5 m m
8 .0 m m
6.4 m m
x 1 2.5m m
(1 /4 " x
1/2 ")
( 5/16 ")
(1 /4" x
1/2 ")
Magnet(Mini)
3.2mm(1/8")
8mm(5/16")
ELECTROMAGNETIC LOCK
D312-180A/B
D311-280A/B
D312-280A/B
DC 12V /DC 24V
400mA/12VDC
200mA/24VDC
NO
0Sec./3Sec./5Sec./9 Sec.
Out-swing door and In-swing door
180Kg/280Kg/560Kg)
35℃ ± 5℃ (Iinside air temperature 30℃)
The warranty is 2 years for normal using
2kg/5kg
Alignment
sticker
3.2mm(1/8" )
D313-180A/B
D313-280A/B
500mA/12VDC
250mA/24VDC
Accessories:
Model type
Type
Quantity
Sexnut Bolt
Door spacer
Screw 4X25mm
Screw 4X15mm
Screw 5X32mm
Screw 5X25mm
Rubber washer
Washer
Allen keys 3mm
Hexgon keys 5mm
Guide pins
D313-560B
Notations
1
1
6
3
4
2
2
3
1
1
2
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D311-180A and is the answer not in the manual?

Questions and answers

Summary of Contents for Elfnet D311-180A

  • Page 1 ELECTROMAGNETIC LOCK INSTALLATION INSTRUCTIONS Model: D311-180A/B D312-180A/B D311-280A/B D313-180A/B D313-560B D311-280A/B D312-280A/B D313-280A/B Electromagnetic Lock Specification: DC 12V /DC 24V Power supply 400mA/12VDC 500mA/12VDC Operation current 200mA/24VDC 250mA/24VDC Door sensor Operation delay time 0Sec./3Sec./5Sec./9 Sec. Application Out-swing door and In-swing door...
  • Page 2: Installation Instructions

    Installation instructions : When installing magnetic lock user should be sure of the type of door used .Magnetic lock is specifically for the use of out-swing door.A bracket is used to install with magnetic door for in-swing door. Armature “L” Bracket Door Armature Frame...
  • Page 3 Step 4: Select the correct voltage and delay time ※ Voltage Selection Jumper Body Armature Power I nput Power Input — — N. O N. O. N. C. N. C. Primary Standard Blade Stop Door Time Delay Switch 2.5 SEC 0.0 SEC Power 0.0sec...
  • Page 4 Armature “L” Bracket Outdoor Door Armature Frame Screw Pull “Z” Bracket Outdoor Indoor Door leaf “L” Bracket Indoor [Installation diagram for bracket and magnetic lock] Attentions: (1) Regardless the type of door used, the lock must be installed or mounted indoors. (2) The armature must be loose slightly to compensate the door misalignment.

This manual is also suitable for:

D311-180bD312-180aD312-180bD311-280aD311-280bD312-280a ... Show all
