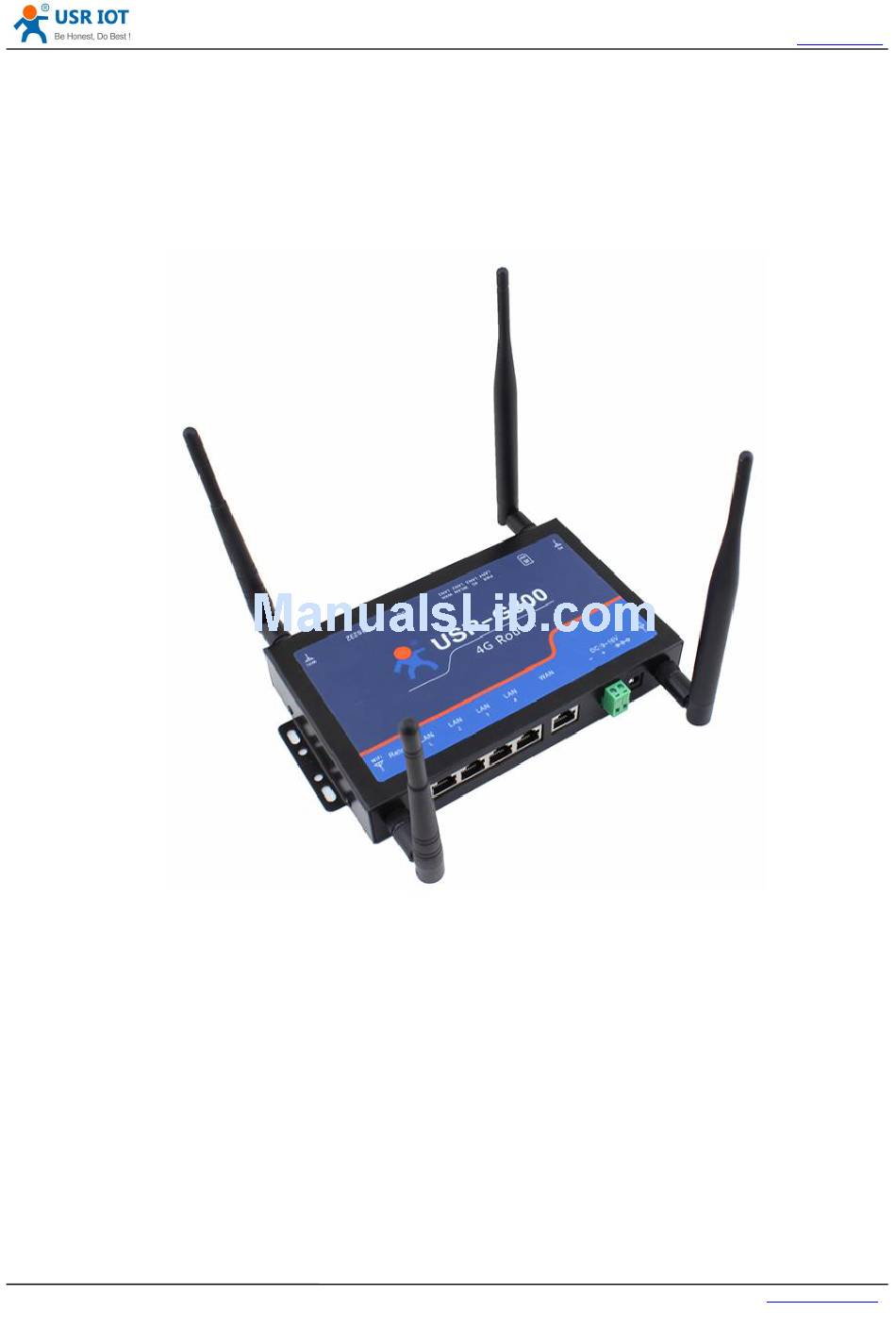

- Page 1 USR-800 User Guide h.usriot.com USR-G800 User Manual File Version: V1.0.3 Jinan USR IOT Technology Limited 1/ 34 www.usriot.com...
-
Page 2: Table Of Contents
3.10.5. Username and Password Setting.................... 26 3.10.6. Reset by webpage........................27 3.10.7. Restart............................27 4. Setting Method..............................28 4.1. Webpage Configuration...........................28 4.2. Webpage Introduction..........................29 4.3. Setup Software............................31 5. Contact.................................. 34 6. Disclaimer................................34 7. Update................................... 34 Jinan USR IOT Technology Limited 2/ 34 www.usriot.com... -
Page 3: Quick Start
1. Quick Start USR-G800 router is used to realize the function of connecting to 4G network for users, while users do not need to concern the details, which can work after simple setting. Parameter setting can be achieved through router built-in web page, permanent stored for once setting. -
Page 4: Network Connection
Hereinafter USR-G800 module as example: Standard power supply is DC 12V Please make connection between PC and G800 (anyone of LAN1-LAN4 is ok) through LAN line. At this time, indicating light of USR-G800’s corresponding LAN interface start to blink. -
Page 5: Data Transmission Test
There are two way to configure the USR-G800 router via web page: ► Through wired cable. Make connection between PC and LAN port of USR-G800. Ensure that you PC IP in the same network segment as USR router. Power on, and then login http://192.168.1.1... - Page 6 Baud Rate: 115200 (Default value of G800 router) Click Open Net Setting Side: Protocol: TCP Client ( G800 work as TCP server, so PC have to be worked as TCP client) Server IP:192.168.1.1 ( G800’s IP address) Server Port: 8899 Click connect, if there is no mistake for the above processes, TCP connection can be built.
-
Page 7: Product Brief Introduction
USR-800 User Guide h.usriot.com 2. Product Brief Introduction USR-G800 is a kind of 4G wireless router, which provides the settlement for user’s device connects to Mobile 4G network. Adopts technical grade high-performance built-in structure of the industry, possesses fairly high applicable advantage for data transmission fields of intelligent furniture, intelligent power grid, personal medical treatment and industrial control. - Page 8 DB9 pin head，RS232 power level RS232 Support transparent transmission from serial to Ethernet Working Temperature -20c~70C temperature Storing temperature -40~75C Moisture Working moisture 10%~90% Storing moisture 5%~90% USR-G800-41 Basic Parameter Product Specification Jinan USR IOT Technology Limited 8/ 34 www.usriot.com...
- Page 9 -20C~70C temperature Storing temperature -40C~75C Moisture Working moisture 10%~90% Storing moisture 5%~90% Note ► USR-G800-42 router, supports Mobile & Unicom 2/3/4G and Telecom 4G networks ► USR-G800-41 router, support Mobile 2/3/4G networks Jinan USR IOT Technology Limited 9/ 34 www.usriot.com...
- Page 10 DC12V 175mA 289mA LAN interface full-speed DC12V 169mA 245mA communication Statistics for G800 at 12V power supply and full-speed working: Average consumption 2.1W, maximum consumption 3.5W. Average current 175mA, maximum current 289mA. Jinan USR IOT Technology Limited 10/ 34 www.usriot.com...
-
Page 11: Hardware Description
Power supply scope DC:9~16V， green，5.08-2 WAN interface Wide area network.10/100Mbps， support Auto MDI/MDIX LAN interface（1~4） Local area network.10/100Mbps， support Auto MDI/MDIX DB9 common port RS232 interface， serial port transforms to ethernet network USB interface Reserved Jinan USR IOT Technology Limited 11/ 34 www.usriot.com... - Page 12 3/4G full frequency antenna, while two-ring usually stands for WIFI antenna. Please pay attention to avoid mistakes, picture as follow: Jinan USR IOT Technology Limited 12/ 34 www.usriot.com...
-
Page 13: Size Description
There are fastening holes for C45 lead rail installing parts in the two sides Length, width and height, 207 * 113 * 35mm (electric source terminal, antenna or antenna seat are not included) Jinan USR IOT Technology Limited 13/ 34 www.usriot.com... -
Page 14: Product Function
This chapter introduces USR-G800’s possessed functions, the below drawing is the module functions’ integral flow diagram. 3.1. Mobile 4G Interface G800 supports all-the-way Mobile 4G communication module interface which can be used to visit outer networks. Jinan USR IOT Technology Limited 14/ 34 www.usriot.com... - Page 15 USR-800 User Guide h.usriot.com Jinan USR IOT Technology Limited 15/ 34 www.usriot.com...
-
Page 16: Lan Interface
<Instruction> Mini-PCIE hardware interface USR-G800-41 inner module (USR-G401t) can only support mobile 2G,3G,4G networks USR-G800-42’s configured module (USR-G402tf) supports Mobile & Unicom 2/3/4G and Telecom 4G networks Protocol should be chosen for DHCP Javascript (default selection) ... -
Page 17: Dhcp Function
LAN interface can obtain IP address automatically. <Instruction> Address of beginning and ending, and address default-lease-time of DHCP pool can be adjusted. DHCP default distributing scope 192.168.1.100 - 192.168.1.250. Default-lease-time is 12 hours 17/ 34 Jinan USR IOT Technology Limited www.usriot.com... -
Page 18: Wan Interface
One wired WAN interface Support DHCP Client and static IP Default IP obtaining mode is DHCP client 3.4. WLAN Network Local wireless local area network. Shown as the below drawing: Jinan USR IOT Technology Limited 18/ 34 www.usriot.com... - Page 19 Default parameter is as below, Default Parameter Value SSID Name USR-G800-XXXX XXXX is MAC address Wireless Password 12345678 Channel Auto Band Width 40MHz Encryption WPA2-PSK Revise SSID in the below position. Jinan USR IOT Technology Limited 19/ 34 www.usriot.com...
-
Page 20: Serial To Ethernet Function
In the below positions, revise if wireless function can be opened, wireless speed mode, channel selection and band width setting. <Instruction> G800 router is one AP itself, other wireless terminal can be connected to WLAN network. Support max 24 wireless STA connection. - Page 21 Support Modbus TCP Band rate, data bit, parity bit and stop bit can be configured Serial port is RS232 interface (TXD, RXD, GND), hardware flow control is not supported Jinan USR IOT Technology Limited 21/ 34 www.usriot.com...
-
Page 22: Serial Port Framing System
Blink slowly with success start; blink quickly with Indicating Light intervals (blink quickly for several times, continue after pause) means connecting with networks; continuously quick blink means having connected to data network and started to communicate. Jinan USR IOT Technology Limited 22/ 34 www.usriot.com... -
Page 23: Firmware Update
Power light will blink all the time 3.9. Firmware Update USR-G800 supports on-line firmware update by webpage Jinan USR IOT Technology Limited 23/ 34 www.usriot.com... -
Page 24: Special Function
► The process of firmware will last 30s-50s, please login the webpage after 30s ► Retention configuration or not can be selected ► No interruption of power supply or pulling out cable during the process of firmware burning 3.10. Special Function 3.10.1. Host Name Function Jinan USR IOT Technology Limited 24/ 34 www.usriot.com... -
Page 25: Network Diagnosing Function
Router can realize domain name resolution inside of the local area network. Set the host computer name which you want to fill, such as “usr-pc-linux”, as host computer name, ip address 192.168.0.9. Then mapping relation from host computer name to IP address can be realized, i.e. local area network domain name resolution. -
Page 26: Ntp Parameter Set
3.10.5. Username and Password Setting Default password can be set, default password is root, user’s name can not be set. This password is mainly used as webpage server’s login password. Jinan USR IOT Technology Limited 26/ 34 www.usriot.com... -
Page 27: Reset By Webpage
Upload backups, means backed-up parameter files can be uploaded into router and coming into force. 3.10.7. Restart Click the button to restart the router. Restarting time is same as router’s power on starting time, completely and successfully start after about 30-40 seconds. Jinan USR IOT Technology Limited 27/ 34 www.usriot.com... -
Page 28: Setting Method
4. Setting Method 4.1. Webpage Configuration For the first time of using USR-G800 module, some configuration is required for this module. PC connects with USR-G800’s LAN interface, or connect to WLAN wireless, then use web to manage page configuration. For default situations, USR-G800’s AP default name is USR-G800-xxxx, IP address and user’s name,... -
Page 29: Webpage Introduction
Tab page in the left side of web page, setting module’s some parameter in details can be realized. Status page Status page mainly shows device’s name information, firmware version, current running state, firewall and routing table display, etc. Network interface page: Jinan USR IOT Technology Limited 29/ 34 www.usriot.com... - Page 30 & DHCP/DNS information settings. Mainly device’s running parameter setting. Serial to Webpage Mainly parameter setting for serial port transforming to network, including working mode, local port, target address, and serial port parameter setting. System page Jinan USR IOT Technology Limited 30/ 34 www.usriot.com...
-
Page 31: Setup Software
System page, is mainly login password, time setting, and firmware update and restart, etc. 4.3. Setup Software Configured setting software USR-G800-SETUP. Setting process is as below ► Double click setting software. Note: PC must be placed under LAN interface ►... - Page 32 (can also input “reboot” in send box to realize long-distance restart). ► Firmware update. Please click the button “Update” in the top right corner, to update module’s firmware, firmware is stored under “Root Directory/Firmware” Jinan USR IOT Technology Limited 32/ 34 www.usriot.com...
- Page 33 USR-800 User Guide h.usriot.com ► Export and Import for parameter configuration files. Export and Import configuration files are under “Root Directory/etc/config” Jinan USR IOT Technology Limited 33/ 34 www.usriot.com...
-
Page 34: Contact
USR-800 User Guide h.usriot.com 5. Contact Company: Jinan USR IOT Technology Limited Address: Floor 11, Building1, No.1166 Xinluo Street, Gaoxin Distric, Jinan, Shandong, China Tel: 86-531-55507297, 86-531-88826739 http://www.usriot.com Web: http://h.usriot.com Support : sales@usr.cn, tec@usr.cn Email: 6. Disclaimer This file never granted any permission of intellectual property right, and never expressed or hinted, or banned to post or other modes to grant any intellectual property right permission.
