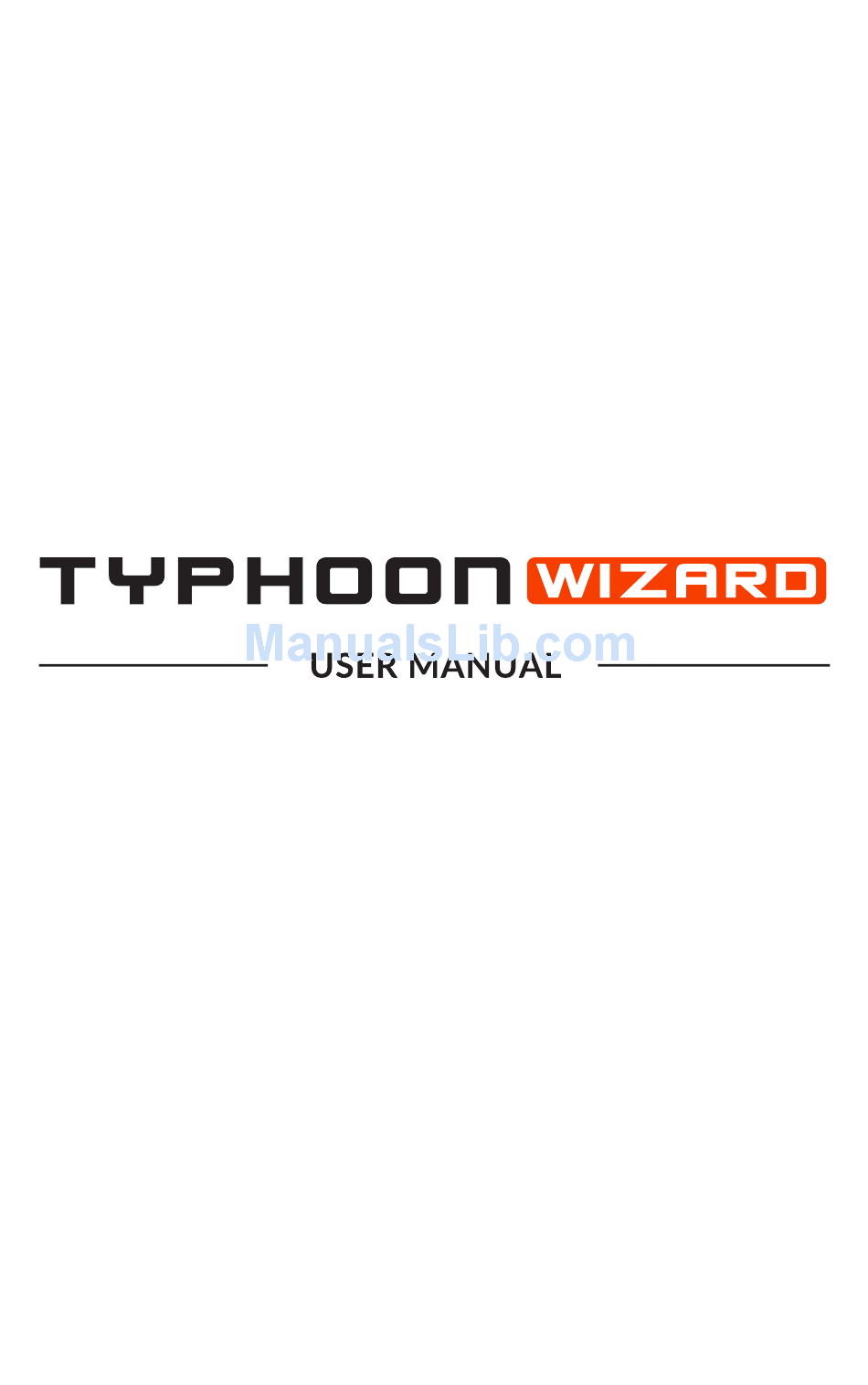

- Page 1 V2.22...
-
Page 3: Specifications
INTRODUCTION The TYPHOON Wizard™ is a mini GPS tracking device that gives you full one-handed flight control over the TYPHOON aircraft. Features such as 'Follow Me' and 'Watch Me' ensure that you are in frame in every shot. The ‘point to fly’... - Page 4 30 seconds. IMPORTANT NOTE: If calibration fails, the top left Aircraft Mode LED will be solid red and the power LED will blink red rapidly. You should turn off the Wizard and repeat the process from Step1. Aircraft Status LED turns to solid pink The “∞“...
-
Page 5: Notices And Warnings
3. Do not use Home Mode when flying near bodies of water. 4. Be sure to turn off the Wizard™ when you do not use it. 5. Be sure to operate the Wizard™ in open areas that are free from people, vehicles and other obstructions. - Page 6 LED blinking red quickly, the Wizard™ vibrating for 2 seconds once continuously NOTICE: When using the Wizard, the landing speed of the aircraft will decrease. The pilot can hold up the wizard and press and hold the [ ] button.
-
Page 7: Battery Warnings And Usage Guidelines
BATTERY WARNINGS AND USAGE GUIDELINES WARNING: Lithium Polymer (LiPo) batteries are significantly more volatile than alkaline, NiCd or NiMH batteries. All instructions and warnings must be followed exactly to prevent property damage and/or serious injury as the mishandling of LiPo batteries can result in fire. By handling, charging or using the included LiPo battery you assume all risks associated with LiPo batteries. - Page 8 • Always ensure correct polarity before connecting batteries, chargers and power supplies. • Always disconnect the battery after charging. • Always terminate all processes if the battery, charger or power supply malfunctions. IMPORTANT NOTE: It’s safer and better for the longevity of the battery to store it only partially charged for any length of time.
-
Page 9: Charging The Batteries
CHARGING THE BATTERIES You can charge the LiPo battery in the TYPHOON Wizard™ by using supplied USB cable and inserting it into the USB port on your computer. Make sure the TYPHOON Wizard™ is OFF and connect cable into open USB port on your computer. - Page 10 STEP 3) When the Typhoon H Main LED Status Indicator starts to blink orange, the aircraft enters binding mode. STEP 4) Press and hold the Power Button of the Wizard until the Aircraft Mode LED glows solid blue. Do not release the Power Button until hearing two beeps from the aircraft, then release it.
-
Page 11: Flight Controls
FLIGHT CONTROLS NOTICE: The safe distance between the TYPHOON Wizard™ and the aircraft is 39 ft (12m). The TYPHOON Wizard™ can be controlled in different positions. Direction Control Buttons function differently according to the positions of the Wizard™. 1) When the TYPHOON Wizard™ is tilted upwards between 50°... - Page 12 The closer the TYPHOON Wizard™ is tilted towards 90°, the closer the aircraft will fly to the pilot (refer to the blue flight track below). When the Wizard™ is tilted at 90°, the aircraft will fly close to you straightly and stop at a safe distance（refer to the black flight track...
- Page 13 WIZARD BUTTON COMBINATION FUNCTIONS *All vibrate once when any of the combination function is activated（ rthe Wizard will vibrate twice when turning on the altitude follow function）. *For the last four functions, press the orange marked button first, and then the green one. Release both buttons at the same time after the function is activated.
-
Page 14: Flight Modes
CAUTION: You can operate the camera on mobile APPs. The APP can be downloaded from Google Play Store or APP Store. You also can use the Wizard™ to take photos or record videos. IMPORTANT NOTE: The ‘Point To Fly’ Function can only be activated in Smart Mode. - Page 15 Angle Mode. The Aircraft Mode LED will be solid purple. In this mode, the aircraft will move in the direction the TYPHOON Wizard™ is controlled relative to the front/nose of the aircraft. The aircraft has no function of Follow Me or Watch Me.
-
Page 16: Camera Controls
NOTICE: When using Go Home function, the speed of the aircraft will descent to 1.57MPH (0.7m/s). The pilot can accelerate the landing speed by holding up the Wizard and pressing and hold the [ ] button. CAMERA CONTROLS... -
Page 17: Fcc Statement
FCC STATEMENT: This equipment has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 18 of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.
- Page 19 If there is no proper calibration, the Point to Fly function won't work even when pressing the magic button, the Wizard™ will vibrate twice as a warning signal(it only vibrates once in the normal condition). Any information above might be changed due to the software update.
