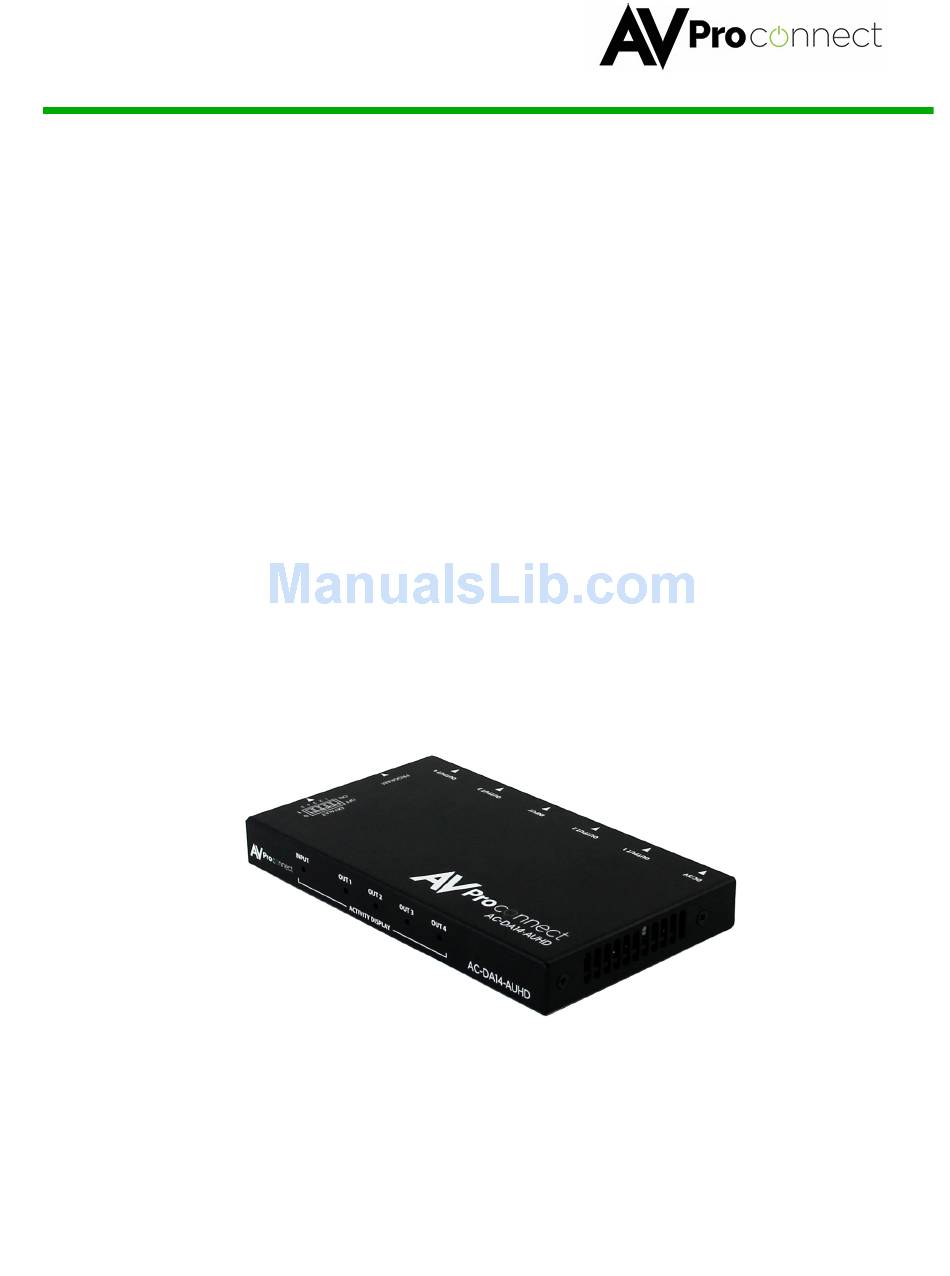

- Page 1 AC-DA14-UHD User Manual AC-DA14-UHD A full 4K60 4:2:0 (Up to 14GBPS) Distribution Amplifier with advanced EDID management *Available in 1x2, 1x4, and 1x8 pg. 1 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
- Page 2 AC-DA14-UHD offers solutions for usage as a component of digital HDMI distributions and entertainment systems also UHDTV/4K retail and general show sites. Use in conjunction with UHDTV, UHD Projector, STB, UHD-BD, UHD Media Player and in environment where noise, space and security are concerns. Fits perfectly in data center control rooms, information distribution premises, conference and presentation rooms, school educational facilities and corporate training environments. pg. 2 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
-
Page 3: Table Of Contents
AC-DA14-UHD Contents HDMI Splitter ........................2 Product Overview ....................... 4 Features ..........................4 Package Contents ........................ 6 Connections and Operations ....................6 Specifications ........................6 Panel Descriptions ......................7-8 Typical Application ........................15 Maintenance ........................11 Product Service ........................12 Mail-In Service ........................12 Warranty ..........................12 Warranty Limits And Exclusions ..................13 pg. 3 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~... -
Page 4: Hdmi Splitter
■ Easy to Use: Install in seconds, no need for setting. Distribution: One HDMI input, four identical HDMI outputs. Supports up to 14GBPS with resolutions of 4K60, 4K30, 1080p, 1080i, 720p and other standard Video formats, PAL and NTSC. Customer can configure EDID function to enable the best compatibility. Supports HDCP2.2 HDMI 2.0(a) w/ HDR. Mounting ears are included for easy fixation on wall, furniture or ceiling. AVProConnect reserves the right to make changes in the hardware, packaging and any Notice accompanying documentation without prior written notice. pg. 4 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~... - Page 5 5. Do not place sources of naked 10. Refer all servicing to flames, such as lighted candles, qualified service on the unit. personnel. pg. 5 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
-
Page 6: Package Contents
Package Contents ■ · Main unit. P/N: AC-DA14-UHD · 5VDC Power Supply. · Operating Instructions. (Digital @ www.avproconnect.com) · Mounting Ears Connections and Operations ■ Connect the HDMI input source into AC-DA14-UHD Connect the HDMI output equipment (Displays) into AC-DA14-UHD Insert the DC side of 5v power supply into AC-DA14-UHD and then connect the AC side of the Power supply into the wall outlet. Plugging in the unit automatically powers up the device. NOTE: Insert / Extract cables gently. & Specifications ■ Operating Temperature Range -5 to +35°C (-41 to +95 °F) Operating Humidity Range 5 to 90 % RH (no condensation) Video Amplifier Bandwidth Up to 18.0 GBPS Input Video Signal 0.5-1.0 volts p-p... -
Page 7: Panel Descriptions
6 Watts (max.) Power Supply 5V DC/2A Dimensions 150mm (W) x 81mm (H) x 25mm (D) Mass 0.5 KGS Panel Descriptions ■ Front Panel Activity Display (Front): When Power is applied all lights flash RED and the machine begins to function. If no devices are plugged in, you can verify power by looking inside the vent on the right side of the unit. When the INPUT device is plugged in, the light blink RED while “handshaking” is occurring, and goes SOLID once communication is complete and signal is good. When a sink (display) is plugged into an OUTPUT, the corresponding light blinks RED until the “handshake” is complete. Once the connection is made the OUTPUT lights will go SOLID (If a sink or display is plugged in). pg. 7 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~... - Page 8 Device cover is labeled for DIP Switch (EDID setting) and ISP mini USB port and for easy HDMI port recognition especially useful when Mounting Ears are used for fixation. & NOTE: DIP Switch EDID setting index on next page. pg. 8 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
- Page 9 10100: 1080P_3D_6CH_HDR 00101: 1080P_3D_6CH 10101: 1080P_3D_8CH_HDR 00110: 1080P_3D_8CH 10110: 4K30Hz_3D_2CH(PCM)_HDR 00111: 4K30Hz_3D_2CH(PCM) 10111: 4K30Hz_3D_6CH_HDR 01000: 4K30Hz_3D_6CH 11000: 4K30Hz_3D_8CH_HDR 01001: 4K30Hz_3D_8CH 11001: 4K60Hz(Y420)_3D_2CH(PCM)_HDR 01010: 4K60Hz(Y420)_3D_2CH(PCM) 11010: 4K60Hz(Y420)_3D_6CH_HDR 01011: 4K60Hz(Y420)_3D_6CH 11011: 4K60Hz(Y420)_3D_8CH_HDR 01100: 4K60Hz(Y420)_3D_8CH 11100: 4K60Hz_3D_2CH(PCM)_HDR 01101: 4K60Hz_3D_2CH(PCM) 11101: 4K60Hz_3D_6CH_HDR 01110: 4K60Hz_3D_6CH 11110: 4K60Hz_3D_8CH_HDR 01111: 4K60Hz_3D_8CH 11111: Cascading Mode (See NOTE 2) EDID Setting Cont. (Notes): pg. 9 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
- Page 10 AC-DA14-UHD is set this way by default for maximum “Plug & Play” Compatibility. If you change sink (Display) plugged into OUTPUT 1, please follow the steps below if you wish to use the new sink’s EDID. Start with power off Set DIP to ‘00000’ (all up). Power on the unit Power on the source device and connect the HDMI input port. Note2: Cascading mode (Ideal for larger installations) Cascade mode does not react to the EDID from the sink device. It sends the signal that you put in, out. This is ideal for linking multiple units together. The method below is an ideal way to use this function effectively. To use cascading mode: Start with power off Fix an EDID on the FIRST unit in the series from the list above (4K60, 4K30, 1080P, etc…) Set the DIP on all subsequent units to “11111” (all down). Connect the source device Power up the system pg. 10 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
-
Page 11: Maintenance
The unit has been exposed to rain; The unit does not operate normally or exhibits a marked change in performance; The unit has been dropped or the cabinet damaged. Servicing Personnel: Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel. Replacement parts: When parts need replacing ensure the service uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards. Safety check: After repairs or service, ask the service to perform safety checks to confirm that the unit is in proper working condition. pg. 11 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~... -
Page 12: Mail-In Service
DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, pg. 12 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~... -
Page 13: Safety Instructions
5. Only use this product in a dry environment. Do not allow any liquids or harmful chemicals to come into contact with these products. pg. 13 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~... - Page 14 5. Only use this product in a dry environment. Do not allow any liquids or harmful chemicals to come into contact with these products. pg. 14 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~...
