Quick Installation Guide

Packaging contains:

1. Network camera
3. Allen key
5. Block terminal
7. Warranty document
9. BNC

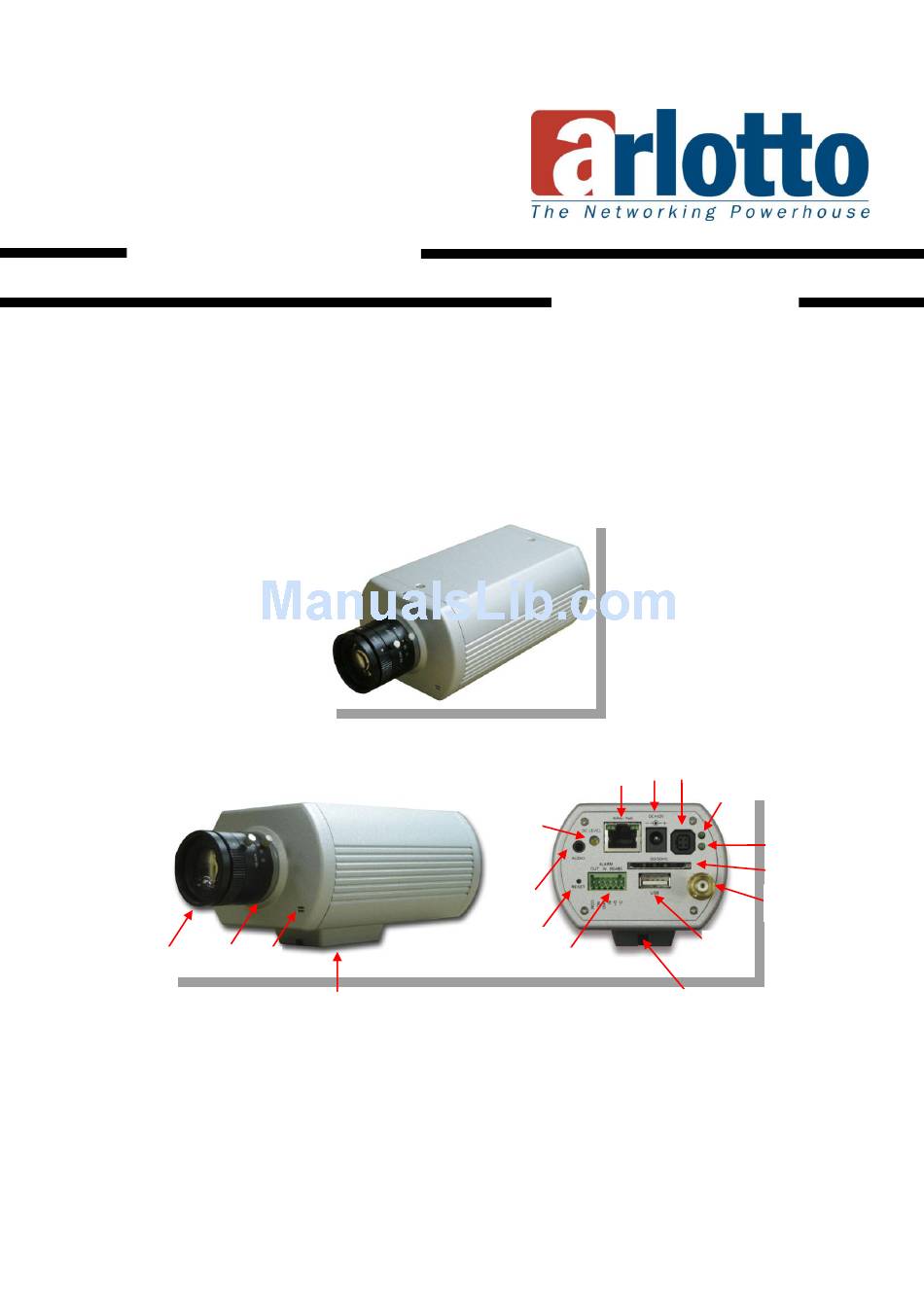

Camera description:

4
3
2
1. Bracket holder
4. Lens
7. Audio in
10. DC power in
13. Boot up LED
16. USB storage
2. Power adaptor
4. Lens adaptor
6. Quick user guide
8. Lens
1
2. Microphone
5. RS485 Alarm in/out
8. Iris control
11. Iris connector
14. SD storage
17. Tripod guide
AR1200/1500 Series
10
11
9
8
7
6
5
17
3. Lens adaptor
6. Reset
9. Ethernet port
12. Power LED
15. BNC
www.arlotto.com
12
13
14
15
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR1200 series and is the answer not in the manual?

Questions and answers

Related Manuals for Arlotto AR1200 series

Summary of Contents for Arlotto AR1200 series

  • Page 1: Quick Installation Guide

    5. RS485 Alarm in/out 6. Reset 7. Audio in 8. Iris control 9. Ethernet port 10. DC power in 11. Iris connector 12. Power LED 13. Boot up LED 14. SD storage 15. BNC 16. USB storage 17. Tripod guide www.arlotto.com...
  • Page 2 CS lenses. To fix and remove the adaptor ring please use the Allen key, release the top screw in the box camera and screw/unscrew the ring. 4. Before tighten completely the lens adaptor you can adjust the lens image. www.arlotto.com...
  • Page 3 5. To adjust the image please use the lens ring, you could adjust the focal length and the image sharpness. 6. To be able to access Arlotto IP cam web interface thru IP over Internet Explorer, please set up the IP camera default level 192.168.1.168 as trusted site. For doing this, please visit to IE “Internet Options”...
  • Page 4 Later on, you may change or setup different the user name and password in the GUI interface. Default User Name: admin Default Password: 123456 www.arlotto.com...
  • Page 5 11. Multi-lingual interface are available at the top left scroll down list in the GUI interface. 12. You are able to access the Arlotto GUI web interface through other web browsers, such as Opera, Firefox and Google Chrome; for doing so, please visit following quick guides: Opera: http://www.arlotto.com/language/down.php?hDFile=How_to_install_ActiveX_on_Opera_web_browser.pdf...
