Summary of Contents for HDMI 4 X1

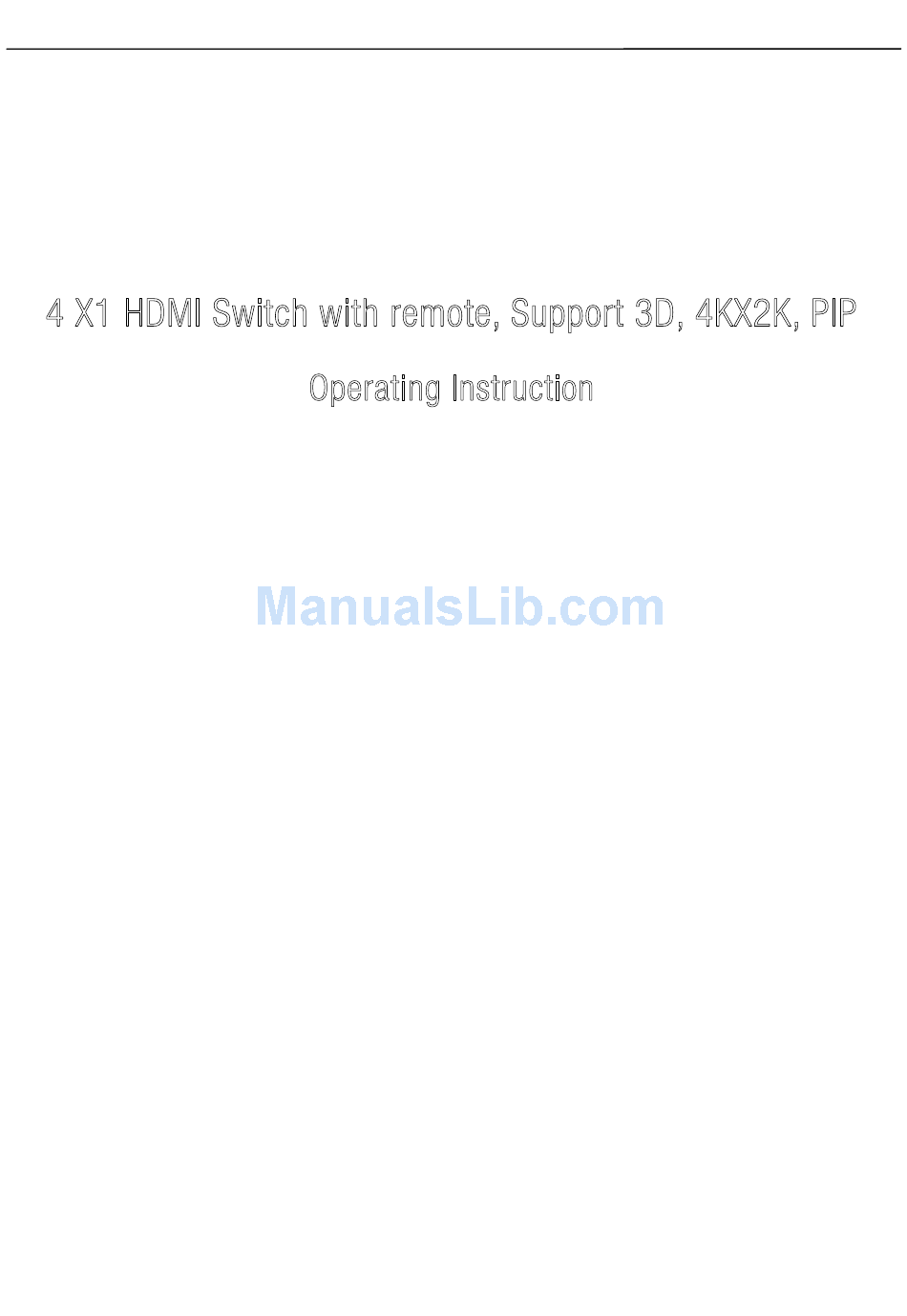

- Page 1 Operating Instructions 4 X1 HDMI Switch with remote, Support 3D, 4KX2K, PIP Operating Instruction 4 by 1 HDMI Switcher with Auto Switching Manual Version:Release 0414...
- Page 2 Introduction The HDMI 4 by 1 Switcher with Auto Switching has a high speed digital performance connection between four sources and a video display without signal degradation. It allows up to four Ultra High De nition 4K x 2K or Full HD 1080p sources to be routed to one Ultra HD display.
-
Page 3: Specifications
4K x 2K (3840 x 2160 @ 30Hz) Dimensions (LxWxH) 113.5x61.5x25mm Power consumption 3W(MAX) Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG Net Weight 210g Package Contents HDMI 4 by 1 switcher 5V DC power supply adaptor Remote control User Manual... -

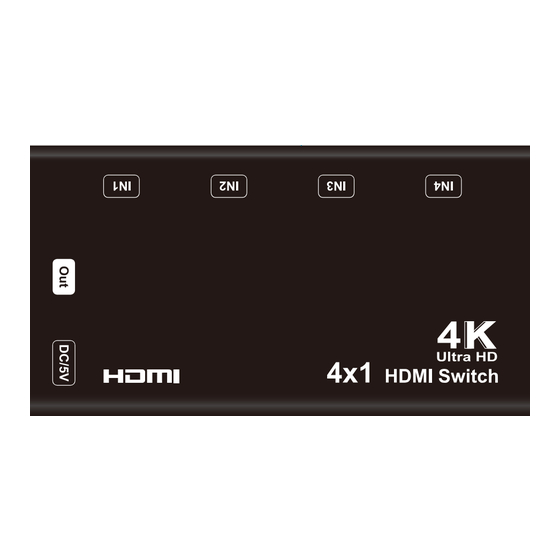

Page 4: Panel Description
Operating Instructions Panel Description Front Panel ①HDMI output port ②HDMI input ports ③Power input ④Indicator of power input ⑤Input Select Button ⑥IR receiver windows ⑦Indicator of HDMI output ⑧Indicator of HDMI inputs... -
Page 5: Remote Description
Note: Press button "5" you can see picture in picture on TV. Please refer to Connection Diagram 2. Connecting and operating 1) Connect the HDMI input sources into HDMI switch 2) Connect the HDMI switch with the display. 3) Power up all units, the switch, sources and displays. - Page 6 Operating Instructions Connection Diagram 2 (Support PIP) XBOX Blu-ray HDMI In TV 2 TV 3 HDMI Out TV 1 PIP(picture in picture) TV 4 4K TV Button for source selection Button for PIP function CEC pass through 1). Press button "5" ,you can see picture in picture on TV. Press button to select source, after you select one picture, you have to press button “5”...
-
Page 7: Safety Information
Operating Instructions Safety information safeguards To reduce the risk of electric shock, do not expose this product to rain or moisture PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by quali ed service personnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;... - Page 8 Operating Instructions LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor,or failures which result from accidents,misuse,abuse,neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning...
