Summary of Contents for Wonwoo Rapport-10HD/PRO

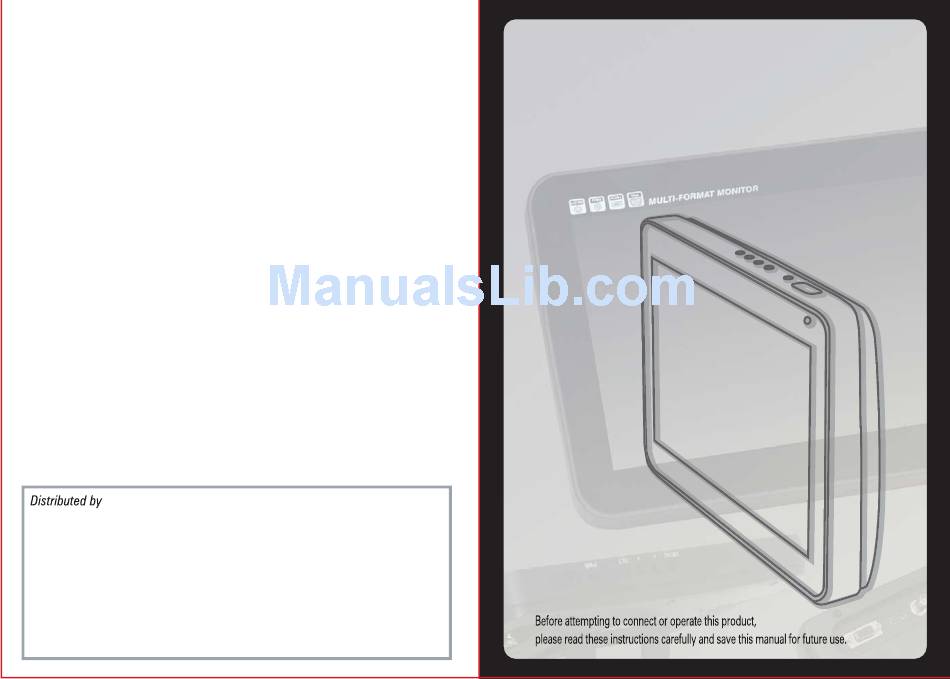

- Page 1 Multi-Format Input Monitor Rapport-10HD/PRO P/N : 388087406 PRINTED IN KOREA...
-
Page 2: Table Of Contents
2.2 Starting and End 1.1 Standard items 2.2.1 Starting 1.2 Part name & Functions 2.2.2 Finish the product 1.2.1 Front 3 Rapport-10HD/PRO functions 1.2.2 Top side 3.1 Functions 1.2.3 Back & side 3.2 Screen details 1.3 Operation 3.2.1 Monitoring mode 1.3.1 Operating button... -
Page 3: Safety Information
Rapport-10HD/PRO. The Rapport-10HD/PRO should only be used under the environmental conditions shown If there are any questions which arise when using the Rapport-10HD/PRO or the unit is in the specification where temperature and humidity figures should be adhered to. -
Page 4: Standard Items
1. Summary Suitable for HD CCTV monitor in limited space and field monitor as well. Check the contents of your Rapport-10HD/PRO package against the standard checklist 10.05", 16:9 widescreen aspect ratio without the quality loss than comes from below :... -
Page 5: Part Name & Functions
PRODUCT INTRODUCTION PRODUCT INTRODUCTION 1.2 Part name & Functions 1.2.3 Back & side ② ⑤ ⑥ ⑦ ② ① ⑧ ③ ⑨ ④ 1.2.1 Front ① ① LCD : Display the video on the screen. ② Infrared singal receiver : Receive infrared signal. ①... -
Page 6: Operation
PRODUCT INTRODUCTIO PRODUCT INTRODUCTION 1.4 Product specifications 1.3 Operation 1.4.1 Electrical Specifications 1.3.1 Operating button Current 1600mA (DC 12V ± 15% ) consumption Each function of buttons are as below. Li-ion Polymer Battery, 5000mAh/7.4V (Built-in) Battery Electronic Charging 8hours (charge only) Built-in characteristics time... -
Page 7: Dimension
FUNCTIONS FUNCTIONS 1.4.2 Dimension 1.5 Battery charging 1.5.1 Battery charging by DC power Unit : mm This product can be charged by using DC adaptor which is provided in the box and connect it to the DC jack of the product. If the product fully charged, the LED is changed to green color. -
Page 8: Basic Functions
FUNCTIONS FUNCTIONS 2 Basic functions 3 Rapport-10HD/PRO functions 3.1 Functions 2.1 Power On / Off This product have below functions Switch on the power button in the side of product and press “PWR” button for 3 seconds to turn on the power. -
Page 9: Screen Details
FUNCTIONS FUNCTIONS 3.2 Screen details 3.2.2 Screen 3.2.1 Monitoring mode The video input, power connection and audio input etc, kinds of video connected informations are shown by the OSD (On Screen Display). Select HD-SDI, HDMI, CVBS and VGA by using “<”, “>” buttons. The bottom left side is shown the current video mode. -
Page 10: Osd Menu
FUNCTIONS FUNCTIONS 3.2.3 OSD MENU 3.2.3.2 Display setting Menu Adjust video display position in this menu. - Menu : Press “MENU” button to go into the OSD menu in the monitering mode. - Move item : Press “<”, “>” buttons to move and select OSD menu. - Select item : Press “SET”... - Page 11 FUNCTIONS FUNCTIONS 3.2.3.3 Audio setting 3.2.3.4 System setting Set the Audio singal (only HD-SDI, HDMI) in this menu. Set the product system in this menu. [ Rapport-10HD PRO System setting ] [ Audio setting menu ] [ Rapport-10HD System setting ] - Volume : Adjust volume.
- Page 12 FUNCTIONS FUNCTIONS 3.2.3.5 OSD setting 3.2.4 Firmware update Using USB cable, update the proudcts’ firmware. Set the product system in this menu. - Copy Firmware ( PC-> USB connect -> SD Card of the product ) 1. Connect USB cable : Connect the USB cable in the back side of USB terminal and PC.
-
Page 13: Firmware Update
FUNCTIONS FUNCTIONS 4. Copy the supplied firmware to the removable disk of PC. - Firmware update File name for Rapport-10HD :rapport10hdfw 1. Select as below. File name for Rapport-10HD pro :rapport10hdfw OSD Menu SYSTEM → F/W Update -> YES [ Copy the upgrade file to to the removable disk of PC ] [ Rapport-10HD Select F/W update ] [ Rapport-10HD PRO Select F/W update ] 5. -
Page 14: Record / Playback Function
FUNCTIONS FUNCTIONS 3.2.5 Record / Playback function (Support Rapport-10HD PRO only) 3. When update is completed, below window is shown and the power will be off when press “OK” button. Turn on the power by pressing “POWER” button to Record and playback functions are supported to Rapport-10HD PRO model only. restart. - Page 15 FUNCTIONS FUNCTIONS 3.2.5.2 Replay Press REC button to pause replay. Below is shown the paused screen. Replay the recorded file by using MODE button as below. Pause icon If the mode is changed to replay mode, the lastest file is shown automaticaly. The file name : rapport_yyyMMdd_hhmmss.avi (yyyy : year, MM : month, dd : date, hh : hour, mm : minute, ss: second) [ Paused screen ]...
- Page 16 FUNCTIONS FUNCTIONS 3.2.5.3 Replay or delect the recorded file 3.2.5.4 Remote controller If you want to mute the audio signal in the recored video file, press the MUTE button You can replay or delect the recored file in the recorded file list. on the remote controller.
-
Page 17: Test Mode & Battery Low Alarm
FUNCTIONS FUNCTIONS 2. You can change the pattern screen by 3.2.6 TEST Mode & Battery low alarm. using the direction buttons (right, left) The test pattern function allow technicians to configure monitors and cameras video on the remote controller. siganl in/out problems. And the battery low alarm makes user know when the product need to be charged. - Page 18 FUNCTIONS FUNCTIONS 3.2.5.2 Low Battery If below message is shown, please charging the battery. 1. Select as below to set factory reset. OSD Menu SYSTEM → Factory -> YES [ Low Battery warnning ] [ Rapport-10HD Select Factory Default ] [ Rapport-10HD PRO Select Factory Default ] 3.2.5.3 Video Loss &...
-
Page 19: Multi-Format Input Monitor
MEMO MEMO Multi-Format Input Monitor Multi-Format Input Monitor...
