Summary of Contents for Cyberstat CY1201

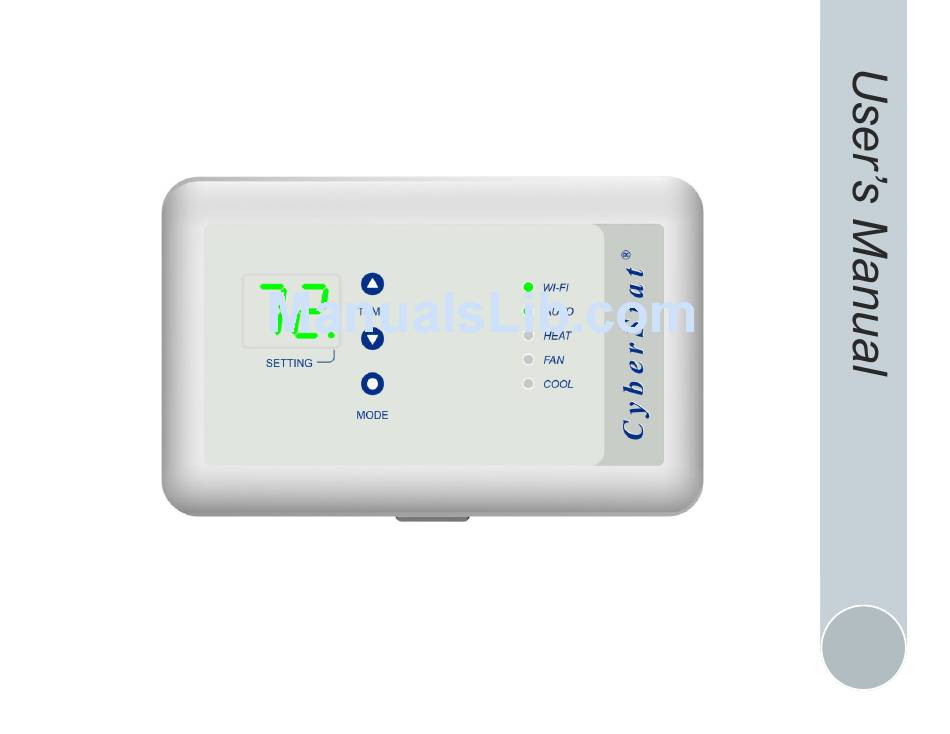

- Page 1 Motison ® CyberStat CY1201 Due to continuous improvement, some features and appearance may have changed...
- Page 2 2-year limited warranty: Motison warrants this product to be free from defects in the workmanship, construction and materials, under nor- mal use and service, for a period of two year from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective, Motison will replace or repair it.
- Page 3 (you will not be able to use fan independently) or 2. use an external power supply. 2. CyberStat does not work with line-voltage baseboard heaters. 3. CyberStat will not work if you have separate Rc and Rh wires. This limitation does not apply if there is a jumper between Rc and Rh terminals.
- Page 4 3. Remove any locking screw and then remove the face plate. 4. Record the terminal names and corresponding wire colors below. (Depending on your system, you may not have all the wires listed here) Old Thermostat Terminal Wire Color CyberStat (please fill in) Terminal Terminal Purpose...
- Page 5 1. Detach the back cover of CyberStat and place it on the wall. Mark the mounting hole locations with a pencil. You may want to use a level at this time. 2. Use a #2 Philips head screwdriver to screw-in the provided drywall anchors at marked locations.
- Page 6 Notes on C wire: 24 V AC neutral (C wire) Make sure that C wire is 24 V AC hot connected to C terminal on the furnace. Heat Cool You will not get stable power if C wire is not connected to C terminal on the furnace.
- Page 7 Furnace CyberStat 24 V AC neutral (C wire) 24 V AC hot Heat Cool Furnace side wiring to re-purpose green wire as C wire 1. Move green wire to C terminal and 2. Put a jumper across Y and G...
- Page 8 24 V AC hot Heat Cool 24 V AC adapter is required if you do not have a C wire. If using an external power supply, you will have two wires going to R terminal. Wiring option 3 for Conventional Heat and/or Cool system ...
- Page 9 Notes on C wire: 24 V AC neutral (C wire) Make sure that C wire is 24 V AC hot connected to C terminal on the air-handler. Reversing Valve Compressor You will not get stable power if C wire is not Aux Heat connected to C terminal on the air-handler.
- Page 10 Air-Handler CyberStat 24 V AC neutral (C wire) 24 V AC hot Reversing Valve Compressor Aux Heat Air-handler wiring to re-purpose green wire as C wire 1. Move green wire to C terminal and 2. Put a jumper across Y and G...
- Page 11 24 V AC hot Reversing Valve Compressor Aux Heat 24 V AC adapter is required if you do not have a C wire. If using an external power supply, you will have two wires going to R terminal. Wiring option 3 for Heat Pump ...
- Page 12 24 V AC hot Heat 24 V AC adapter is required with a two wire heating system. You will have two wires going to R terminal. Wiring two-wire heat-only system Use Elk TRG2440 or similar transformer...
- Page 13 Milli Volt Wire 1 Milli Volt Wire 2 24 V AC adapter is required with a Milli Volt system. You will have two wires going to R terminal. Wiring Milli Volt system An isolated 24 V AC transformer will not interfere with Milli Volt system ...
- Page 14 7. Turn on the power to the heating and cooling system. 8. CyberStat will now show the room temperature. * Additional configuration on page 16 is required for Heat Pump.
- Page 15 Caution: Turn off power to furnace/air-handler before you open its wiring panel. CyberStat does not power up: 1. Touch the two leads of 24 V test lamp to R and C terminals of Cyber- Stat. Be careful not to short the lamp wires. If the lamp does not light up, your C wire is not connected to C terminal on furnace or air-handler.
- Page 16 Tip: You could also complete this step using a smart-phone, tablet or laptop computer. See Wi-Fi setup on page 21. Configure CyberStat to work with your heating/cooling System. Press mode and up buttons simultaneously to enter configuration mode. Press up or down buttons to select a setting for current item.
- Page 17 Configuration item Possible settings H: HVAC System type 0: Heat Pump 1: Conventional 2: Dual Fuel L: Reversing vaLve type 0: Energized for Heating (applicable for heat pump only) 1: Energized for Cooling 1. If you have an A/C with gas furnace or heat-only or cool-only system, then select conventional.
- Page 18 (if available) should turn on. Note: For system safety and performance, heating and cooling cannot be used back to back. Please allow at least fifteen minutes between heating and cooling tests. Power cycling CyberStat will overcome this time delay.
- Page 19 CyberStat is now ready to use. Press the mode button repeatedly to select an appropriate mode and the up or down buttons to set desired temperature. Operation in various modes are described below: Auto CyberStat automatically sets heating or cooling modes to...
- Page 20 CyberStat can store up to with three programs for three seasons: P1 for spring/fall, P2 for summer and P3 for winter. You can access and cus- tomize these programs from your computer. P0 puts CyberStat into manual mode. To switch between programs, press and hold mode button for two sec- onds.
- Page 21 1. Power Cycle CyberStat: Detach and re-attach the front cover. 2. On your laptop, tablet or smart-phone, click on the Wi-Fi icon. On the available Wi-Fi networks list, select CyberStat. 3. Open a web browser and type 192.168.1.3 in the address bar. If the page does not load, verify that your computer is still attached to Cyber- Stat access point.
- Page 22 To access CyberStat from Internet (any computer, tablet or smart- phone) logon to thermostat.motison.com. To add webapp to your home screen: Logon to thermostat.motison.com and check the “remember me” box then follow steps below specific to your device. Apple devices: 1.
- Page 24 Congratulations and thank you for choosing CyberStat. We hope that it meets or exceeds your expectations. CyberStat is specifically designed for a do-it-yourself project. Give it a try. If you ever have any problems during installation or use, please do not hesitate to contact us. We are here to help.
