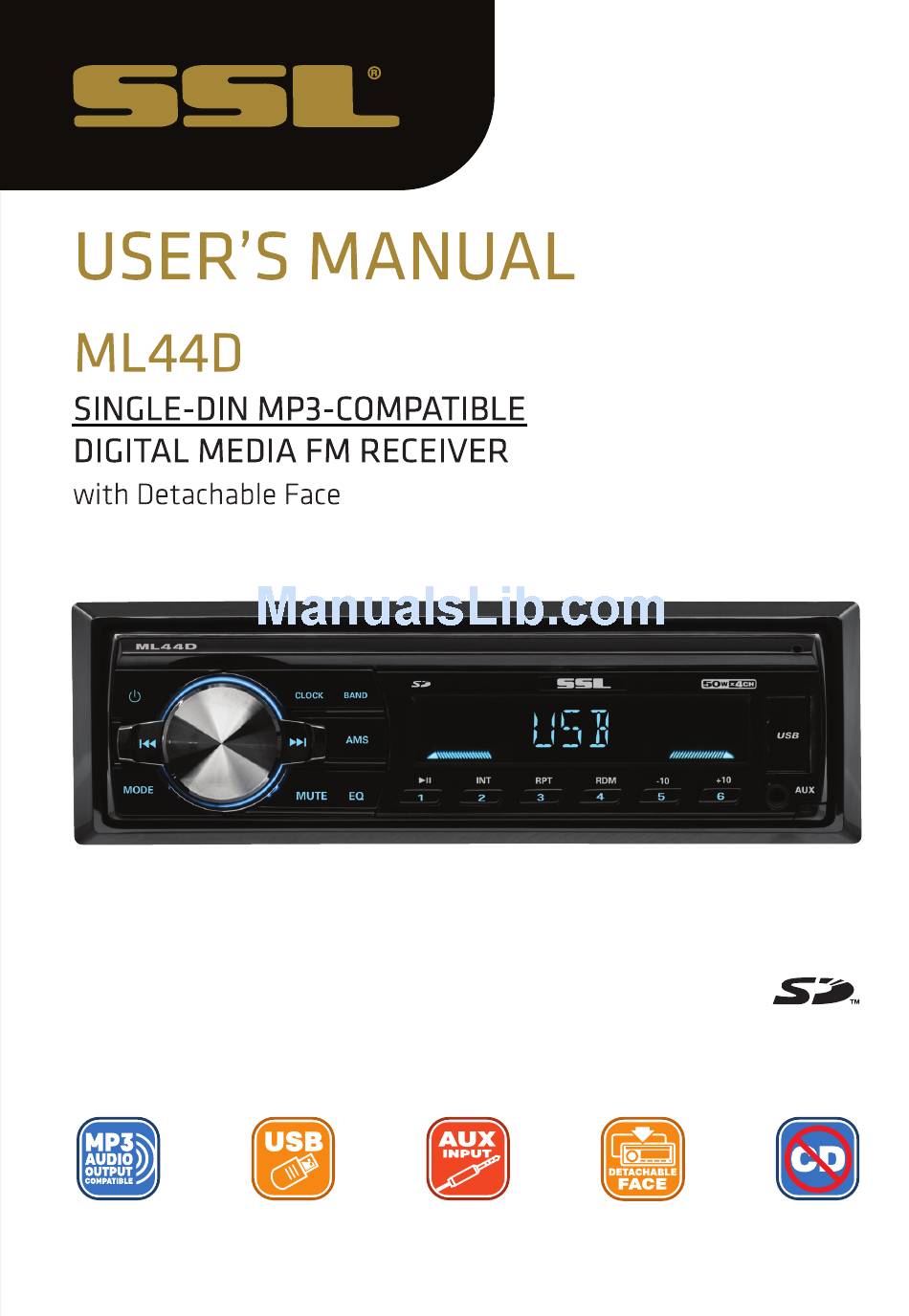

Summary of Contents for Ssl ML44D
-
Page 2: Use Cautions
PRECAUTIONS Use cautions Some MP3/WMA files may not be playable. Be sure to lower the volume before switching off the unit or the ignition key. -
Page 3: Installation Procedures
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening 2.05 inch 7.20 inch MOUNTING SLEEVE This unit can be installed in any dashboard Having an opening as shown above . Insert mounting collar into the dashboard and bend the mounting tabs out with a screwdriver. -
Page 4: Wiring Connections
INSTALLATION(CONT.) - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA. Wiring Connections WIRING DIAGRAM Radio Antenna White:Front Left PRE-AMP Output Red: Front Right PRE-AMP Output Red: Rear Right PRE-AMP Output White: Rear Left PRE-AMP Output... -
Page 5: Control Panel Button Locations
CONTROL PANEL BUTTON LOCATIONS REMOVE PANEL RESET OPERATION 1.POWER Press the power ( ) button to turn the unit on or off. 2.MODE Press the MODE button to switch between RADIO, USB, CARD, AUX IN modes. (if there are USB and SD card inside the unit). -
Page 6: Sd Card Slot
OPERATION >|| During USB or SD card mode, press the ‘1/ ’ button to pause or resume music playback. Press the ‘2/INT’ button to play the first 10 seconds of each track, press again to stop the introduction scan, and play the current track. Press the ‘3/RPT’... - Page 7 OPERATION In the USB or SD card mode: Briefly press the button to play the the next or previou track. Press and hold the button to fast forward or fast backward. 14.BAND In radio mode,short press the BAND button repeatedly to select the one of the radio band : FM 1, FM 2,FM 3, AM1,AM2 in a cycle sequence.
-
Page 8: Troubleshooting
TROUBLESHOOTING A lot of static in broadcast Connect the battery cable to the terminal that is always live. -
Page 9: Specifications
SPECIFICATIONS General Power supply Requirement : DC 12V Maximum power output : 50W X 4CH Speaker impedance : 4 - 8 Ohm Unit Dimensions(WxHxD) : 7.0 X 2.0 X 3.8 inch Weight : 1.54 Lb (0.7 kg) Fuse : RADIO Frequency Range USA / EUROPE: 87.5 MHz - 107.9 MHz / 87.5 MHz - 108.0MHz Channel step:...
