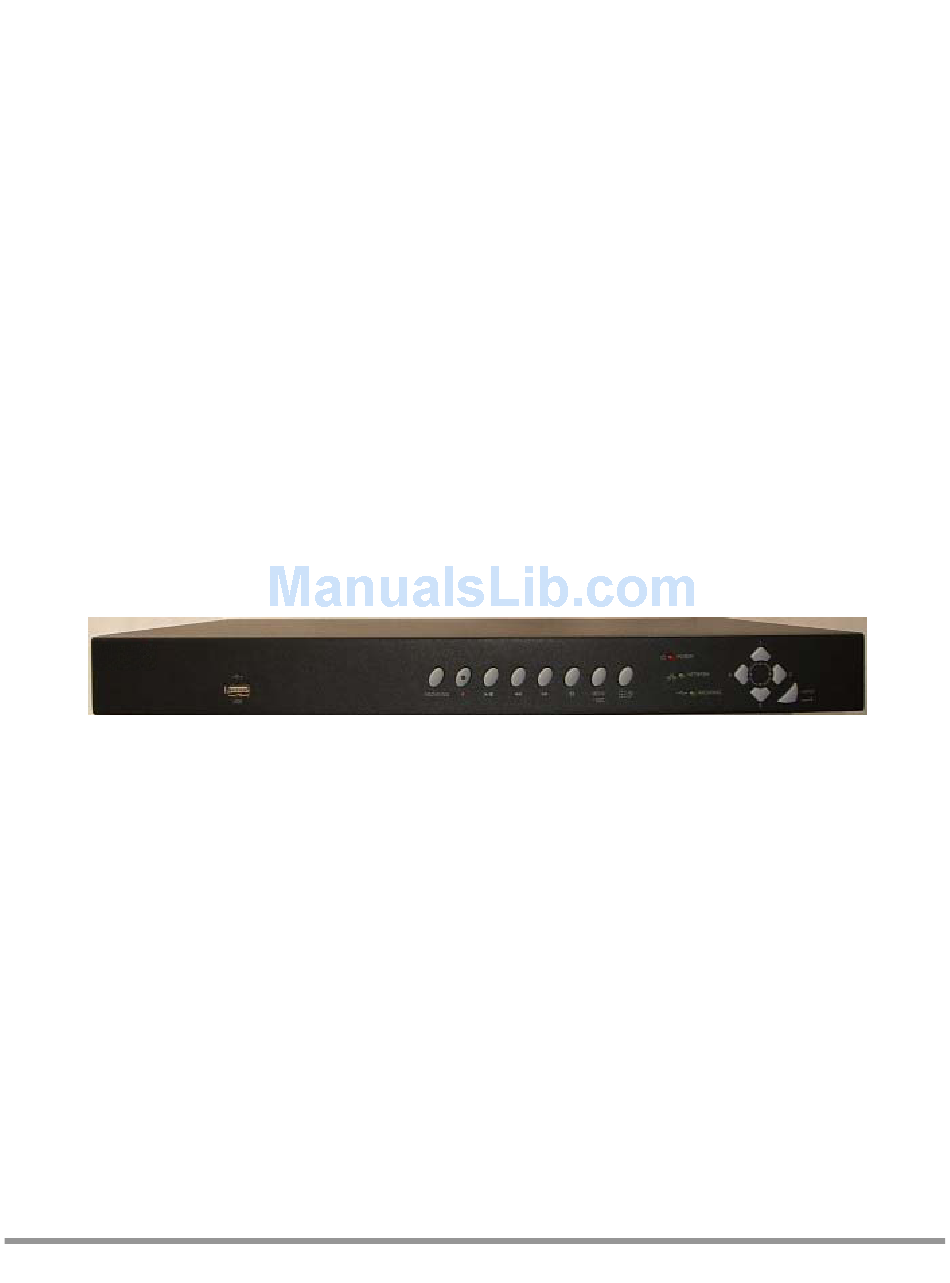

- Page 1 4CH Digital Video Recorder User’s Manual SDVR-PRO1004 November, ‘2004...
- Page 2 SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) CAUTION: NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This label may appear on the rear of the unit due to space limitations. The lightning flash with arrow point symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT computing device subject to certification by the Commission shall be identified pursuant to A CLASS A Par 2.925 et Seq of the chapter. In addition, the label shall include the following statement: This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received,... - Page 4 This manual describes the appearance and name of products, how to configure the system program, and how to use the system. Before using SIGNALSYNC DVR, a user should read the contents of user manual, and then deal with the product considering the precautions defined in the manual.
- Page 5 2. Precautions for use For the repair, contact the company or the place where you purchased the product. Read the user manual before using the product. Do not open the cover at your discretion because there are parts sensitive to the environment within the equipment.
-
Page 6: Table Of Contents
Table of Contents I. Introduction 1. Package Contents 2. Features 3. Front Panel and Rear Panel Connection II. Installation 1. Front Panel 2. Rear Panel 3. Menu Tree III. Main MENU Programming 1. Overview Main Menu 2. SYSTEM SETUP 3. DISPLAY SETUP 4. -
Page 7: Introduction
Introduction 1. Package Content When purchasing SIGNALSYNC product, unpack it at first and unload it on a flat floor or a place where it is to be located. Then, verify that the following contents are contained. 4CH DVR Power code Rack Mount Bracket User’s manual... -
Page 8: Features
2. Features This DVR provides recording capabilities for four camera inputs. It provides playback or live display and network function while in recording mode. And also it offers the following features: 4 Composite Input Connectors/ 4 Loop-Through Video Connectors - Compatible with Color (NTSC or PAL) and B&W (CCIR and EIA-170) Video Display and Record Video Resolution - NTSC (720x480), PAL (720x576) - Single, QUAD, Sequential Image Display... -
Page 9: Front Panel And Rear Panel Connection
3. Front Panel and Rear Panel Connection USB Memory Drive Audio Input Cameras RS485 Power (RTZ Camera) Code Alarm Output RS232C Audio Monitor Sensor Input (Ethernet) -
Page 10: Installation
II. INSTALLATION Front Panel 11 12 1. USB port A USB port is provided to connect external USB memory drive for archiving video. 2. Archiving button Whenever ARCHIVE button is pressed, archiving will be started. 3. REC/ STOP button Press REC (Red circle) to begin record. Press REC to stop recording again. This is toggle button. - Page 11 10. LEDs for Power ON, Archiving, Network Indication 1) Power On indicator Indicates power is ON when power LED is lit. 2) Network indicator Indicates data transmission via network is performed when network LED is lit. 3) Archiving indicator: Indicates archiving has been doing when archiving LED is lit. 11.
-
Page 12: Rear Panel
Rear Panel 1. 75 Ohm Termination Switch If you want to connect loop-through video outputs into another video equipments, 75 Ohm termination switch should be “OFF”. Then, another video equipments should be 75 ohm terminated. If loop through video outputs are not connected to another video equipments, it should be “ON”. - Page 13 7. RS232C serial port An RS232 port is provided to connect PC for configuration and software upgrades. Use a modem cable with a DB-9S (female) connector to connect to the DVR. 8. RS485: For camera pan and tilting control This DVR can be controlled remotely by remote PC software. The RS485 connector can be used to control PTZ (pan, tilt, zoom) cameras.
-
Page 14: Menu Tree
Menu Tree DISPLAY SETUP MAIN MENU SYSTEM SETUP ADJUST CHANNEL SYSTEM SETUP VIDEO FORMAT BRIGHTNESS DISPLAY SETUP PASSWORD CONTRAST RECORDING SETUP ADMIN LOCK PTZ TYPE ALARM SETUP TIME FORMAT SEQ DWELL TIME MOTION SETUP DATE FORMAT TIME/DATE OSD WEEKLY SCHEDULE CAM NUMBER OSD DATE/TIME SET NETWORK SETUP... -
Page 15: Main Menu Programming
III. Main Menu Programming 1. Overview Main Menu Before using your DVR for the first time, you will want to establish the initial settings. This includes items such as time and date, password, display, record mode, network and so on. In order to program Main Menu, first press MENU/ESC button of front panel in DVR. -
Page 16: System Setup
2. SYSTEM SETUP To access SYSTEM SETUP, press ENTER button after moving highlight bar to SYSTEM SETUP in MAIN MENU. Below menu will appear on monitor. SYSTEM SETUP VIDEO FORMAT NTSC PASSWORD **** ADMIN LOCK TIME FORMAT 24HOURS DATE FORMAT YY-MM-DD DATE/TIME SET 2004:01:11 10:50:11... - Page 17 3) ADMIN LOCK: YES/ NO Move Highlight bar to ADMIN LOCK in the SYSTEM Menu using DOWN or UP button . If ADMIN LOCK is selected as YES by LEFT or RIGHT, password is requested whenever entering menu. If NO, password isn’t requested. 4) TIME FORMAT: 24/ 12 HOURS Move Highlight bar to TIME FORMAT in the SYSTEM Menu using DOWN or UP button and press the LEFT or RIGHT button to select 24 HOURS (military time) or 12 HOURS...
-
Page 18: Display Setup
After setting DATE/ TIME, MENU/ESC or ENTER button can be used in order to return upper Menu. 7) REVISION STATUS It shows DVR software version. Whenever upgrading software, upgraded version will be displayed. 3. DISPLAY SETUP DISPLAY SETUP ADJUST CHANNEL CH1, CH2, CH3, CH4 BRIGHTNESS 1-99 %... -
Page 19: Recording Setup
* NOTE: PTZ stands for pan, tilt and zooming. * PTZ protocols: Panasonic/ Pelco-D/ PelcoP/ Techwin/ Niko/ DRX502A_DSC230s /KRE_301_302/ GC_755_NP/ TOA_CC554/ RAS716LS 2) SEQ DEWLL TIME: NONE/ 1 to 60 seconds. SEQ DWELL TIME can be changed using LEFT or RIGHT button. - NOTE: It is just reflected in sequential display mode. -
Page 20: Alarm Setup
3) AUDIO: ON/ OFF Your DVR can select whether to record audio signal with video signal together or not. It can be selected using LEFT or RIGHT button. 4) STOP KEY: DISABLE/ ENABLE In case of manual recording, manual recording is started and stop by the REC/ STOP . -
Page 21: Motion Setup
6. MOTION SETUP MOTION SETUP SENSITIVITY : normal FRAME RATE : 60/ IPS DURATION : 1 MIN CAM1 : DISABLE CAM2 : DISABLE CAM3 : DISABLE CAM4 : DISABLE BUZZER ALERT : DISABLE ▲ ▼ ◀ ▶ ENTER EXIT Your DVR has built-in video motion detection function. Motion detection Enable/ Disable, motion area can be selected separately for each camera. - Page 22 designate motion areas in 14x10 blocks. You can use LEFT or RIGHT button for horizontal movement UP or DOWN button for vertical movement, ENTER button for selection. You can define the area of the image where you don’t want to detect motion. Selected blocks in 14x10 blocks will be blinking.
-
Page 23: Network Setup
For example, the blue bar movement by LEFT or RIGHT Button like this; WEEKLY SCHEDULE WEEKLY SCHEDULE START DURATION START DURATION 00: 00 00: 00 00: 00 00: 00 WEEKLY SCHEDULE WEEKLY SCHEDULE START DURATION START DURATION 00: 00 00: 00 00: 00 00: 00 WEEKLY SCHEDULE... -
Page 24: Archiving
2) IP ADDRESS: IP address number would be written in here, in case of STATIC IP. 3) SUB NET: SUB NET Mask number would be written in here, in case of STATIC IP. 4) GATE WAY: GATE WAY number would be written in here, in case of STATIC IP. 5) PORT: Port number can be written according to network environment. - Page 25 4) ARCHIVE LOG: NONE or ENTER All of log information including DVR power ON/ OFF, recording time, event time and so on can be backup through USB Memory drive. After backup log file, you can see backup log information using WORD-PAD of PC. For ARCHIVE LOG, first select ENTER using LEFT or RIGHT Button.
- Page 26 < NetViewer Program > NOTE: On the viewer program buttons in Viewer GUI 1. Search Button: This Search Button can be used to find archived image in USB Memory drive. After searching the image files, double-click the file. And then it will be playbacked. 2.
-
Page 27: Hdd Information
< Example; USB Memory Drive will usually be recognized as removable Disk in PC > Removable Disk 10. HDD INFORMATION HDD INFORMATION MASTER HDD : WDC WD1200 TOTAL : 111GB FREE : 111GB FORMAT HDD : NO OVERWRITE : OFF ▲... -
Page 28: Search List
11. Search List The number of recorded files SEARCH LIST 10/ 10 LIST TYPE 10-15-2004 10-15-2004 10:20 10-15-2004 11:20 10-15-2004 12:20 10-15-2004 13:20 10-15-2004 13:20 10-15-2004 14:20 10-15-2004 14:20 10-15-2004 15:20 10-15-2004 16:20 10-15-2004 17:20 10-15-2004 18:20 10-15-2004 18:50 10-15-2004 19:20 10-15-2004 19:25 10-15-2004 20:20 10-15-2004 20:25... -
Page 29: Display Mode
NOTE: 1. If PLAY/ STOP button be pressed two times successively, latest recorded file could be playbacked soon. 2. The example for searching recorded files by TIME. Search list by TIME can be selected from ALL/ TIME/ MANUAL/ ALARM/ MOTION/ SCHEDULE using DOWN or UP button. -
Page 30: Recording Mode
13. RECORDING Mode There are several kinds of recording modes such as Manual, Schedule, Alarm event, Motion. Recording quality including high, standard plus, standard, low for all of recording is decided by the QUALITY setting in RECORDING SETUP Menu. Frame rate, recording time can be separately selected in each of SETUP Menu. -
Page 31: Appendix 1. Specification
APPENDIX 1. Specification (1/2) Video Input 4 Ch, NTSC/PAL, 1V peak-to-peak, 75 Ohm, BNC Audio Input/ Output 1 Ch Video Output 4Ch loop-through Output. 1 Monitor Display Resolution Display Resolution NTSC: 720x480, PAL: 720x576 Display Mode Single, QUAD, Sequential Recording Resolution Full Mode, 4Ch Multiplexing Recording NTSC: 720x480, PAL: 720x576 Compression Algorithm... - Page 32 APPENDIX 1. Specification (1/2) HDD Management Pre-formatting not required (Automatic formatting by system) (No loss of data by FAT breakage/Efficient HDD space increase) Data storing in sequence (Not decrease HDD lifetime) Archiving USB 1.1 for data export (M-JPEG format) (Note: Memory Key not included in the package) Power Supply AC100-240V, 50-60Hz Mechanical...
-
Page 33: Pin Description Of Connectors
APPENDIX 2. Pin Description of connectors 1. USB Pin Descriptions 2. LAN port (RJ-45) Pin Descriptions Pin NO. Pin description Pin NO. Pin description TXD+ D- (TX-) TXD- D+(TX+) RXD+ No connected SHIELD No connected RXD- No connected No connected 3. - Page 34 4. RS232C Pin (DSUB-9) Descriptions Communication Unit Like PC Pin NO. Pin description Pin description No connected. (DCD) No connected. RXD (Receive Data) TXD (Transmit Data) No connected. (DTR) No connected. GND (System Ground) No connected No connected No connected No connected No connected No connected...
-
Page 35: Warranty Guide
4. Damaged due to incorrect power voltage, and/or frequency being used. 5. If the Product Warranty sheet is expired. 6. Damaged due to an engineer not employed by SIGNALSYNC modifying the system. If your system is damaged after the warranty period, free repair service will not be available.
