Burlington chaplin r12 chr Installation Instructions

INSTALLATION INSTRUCTIONS
The radiator can be installed in three different heating configurations; connected to a central heating
system, fitted with a summer electric heating kit as an electric radiator, or as a dual source connected
to a central heating system and with a summer electric heating kit fitted.
PLEASE NOTE: THE CHAPLIN RADIATORS ARE MADE FROM STEEL AND WHEN CONNECTED TO
CENTRAL HEATING SYSTEMS SHOULD ONLY BE USED ON CLOSED SYSTEMS CONTAINING A RUST
INHIBITOR.
- review instructions carefully before installation
- installation should be completed by a suitably qualified person
- please dispose of packaging in a responsible manner

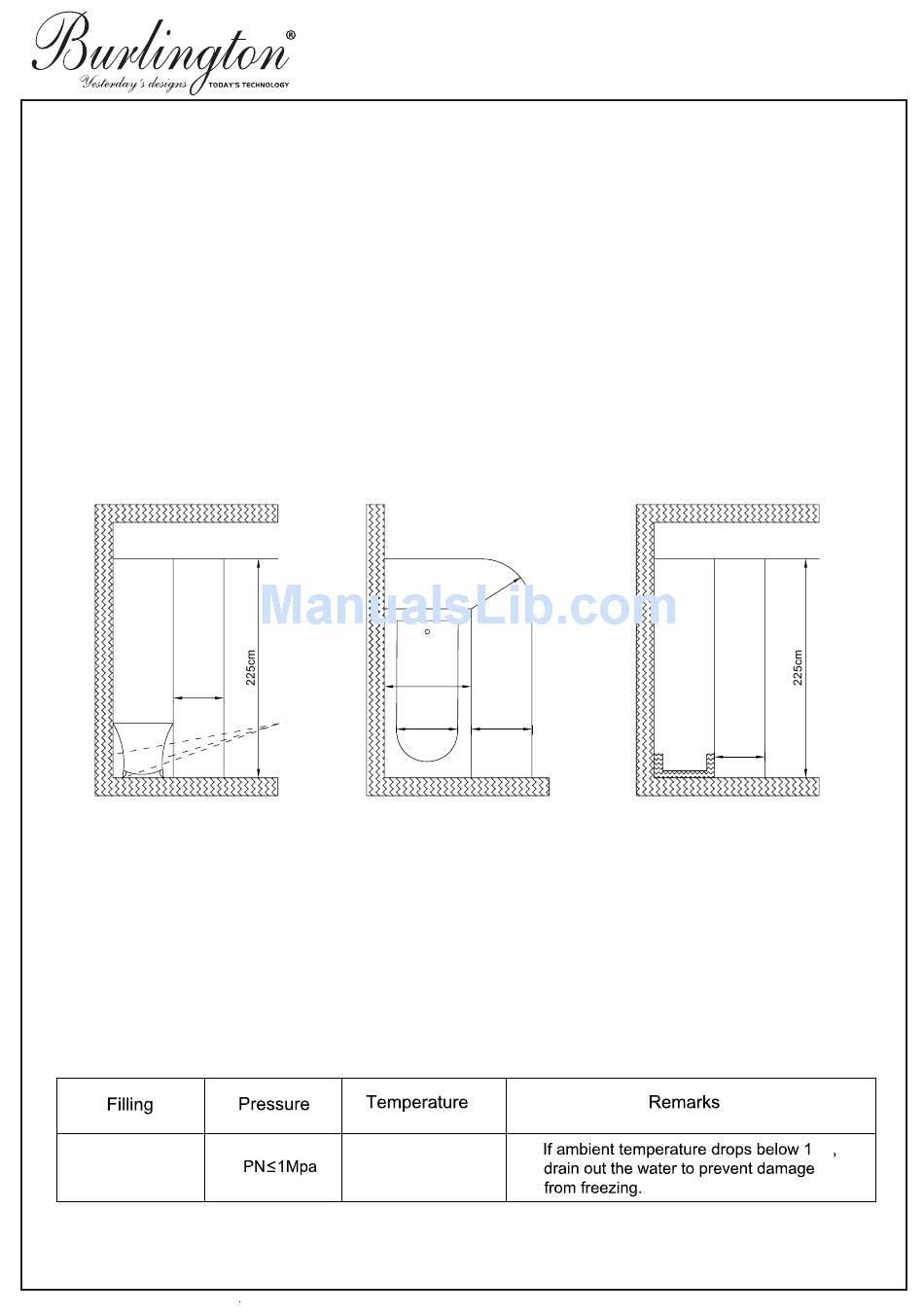

POSITION:
The radiator, if intended to be heated with the summer electric heating kit, can be installed in the Zone 2
area (see Fig below), but the electrical connection box must be outside the Zone 2 area.
Zone 1 Zone 2
60cm
Zone 0
(1) Side view, bath
PLEASE NOTE:
● This product can only be used at PN≤1MPa (10Kg/cm, 10Bar). It should only be filled with a water
mixture containing a rust inhibitor, and at a temperature below 100°C (or 212°F). See table below
for installation requirements.
● If the temperature exceeds 48°C (or 120°F), please install a warning sign near the product to avoid
burning or scalding accidents.
● If the product is not used for a period during which ambient temperature drops below 5°C (or 41°F),
please drain the water out of the radiator to avoid oxidization.
● For prolonged usage and safe operation please check product at regular intervals.
Water mixture
containing a
rust inhibitor
AFTER CARE ...
The Chaplin radiators are made from steel with chrome plating, and should not be cleaned with
corrosive or scouring cleaning agents.
Zone 1
Zone 0
Zone 1
(2) Top view
0°C ≤t≤100°C
60cm
Zone 2
60cm
1 - 5
Chaplin R12 CHR
Zone 1 Zone 2
60cm
Zone 0
(3) Side view, shower
°C
B
