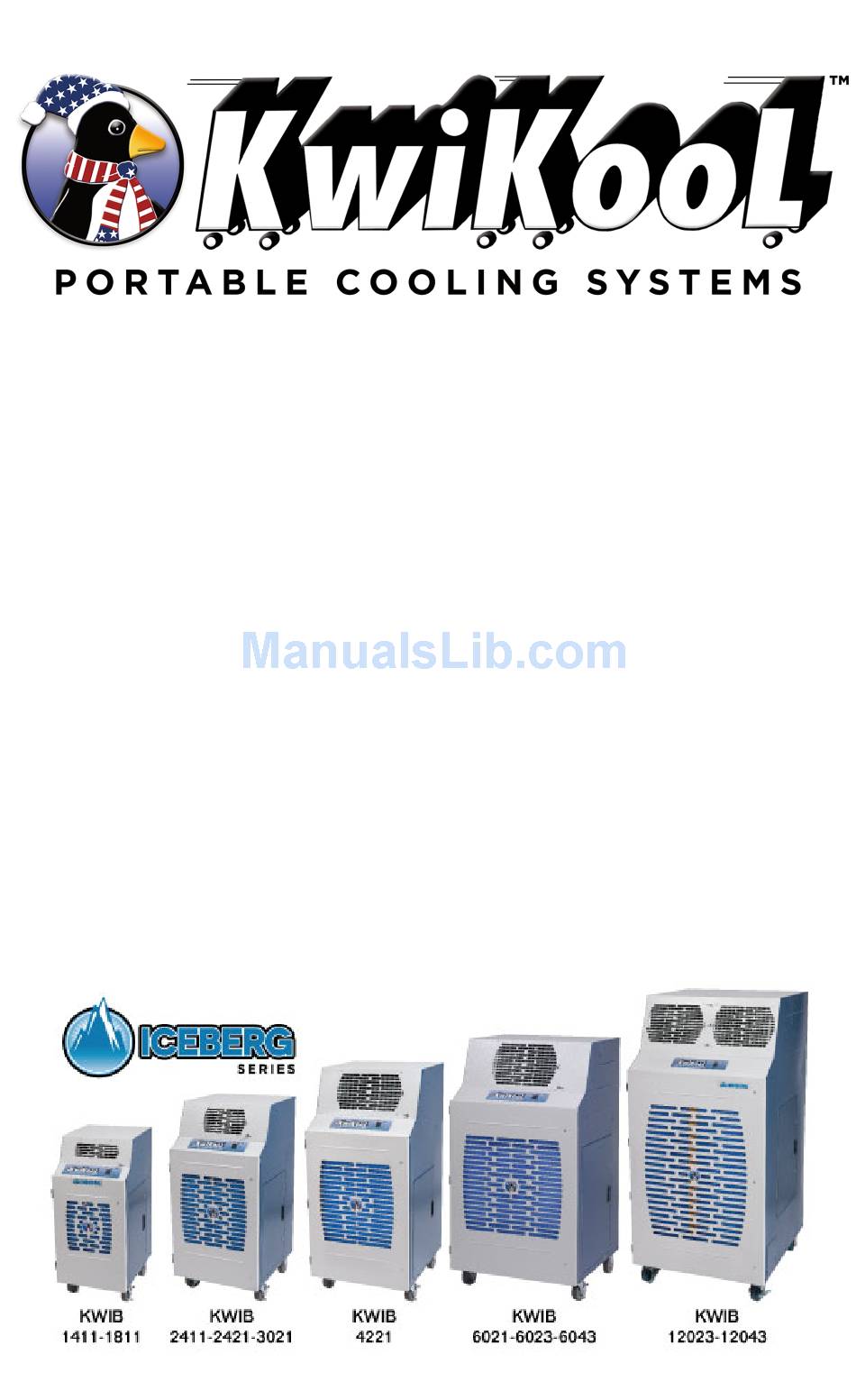

- Page 1 KWIB Operation Manual...
- Page 3 Section VI / Application Requirements - Page: 10 Section VII / Maintenance - Page: 10 Section VIII / Utilizing Your KwiKool System - Page: 11 Section IX / Fault Codes - Page 11 Section X / KWIB Troubleshooting Guide - Page: 12-14...
-
Page 5: I / Unit Components
I / Unit Components Page 3... -
Page 6: Assembly And Installation
¼” barbed connector on the conden- sate tank. The condensate float jack must be inserted into the female condensate jack to operate your KwiKool. CF displays if the jack is not connected or the bypass plug is not inserted properly. - Page 7 KwiKool serial plate information and that the electrical circuit is dedicated only for the use of your KwiKool Unit. If you aren’t sure about your power, contact a licensed electrician. KwiKool systems are factory equipped with 8 feet of power cable sized to meet the power requirement of your system.
-
Page 8: System Operation
To insure your KwiKool system is stable, the floor on which the system is to be place should be level, free of vibration and strong enough to support the weight of your KwiKool model. - Page 9 KwiKool system. All settings selected are stored in the microprocessor board even if the power is lost including the ON/OFF selection. Refer to the Troubleshooting Guide section of this manual if your KwiKool is alerting an alarm after selecting ON.
- Page 10 This always activates when your KwiKool cycles off, is turned off, power is lost and then restored or the operational mode is changed. Display flashes C or F if the time delay is activated.
- Page 11 Power/Phase Monitor (Optional) - The KwiKool Phase Monitor is available as an option on all 3 phase KwiKool models. The phase monitor samples the power supply for low or high voltage, out of phase and loss of phase. If any of these power conditions arise, the Phase Monitor will automatically shut down your Iceberg unit, sound an audible alarm and display a fault code (A1).
-
Page 12: Application Requirements
Water Supply Temperature Requirements - The supply water temperature to your KwiKool unit at the installation site should be from 40 to 85 degrees F to the condenser supply water inlet located on the back of your KWIB Iceberg. If the water supply is above 85 degrees F the high pressure switch may trip, stopping the unit’s... -
Page 13: Fault Codes
In contrast to conventional air conditioners, which circulate air conditioning capacity evenly to an entire floor, KwiKool systems are designed for cooling an area with a high concentra- tion of heat load, usually from electrical or computer equipment. Understanding the capabili- ties of your KwiKool can help you avoid problems. - Page 14 Resets automatically upon fault correction, or call 1-800-KwiKool if the problem persist. Unit Displays HP, Audio Microprocessor board has High pressure is normally alarm is sounding during detected high pressure.
- Page 15 FP. evaporator coil if the system system off to let it thaw out, has a factory installed freeze call 1-800-KwiKool if your sensor. (Special order) system is not equipped with a freeze sensor. Auto resets upon correction.
- Page 16 Evaporator door open, another KwiKool system or mechanical system larger capacity model, close malfunction. evaporator compartment door, check for correct...
- Page 17 Appendix Part A: Systems Equipped with a Phase Monitor - Page: 16-17 Part B: Special Section for KWIB120 Systems - Page: 18-19 Page 15...
- Page 18 A fault has been detected Inspect motor components sounding during start up or from one of the unit’s for faulty or loose connec- during operation, phase condenser motors. tions and proper operation, monitor displays “Back Call 1-800-KwiKool for Fault” red light. guidance. Page 16...
- Page 19 The KwiKool Phase Monitor is factory installed and is located inside the Control Box. The Phase Monitor can be accessed through the right side service door as you face the unit and removing the cover to the control box. % Voltage Unbalanced Knob -...
- Page 20 As you face the front control panel of the KwiKool unit, open the left side evaporator access door with the system in the OFF position. Secure the door from closing and keep clear any objects from the moving or rotating parts.
- Page 21 Revision 062016...
