INVERTEC optidrive E IP20 User Manual

Ac variable speed drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

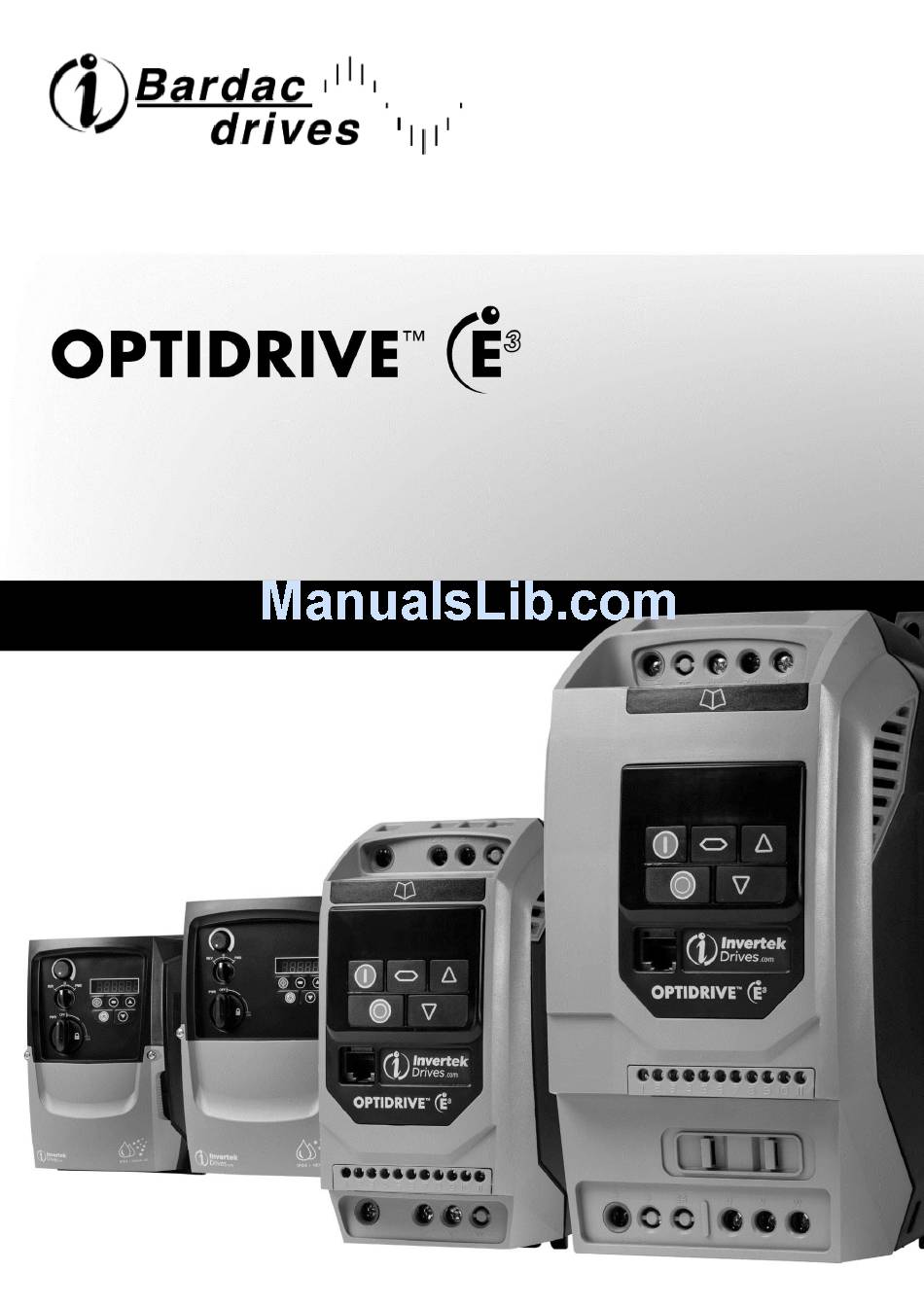

Optidrive ODE-3 1Ph Output User Guide Revision 1.00
User Guide
Single Phase Output
IP20 & IP66 (NEMA 4X)
AC Variable Speed Drive
0.37 – 1.1kW (0.5 – 1.5HP)
110 – 230V
Installation and Operating Instructions
www.invertekdrives.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the optidrive E IP20 and is the answer not in the manual?

Questions and answers

Summary of Contents for INVERTEC optidrive E IP20

  • Page 1 Optidrive ODE-3 1Ph Output User Guide Revision 1.00 User Guide Single Phase Output IP20 & IP66 (NEMA 4X) AC Variable Speed Drive 0.37 – 1.1kW (0.5 – 1.5HP) 110 – 230V Installation and Operating Instructions www.invertekdrives.com...

  • Page 2: Table Of Contents

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 Quick Start Up..................................4 1.1. Important Safety Information 1.2. Quick Start Process General Information and Ratings ............................7 2.1. Identifying the Drive by Model Number 2.2. Drive Model Numbers Mechanical Installation ................................ 8 3.1.
  • Page 3 Optidrive ODE-3 1Ph Output User Guide Revision 1.00 Declaration of Conformity Invertek Drives Ltd hereby states that the Optidrive ODE-3 product range conforms to the relevant safety provisions of the following council directives: 2004/108/EC (EMC) and 2006/95/EC (LVD) (Valid until 20.04.2016) 2014/30/EU (EMC) and 2014/35/EU (LVD) (Valid from 20.04.2016) Designed and manufacture is in accordance with the following harmonised European standards:...

  • Page 4: Quick Start Up

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 1. Quick Start Up 1.1. Important Safety Information Please read the IMPORTANT SAFETY INFORMATION below, and all Warning and Caution information elsewhere. Danger : Indicates a risk of electric shock, which, if not Danger : Indicates a potentially hazardous situation avoided, could result in damage to the equipment and other than electrical, which if not avoided, could...

  • Page 5: Quick Start Process

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 1.2. Quick Start Process Step Action See Section Page Identify the Enclosure Type, Model Type and ratings of Identifying the Drive by Model Number your drive from the model code on the label. In particular Check the voltage rating suits the incoming supply...
  • Page 6 Optidrive ODE-3 1Ph Output User Guide Revision 1.00 Quick Start – IP20 & IP66 Non Switched Connect a Start / Stop switch between control terminals 1 & 2 5k – 10k Close the Switch to Start Open to Stop Connect a potentiometer (5k – 10kΩ) between terminals as shown to vary the speed from P-2 (0Hz default) to P-01 (50 / 60 Hz default) 0..50/60Hz 0..10V...

  • Page 7: General Information And Ratings

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 2. General Information and Ratings This chapter contains information about the Optidrive E3 including how to identify the drive 2.1. Identifying the Drive by Model Number Each drive can be identified by its model number, as shown in the table below. The model number is on the shipping label and the drive nameplate.

  • Page 8: Mechanical Installation

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 3. Mechanical Installation 3.1. General  The Optidrive should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting using the integral mounting holes or DIN Rail clip. ...

  • Page 9: Mechanical Dimensions - Ip66 (Nema 4X) Enclosed Units

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 3.5. Mechanical Dimensions – IP66 (Nema 4X) Enclosed Units Drive Size Weight 232.0 9.13 207.0 8.15 189.0 7.44 25.0 0.98 179.0 7.05 161.0 6.34 148.5 5.85 0.16 0.31 257.0 10.12 220.0 8.67 200.0 7.87 28.5...

  • Page 10: Gland Plate And Lock Off

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 3.7. Gland Plate and Lock Off The use of a suitable gland system is required to maintain the appropriate IP / Nema rating. The gland plate has pre moulded cable entry holes for power and motor connections suitable for use with glands as shown in the following table. Where additional holes are required, these can be drilled to suitable size.

  • Page 11: Power Wiring

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 4. Power Wiring 4.1. Grounding the Drive This manual is intended as a guide for proper installation. Invertek Drives Ltd cannot assume responsibility for the compliance Bardac Drives or the non-compliance to any code, national, local or otherwise, for the proper installation of this drive or associated equipment.

  • Page 12: Incoming Power Connection

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 4.4. Incoming Power Connection  For 1 phase supply, power should be connected to L1/L, L2/N.  For 3 phase supplies, power should be connected to L1, L2, and L3. Phase sequence is not important. ...

  • Page 13: Connection Diagram

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 4.8. Connection Diagram Power Connections Incoming Power Supply External Isolator / Disconnect External MCB or Fuse Optional Input Choke Optional Input Filter Optional Brake Resistor Shielded Motor Cable Analog / Digital Output Relay Output Control Connections See section 4.10...

  • Page 14: Using The Rev/0/Fwd Selector Switch (Switched Version Only)

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 4.9. Using the REV/0/FWD Selector Switch (Switched Version Only) By adjusting the parameter settings the Optidrive can be configured for multiple applications. This could typically be for Hand/Off/Auto applications (also known and Local/Remote) for HVAC and pumping industries. Note : Forward / Reverse operation of single phase motors is not possible Parameters to Switch Position...

  • Page 15: Operation

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 5. Operation 5.1. Managing the Keypad The drive is configured and its operation monitored via the keypad and display. Used to display real-time information, to access and exit NAVIGATE parameter edit mode and to store parameter changes Used to increase speed in real-time mode or to increase parameter values in parameter edit mode Used to decrease speed in real-time mode or to decrease...

  • Page 16: Parameters

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 6. Parameters 6.1. Standard Parameters Par. Description Minimum Maximum Default Units P-01 Maximum Frequency / Speed Limit P-02 500.0 50.0 (60.0) Hz / RPM Maximum output frequency or motor speed limit – Hz or RPM. If P-10 >0, the value entered / displayed is in RPM P-02 Minimum Frequency / Speed Limit P-01...

  • Page 17: Extended Parameters

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 6.2. Extended Parameters Par. Description Minimum Maximum Default Units P-15 Digital Input Function Select Defines the function of the digital inputs depending on the control mode setting in P-12. See section 7 Analog and Digital Input Macro Configurations for more information.
  • Page 18 Optidrive ODE-3 1Ph Output User Guide Revision 1.00 Par. Description Minimum Maximum Default Units P-28 V/F Characteristic Adjustment Voltage P-07 P-29 V/F Characteristic Adjustment Frequency P-09 This parameter in conjunction with P-28 sets a frequency point at which the voltage set in P-29 is applied to the motor. Care must be taken to avoid overheating and damaging the motor when using this feature.
  • Page 19 Optidrive ODE-3 1Ph Output User Guide Revision 1.00 Par. Description Minimum Maximum Default Units P-37 Access Code Definition 9999 Defines the access code which must be entered in P-14 to access parameters above P-14 P-38 Parameter Access Lock 0 : Unlocked. All parameters can be accessed and changed 1 : Locked.

  • Page 20: Read Only Status Parameters

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 6.3. P-00 Read Only Status Parameters Par. Description Explanation P00-01 1 Analog input value (%) 100% = max input voltage P00-02 2 Analog input value (%) 100% = max input voltage P00-03 Speed reference input (Hz / RPM) Displayed in Hz if P-10 = 0, otherwise RPM P00-04 Digital input status Drive digital input status...

  • Page 21: Single Phase Motor - Boost Starting Cycle

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 6.4. Single Phase Motor - Boost Starting cycle In order to provide a reliable method for starting the motor, a special technique is used. The motor is started immediately at rated frequency, whilst the voltage is ramped from an initial Boost Voltage (set in P-11) to the Motor Rated Voltage (set in P-07) over a Boost Period Duration (set in P-33).

  • Page 22: Analog And Digital Input Macro Configurations

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 7. Analog and Digital Input Macro Configurations 7.1. Overview Optidrive E3 uses a Macro approach to simplify the configuration of the Analog and Digital Inputs. There are two key parameters which determine the input functions and drive behaviour:- ...

  • Page 23: Macro Functions - Keypad Mode (P-12 = 1 Or 2)

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 P-15 DI3 / AI2 DI4 / AI1 Diagram E-TRIP  STOP P-20 P-21 P-22 P-23 STOP P-23 REF Fire Mode Analog Input AI1 STOP P-23 REF P-21 REF Fire Mode No Function STOP Fire Mode P-20...

  • Page 24: Fire Mode

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 7.7. Fire Mode The Fire Mode function is designed to ensure continuous operation of the drive in emergency conditions until the drive is no longer capable of sustaining operation. The Fire Mode input may be a normally open (Close to Activate Fire Mode) or Normally Closed (Open to Activate Fire Mode) according to the setting of P-30 Index 2.

  • Page 25: Modbus Rtu Communications

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 8. Modbus RTU Communications 8.1. Introduction The Optidrive E3 can be connected to a Modbus RTU network via the RJ45 connector on the front of the drive. 8.2. Modbus RTU Specification Protocol Modbus RTU Error check Baud rate...

  • Page 26: Technical Data

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 9. Technical Data 9.1. Environmental Operational ambient temperature range Open Drives -10 … 50°C (frost and condensation free) Enclosed Drives -10 ... 40°C (frost and condensation free) Storage ambient temperature range -40 … 60°C Maximum altitude 2000m.
  • Page 27 Optidrive ODE-3 1Ph Output User Guide Revision 1.00 9.3. Additional Information for UL Compliance Optidrive E3 is designed to meet the UL requirements. For an up to date list of UL compliant products, please refer to UL listing NMMS.E226333 In order to ensure full compliance, the following must be fully observed. Input Power Supply Requirements Supply Voltage 110 –...

  • Page 28: Environmental Rating Tables Additional Information For Ul Compliance Trouble Shooting

    Optidrive ODE-3 1Ph Output User Guide Revision 1.00 Trouble Shooting 10.1. Fault Code Messages Fault Description Suggested Remedy Code  No Fault Not required  Brake channel over current Check external brake resistor condition and connection wiring  Brake resistor overload The drive has tripped to prevent damage to the brake resistor ...
