- Page 1 Gps.FreyEbikes.com FREY-R01 ANTI-THEFT ALERT SYSTEM (GPS+GSM+SMS/GPRS) Fast installation instruction & User Manual In order to install and operate the GPS tracker in right method and properly, please read this Fast installation instruction & User Manual before installation, Thank you...
-
Page 2: Technical Parameter
A. Technical Parameter GSM frequency: 900/1800MHz/850/1900MHz; GPRS：Class12,TCP/IP; Voltage range: DC 4.2-5VDC Standby Current: ≈0.2mA GPS initialization: Cold boot 38s (Open sky) Warm boot 2s (Open sky) GPS Accuracy: 10m (2D RM); Wording Temperatcre: -20℃ - +70℃; Wording Humidity: 20%-80%RH; B. LED Indication 1. - Page 3 3. Blue LED (GPS status indication) LED Status Indication Flashing, On 0.1s, Off 0.1s GPS signal normal Constantly on GPS signal searching Constantly off GPS shut down Power Power LED Status; (c) GPS LED Status; (d) GSM LED Status C. SIM card and GPS module installation method...
- Page 4 1. Choose correct SIM card, a SIM card will be needed to insert into the terminal, please consult distrbutors options for further use ; 1. Open controller box, cut off GPS module circuit which have an “F” label; 2. After cut off GPS module circuit, pull out GPS module by a “PULL” label;...
- Page 5 3. Take out GPS module; 4. Lift the SIM card cover, and insert a SIM card;...

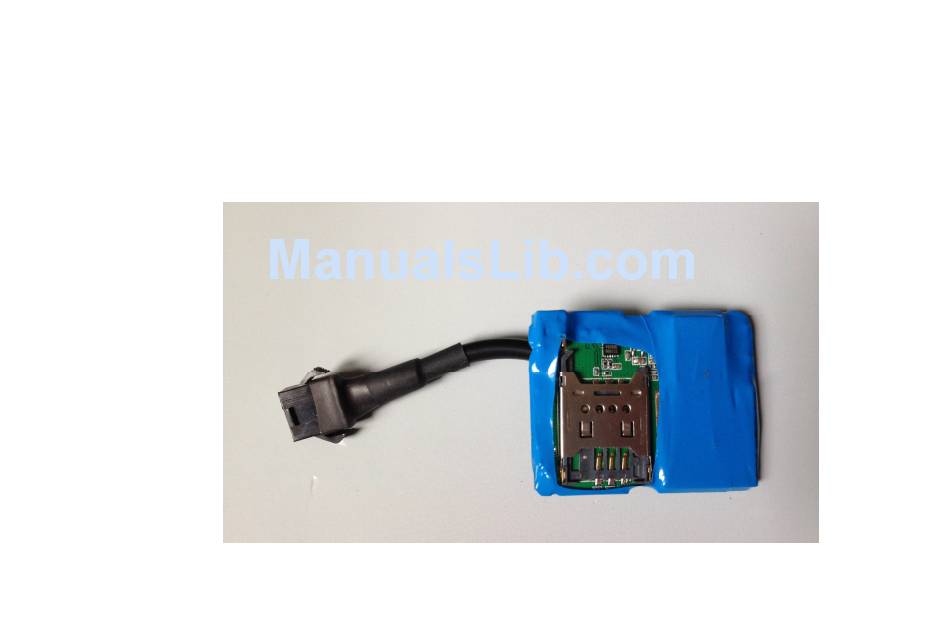

- Page 6 5. Then fasten the SIM card slot cover. Place the SIM card chip facing down into the SIM card slot;...
-
Page 7: Terminal Operations
6. Put the GPS module inside of the controller box where is for the GPS module. 7. Connect GPS module circuit which cable is with an “F” label; During installation process, please do not connect to the power, SIM card slot facing Straighten out the line, install the controller box and fix it with the frame. -
Page 8: Password Modification
a) Start-up: insert the SIM card, turn on back-up power supply, the terminal will start up; b) Shut-down: disconnect power plug, take out the SIM card, the terminal will shut down; Turn off: Unplug the device which is with an “F” cable. 2. -
Page 9: Vibration Alarm
e.g.: enquiry time is 12:00:00,Chinese time is 20:00:00 (+8 hours) Vibration Alarm After you turn on vibration alarm function, if the bike occurred vibration several times, it will trigger vibration alarm mechanism, the terminal will send a vibration alarm message to the binding mobile phone number, at the same time, it will upload the alarm information to the monitoring platform. -
Page 10: Troubleshooting
F. Trouble Shooting 1. Terminal installed at the first time, and it can't connect to service platform, platform always shows offline. 2. Is main power correct? Do not connect it with the vehicle internal control wires; 3. SIM card installation right, please check the installation instruction; 4.
