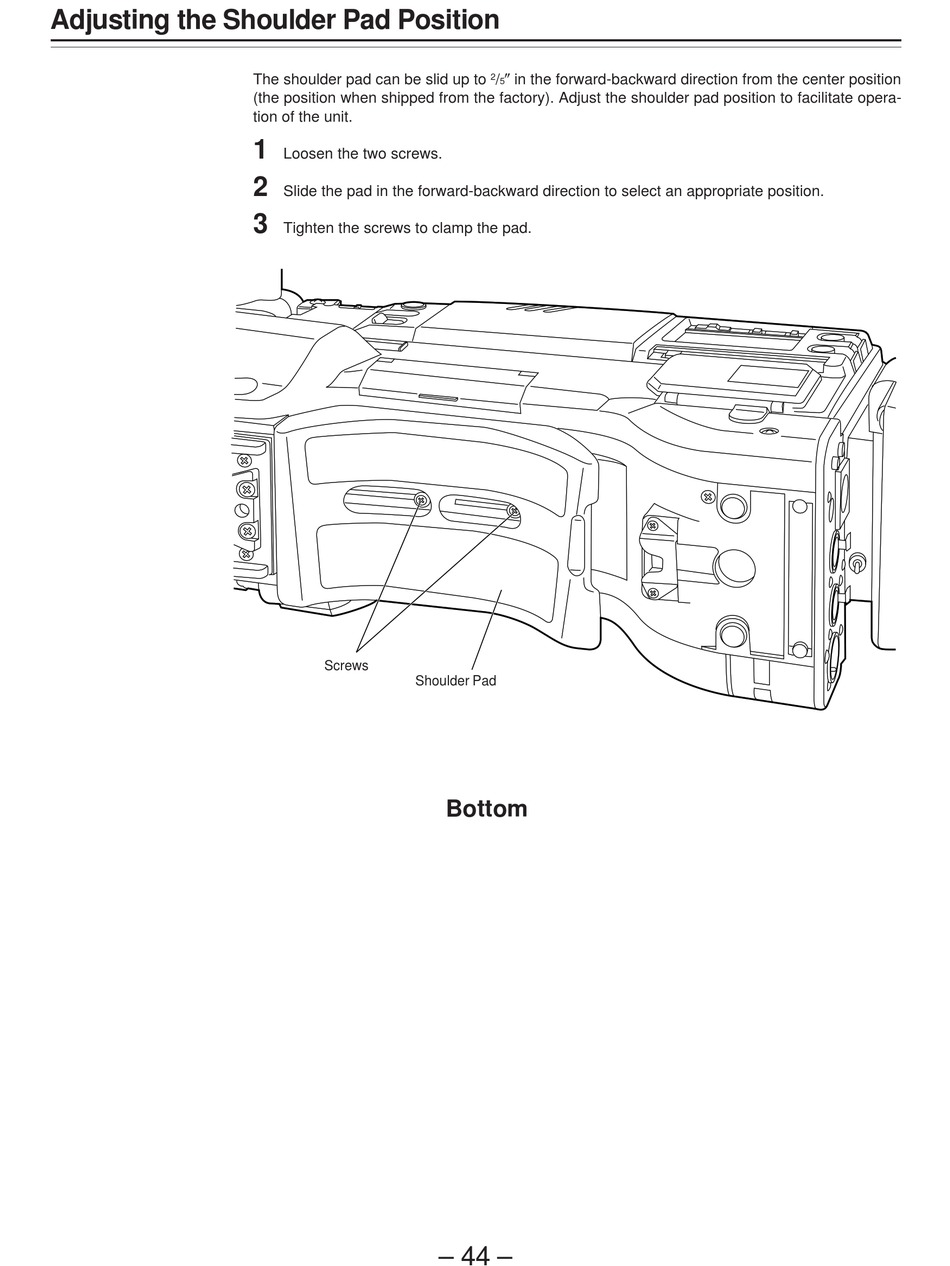

Adjusting the Shoulder Pad Position

The shoulder pad can be slid up to
(the position when shipped from the factory). Adjust the shoulder pad position to facilitate opera-
tion of the unit.
1
Loosen the two screws.
2
Slide the pad in the forward-backward direction to select an appropriate position.
3
Tighten the screws to clamp the pad.
Screws
Shoulder Pad
½ in the forward-backward direction from the center position
2 /
5
Bottom
– 44 –
