Power Supply

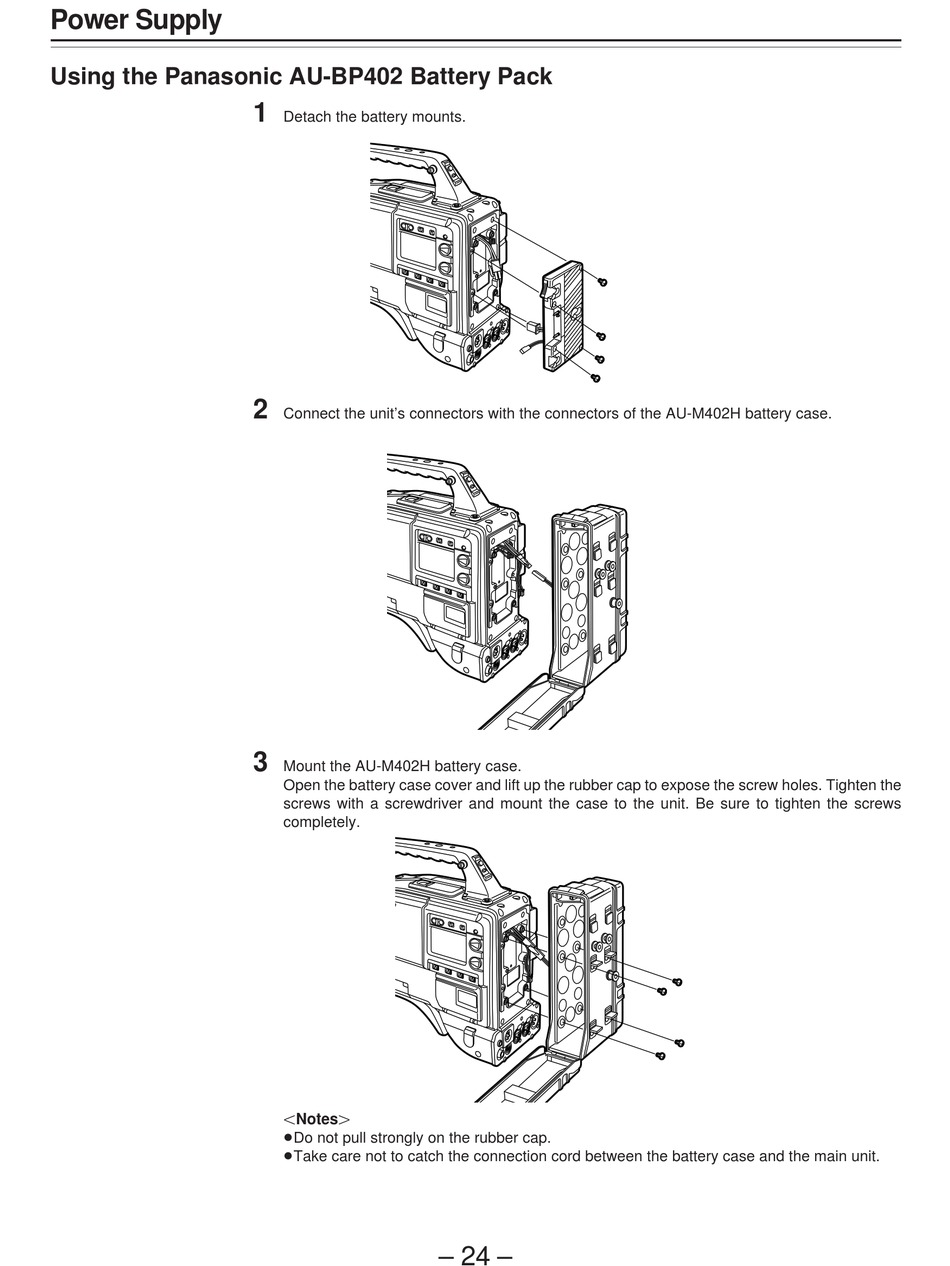

Using the Panasonic AU-BP402 Battery Pack

1
Detach the battery mounts.
2
Connect the unit's connectors with the connectors of the AU-M402H battery case.
3
Mount the AU-M402H battery case.
Open the battery case cover and lift up the rubber cap to expose the screw holes. Tighten the
screws with a screwdriver and mount the case to the unit. Be sure to tighten the screws
completely.
|Notes{
ÁDo not pull strongly on the rubber cap.
ÁTake care not to catch the connection cord between the battery case and the main unit.
– 24 –
