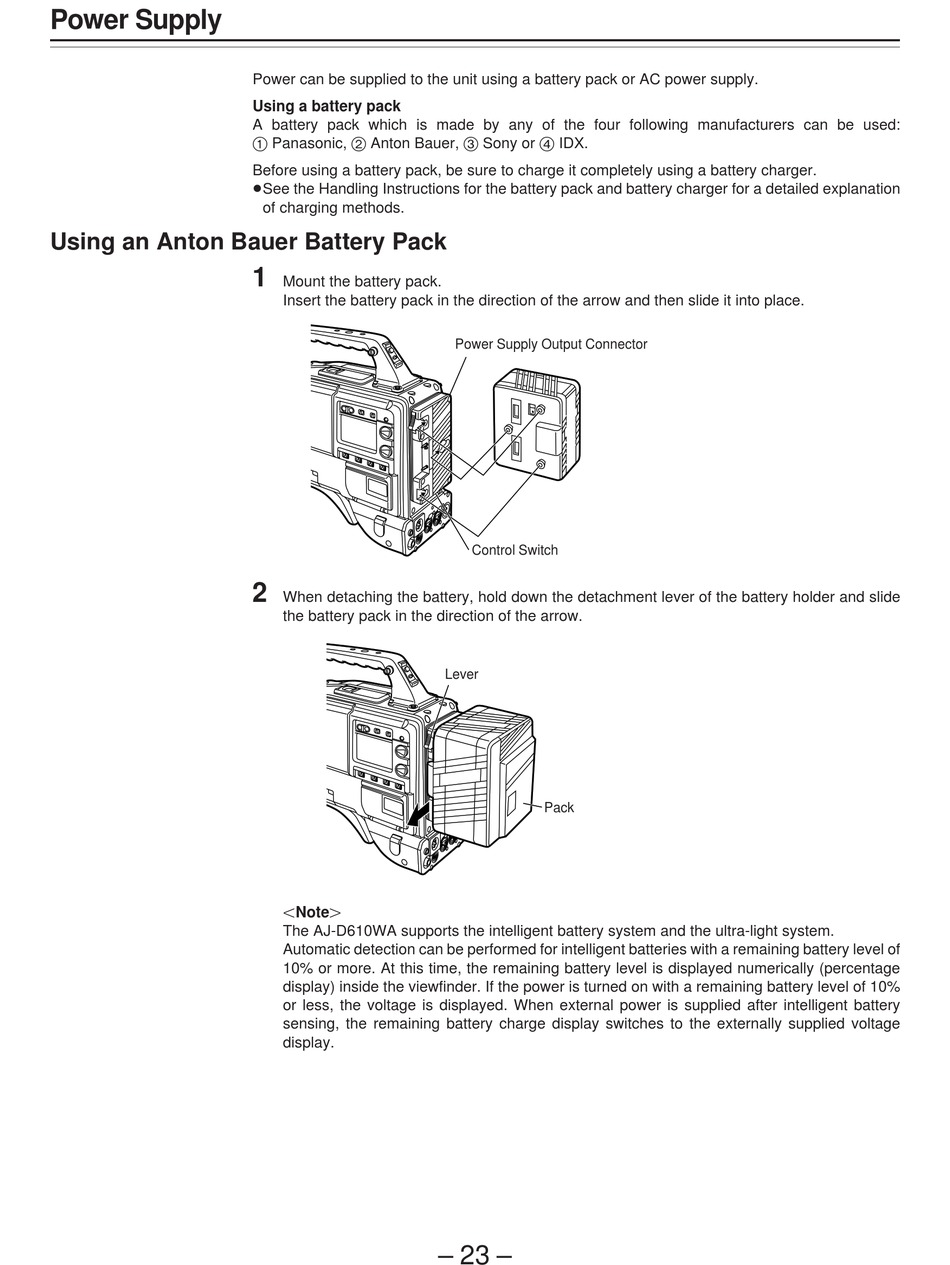

Power Supply

Using an Anton Bauer Battery Pack

Power can be supplied to the unit using a battery pack or AC power supply.
Using a battery pack
A battery pack which is made by any of the four following manufacturers can be used:
Panasonic, Anton Bauer,
Before using a battery pack, be sure to charge it completely using a battery charger.
ÁSee the Handling Instructions for the battery pack and battery charger for a detailed explanation
of charging methods.
1
Mount the battery pack.
Insert the battery pack in the direction of the arrow and then slide it into place.
2
When detaching the battery, hold down the detachment lever of the battery holder and slide
the battery pack in the direction of the arrow.
|Note{
The AJ-D610WA supports the intelligent battery system and the ultra-light system.
Automatic detection can be performed for intelligent batteries with a remaining battery level of
10% or more. At this time, the remaining battery level is displayed numerically (percentage
display) inside the viewfinder. If the power is turned on with a remaining battery level of 10%
or less, the voltage is displayed. When external power is supplied after intelligent battery
sensing, the remaining battery charge display switches to the externally supplied voltage
display.
Sony or IDX.
Power Supply Output Connector
Control Switch
Lever
Pack
– 23 –
