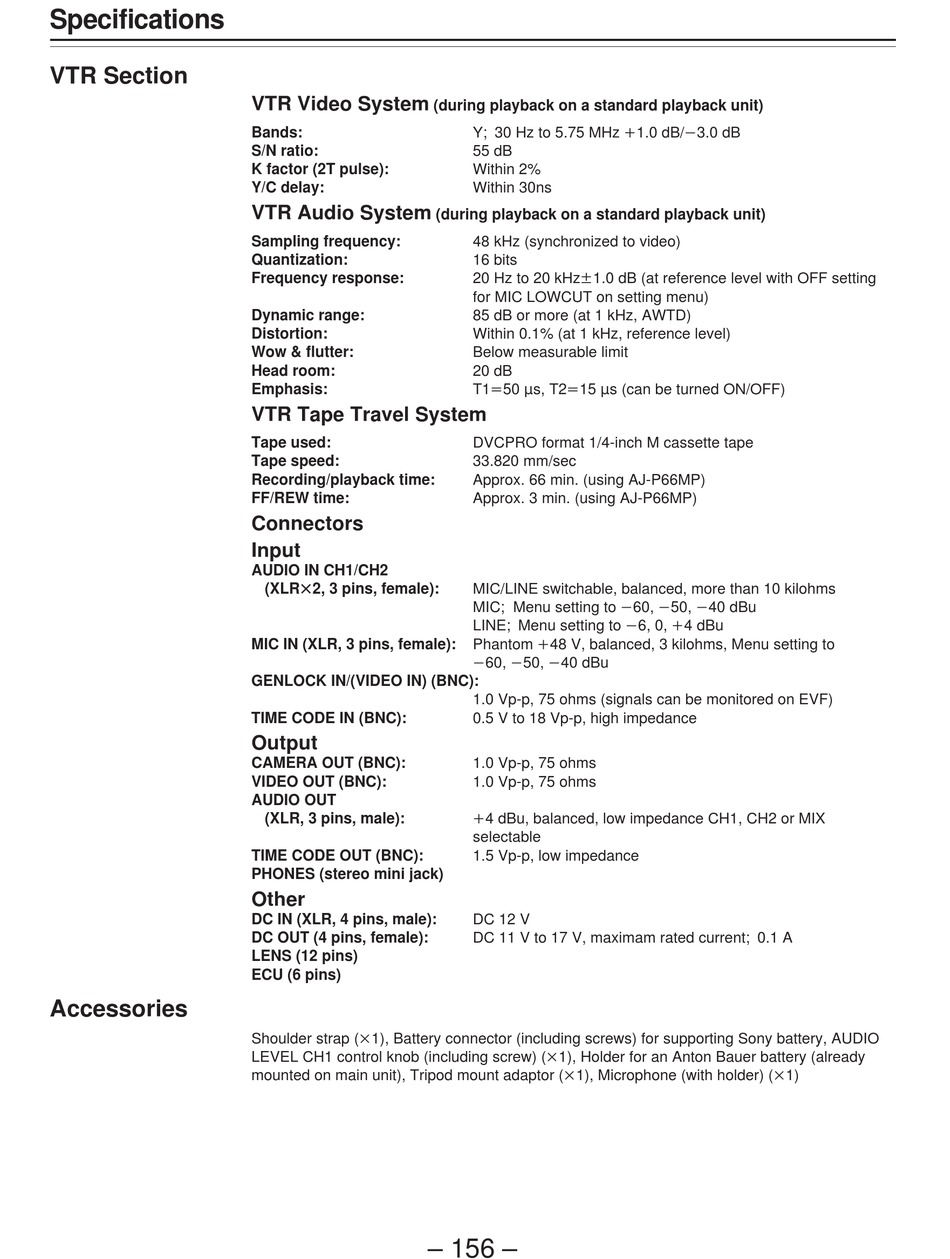

Specifications
VTR Section
Accessories
VTR Video System
Bands:
S/N ratio:
K factor (2T pulse):
Y/C delay:
VTR Audio System
Sampling frequency:
Quantization:
Frequency response:
Dynamic range:
Distortion:
Wow & flutter:
Head room:
Emphasis:
VTR Tape Travel System
Tape used:
Tape speed:
Recording/playback time:
FF/REW time:
Connectors
Input
AUDIO IN CH1/CH2
(XLR·2, 3 pins, female):
MIC IN (XLR, 3 pins, female):
GENLOCK IN/(VIDEO IN) (BNC):
TIME CODE IN (BNC):
Output
CAMERA OUT (BNC):
VIDEO OUT (BNC):
AUDIO OUT
(XLR, 3 pins, male):
TIME CODE OUT (BNC):
PHONES (stereo mini jack)
Other
DC IN (XLR, 4 pins, male):
DC OUT (4 pins, female):
LENS (12 pins)
ECU (6 pins)
Shoulder strap (q1), Battery connector (including screws) for supporting Sony battery, AUDIO
LEVEL CH1 control knob (including screw) (q1), Holder for an Anton Bauer battery (already
mounted on main unit), Tripod mount adaptor (q1), Microphone (with holder) (q1)
– 156 –
(during playback on a standard playback unit)
Y; 30 Hz to 5.75 MHz o1.0 dB/p3.0 dB
55 dB
Within 2%
Within 30ns
(during playback on a standard playback unit)
48 kHz (synchronized to video)
16 bits
20 Hz to 20 kHzt1.0 dB (at reference level with OFF setting
for MIC LOWCUT on setting menu)
85 dB or more (at 1 kHz, AWTD)
Within 0.1% (at 1 kHz, reference level)
Below measurable limit
20 dB
T1r50 ¯s, T2r15 ¯s (can be turned ON/OFF)
DVCPRO format 1/4-inch M cassette tape
33.820 mm/sec
Approx. 66 min. (using AJ-P66MP)
Approx. 3 min. (using AJ-P66MP)
MIC/LINE switchable, balanced, more than 10 kilohms
MIC; Menu setting to p60, p50, p40 dBu
LINE; Menu setting to p6, 0, o4 dBu
Phantom o48 V, balanced, 3 kilohms, Menu setting to
p60, p50, p40 dBu
1.0 Vp-p, 75 ohms (signals can be monitored on EVF)
0.5 V to 18 Vp-p, high impedance
1.0 Vp-p, 75 ohms
1.0 Vp-p, 75 ohms
o4 dBu, balanced, low impedance CH1, CH2 or MIX
selectable
1.5 Vp-p, low impedance
DC 12 V
DC 11 V to 17 V, maximam rated current; 0.1 A
