Novus NVIP-5C7000D-P User Manual

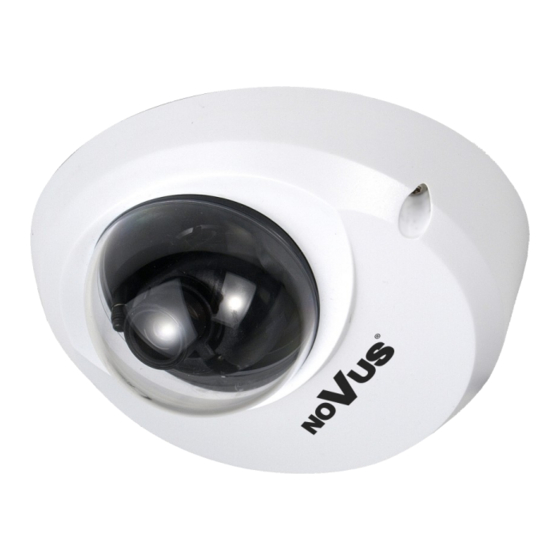

Color megapixel dome ip camera with electronic day/night function
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

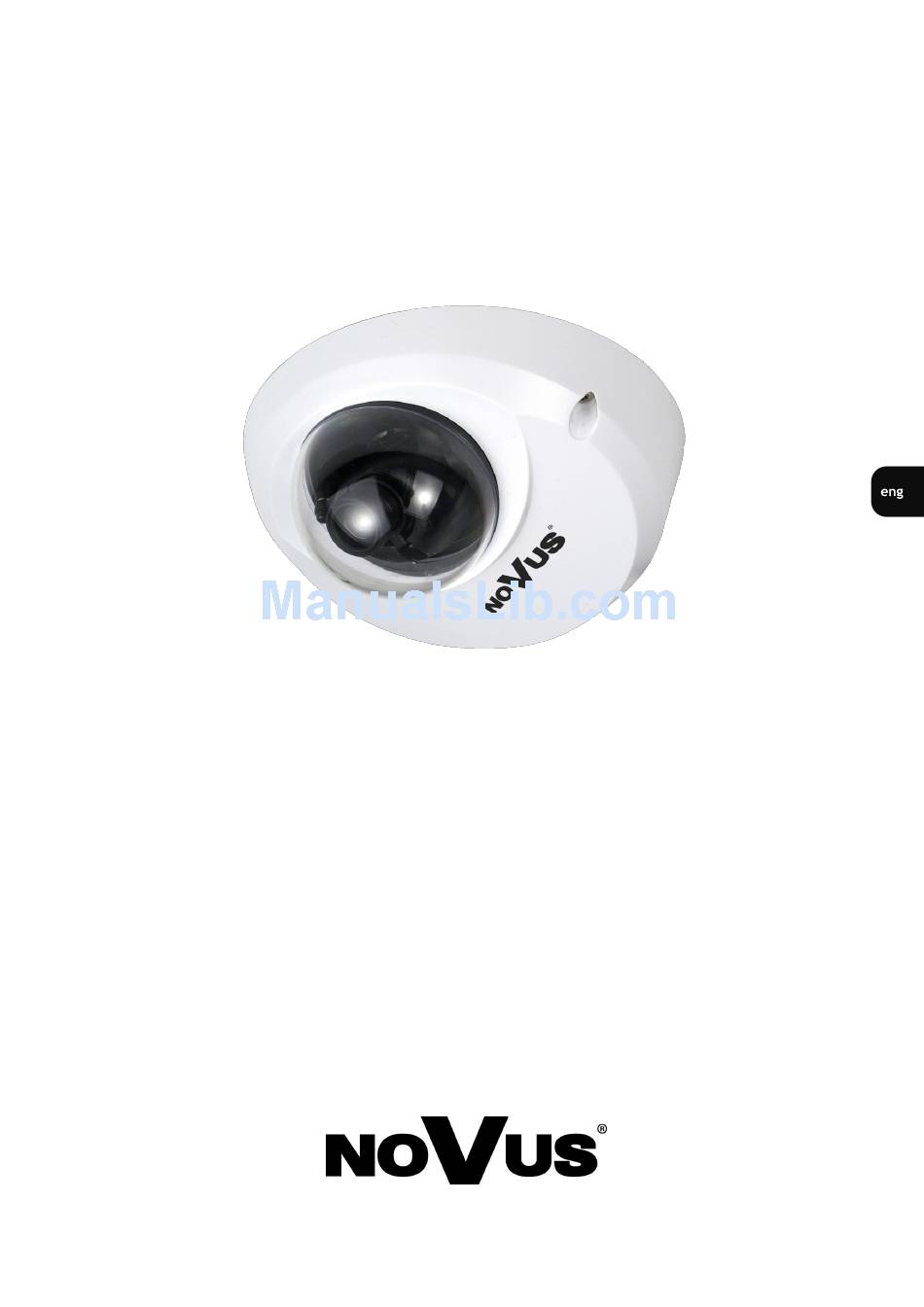

U s e r 's m a n u a l
( s h o r t )
NVIP-3C7000D-P
NVIP-5C7000D-P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVIP-5C7000D-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Novus NVIP-5C7000D-P

Summary of Contents for Novus NVIP-5C7000D-P

  • Page 1 U s e r ’s m a n u a l ( s h o r t ) NVIP-3C7000D-P NVIP-5C7000D-P...

  • Page 2: Important Safeguards And Warnings

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 IMPORTANT SAFEGUARDS AND WARNINGS EMC (2004/108/EC) and LVD (2006/95/EC ) Directives CE Marking Our products are manufactured to comply with requirements of the following directives and national regulations implementing the directives: Electromagnetic compatibility EMC 2004/108/EC.
  • Page 3 NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 IMPORTANT SAFEGUARDS AND WARNINGS WARNING! THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

  • Page 4: Table Of Contents

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 TABLE OF CONTENTS TABLE OF CONTENTS ....................4 1. FOREWORD INFORMATION ..................6 1.1. General Characteristics ..................6 1.2. Camera tech specification ..................7 1.3. Camera dimension ....................8 1.4. Package contents ....................9 2.
  • Page 5 NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 TABLE OF CONTENTS All rights reserved © AAT Holding sp. z o.o.

  • Page 6: Foreword Information

    Network protocol support : Onvif (2.0), HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring, playback and remote IP devices administration Small size dome enclosure Power supply: PoE (Power over Ethernet) All rights reserved ©...

  • Page 7: Camera Tech Specification

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 FOREWORD INFORMATION 1.2. Camera tech specification Model NVIP-3C7000D-P NVIP-5C7000D-P Pick-up Element 1/2.8" CMOS 1/2.5” CMOS Imager Resolution 3.0 megapixels 5.0 megapixels Min. Illumination Color: 0.1 lx/F=1.8 (DSS) Electronic Shutter Auto / Manual (1 ~ 1/10 000 s)

  • Page 8: Camera Dimension

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 FOREWORD INFORMATION 1.3. Camera dimensions Dimensions in mm All rights reserved © AAT Holding sp. z o.o.

  • Page 9: Package Contents

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 FOREWORD INFORMATION 1.4. Package contents After you open the package make sure that the following elements are inside: IP camera Accessories bag Short version of user’s manual CD containing manual and software If any of this elements has been damaged during transport, pack all the elements back into the original box and contact your supplier for further assistance.

  • Page 10: Start-Up And Initial Ip Camera Configuration

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 START-UP AND INITIAL CAMERA CONFIGURATION 2. START-UP AND INITIAL IP CAMERA CONFIGURATION 2.1. Description of connectors and control tools NVIP-3C7000D-P, NVIP-5C7000D-P 1. Reset button 2. Lens 3. Microphone 4. MicroSD card slot 5. Port Ethernet 100 Mb/s (RJ-45 connector) 6.

  • Page 11: Camera Mounting

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 START-UP AND INITIAL CAMERA CONFIGURATION Camera mounting 2.2. To mount a camera please follow the instructions below: Unscrew the dome from the camera (2 “A” screws). Put the camera’s base to wall/ceiling. Taking holes at the bottom of the camera’s base as a pattern, please mark the drilling holes for screws and cables (using a punch, for example).

  • Page 12: Starting The Ip Camera

    START-UP AND INITIAL CAMERA CONFIGURATION 2.3. Starting the IP camera To run NOVUS IP camera you have to connect ethernet cable between camera and network switch with PoE support (IEEE 802.3af). After connecting power supply green LED should light on. Initialization process is then started which takes about 30 seconds.

  • Page 13: Initial Configuration Via The Web Browser

    192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for camera and PC computer You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera yourself or select DHCP mode (DHCP server is required in this method in target network) by using web browser or by NMS software.

  • Page 14: Network Connection Utilizing Web Broswer

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 NETWORK CONNECTION UTILIZING WEB BROWSER 3. NETWORK CONNECTION UTILIZING WEB BROSWER 3.1. Recommended PC specification for web browser connections Requirements below apply to connection with an IP camera, assuming smooth image display in 1920x1080 resolution and 25 fps speed.
  • Page 15 NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 NETWORK CONNECTION UTILIZING WEB BROWSER If the installation fails, changing security settings for the IE browser is required. In order to do that, please choose: Tools > Internet options > Security tab > Custom level and:...

  • Page 16: Connection With Ip Camera Via The Other Browser

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 NETWORK CONNECTION UTILIZING WEB BROWSER 3.3. Connection with IP camera via other browser eg. Chrome, Mozilla Firefox, Safari ) It is also possible to connect to the camera using Mozilla Firefox, but this browser doesn't offer full functionality of the camera, so the recommended browser is Internet Explorer.
  • Page 17 NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 NETWORK CONNECTION UTILIZING WEB BROWSER After downloading and running it, a window depicting installation of particular components is then displayed. After proper installation pictures from the camera should become visible All rights reserved © AAT Holding sp. z o.o.

  • Page 18: Www Interface - Working With Ip Camera

    NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 WWW INTERFACE - WORKING WITH IP CAMERA 4. WWW INTERFACE - WORKING WITH IP CAMERA 4.1. Displaying live pictures 1. Main tabs Home — live view page System — camera settings ( IP, recording, sending alarm messages, motion detection) Streaming —...
  • Page 19 NVIP-3C7000D-P, NVIP-5C7000D-P User’s manual(short form) ver.1.0 WWW INTERFACE - WORKING WITH IP CAMERA - Snapshot - saves the current frame in JPEG format - Video Streaming pause/play button - Web recording to AVI button 5. Video streaming information. Right mouse button click on the live screen view displays additional information about actual video and audio transition parameters.

  • Page 20: Electric Connectors And Accesories

    5.1. Connecting power supply to the camera. The camera is supplied by using RJ45 network socket. To run NOVUS IP camera you have to connect ethernet cable between camera and network switch with PoE support (IEEE 802.3af). You can also use a power injector compatible with IEEE 802.3af standard.

  • Page 21: Restoring Factory Defaults

    1 minute using default IP address (http://192.168.1.200) and default user name (root) and password (pass) In the NVIP-3C7000D-P, NVIP-5C7000D-P reset button is located as depicted below. Non metal, thin object (e.g. match) is recommended for pushing it.
  • Page 22 2014-02-12 MM AAT Holding sp. z o.o., 431 Pulawska St., 02-801 Warsaw, Poland tel.: +4822 546 07 00, fax: +4822 546 07 59 www.novuscctv.com...
