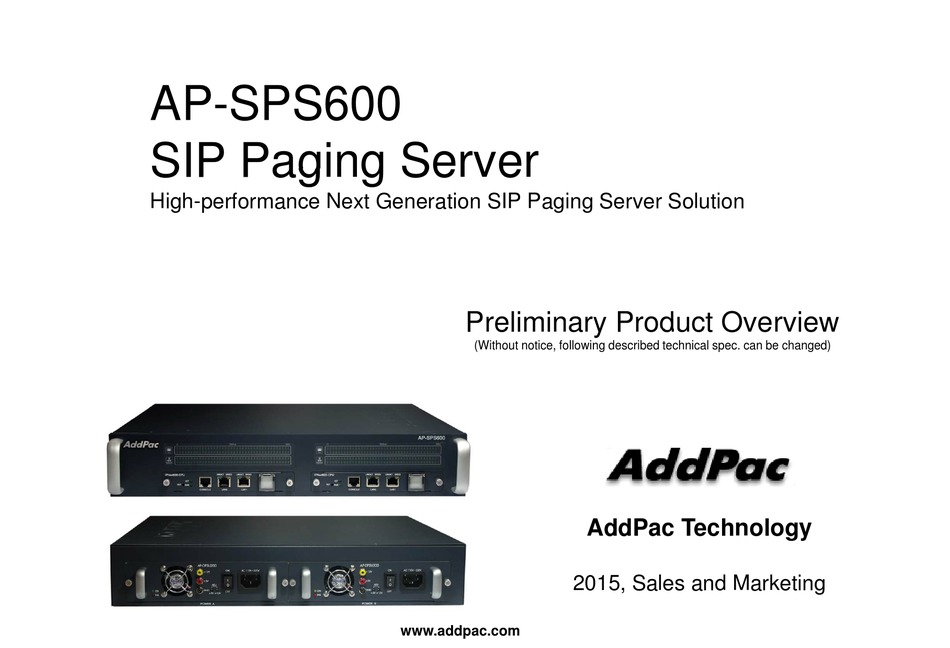

AP-SPS600
AP SPS600
SIP Paging Server
SIP Paging Server
High-performance Next Generation SIP Paging Server Solution
Preliminary Product Overview
Preliminary Product Overview
(Without notice, following described technical spec. can be changed)
2015, Sales and Marketing
www.addpac.com
AddPac Technology

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP-SPS600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AddPac AP-SPS600

  • Page 1 AP SPS600 AP-SPS600 SIP Paging Server SIP Paging Server High-performance Next Generation SIP Paging Server Solution Preliminary Product Overview Preliminary Product Overview (Without notice, following described technical spec. can be changed) AddPac Technology 2015, Sales and Marketing www.addpac.com...
  • Page 2 • Hardware Specification • System Redundancy Features System Redundancy Features • Software Service • Network Service and Features Network Service and Features • SIP Paging Terminals • SIP Paging Server Service Diagram • Paging Scenario & Service Features • Ordering Information www.addpac.com...

  • Page 3: Product Overview

    Web based SPMS(SIP Paging Management Software) Support • Various Paging Service Mode Support (Ex : Scheduled Broadcasting, etc) • Various SIP Paging Terminal Support (SIP Phone, etc) Beside AddPac Product SIP P t (SIP Ph t ) B id AddP •...

  • Page 4: Product Highlights

    Product Highlights AP-SPS600 SIP Paging Server Advanced SIP Paging Server Advanced SIP Paging Server SIP Application Server, Proxy, Standalone SIP Paging & Registrar and Location Server Broadcasting Service Support Dual System Architecture Powerful IVR Support for Fault Tolerant Support the Various...
  • Page 5 RISC Hardware Specification AP-SPS600 SIP Paging Server • 64bit High-End Microprocessor Computing Power 64bit High End Microprocessor Computing Power • Main Chassis – Dual Redundancy CPU Boards for System Fault Tolerant Dual Redundancy CPU Boards for System Fault Tolerant • Two(2) 10/100Mbps Fast Ethernet •...

  • Page 6: Hardware Specification

    Hardware Specification RISC AP-SPS600 SIP Paging Server AP-SPS600 Front Side CPU Utilization CPU Utilization Network Utilization Network Utilization Display Display Hot-Swap Button CPU Board LAN1 for Active CPU LAN1 for Standby (Hot-Swap) LAN0 for Active CPU LAN0 for Standby www.addpac.com...
  • Page 7 Hardware Specification RISC RISC AP-SPS600 SIP Paging Server AP-SPS600 Back Side Dual Power Supply Modules (H t S (Hot-Swap) Power On/Off Switch for System PSU Module A PSU Module B www.addpac.com...
  • Page 8 System Redundancy Features System Redundancy Features AP-SPS600 SIP Paging Server AP-SPS600 System Block Diagram IP Network (WAN) LAN0 LAN1 LAN0 LAN1 Keep Alive Channel CPU Board CPU Board CPU Board CPU Board (ACTIVE) (StandBy) www.addpac.com...

  • Page 9: Software Service

    Software Service AP-SPS600 SIP Paging Server • Built-in AddPac APOS Internetworking Software Built in AddPac APOS Internetworking Software – Scalability, Functionality, and Stability Features AddPac – Advanced SIP Paging Server Service Features Advanced SIP Paging Server Service Features – QoS Control Features...
  • Page 10 SIP Signaling Service and Features SIP Signaling Service and Features AP-SPS600 SIP Paging Server • Signaling Server – SIP Application Server, Proxy, Registrar and Location Server (RFC3261) – Multiple ITSP Trunk with SIP & H.323 Accounts Support • IP UA Client Role for Registering to ITSP SIP Server •...
  • Page 11 Network Service and Features Network Service and Features AP-SPS600 SIP Paging Service • Basic Network Protocols - ARP, IP, IPv6, TCP, UDP, ICMP, ICMPv6, SCTP, IGMP, MLD • Routing Protocol • Routing Protocol - IPv4 : Static - IPv6 : Static •...
  • Page 12 Network Service and Features Network Service and Features AP-SPS600 SIP Paging Service • IPv4/IPv6 Interworking - NAT/PAT for IPv4 - IP connect (formerly ip-share) and device cascade for IPv4 - IP/IP, IP/GRE tunneling - NAT-PT - 6to4 Autoconfig tunneling 6to4, Autoconfig tunneling •...
  • Page 13 Network Service and Features Network Service and Features AP-SPS600 SIP Paging Service • Miscellaneous - Standard & Extended IPv4/IPv6 Access List - Multi-level User Account Management - Multi-level User Account Management - IP accounting - fsh (Embedded file system shell)
  • Page 14 Network Service and Features Network Service and Features AP-SPS600 SIP Paging Service SNMP MIBs - MIB-II - RMON MIBs (Statistsics, History, Alarm, Hosts Group) - RFC2465 Management Information Base for IP Version 6: Textual Conventions and General Group - RFC2466 Management Information Base for IP Version 6:...
  • Page 15 SIP IP Phones SIP IP Phones for Paging Service www.addpac.com...
  • Page 16 IP Phones for AddPac IP-PBX IP Phones for AddPac IP PBX AP-IP300 AP-IP250 AP-IP230 AP-IP160 AP-IP120 AP-IP90 LCD Size 4.3 Inch Color 4.3 Inch Color 5 Inch 4 Text Line 4 Text Line 4 Text Line Color LCD Graphic LCD...
  • Page 17 • Video Conference Call Support (AddPac External MCU Inter- Video Conference Call Support (AddPac External MCU Inter working) • Advanced Voice/Video Traffic QoS • SIP, H.323* Signaling Support SIP H 323* Signaling Support • Support Various Call Signal via AddPac SIP Paging Server www.addpac.com...
  • Page 18 SIP P SIP Paging Server Service Diagram www.addpac.com...
  • Page 19 SIP Broadcasting Network Diagram SIP P SIP Paging Server Paging Group Members Paging Authorization Members AP1605 1002 1000 1003 LAN/WAN 1001 IP Phone xxxx SIP Signaling + RTP Voice Stream www.addpac.com...
  • Page 20 Paging Group Signaling Flow (Standalone Mode) SIP Paging Server 1000 1002 1002 1003 1003 1004 1004 IP Phone AP1605 AP1605 AP1605 NVITE(9000) NVITE(9000) 200OK INVITE(1002) Answer-Mode : Auto Answer Mode : Auto 200OK INVITE(1003) Answer-Mode : Auto 200OK INVITE(1004) Answer-Mode : Auto 200OK 200OK www.addpac.com...
  • Page 21 SIP Ph SIP Phone SIP Ph SIP Phone AP1602 Area 2 Area 2 IP Network IP Network Broadcasting Router AP-BCR5000 AP1602 IP N IP Network Area N AP1602 Broadcasting Router AP-BCR5000 AP1602 IP Network AP-SPS600 AP1602 SIP Paging Server www.addpac.com...
  • Page 22 Active – Standby Redundancy Active SIP Paging Server AP-SPS600 Active SIP Trunk keepalive keepalive Fail Over AP1602 Heart beat IP Network General IP PBX Re-registration AP1602 Standby SIP Trunk Standby SIP Paging Server AP-SPS600 www.addpac.com...
  • Page 23 Scalable Broadcasting Routing Server Area A Broadcasting Router AP-BCR5000 SIP Paging Server AP-SPS600 AP SPS600 Area B Broadcasting Router IP Network AP BCR5000 AP-BCR5000 Broadcasting Router Area C Area C AP-BCR5000 www.addpac.com...
  • Page 24 Paging Scenarios & Service Features & S www.addpac.com...
  • Page 25 • Add-hoc Paging with IVR • Recorded Paging with Simultaneous Casting d d P i h Si • Recorded Paging with Individual Casting • TTS (Text to Speech) Paging • Audio and SMS Paging by HTTP API • Scheduled Paging www.addpac.com...
  • Page 26 SIP Phone Initiated Real-Time Paging General IP-PBX Paging Group Number 9000 AP1602 SIP Phone Dial 9000 (INVITE) 200 OK Ready beep sound (RTP) Broadcasting (RTP) SIP Paging Server AP1602 www.addpac.com...
  • Page 27 SIP Phone Initiated Real-Time Paging via PBX General IP-PBX SIP Phone Dial 9000 (INVITE) Paging Group 200 OK Number 9000 AP1602 SIP Paging Server AP1602 www.addpac.com...
  • Page 28 SIP Phone Initiated Real-Time Paging to PBX SIP Phone General IP-PBX SIP Phone Dial 9000 (INVITE) 200 OK SIP Phone Paging Group Number 9000 SIP Paging Server www.addpac.com...
  • Page 29 SIP Phone Initiated Real-Time Paging to PBX SIP Phone General IP-PBX SIP Phone SIP Phone Dial 9000 (INVITE) Paging Group 200 OK Number 9000 Ready beep sound (RTP) Broadcasting (RTP) SIP Paging Server www.addpac.com...
  • Page 30 SIP Phone Initiated Real-Time Paging to PSTN and M bil N t Mobile Network General IP-PBX PSTN PSTN PSTN Phone 3G/LTE 3G/LTE Network SIP Phone Dial 9000 (INVITE) 200 OK Ready beep sound (RTP) Cellular Phone Broadcasting (RTP) SIP Paging Server www.addpac.com...
  • Page 31 PSTN or Mobile Network Initiated Paging with IVR 3G/LTE General IP-PBX Dial IVR Number Network IVR prompt IVR prompt Paging Group Cellular Phone Send 9000 digit Number 9000 PSTN Talk PSTN Phone AP1602 IVR Point SIP P SIP Paging Server AP1602 www.addpac.com...
  • Page 32 Web Controller Initiated Real-Time Paging (1) g g ( ) Web Controller (PC) General IP-PBX Paging Group Number 9000 Monitoring Paging Session AP1602 SIP Phone INVITE 200 OK Ready beep sound (RTP) Broadcasting (RTP) SIP Paging Server AP1602 www.addpac.com...
  • Page 33 Web Controller Initiated Real-Time Paging (2) Web Controller (PC) General IP-PBX Paging Group Number 9000 Monitoring Paging Session AP1602 INVITE 200 OK Ready beep sound (RTP) Broadcasting (RTP) AP1602 AP1602 SIP Paging Server AP1602 www.addpac.com...
  • Page 34 Check recorded sound before send paging p g g Dial IVR Number (INVITE) 200 OK AP1602 SIP Phone IVR prompt (RTP) IVR prompt (RTP) Send 9000 digit Talk (RTP) Send End digit Recorded sound (RTP) SIP Paging Server Send OK digit AP1602 www.addpac.com...
  • Page 35 Recorded Paging with Simultaneous Casting Web Controller (PC) General IP-PBX Paging Group Number 9000 Recorded or uploaded sound file AP1602 sound file SIP Paging Server Send RTP simultaneously AP1602 www.addpac.com...
  • Page 36 Audio Paging by HTTP API g g y General IP-PBX 3rd Party Server Paging Group Number 9000 SIP Phone SIP Phone TTS or sound file SIP Phone SIP Paging Server www.addpac.com...
  • Page 37 SMS Paging by HTTP API g g y General IP-PBX 3rd Party Server 3G/LTE Network Cellular Phone Request SMS SIP Paging Server SIP Paging Server SMS Gateway SMS Gateway www.addpac.com...
  • Page 38 Scheduled Paging Web Controller (PC) General IP-PBX Paging Group Number 9000 Make a schedule AP1602 SIP Paging Server AP1602 www.addpac.com...
  • Page 39 SIP Paging Management Software SIP Paging Management Software (SPMS) www.addpac.com...
  • Page 40 SIP Paging Management System GUI Initial Screen Paging source Paging Groups Paging Organizer Fa orite Paging Gro p Favorite Paging Group with Source ith So rce Active Paging Sessions www.addpac.com...
  • Page 41 Paging Device Management www.addpac.com...
  • Page 42 Paging Group Management www.addpac.com...
  • Page 43 Administrator Management www.addpac.com...
  • Page 44 Scheduled Paging Management www.addpac.com...
  • Page 45 TTS Paging www.addpac.com...
  • Page 46 • Built-in APOS Internetworking Software for AP-SPS2000 • Including 1 Year Hardware Warranty • Product Documents – Install and Operation Guide (PDF) • Pricing – AddPac Technology Regional Sales Manager – Authorized Sales and Marketing Representatives – Please Contact www.addpac.com www.addpac.com...
  • Page 47 Thank you! AddPac Technology Co., Ltd. Sales and Marketing Sales and Marketing Phone +82.2.568.3848 (KOREA) FAX +82.2.568.3847 (KOREA) E-mail sales@addpac.com www.addpac.com...
