Brush cutter / Trimmer

KC-435

Instructions for use

English – Translation of the original instructions for use

Table of Contents

Need help?

Do you have a question about the KC-435 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vari KC-435

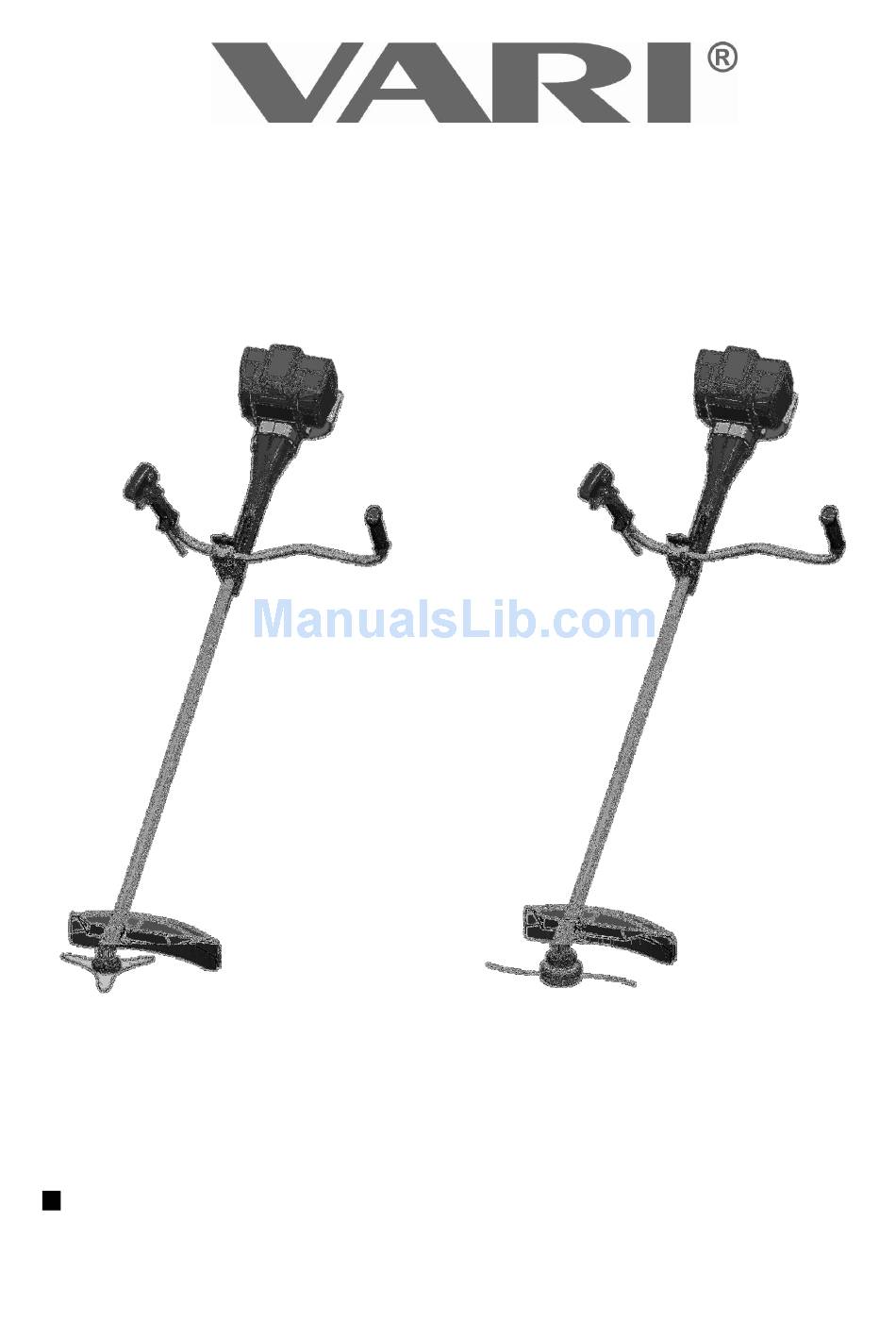

Page 1 Brush cutter / Trimmer KC-435 Instructions for use English – Translation of the original instructions for use...
Page 2: En Instructions For Use
KC-435 Content 1 EN Instructions for use Basic information Ask your dealer to unpack the machine and provide you with instructions as a part of the pre-sale services! Type Stick the identification plate here: KC-435 Engine type HONDA GX35 Identification number 10052_____.____.____...
Page 3: Table Of Contents
KC-435 Instructions for use Content 1 EN Instructions for use Introduction ..........................5 1.1.1 Basic notices ........................5 Operation safety .......................... 5 1.2.1 Safety instructions ....................... 5 1.2.2 Noise and vibration values ....................7 1.2.3 Safety pictographs ....................... 8 Basic information......................... 8 1.3.1...
Page 4 KC-435 1.5.1 Refilling the cutting string ....................16 1.5.2 Sharpening the cutting blades of the grass blade ............. 17 1.5.3 Maintenance and adjusting of the engine ................ 17 1.5.4 Angle gearbox lubrication ....................17 1.5.5 Servicing intervals ......................18 1.5.6 Problems and their solutions ....................
Page 5: Introduction
The brush cutter/trimmer is a light and compact machine for cutting grass for example along kerbs, around trees, under fences, in ditches and at other places that are not accessible for a common lawnmower. The KC-435 brush cutter/trimmer is equipped with the silent four-stroke HONDA GX 35 engine. Its advantages (compared with two-stroke brush cutter) are lower noise, engine revolutions, fuel consumption and emissions as well as easier starting.
Page 6 KC-435 Read and study all instructions carefully. Familiarize yourself well with control elements and with principles of their correct usage. Learn the correct way to stop the engine quickly. Use the brush cutter/trimmer only for the purposes it is intended for, i.e. for cutting grass using the nylon string grass blade as finishing work in places hardly accessible for mowers.
Page 7: Noise And Vibration Values
KC-435 when any persons or animals appear nearby − the engine can only be running when adjusting the carburettor or the engine revolutions − if a foreign object is hit. Check whether the brush cutter/trimmer is damaged; repair it when −...
Page 8: Safety Pictographs
It is forbidden to remove any protective devices and covers from the machines. The brush cutter/trimmer can’t be used to cut shrubbery, trees, prune trees, etc. 1.3.1.1 Technical data KC-435 brush cutter/trimmer Unit Value Dimensions (L x W x H)
Page 9: Description Of The Machine And Its Parts
Oil volume in engine l (litre) Fuel consumption g/kWh (l/h) 360 (0,71) Spark plug NGK CMR5H Table 4: Technical information on KC-435 1.3.2 Description of the machine and its parts Brush cutter/trimmer: Honda GX35 engine Blade Angular gearbox Cutting tool cover...
Page 10: Handlebar Assembly
KC-435 1.4.1.1 Handlebar assembly Put the handlebars (1) on the anti-vibration element (2) and screw it using bolts (3) and washers (4). Remove the cable cover (5) from anti-vibration element (1), pass the cables (6) and put the cover back anti-vibration element.
Page 11: Mounting And Adjustment Of The Harness
KC-435 1.4.1.5 Mounting and adjustment of the harness For safety and comfort of the operator it is very important to properly adjust the harness for the particular figure, so that it is possible to operate the brush cutter/trimmer with the highest possible comfort and the hanging brush cutter/trimmer is properly balanced.
Page 12: Adding The Motor Oil
KC-435 Place the brush cutter/trimmer in a working position to make the work easier. Make sure that the brush cutter/trimmer is in a stable position, so that the fuel can’t be spilled unintentionally. See detailed information in the instructions for use of the engine 1.4.2.3 Adding the motor oil...
Page 13: Warm Start
KC-435 Move the engine switch (1) to the position “START” (I). Move the choke lever (2) to the upper position (choke on). Push the fuel pump balloon (3) under the carburettor several times. Pull the starter handle (4) slowly until you feel a resistance.
Page 14: Switching Off The Engine
KC-435 1.4.3.3 Switching off the engine Move the engine switch (2) to position STOP (O) to switch the engine off. Use the same procedure for engine emergency stop. Always keep in mind that the cutting tool is rotating by inertia force for some time after the engine is switched off.
Page 15: Using The Grass Blade
KC-435 1.4.4.2 Using the grass blade The maximum diameter of the blade has to be 255 Cutting The three-tooth grass blade is intended for cutting grass at hardly accessible places, cutting high and overgrown vegetation and even woody sprouts with a diameter of up to 2 cm.
Page 16: Refilling The Cutting String
KC-435 1.5.1 Refilling the cutting string Block the gearbox using the hex key. Unscrew the nylon head from the angular gearbox shaft, turning it clockwise. Push latches (1) on sides of the nylon head and remove the cover with the spool.
Page 17: Sharpening The Cutting Blades Of The Grass Blade
KC-435 1.5.2 Sharpening the cutting blades of the grass blade Perfect results of the cutting tool can only be ensured if the blades are properly sharpened. Slight sharpening can be done with a hand sharpening stone. For bigger blunting it is necessary to use a tool sharpener.
Page 18: Servicing Intervals
KC-435 1.5.5 Servicing intervals Maintenance intervals – carry out in given Before The first Each 3 Each 6 Each year or monthly intervals or after given working each use month or months or months or 100 working hours, depending on what comes sooner...
Page 19: Problems And Their Solutions
KC-435 1.5.6 Problems and their solutions Problem Cause Solution The engine does not start Not enough fuel in the tank Fill in the fuel Engine switch in STOP (0) position Move the switch to START (I) position Spark plug not installed correctly or not...
Page 20: Transportation And Storing
KC-435 1.6 Transportation and storing 1.6.1 Transportation The engine must always be off and the safety cover must be put on the cutting tool during transport. During transport, the brush cutter/trimmer must be properly secured and fastened in such a way that it can’t come loose and the oil filling can’t run out of the engine.
Page 21: Putting The Machine Into Operation After Longer Storing
(N°). Only with these data is it possible to find the exact designation of the corresponding spare part. Field Description Type Type name of the machine. (KC-435) Unique production identification number. 1005200006.0111.00001 (product.period.quantity) Part (trade) number. (4339) Table 7: Name plate – example 1.7 Address of the manufacturer...
