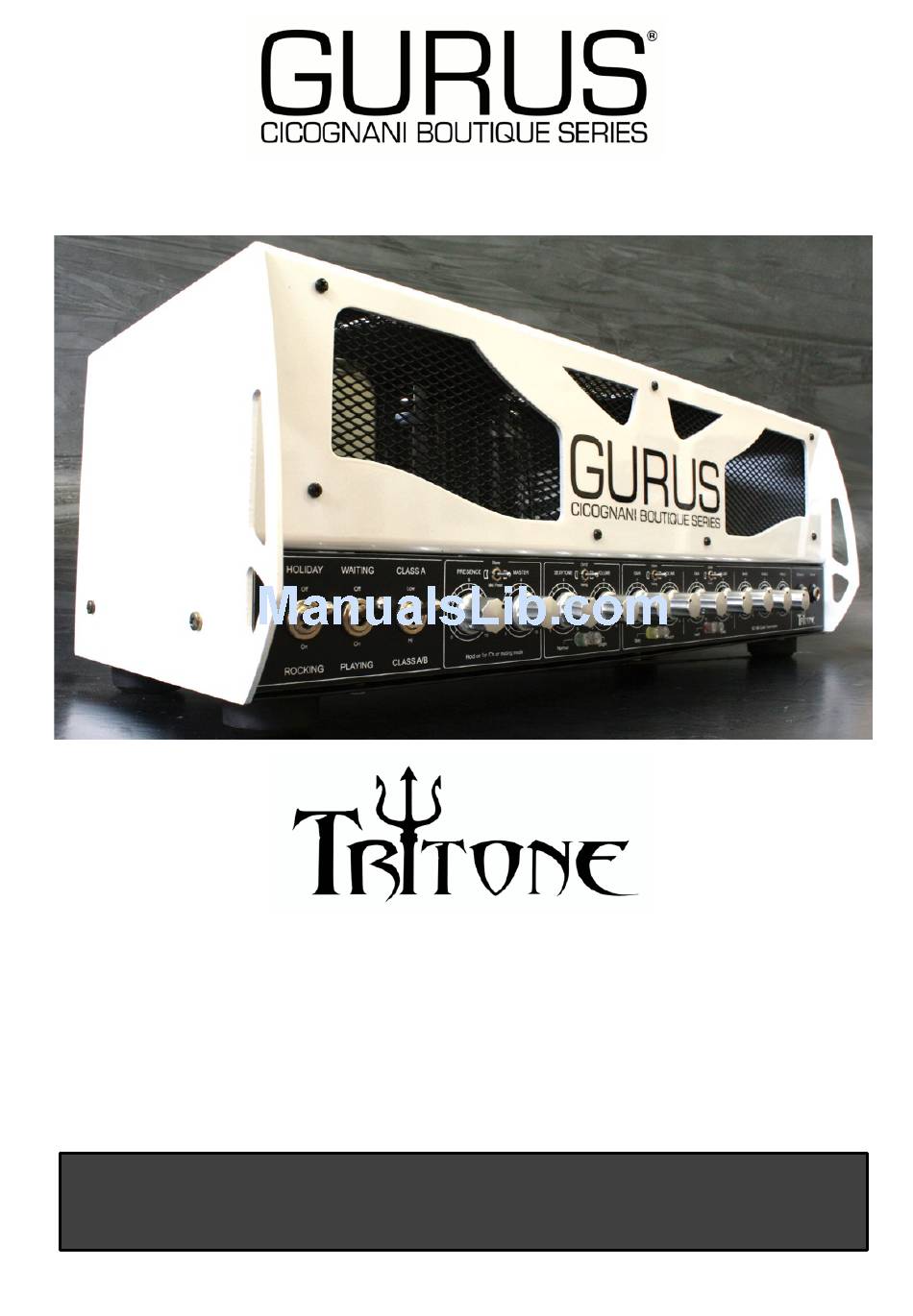

- Page 1 USER’S MANUAL WORLDWIDE DISTRIBUTION BY: GURUS S.r.l. Via Vittori, 181 – 48018 Faenza (RA) Italy Tel/Fax +39 0546 620387 – Internet: www.gurusamps.com – Mail: sales@gurusamps.it...
- Page 2 Italian icons from the world of racing have made unique the "Italian way" combining art and TUBES REPLACEMENT technology. "Gurus is not just a brand, it is a project, an idea, FRONT PANEL a vision precisely. We can not think about the ABOUT “iChannel”...
-
Page 3: Using Rules
Warning !! Introduction With Gurus we also wanted to continue in the WARNING path of innovation, giving meaning to our mile RISK OF ELECTRIC SHOCK stones of the past to create something modern DO NOT OPEN that still had not been done yet. Thus was born iChannel. -
Page 4: About Tubes
Front view, from Right to Left V1-V7 Design Gurus Tritone has been designed using a chassis made of Aeronautical Aluminum to reduce weight and assure the bes performances of mechanical strenght. Also Weights distribution has been studied and the handle... -
Page 5: Front Panel
The high quality of input and output buffers ensure tone with unexpected dynamic. Tritone opens a new world, offering the right interface to use the best software designed for guitar sounds usable with: smartphone, tablet, DAW. -
Page 6: Rear Panel
Treble 2300Hz. internal HT fuse Presence High pass filter from 4000Hz onwards TUBES CHART: 5x12AX7B Gurus 2x EL34B/5881 Gurus Send Level Max 1 Vpp Out (Hi mode) Z Out <100KOhm OUTPUT POWER 30/50W @4/8/16 Ohm Max 0,5Vpp Out (Lo mode) -
Page 7: Block Diagram
Block Diagram Analog Footswiches wiring Tritone can be managed by a standard Midi controller or via Analog Switching Systems. Just connect 3 standard Jack/Jack cables to have full control of all 6 Channels of Tritone, according to following schematics. Be sure your Switching device supports Momentary mode. - Page 8 FX units connected in the FX Loop. Set the FX unit or the Tritone’s loop Switch for better fit the level: hi or Lo Z impedance (Hi for pedals, most of rack units, basically all operates at “Line”...
- Page 9 Filter Diagrams SEXY TONE: It is a passive control that changes the EQ curve acting on the entire range of frequencies, is in fact easy to note that by acting on the amount of high, at the same time you have a shift in the shape of the medium and a sensitive intervention but very linear in the low, that are always rounded and focused The advantages of this kind of control, are to merge into a practical single potentiometer a true multi-band filter, able to respond to requests that our ear tells us, without ever...
-
Page 10: Terms Of Warranty
Responsibility of Gurus Amps for any defective product is limited to repair or replacement of the product at our discretion. The Gurus Amps not be liable for damages resulting from loss of use of the product, lost time operation interrupted by non-use of the product, loss of business or any other damages or incidental, consequential or otherwise;... - Page 11 Note...
- Page 12 Gurus Amps reserves the right to change technical features or look of his products in any moment without notice.This product is pursuant to European Directives 89/336EEC...
