Yamaha ATS-1050 Quick Start Manual

Supplied items

Before assembling and connecting, make sure you have received all of the following items.
If anything is missing, please call 888-892-6242, 8AM to 5PM PST Monday through Friday.
Remote control Battery
(AAA, R03, UM4) × 2
(Install the batteries in the
remote control.)

Placement

On a TV cabinet, etc.
Remote control
Installation position
sensor (front panel)
selector switch
(bottom panel)
© 2015 Yamaha Corporation
ATS-1050 Quick Start Guide

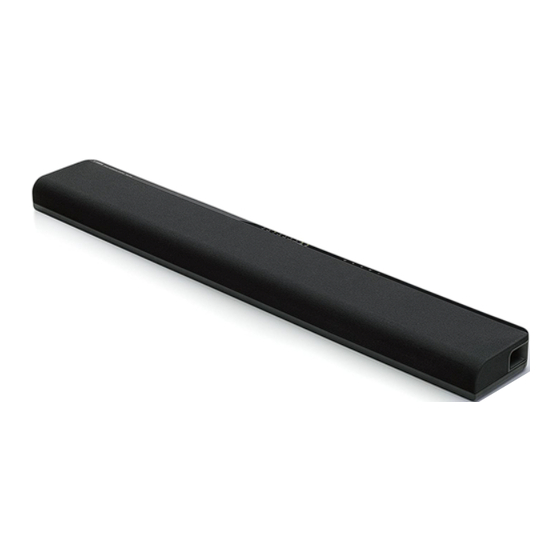

Sound bar (ATS-1050)
Optical cable
1.5 m (4.9 ft)
Attaching to a wall
3.5 mm stereo mini plug cable Spacer × 2
1.5 m (4.9 ft) (Use when attaching the
sound bar to a wall.)
Keys
Remote control
sensor (top panel)
Installation position
selector switch
(bottom panel)
Mounting template
(Use when attaching the sound bar to a wall.)
Owner's Manual
Place the sound bar in front of or below your TV, at least 50 mm
(2") away from your TV.
The sound bar may also be attached to a wall, using the
included mounting template and commercially available
screws. Refer to the Owner's Manual for additional installation
instructions.
Set the installation position selector switch according to
the installation position of the sound bar. The sound quality
appropriate to the installation position will be set.
NOTE
• Be careful not to stack the sound bar with any other components, as
vibration may cause system disruption in other components.
Continued to the reverse side
U
Quick Start Guide
(This sheet)
Printed in Indonesia ZR10560
