Page 1: Alarm System

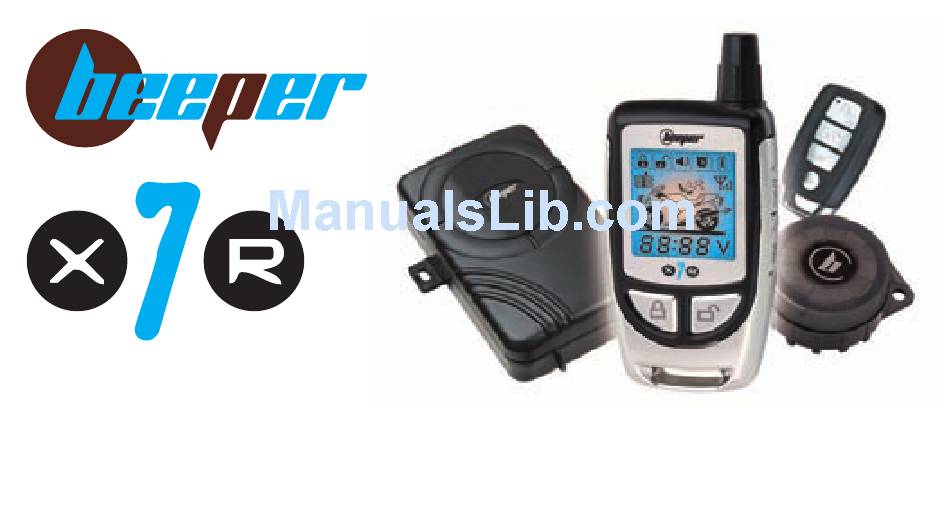

ALARM SYSTEM photo no contractual TWO WHEELS INSTALLATION MOTOS & SCOOTERS & USE MANUAL... - Page 2 3 years. Our technical department is at your disposal for further information. The alarm system BEEPER X7R is an electronic product that may require the skills of an electrician for installation. Even if the installation is universal and without complexity, we advise you to call a professional electrician to avoid damaging your two wheels.
-
Page 3: Main Functions
Main functions Silent mode activation (siren nonfunctional) COMPOSITION Beep sound activation and deactivation (voidable if necessary) Bi-directional remote (x 1) Automatic reset after 60 seconds (programmable function) Remote mono-directional metallic finish (x 1) Reprogramming of new remote for loss Central waterproof and anti-vibration Remote screen LCD backlit LCD multicolor Patented built-in shock sensor SHOCKLIFT ™... - Page 4 INSTALLATION MANUAL Precautions Thank you observe the following before installing the system: • This system is designed to be installed on a 2-wheel (motorcycle, scooter, quad, ...) with a 12 volt battery and an electric starter. • The system runs on 12V DC (12V DC). Be sure the polarity of each wire. •...
-
Page 5: Connection Diagram
antenna Do not cut and do not connect Connection diagram Central +12V battery Fusible 12V to Starter Orange +12 V after-contact Case control or original Pink Cut engine Cut the wire bonding from the CDI Cut engine Grey (ECU ignition.) Never cut the + APC (after contact) start over... -
Page 6: Installation Of System Components
Installation of system components • The plant must be concealed and placed in a location where it will not easily accessible and protected from splashing water and fuel. • The siren should be placed in an open area for the passage of its maximum but protected from splashing water and fuel. •... - Page 7 Functions of the buttons on the remote Two-way LCD remote Simple remote mono-directional • Remote Start • Alarm Activation • Alarm Activation with audible and with audible and pressing this button light.* for 3 seconds * light. • Location 2 •...
-
Page 8: System Functions
System functions Activation with light & buzzer (1) When the system is off, press the button uonly once (short press <1 sec.), the siren will beep once, blinkers flashing a time. The remote will beep one time, the LCD screen on the remote glows green. The system will activate 3 seconds later. - Page 9 Judgment of the siren When the siren sounded after the system has detected an attempted break-in, press one of three buttons: once (short press <1 sec.), the siren stops and system returns to the active mode after 3 seconds. Desactivation (3) When the system is activated, press the once (short press <1 sec.), turn signals will flash 2 times.
- Page 10 Remote Start (5) When the alarm is activated, press the for 3 seconds, the system will remote start on 2 wheels. The siren beeps 3 times. Two wheels of the engine starts, to confirm the correct engine start, the siren sounds 3 beeps again. The remote is flashing icon engine 4 times to indicate that the motor turns the wheels 2.
-
Page 11: Memory Of Alarm
Memory of alarm When the system detected an attempted burglary, the deactivation of the system (press button ), the siren will beep four times (instead of 2 times) and turn signals will flash four times (instead of 2 times) Detection of attempting to start engine When the system is activated, if an attempt to establish contact with the two wheels is performed, the siren sounds and flashing lights for 30 seconds (3 cycles of 30 sec.). - Page 12 Emergency stop If you lost your remote control or any other malfunction, when the alarm is activated and the siren sounds in that can stop it by remote control, you can perform an emergency stop with push button. Press the button 5 times, the siren will stop and the alarm turns off 3 seconds later. To return to a normal state, reactivate the system through one of two remote by pressing the button Energy savings from the remote If you are not using the remote, you can turn it off.
-
Page 13: Technical Data
Technical Data • Power: 9.5 - 17.5 V. (nominal 12 V) • Consumption: <4 mA standby • <250 mA peak • Frequency of remote control: 433.92 MHz (mode ASK) • Volume of the siren � <118 dB • Operating Temperature: -25 ° C • 80 ° C •... -
Page 14: Warranty
Warranty BEEPER products are guaranteed for 3 years. WARRANTY YEARS We ask you to consult the general conditions of sale and service after-sale on our website : www.beeper.fr/cgv For further information: IXIT SAS • 228 Rue de l'Ancienne Distillerie • Parc des Grillons • 69400 GLEIZÉ • France Capital : 61 000 E •... -
Page 15: Statement Of Compliance
228 Rue de l’Ancienne Distillerie 69400 GLEIZÉ France Declare under our sole responsibility that the products References : X7R - X7RTX1- X7RTX2 - X7RCEN - X7RSIR Type : Alarm for two-wheel motorcycles and scooters and four wheeled ATV-type Which this declaration applies, complies with applicable standards & normative documents:... - Page 16 Discover more information, more products www.beeper.fr...
