Summary of Contents for DeFever Lioness

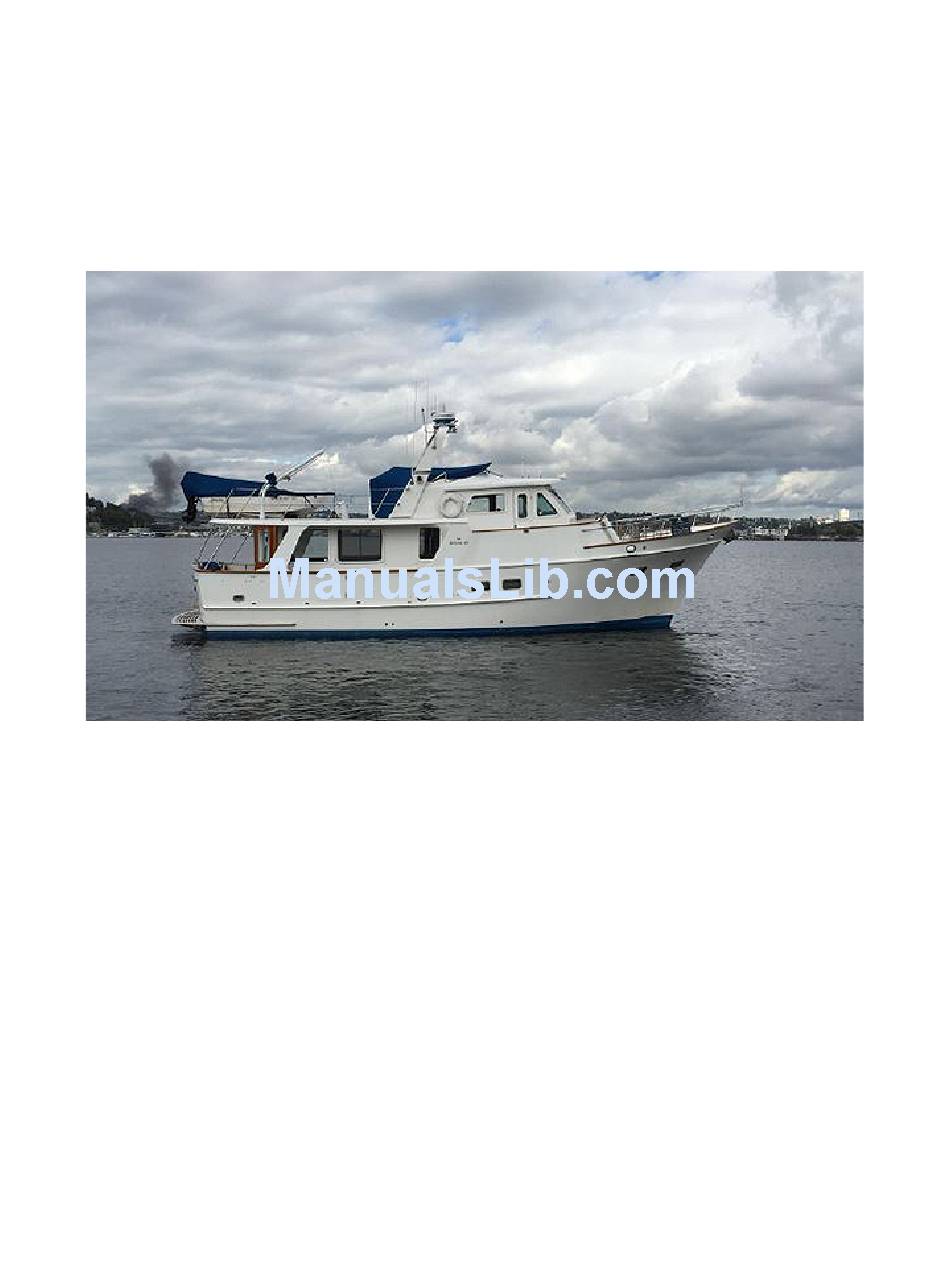

- Page 1 Lioness San Francisco Owner’s Notes Lioness Operations Manual Ver 2016.2.docx...
-
Page 2: Table Of Contents
15. Heads -------------------------------------------------- 30 16. Discharge the Holding Tank -------------------------- 30 Appendices A1. Waste Management Plan ----------------------------- 34 A2. Lioness 12 Volt Charging Circuit --------------------- 35 A3. Instructions ------------------------------------------- 36 Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 2 of 36... -
Page 3: Description
She was built to cruise so she is quiet and easy to run for long periods of time. Lioness is powered by a pair of Perkins 240 turbocharged diesel engines rated at 240 horsepower each. AC power is provided by an 8kw Westerbeke generator. -
Page 4: Reminders
Pump out to an approved facility as necessary. Most of the larger harbors (Anacortes, Friday Harbor, Nanaimo, etc.) have pump out facilities and/or pump out vessels that will come to your boat. Ask the local harbormaster for information. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 4 of 36... -
Page 5: Quick Start Checklist
Install the American Flag and Burgee in the flange on rail in the cockpit ☐ and bow rail respectively. First Thing Each Day (Details under Lioness Start-up page 11) Check Weather on VHF then monitor CH 16. “Weathermap+” is our ☐... - Page 6 ☐ line. Make sure dock and boat circuit breakers are both off before ☐ connecting cord. Connect shore power cord then turn on dock and shore power ☐ breakers. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 6 of 36...
- Page 7 Turn off Inverter to conserve power. ☐ Turn off unnecessary DC electrical items including radios, lights, etc. ☐ End of Charter before leaving vessel (See Lioness Check-in page 9) Fuel tanks topped off? ☐ Printed 7/2/2016 MV Lioness Owners Notes v2015.2...
- Page 8 Power panel: All breakers “Off” except green dots. ☐ Place all linens in cockpit. ☐ Canvas covers on in all locations appropriate. ☐ Blinds closed for sunlight and theft deterrent. ☐ Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 8 of 36...
-
Page 9: Check-In List
12. Remove the flags from the stern and bow and stow in the salon. 13. The lazarette should be organized, clean and secured. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 9 of 36... - Page 10 17. The holding tank must be emptied. 18. Window blinds should be closed when the charter is finished to alleviate UV damage to the interior of the saloon. 19. Turn the thermostat switch to Low. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 10 of 36...
-
Page 11: Start-Up
Shine a flashlight from the back, thru the glass sidewall to see if there anything in the bowl. If there is debris, it must be cleared. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 11 of 36... - Page 12 19. You are ready to untie from your moorage and maneuver away. 20. It is good to station your crew around Lioness as additional eyes to make sure you have lots of clearance from obstructions. It is often...
- Page 13 26. When coming into port, make sure the stabilizers are in Center position for about 5 seconds and then in the center OFF position. Lioness will not maneuver well in reverse with the stabilizers “ON”. Printed 7/2/2016 MV Lioness Owners Notes v2015.2...
-
Page 14: Anchoring
The anchor rode consists of 400’ of chain with about 20’ of nylon line at the “bitter end”. The nylon line is used in case of emergency to release the anchor by cutting the line. Lioness’ main anchor is a 110 lb ‘bruce’ style anchor. - Page 15 Start engines and warmup. The anchor windlass uses a great deal of electrical power, and requires the engines to be running. Briefly put in forward gear so windlass is only pulling in slack chain. Repeat as needed. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 15 of 36...
- Page 16 Spare anchors and rope are located in the lazarette. A polypropylene line is on a reel located in the lazarette. Use this for a stern line to shore, if needed. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 16 of 36...
-
Page 17: Dinghy
Swing the dinghy outward until it is parallel to the starboard side of Lioness. (Both launch and retrieval of the dinghy requires the bow to face the stern of Lioness.) Be careful not to hit the railing sides or upright. Make sure a crew member can hold the dinghy from banging the side of boat deck or hull as it is lowered. - Page 18 Remove the starboard rail and remove the safety chain on the boat deck. Attach the davit control to the back of the davit. Turn the dinghy so that it’s bow is facing the stern of Lioness on the starboard side Lower the cable and bridle.
-
Page 19: Domestic Water
5. Keep one tank’s supply valve closed so you know when you’ve emptied one tank, and switch to the other side. Try to fill the tanks at your next opportunity. 6. If possible, use the port tank first. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 19 of 36... - Page 20 3. Be sure to return the deck key to the cabinet in the wheelhouse. Weight transfer 1. Each water tank holds 200 gallons which amounts to almost 1,500 pounds per side. It is important to manage the level of Lioness by burning fuel and drawing water to maintain an even distribution of fluids.
-
Page 21: Electrical Power
Shore power 1. Choose the proper power cord(s) and adapter. Lioness has a 50’- 30a/125v cord. The 50’-30a/125v cord is the most common and is stowed in the Portuguese Bridge on the starboard side in the cabinet forward of the wheel house. -
Page 22: Generator
2. The main power panel for Lioness is located on the forward port side of the wheel house. Open the cabinet door and make sure that the main electrical breaker for the “shore power” is OFF (upper left of electrical panel. -
Page 23: Inverter/Charger
9 amps at 115 volts requires almost 85 amps at 12 volts. The battery bank on Lioness gives 250 amp hours at 12 volts. This should provide the prudent person with more than enough reserve for at least a day without charging. -
Page 24: Electronic Systems
Heating System Lioness is equipped with an Espar heating system. The system is a diesel fired on the port side of the engine room. There is one thermostat near the Printed 7/2/2016 MV Lioness Owners Notes v2015.2... -
Page 25: Troubleshooting Heating System
5. Do any other zones have heat? 6. Very rarely the reset switches on the Espar must be pressed. Consult the manual for their location on the heater unit. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 25 of 36... -
Page 26: Fuel Management
Neither fuel transfer or polishing should be operated by charterers. On Lioness, fuel is drawn from one tank and returned to the same tank. The exceptions would be when transferring fuel. With both engines running at approximately 2,000 rpm approximately 25 gallons per hour (GPH) is drawn from the tank and approximately 19 GPH is returned. -
Page 27: Fuel Filters
We usually start by feeding from the port aft tank first (fuel as well as water) because Lioness fully loaded is slightly heavier on the port side. This extra weight comes from the galley, salon furniture, water heater and master furniture all mounted on the port side. -
Page 28: Galley
Galley Stove The Dickinson Range on Lioness is of the highest quality. This is one instance where there is little difference between the boat and your home. The fuel source for the range is propane. The propane tanks (2) are located under the bench seat on the flybridge. -
Page 29: Intercoms
1. Add time 2. Press start. Intercoms There is a full set of intercoms on Lioness. The DC breaker marked “Intercom” will activate them. Their locations are as follows; 1. “Wheelhouse”, to the right of the steering wheel. 2. “Flybridge”, inside the port cabinet door labeled “Intercom”. -
Page 30: Heads
To empty the holding tanks at a pump-out station, locate the deck fitting on the starboard side of Lioness. It is labeled “Waste”. The deck fitting is for both tanks. Open the deck fitting and push the pump-out nozzle into the Printed 7/2/2016 MV Lioness Owners Notes v2015.2... - Page 31 The forward tank can be viewed from the forward hatch in the VIP room and the aft tank can be viewed from the aft hatch in the VIP. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 31 of 36...
- Page 32 TV and Stereo The television on Lioness is meant to be used with an HDMI cable connection or the ‘Chromecast” wireless connection. If you use Chromecast wireless at home, search for the unit onboard and stream your video.
- Page 33 The wifi unit is in the pilothouse, in the cabinet next to the wheel. There also is a cable at the chart table with a mini-usb plug if your mi-fi accepts that cord. Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 33 of 36...
-
Page 34: Appendices A1. Waste Management Plan
Appendix A1 Waste Management Plan MV Lioness 1. Trash containers are located in the galley, each head and the engine room. 2. Please deposit all trash in the designated containers. 3. When a trash container is full, empty into a trash bag and store in the lazarette. -
Page 35: A2. Lioness 12 Volt Charging Circuit
Printed 7/2/2016 MV Lioness Owners Notes v2015.2 Page 35 of 36... -
Page 36: A3. Instructions
2,300 Turn off major load on 110V electrical items Push down on stop button until genset stops Fuel consumption: At 2100 rpm’s, Lioness’ Switch main panel to shore or inverter engines burn about 5 gallons per hour total for both engines, or about 1.5 miles per gallon.
