Summary of Contents for ORVIBO WiWo-R1

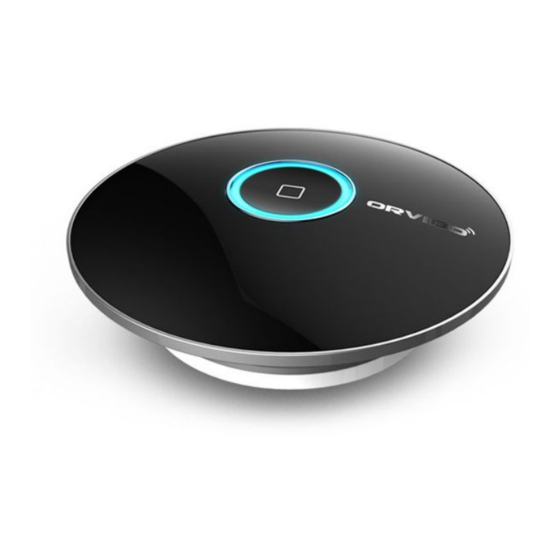

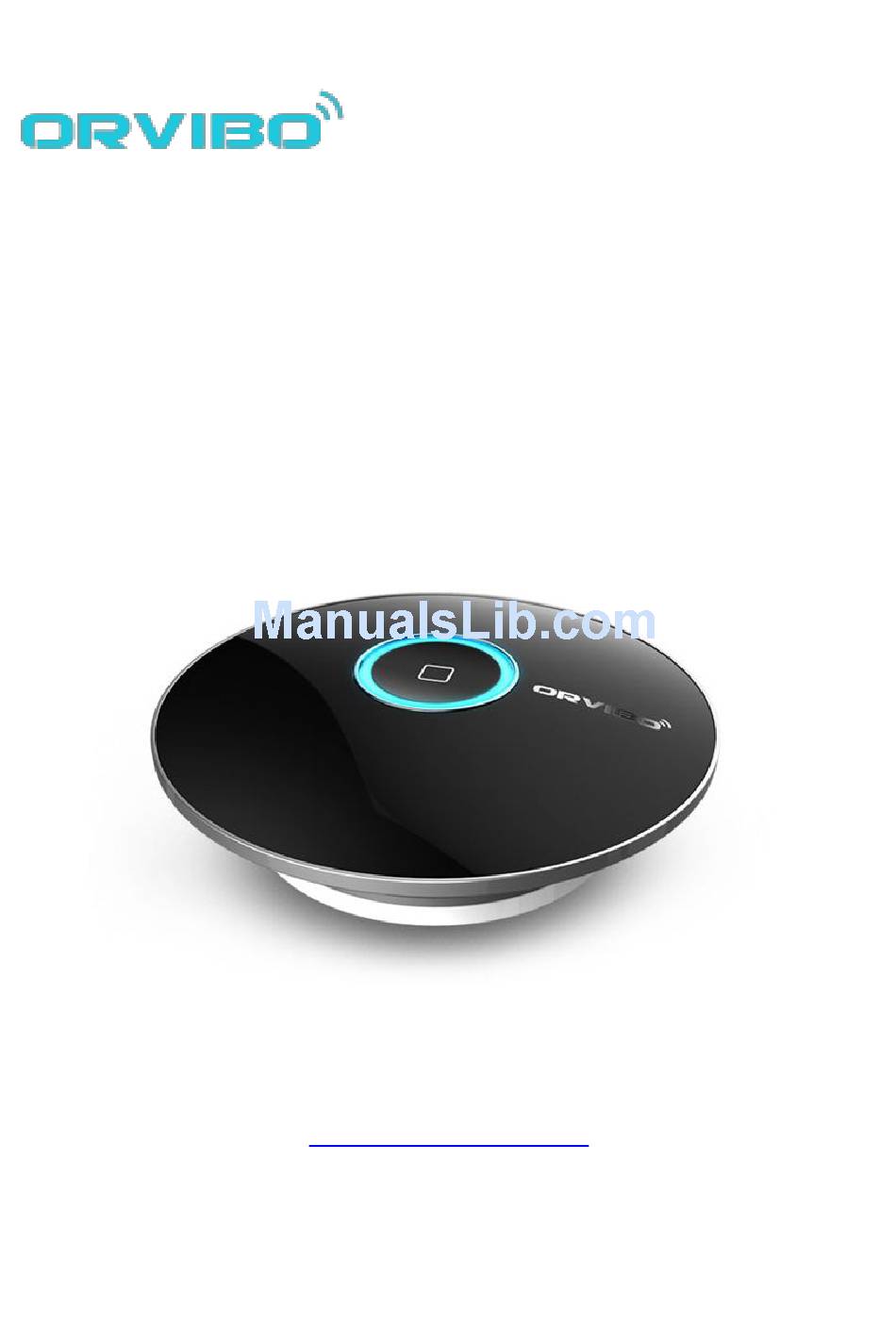

- Page 1 AllOne remote control Model: WiWo-R1 WWW.ORVIBO.COM...
- Page 2 INTRODUCTION Feature Support WiFi network. Support Smart configure net technology, easy to access settings. Home appliances status timely feedback to APP. Support Max 15 IR home appliances. Support Max 20 devices to control WiFi remote control ...
-
Page 3: User Guide
Security mechanism WEP/WPA-PSK/WPA2-PSK Wireless consumption ≦0.3W Working temperature ·-20~60℃ Working humidity ≤80% Caution 1. Keep it in dry and it is not allowed to be used in bathroom. 2. Rated power is 2000W, some of home appliance when it is starting the peak power could be over 2000W, so please use safely. - Page 4 （picture2） Smart Link configuration Connect AllOne to the power, LED backlight slow blinking with red(5times/s), AllOne in configuring mode. Configuration Go to APP configuration page Enter wifi password which the AllOne is connected with, setup new remote control...
- Page 5 After configuration is successful you will see device list and you can try to control the light, AC, TV, STB in the APP. Press “+” for adding. Go to Add page, create new device.
- Page 6 Device management Press device button in APP constantly, you can rename, lock/unlock, setting password, delete device. IR learning Press the button constantly and use a real remote control sent IR light to AllOne.
- Page 7 Remark: It is unnecessary to connect with internet for Automatic matching Orvibo RF switch configuration RF switch learning: Press touch key until you can hear“Di”then release your finger. Touch key...
- Page 8 Select a light button in your APP, you can try to control the light if it works RF switch is configurated successfully. Remark: 1. If you have tried to control switch from APP for 3 times and it is failure please try to operate switch again. 2.you only need to learn one touch key, other keys will automatically match...
- Page 9 Scene Go to Scene and you can add several devices and scene. Reset button Reset base 1. Reset to defaults: Connecting AllOne to power, press reset button constantly until it is in fast blinking with red light(5times/s). 2.AP configure: Connecting AllOne to power, press reset button constantly until it is fast blinking with blue light(5times/s).
- Page 10 Backlight indicator backlight status Fast blinking in red light. Smart link configuration (5times/s) Constantly on in red IR learning Fast blinking in blue light. AP configuration (5times/s) Constantly on in blue try to connecting to WiFi router Slowly blinking in rblue connected to WiFi and cloud Slowly blinking in purple connected to WiFi but...
- Page 11 Fix on the ceiling PACKAGE Allone wifi remote control: 1PCS 5V 600mAh adapter: 1PCS (Option: BS, SAA, UL, EU plug) Micro USB wire: 1PCS screw and rubber plug: 1PCS Allone user manual：1PCS...
