Excel TH-2005 E-Series User Manual

TH-2005 EXCEL PROGRAMMABLE THERMOSTAT
This large LCD display thermostat series comprises
6 models with same two sizes of plastic housing.
Application of this thermostat covers Heating, Fancoil
and Floor-Heating.
Please take some moment to read this user's guide
before begin use of thermostat.
Content
Choosingllocation For
Installation & Replace Batteries---1
Start Installation-----------------------2
Wiring
Battery Operate Model---------------3
Line Voltage Model-------------------4
To Use Window Contact--------------5
To Use Remote-Sensor------------- -6
Floor Heating--------------------------7
Model Specs Descriptions &
Internal Setting
Internal Setting-factory Preset
Model Descriptions & Specs--------9
Start Programming Thermostat
Description For Key Pads----------10

Choosing location for INSTALLATION

For obtaining thermostat's best performance upon using,
recommend user to follow up with precaution listed below.
(1). Place thermostat on wall inside the room approximate
1.5 meter above floor.
(2). Avoid position where temperature sensing easily interfered
by ambience, such as, directly exposed to Sun-Light, too
near to any Heat-Generate devices/refrigerator, right next to
entrance/exit/window, etc.
(3). Prevent thermostat from installed at position that furniture
may interfere air-flow, stagnant air-flow location is not
suitable for installing thermostat.
(4). Keep thermostat away from high humid ambience, high
humidity is hazardous to thermostat's operational duration,
(5). It's crucial, before installing thermostat, make sure house
renovation is finished, no tacky painting/plaster is right
on thermostat's installing position.
(6). To level thermostat prior to installation is not necessary
START INSTALLATION
(1). How to open top housing
(2). How to install battery (For Battery Model only) 2 x AA
Program Setting 7-D
COPY function
in 7-d ------------------------12
Programming For 5+2D---13
Factory Preset (default)
Programs-------------------14
To Use Override
Function--------------------15
To Erase Memory
Backup(EEPROM)--------16
Backlight Option-----------17
-----8
LINE-VOLTAGE -MODEL
(system switches on the side)
Dimension: 138 x 110 x 32 mm
------11
－

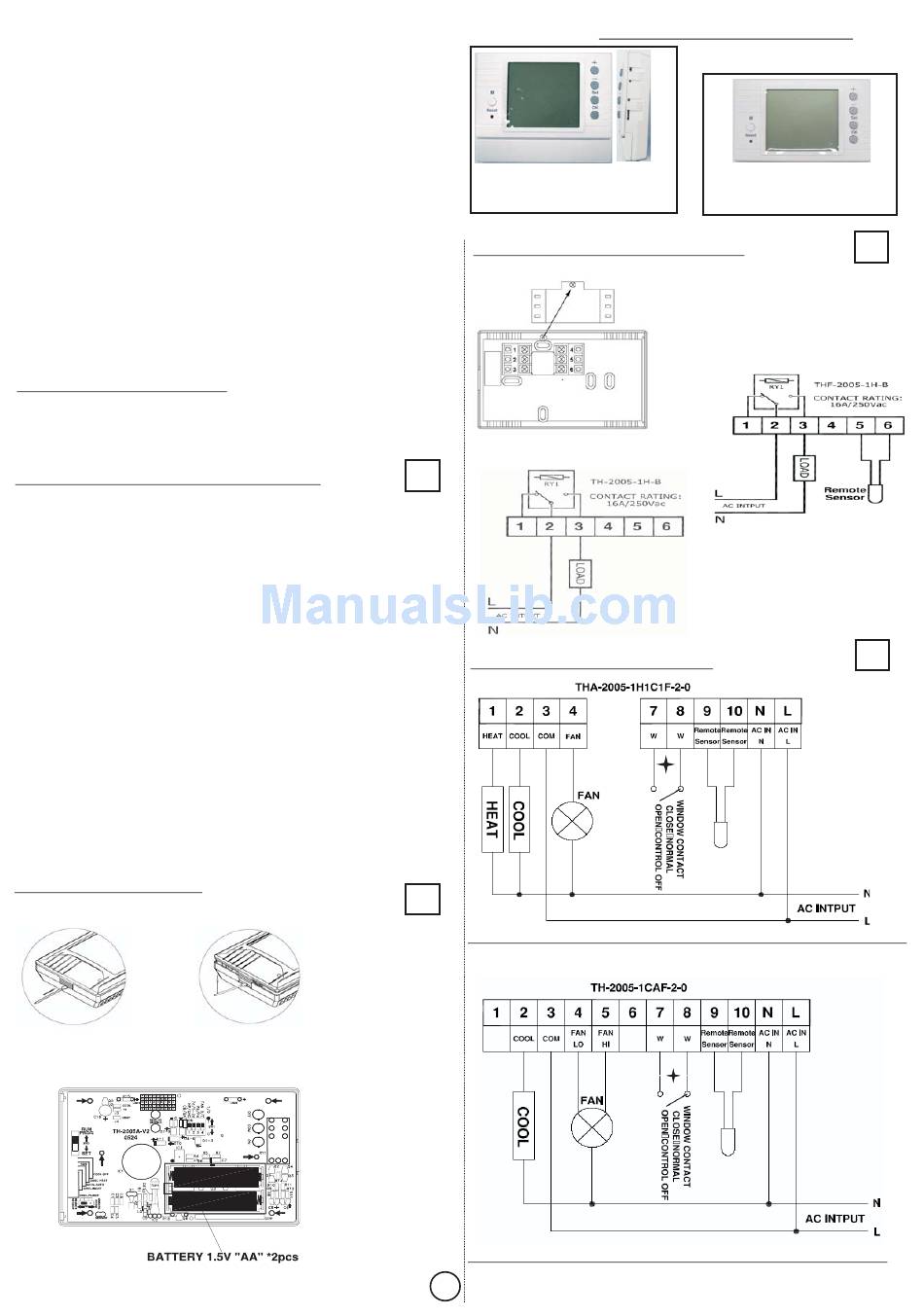

WIRING Battery Operate Model
1
－
WIRING Line Voltage Model
2
THA-2005-1H1C1F-2-0(Line-Voltage-Model) Preset HP
TH-2005-1CAF-2-0(Line-Voltage-Model) Preset SHC
1
USER'S GUIDE (E-Series)
Fan
Switch
System
Switch
BATTERY-MODEL
(no system switches)
Dimension: 138 x 86 x 32 mm
Unscrew to take safety cover off and to
start wiring as illustration
3
4
Fan-Switch
ON/AUTO
System-Switch
Cool-Off
