TABLE OF CONTENTS
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 5
3 Technical Descriptions ----------------------------------------- 7
4 Location of Controls and Components ------------------10
5 Installation Instructions ---------------------------------------11
6 Operating Instructions-----------------------------------------13
7 Service Mode -----------------------------------------------------14
8 Troubleshooting Guide ----------------------------------------19
9 Disassembly and Assembly Instructions ---------------23
10 Schematic Diagram ---------------------------------------------30

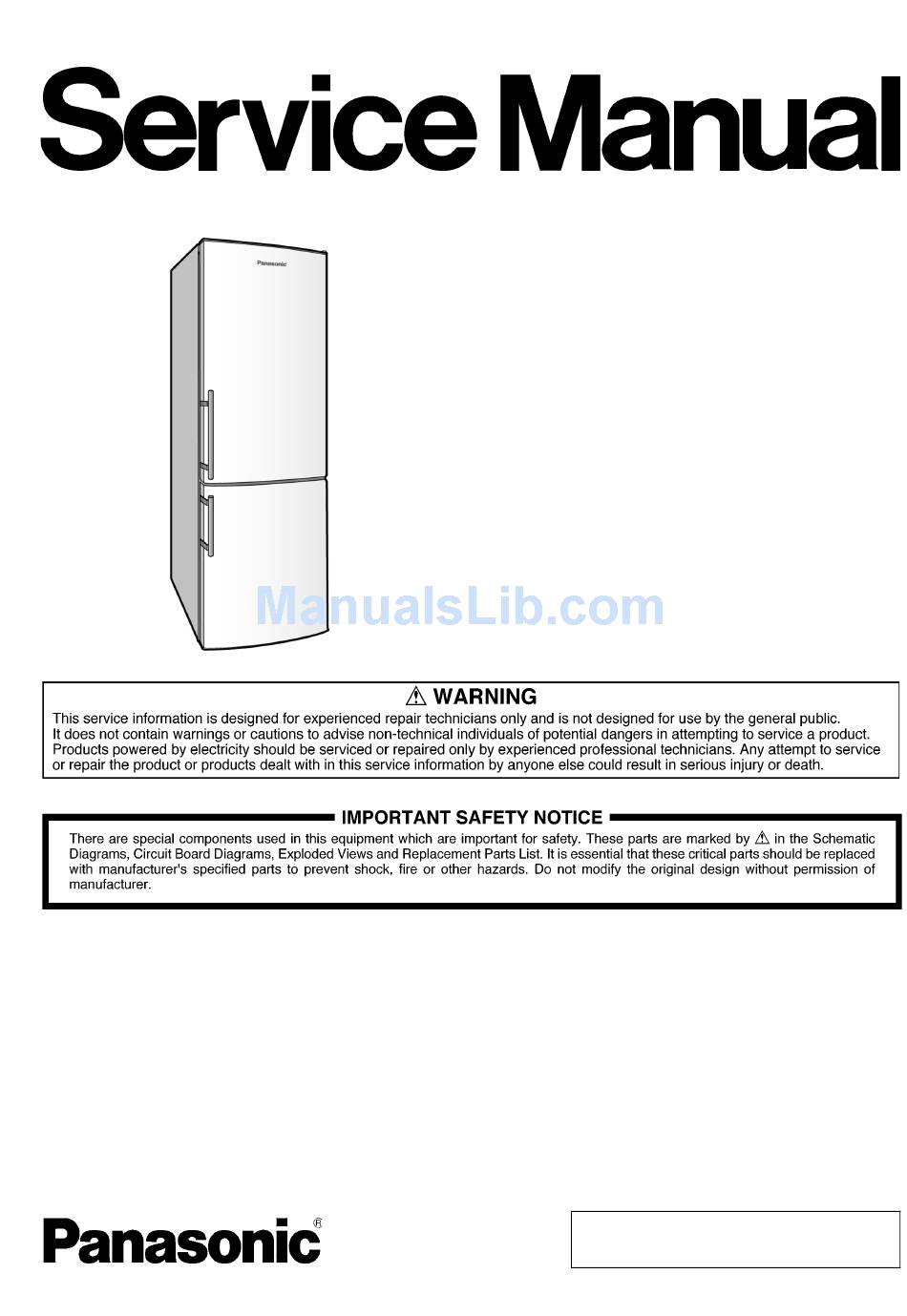

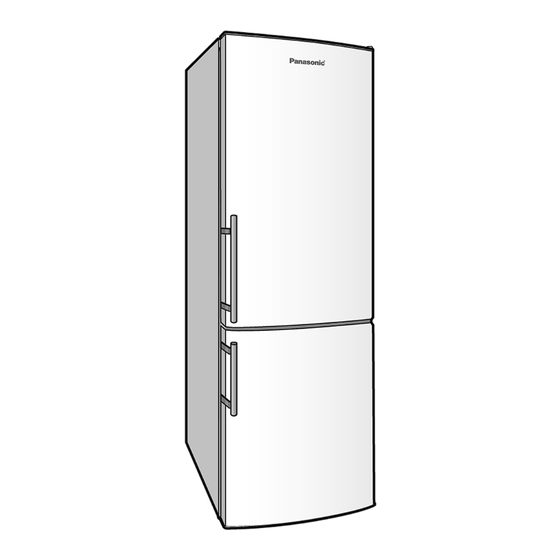

REFRIGERATOR-FREEZER
Model No.
Model No.
Model No.
Product-Color X:Stainless
Destination E(Europe Continental)
PAGE
11 Exploded View and Replacement Parts List ----------- 31
© Panasonic Corporation 2014 Unauthorized copy-
ing and distribution is a violation of law.
Order Number GORR1409001CE
NR-BD31EX1
NR-BD31ES1
NR-BD31EW1
S:Inox-look
W:White
PAGE
Advertisement
Table of Contents
Related Manuals for Panasonic NR-BD31EX1
Summary of Contents for Panasonic NR-BD31EX1
-
Page 1: Table Of Contents
4 Location of Controls and Components ------------------10 5 Installation Instructions ---------------------------------------11 6 Operating Instructions-----------------------------------------13 7 Service Mode -----------------------------------------------------14 8 Troubleshooting Guide ----------------------------------------19 9 Disassembly and Assembly Instructions ---------------23 10 Schematic Diagram ---------------------------------------------30 © Panasonic Corporation 2014 Unauthorized copy- ing and distribution is a violation of law. -
Page 2: Safety Precautions
1 Safety Precautions... -
Page 5: Specifications
2 Specifications Model NR-BD31EX1-E NR-BD31ES1-E NR-BD31EW1-E Destination Europe Total effective volume capacity 322 L Volume capacity Refrigerator compartment (PC) 227L Freezer compartment (FC) 95 L External dimensions Width/ Depth/ Height (mm) 600 mm x 650 mm x 1850 mm side : 20 mm or more... - Page 6 Name Plate...
-
Page 7: Technical Descriptions
3 Technical Descriptions 3.1. Connecting of the appliance and management When you first start the machine the temperature must be set to a setting at +5 °C. After the refrigerator is plugged in, it begins to operate in accordance with the conditions of temperature regulation. In the case that the power-on temperature sensor on the evap- orator of the cooling part of less than +10 °C, the compressor is blocked for a minimum off time of the compressor, which is 5 min- utes. - Page 8 3.3. Cooling system, regulation and operation Single-compressor cooling system. Based on the verification of the temperature sensor in the cooling compartment is put and delete request for the refrigerated space. Condition for the compressor Prerequisite for the operation of the compressor at the time when the condition is set for the cooling of the cooling space. This con- dition shall not apply if the compressor is locked due to the minimum tripping time is equal to 5 minutes.
-
Page 9: Super Cool Mode
Built-in functions are determining the beginning and end. Status beginning of leave shall be determined at the beginning of each subsequent 24-hour segment. Status of the end of the leave, after identification of the status of the beginning of the current leave notes. -
Page 10: Location Of Controls And Components
4 Location of Controls and Components 4.1. Control Panel 4.2. Components... -
Page 11: Installation Instructions
5 Installation Instructions... -
Page 13: Operating Instructions
6 Operating Instructions 6.1. Setting the temperature... -
Page 14: Service Mode
7 Service Mode 7.1. Operation in Service Mode General • Service mode is intend for service interventions. • Upon entering the service mode, status of outputs remains unchanged. • In service mode, the status of outputs is arbitrarily switched. • The machine runs again in response to the previous settings when the service mode is canceled. 7.1.1. - Page 15 7.1.2. How to End There are two ways of canceling service mode. • It ends automatically after 15 minutes. • Unplugging the refrigerator. (wait at 10 minutes before you plug it back in again) 7.1.3. Service Mode Control Lighting LED indicator circularly moves from left to right in response to a short press of temperature setting button .
- Page 16 7.1.4. Error Display in Normal Operation Mode In case of refrigerator compartment temperature sensor failure, all LED indicators blink once and then they are off for 5 seconds. It repeats after 5 seconds.
- Page 17 7.2. Measuring points 7.3. Value of Temperature sensors...
- Page 18 7.4. Operation in case of failure Failure of sensors In the event of termination of the sensor start all LEDs flashing at a frequency of 1 Hz. The number of flashes is the code for the sensor that has failed. Termination sensor on the evaporator is not showing. When a malfunction of the sensor of the cooling space, the LED blink 1-fold, then the ugasnejne for 5 seconds, after which the rate again.
-
Page 19: Troubleshooting Guide
8 Troubleshooting Guide 8.1. Not cooling at all [Both PC & FC (Compressor does not operate) ]... - Page 20 8.2. PC (FC) is not cooling. [ Compressor operates ]...
- Page 21 8.3. Cooling system trouble.
- Page 22 8.4. Temperature sensor trouble.
-
Page 23: Disassembly And Assembly Instructions
9 Disassembly and Assembly Instructions 9.1. LED Lamp PC 2. Slide both of Head Panel Cover Sides to remove. 1. LED Lamp is installed at the ceiling of PC. Unhook the hook and slide the LED Cover to the left. 3. - Page 24 9.3. Fan Assy 4. Fan Assy. 1. Unhook two hooks above the Fan Assy Cover by insert- ing the screwdriver and remove it. 2. Unscrew the Fan Assy. 3. Disconnect the connectors.
- Page 25 9.4. Replacement of PC Tempera- 3. Cut off the damages sensor at the base of sensor head. ture Sensor 1. PC Temperature Sensor is installed on the left side of PC. 4. Strip off approx. 25mm of additional cable insulation and 5mm of basic insulation of the conductor.
- Page 26 6. Use hair dryer and heat the bushings so that they tightly wrap the conductors and prevent moisture from breaking through the joint. 7. Place the sensor into its seat and replace the sensor cover.
- Page 27 9.5. Changing The doorway Direction Warning: Make sure the unit is unplugged Remove the Hinge Cover VC. Remove the Hinge Cover Upper. Unscrew the screws fixing the Middle Hinge and Unscrew the screws fixing the Upper Hinge. remove the Middle Hinge. Replace the Door Bushing and the Door Plug PC.
- Page 28 Screw the screw then install the Middle Hinge Plugs 13. Assemble the Door FC. and the Screw Cap. Replace the Door Bushing and the Door Plug FC. 10. Lie down the appliance to the back. (mim 600mm) CAUTION: Do not damage the outer condenser. Turn the Middle Hinge upside down and screw it.
- Page 29 Screw the screws fixing the Upper Hinge. Unscrew the Handles. Install the Hinge Cover. Screw the Handles on the right side. Install the Hinge Cover VC. Install the Filling Plugs. Remove the Filling Plugs.
