TAM-100
• The following part are an available for service parts of this model.

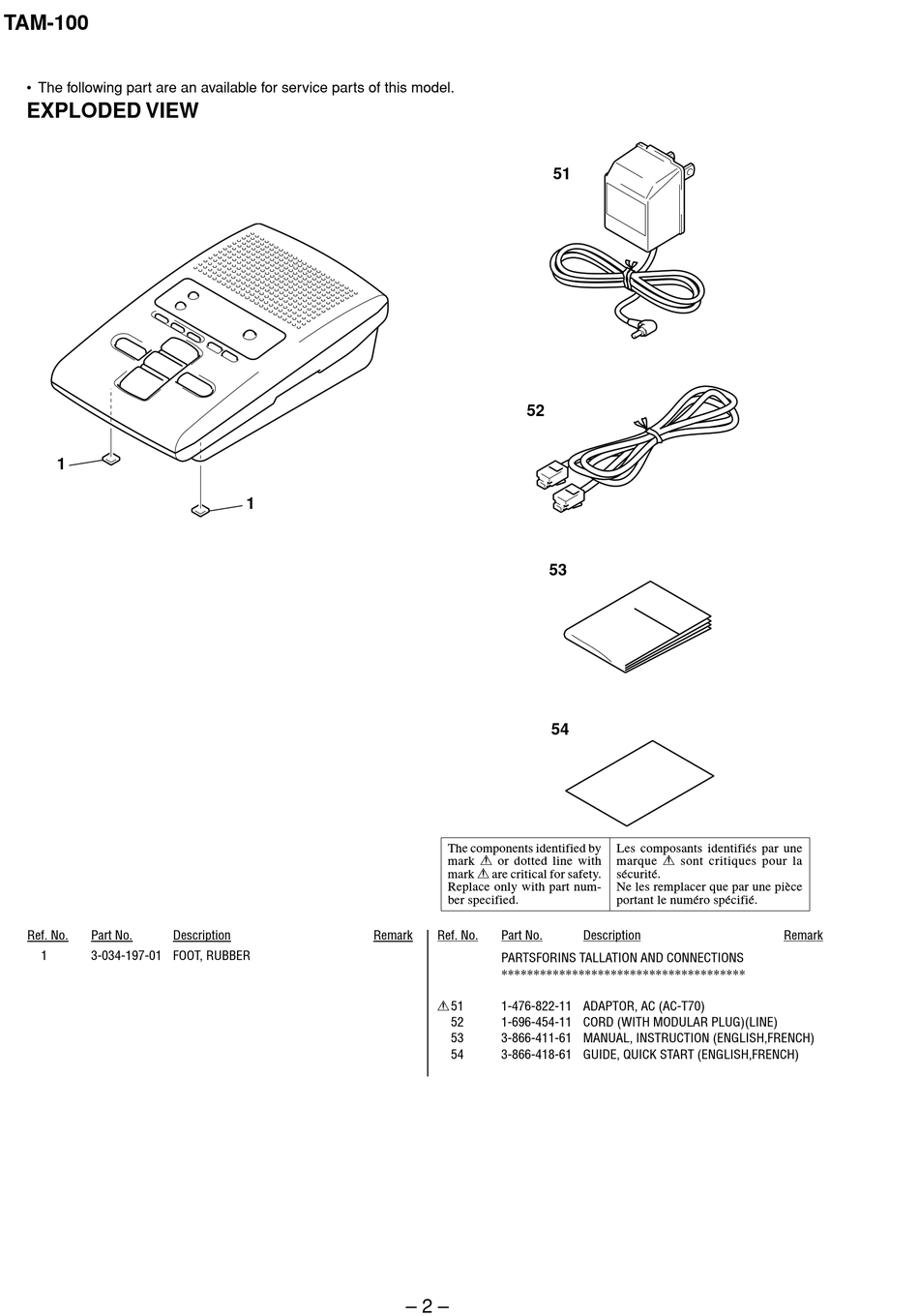

EXPLODED VIEW
1
Ref. No.
Part No.
Description
1
3-034-197-01 FOOT, RUBBER
1
Remark
– 2 –
51
52
53
54
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Ref. No.
Part No.
Description
PARTSFORINS TALLATION AND CONNECTIONS
**************************************
! 51
1-476-822-11 ADAPTOR, AC (AC-T70)
52
1-696-454-11 CORD (WITH MODULAR PLUG)(LINE)
53
3-866-411-61 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
54
3-866-418-61 GUIDE, QUICK START (ENGLISH,FRENCH)
