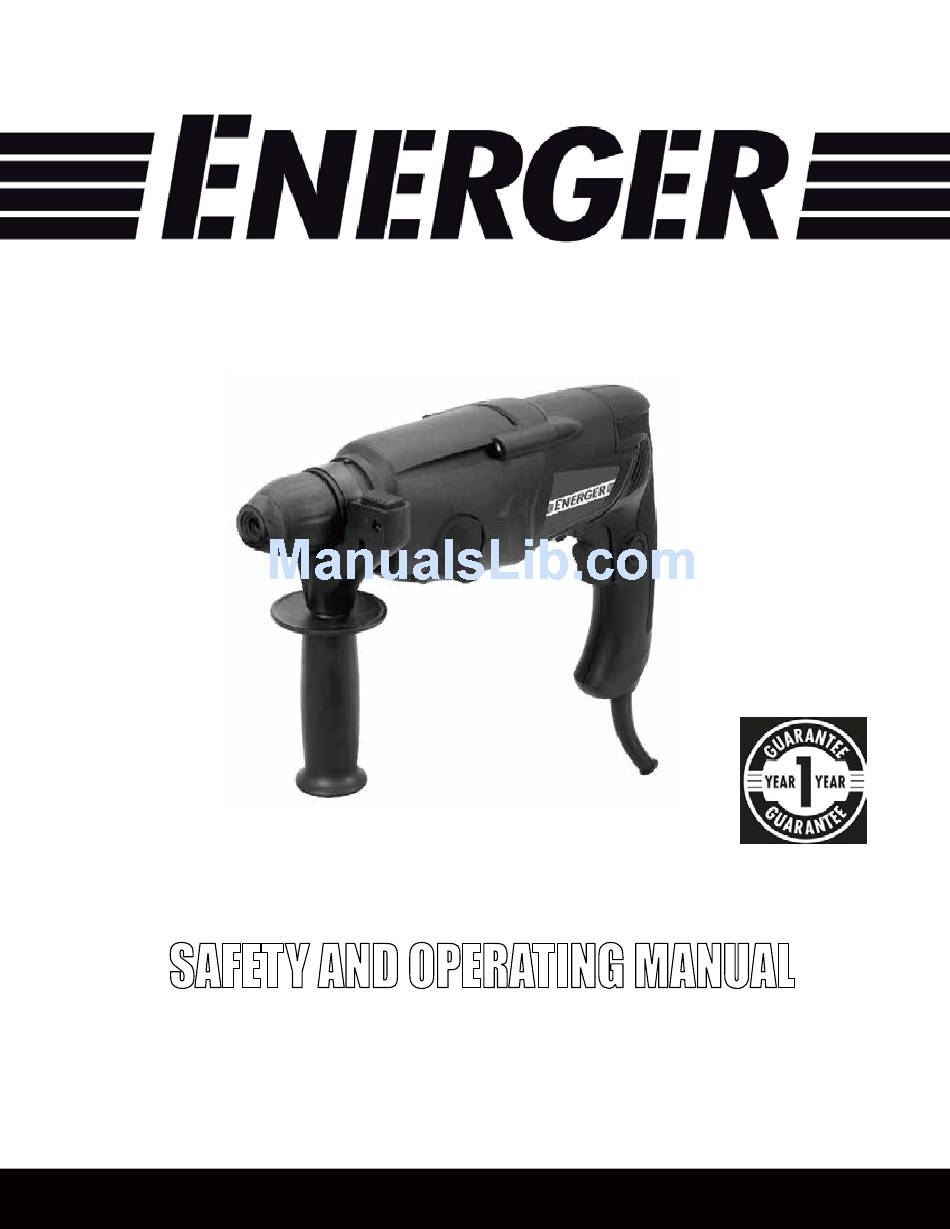

- Page 1 SAFETY AND OPERATING MANUAL Original Instructions 1 .0 750W ROTARY HAMMER ENB569DRL...
- Page 2 Read all safety warnings and all instructions before use. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 750W ROTARY HAMMER ENB569DRL...
-
Page 3: General Safety Instructions
If use of a tool in a humid location is unavoidable, use a supply protected by a residual current differential device (RCD). The use of an RCD reduces the risk of electric shock. 750W ROTARY HAMMER ENB569DRL... -
Page 4: Special Safety Instructions
8. Ensure the supply voltage is same as rating voltage. 9. The tool is double insulated for additional protection against a possible electrical insulation failure within the tool. 10. Always check walls and ceilings to avoid hidden power cables and pipes. 750W ROTARY HAMMER ENB569DRL... - Page 5 Your risk from these exposures varies, depending upon how often you do this type of work. To reduce your exposure to these chemicals: Work in a well-ventilated area. Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles. 750W ROTARY HAMMER ENB569DRL...
-
Page 6: Noise Information
While working with this power tool, hand/arm vibrations occur. Adopt the correct working practices in order to reduce the exposure to vibration. This tool may cause hand-arm vibration syndrome if its use is not adequately managed. 750W ROTARY HAMMER ENB569DRL... -
Page 7: Vibration And Noise Reduction
Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. 750W ROTARY HAMMER ENB569DRL... -
Page 8: Double Insulation
Remove the mains plug from socket before carrying out, any adjustment or servicing. Intended use The machine is intended for hammer /hammer drilling in brick,concrete and stone as well as for drilling in wood,metal and plastic. 750W ROTARY HAMMER ENB569DRL... - Page 9 WARNING - To reduce the risk of injury, user must read the instruction manual Wear eye protection Wear ear protection Wear respiratory protection Wear safety gloves Double insulation Class Conforms to all relevant safety standards. Warning yyWxx Manufacturing date code: Year of manufacturing (20yy) and week of manufacturing (Wxx); 750W ROTARY HAMMER ENB569DRL...
- Page 10 LIST OF MAIN PART SDS chuck Auxiliary handle Hammer/drill switch with locking knob ON/OFF switch with speed adjustment knob Dust cover Depth gauge 750W ROTARY HAMMER ENB569DRL...
-
Page 11: Technical Data
Please always check the mains supply voltage before use! It must correspond with the rating label on the appliance. Remove any packing material and loose parts from unit. Check the accessories before use. It should be fit with the machine and your purpose. 750W ROTARY HAMMER ENB569DRL... - Page 12 Move the depth gauge until the distance between the tips of Depth Stop drilling bit and depth gauge corresponds with the required drilling depth. Fig.4 Tighten the auxiliary handle by turning the grip of the handle clockwise in its desired position. 750W ROTARY HAMMER ENB569DRL...
- Page 13 The carbon brushes should be changed regularly. In order not to damage the electrical circuit, both carbon brushes should be changed at the same time. CAUTION! The machine should be used only with both brushes! 750W ROTARY HAMMER ENB569DRL...
- Page 14 Set the hammer/drill switch to the position . This setting is recommended for use when you desire the accessory to rotate without hammer action. Ideal for drilling into timber or steel when the correct accessories for such materials are used. 750W ROTARY HAMMER ENB569DRL...
-
Page 15: Drilling Wood
2. Ensure that a masonry drill or chisel bits is being used. 3. Maintain firm pressure on the machine so the bit does not wonder. A wondering bit may cause injury. 4. Carbide tipped masonry bits should be used for all masonry drilling. 750W ROTARY HAMMER ENB569DRL... -
Page 16: Terms Of Use
Pack the device well or use the original packaging in order to avoid transit damage. Always keep the machine in dry place. 750W ROTARY HAMMER ENB569DRL... -
Page 17: Environmental Protection
GUARANTEE This ENERGER product carries a guarantee of 12 months. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased. This guarantee specifically excludes losses caused due to:... - Page 18 13 Amp fuse approved to BS 1363 Connect Blue to N Brown L(live) (neutral) Outer sleeve Cable grip 750W ROTARY HAMMER ENB569DRL...
-
Page 19: Declaration Of Conformity
EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-6 Authorised Signatory and technical file holder Date : 07/09/2012 Signature:_________________ Name / title: Peter Harries / Quality Manager Powersmith (UK) LTD. Trade House , Mead Avenue, BA22 8RT 750W ROTARY HAMMER ENB569DRL...
