Summary of Contents for COMPUTER KING DV-S1

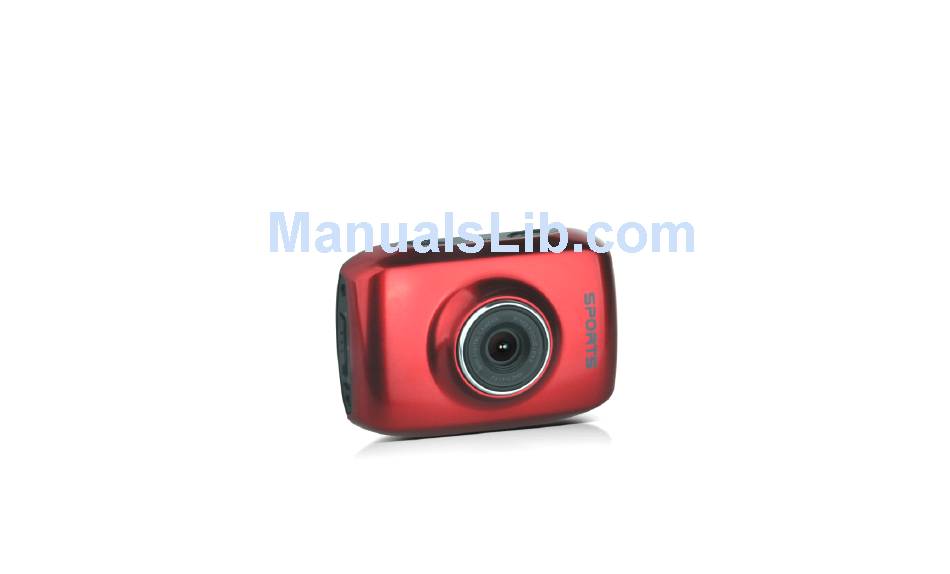

- Page 1 DVS1 DVS1 ActionCam ActionCam with with Touchscreen Touchscreen DVS1 DVS1 ActionCam ActionCam with with Touchscreen Touchscreen User Manual User Manual User User Manual Manual...
- Page 2 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
- Page 3 Dear Customer, Thank you for choosing DVS1 ActionCam with Touchscreen. We look forward of you enjoying the recreation moments taking the DVS1 ActionCam with Touchscreen to the skies, forests, and waters while you explore the world. We would feel the same delight, pleasure, and fun whenever you share the video or pictures captured using DVS1 ActionCam with Touchscreen.
-
Page 4: Contents Checklist
Contents Checklist Once you have opened the packaging of DVS1 ActionCam with Touchscreen, please take a few moments to check the contents of your package. Inside this gift box, you will find: � DVS1 User manual x 1 � DVS1 ActionCam x 1 �... - Page 5 The appearance (1) Micro SD card slot (up to SDHC 32GB) (2) Reset (3) Mini USB port for charging & data transfer. (4) Power button (5) Microphone (6) Snapshot / Start record button (7) Camera / Video / Vehicle mode toggle...
- Page 6 (8) Lens (9) LCD with resistive touch screen (10) Operating indicator (11) Charging indicator (12) Strap holder Quick guide Insert the micro SD card Press the power button Toggle the mode and press start Snapshot / record button ( to take pictures or videos...
- Page 7 Using the bike handle bar and helmet The following diagram shows the setup of using the bike handle bar and the helmet.
- Page 8 PLEASE READ THE FOLLOWING NOTES CAREFULLY BEFORE USE! NOTES � While using the DVS1 without the waterproof case, avoid using the DVS1 camera from extreme weather conditions such as long-time sun exposure, dusty environments, or water. � Clean the waterproof case and the camera after each outdoor use. �...
- Page 9 Charge your DVS1 Connect the DVS1 camera to your computer with the USB cable supplied to charge. The red charging indicator light will be on while the DVS1 is being charged. Once the DVS1 has been fully charged, the light will be turned off. Generally, the DVS1 can be fully charged after 2-4 hours using ordinary laptop / desktop USB ports.
- Page 10 Use of Micro SD card Please note that there are NO built-in memory for pictures and videos inside the DVS1 ActionCam. You MUST insert micro SD card in order to use it. Gently push the micro SD card into the card slot. If you have difficulties inserting the micro SD card, please check if you have inserted from the wrong direction or up-side-down.
-
Page 11: Light Indicators
Power On / Off 1. Press the power button for at least 1 second to turn on the DVS1 ActionCam with Touchscreen as shown below: 2. To turn off the DVS1 ActionCam, press the power button for at least 1 second when the power is on. 3. -
Page 12: Function Modes
Function modes There are 3 modes in the DVS1 ActionCam with Touchscreen: Picture mode, Video mode, Vehicle mode. Please toggle the mode switch to choose your desired mode. The mode description as follows and each modes are described in detail in the sections later. -
Page 13: Picture Mode
Picture mode When you toggle the switch to picture taking mode, you can take pictures anytime as you wish. Here we describe the messages on the LCD display. You can access the functions in this mode by tabbing the touch screen embedded. Please refer to the diagram above with the following reading. - Page 14 5. Tab to digital zoom in or out the target. The digital zoom is scaled from 1 to 4X. 6. The icon is to set the date and time of the DVS1 ActionCam. After finished setting up the date and time, click the “Snapshot/ Record”...
-
Page 15: Video Mode
Video mode When you toggle the switch to video recording mode, you can record video clips anytime you wish. Here we describe the messages on the LCD display. You can access the functions in this mode by tabbing the touch screen embedded. Please refer to the diagram above with the following reading. -
Page 16: Vehicle Mode
“Snapshot/ Record” button to exit. 7. If you tab the icon at the center of the screen, it will start recording instantly. It is the same function as the hard key “Snapshot/ Record” button. On the top left hand corner, the duration of recording will be displayed in intervals of seconds. 8. - Page 17 1. 00:12:18 00:12:18 00:12:18 00:12:18 on the top left hand corner indicates the time remaining to record the video clips in total according to the capacity of the micro SD card. 2. Please note the time remains for each micro SD card of the same capacity may vary by most of ±5 minutes. 3.
- Page 18 Play back Once you have tabbed on the icon on the lower right corner in previous modes (picture, recording, or vehicle), you will enter the playback mode Please refer to the diagram above with the following reading. 1. The “AVI AVI”...
- Page 19 directory of the micro SD card is “<root_of_sd>\DCIM\100MEDIA\ <root_of_sd>\DCIM\100MEDIA\ <root_of_sd>\DCIM\100MEDIA\ <root_of_sd>\DCIM\100MEDIA\”. If you tab on this icon, it will change to a car icon indicating you are about to playback the video clips recorded under vehicle recording mode. 4. Tab icon to preview the previous or next media file.
-
Page 20: File Deletion
File deletion By tabbing on the delete icon , you will be informed for confirmation as shown below. Tab on “Yes Yes” to confirm deletion. Data backup Once you have plugged the DVS1 ActionCam to your computer and press the power button, your computer will recognize the BUSY BUSY CHARGE... -
Page 21: Minimum System Requirements
Minimum System Requirements Operating System Microsoft Windows® 2000/XP SP2 and above Pentium III DRAM 512MB Sound card & display DirectX 8 and above USB 1.0... - Page 22 Technical Specs Display 2” LCD with resistive touch screen Image Sensor 1.3 Mega pixels Lens F=3.1, f=9.3 (Wide angle 120°) Still image resolution 5.0 Mega pixels 2592 x 1944 (Interpolate) 3.1 Mega pixels 2028 x 1536 (Interpolate) 1.3 Mega pixels 1280 x 960 Video resolution 720P 1280 x 720 Pixels @ 23-31fps VGA 640 x 480 Pixels @49-63fps;...
