Summary of Contents for Englacha Junior X Rider

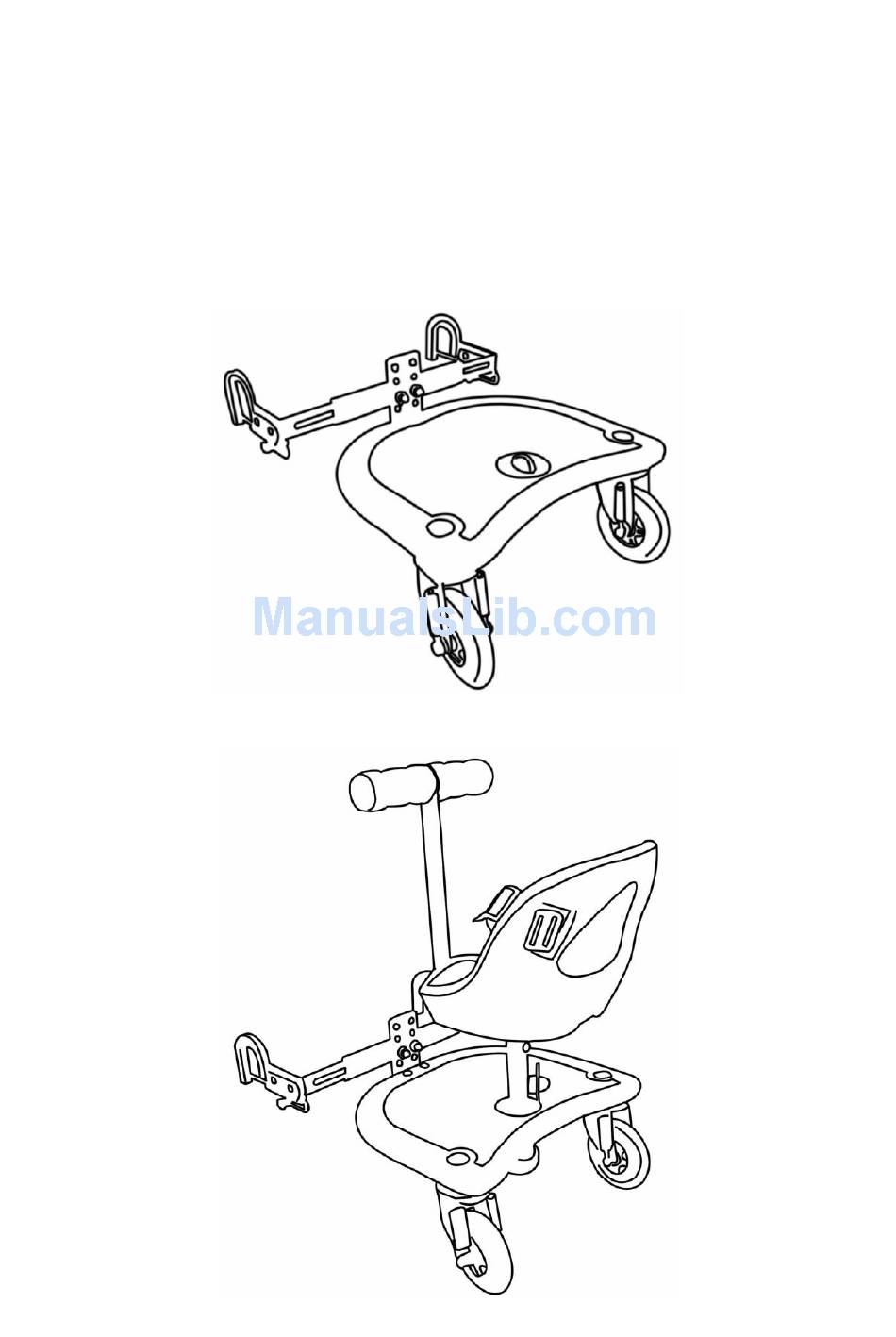

- Page 1 Junior X Rider Instruction Manual...
- Page 2 Junior X Rider Parts list Quantity Foot-board w/Non-slip surface EVA wheel M10 Bolt M10 Nut Coupling adaptor Coupling wire w/Strap Coupling plate with welded M6 screw M6 nut L-attachment M6 screw Storage Strap Plastic Lid Handled Seat with soft grip and harness...
- Page 3 The Rider that you have purchased is a product that enables you to transport your child comfortably and without fatigue in the pram. The Junior X Rider is a practical and comfortable product and can be attached to the axle, rear bar and folding plate of most of prams, strollers and buggies.
- Page 4 Step 2 The coupling part (6) Junior X Rider is provided with 3 pairs of adaptors that fit most of the baby carriages at the rear part for 10mm axel(folding pate), 1” (25.4mm) tube, and up to 45mm tube. Assemble the fitting pairs of adaptor in the coupling wire by pulling and hold the trigger as illustrated and sliding the adaptor up into the coupling wire at both sides.
- Page 5 Step 4 Measure the axle height of your pram. Screw connect the L-attachment (9) provisionally with the coupling plate (7), depending on the axle height with the L-attachment upward or downward. (see drawings) Step 5 Assemble the foot-board (1) on the L-attachment (9) using the screws, washers (10) and nuts (8).Hang the coupling set onto the pram axle with both hooks.
- Page 6 Step 6 Now adapt the coupling parts (6L-6R) to the pram axle as far as the greatest possible width. Fix all screws in this position. Junior X Rider is now ready for use as a standing platform. Step 7. Junior X Rider is equipped with a adjustable strap (11) that helps to storage the hae unit when not in use.
- Page 7 Your Junior X Rider is now ready to use as a seating rider. Coupling strap Junior X Rider is equipped with a pair of strap to provide extra safety for the connecting. Fasten the strap as illustrated. Please make sure it is securely fastened before in use.
- Page 8 ● Apart from this, adhere precisely to the instructions of your pram manufacturer. WARNING ● The use of the Junior X Rider is only admissible if there is a second child in the pram or if the pushing handles of the pram are held tightly with both hands by an adult.
