Summary of Contents for Elite Screens Universal Series

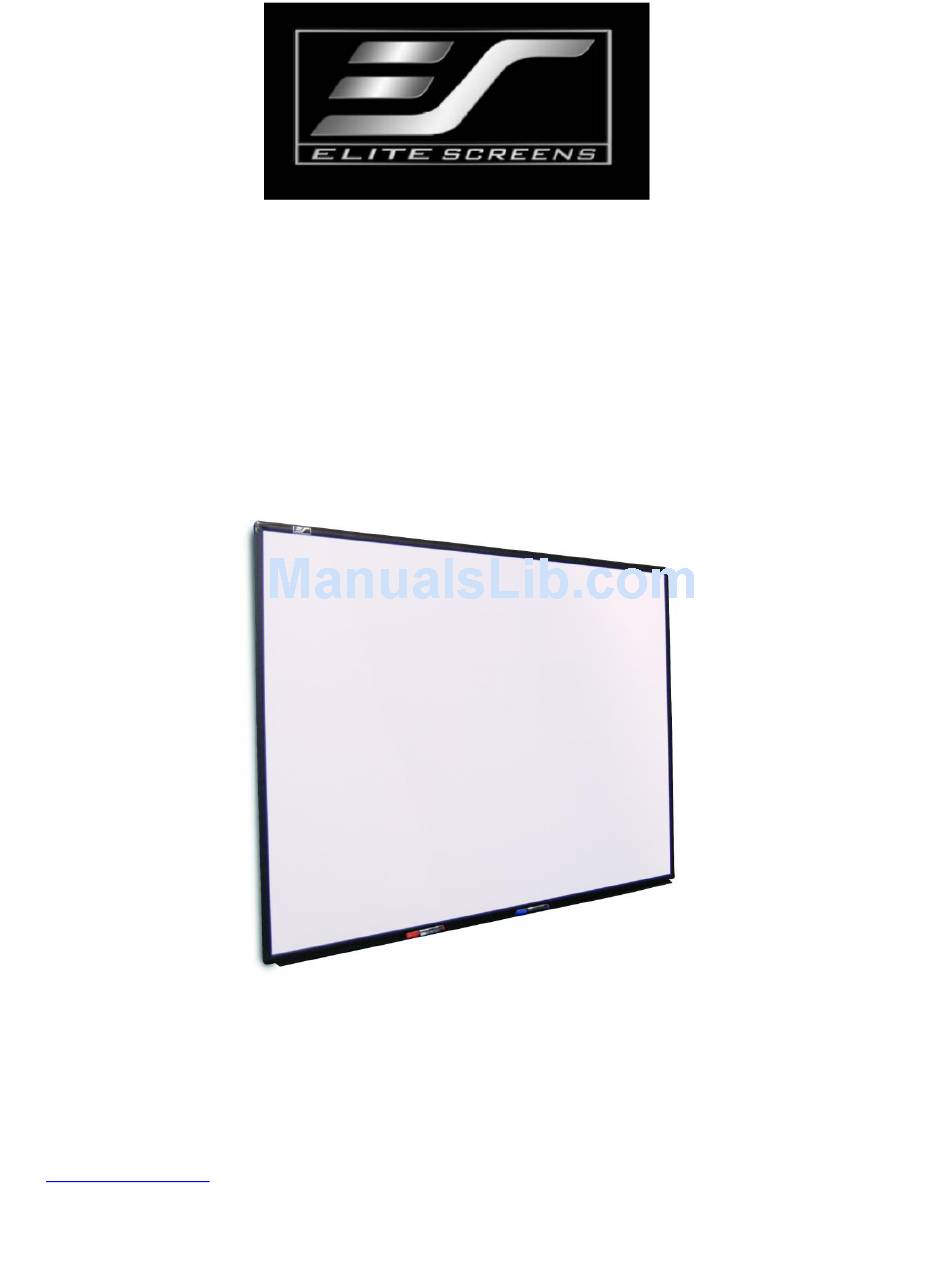

- Page 1 Whiteboard Projection Screen WhiteBoardScreen™ Universal Series User’s Guide Rev. 111110-JA www.elitescreens.com info@elitescreens.com...
- Page 2 Bottom hanging brackets Note: The WhiteBoardScreen Universal c. Hollow wall (drywall) anchors Series eraser should only be used for the d. Top hanging brackets Elite Screens Whiteboard. e. Eraser f. Dry-erase markers g. Cleaning solution h. M3 Philip screws i.
- Page 3 2. Next, attach the tray (i) to the bottom of the WhiteBoardScreen Universal with the three M5 screws (h) as shown below. Tray M5 Screws 3. Hang the WhiteBoardScreen™ Universal on the Top Hanging Brackets (d), making sure the top lip inserts into the rail on back of the frame. 4.
- Page 4 Overhead Projector Installation Unit:mm Sitting Standing Overall Overall Suggested Ceiling Viewer Installation Suggested View View Models Width Height Projection Height Distance Height (A) Offset (D) Height Height Distance (B) (F1) (F2) WB30VW 610.0 457.2 2340 1500-2500 2500 1200 1200 1700 WB58VW 1178.0 884.0...
- Page 5 If a return is needed, Elite Screens will issue you a Return Merchandise Authorization (“RMA”) Number. This number is valid for (45) days from the date of issue, and is required to process any returns. A returned item sent to Elite Screens without a visible or valid RMA Number is subject to refusal by Elite Screens.
