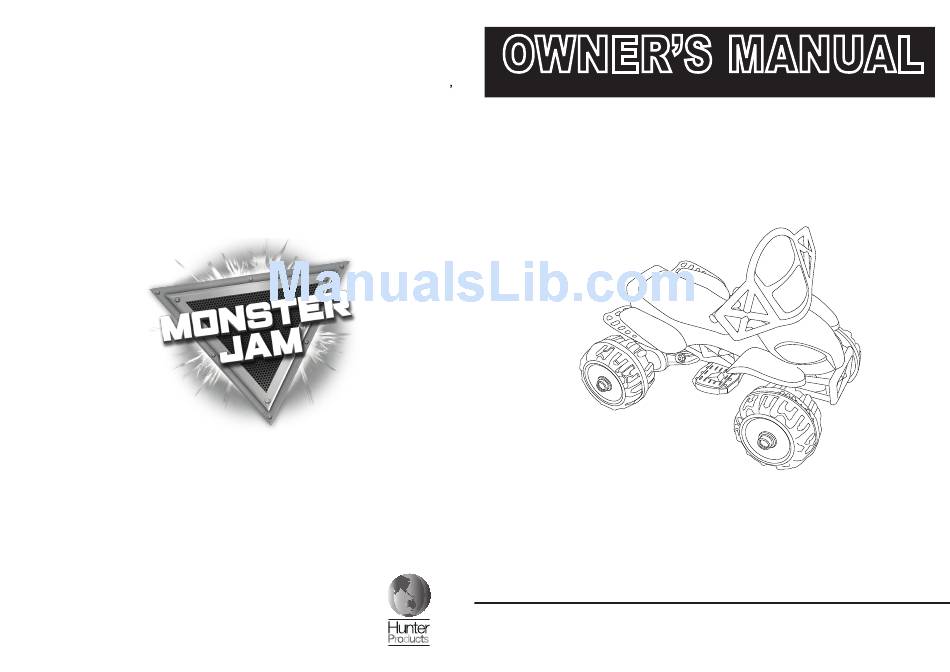

OWNER'S MANUAL
READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE USING!
THE PACKAGING MUST BE RETAINED SINCE
IT CONTAINS IMPORTANT INFORMATION.
Monster Jam Grave Digger
12V Ride On
GRAVE DIGGER
SUITABLE FOR 3 YEARS+
MAXIMUM USER WEIGHT: 40KG
ADULT ASSEMBLY AND
SUPERVISION REQUIRED
BEFORE FIRST TIME USE, CHARGE THE BATTERY FOR AT LEAST 12 HOURS.
PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE AS IT CONTAINS
IMPORTANT INFORMATION.
MANUFACTURED UNDER LICENSE BY HUNTER PRODUCTS PTY LTD.
BOX CONTENTS:
TOY QUAD WITH BATTERY
DECAL
CHARGER
SPANNER
OWNER'S MANUAL
