Summary of Contents for ALLVISION HD 2000 DS

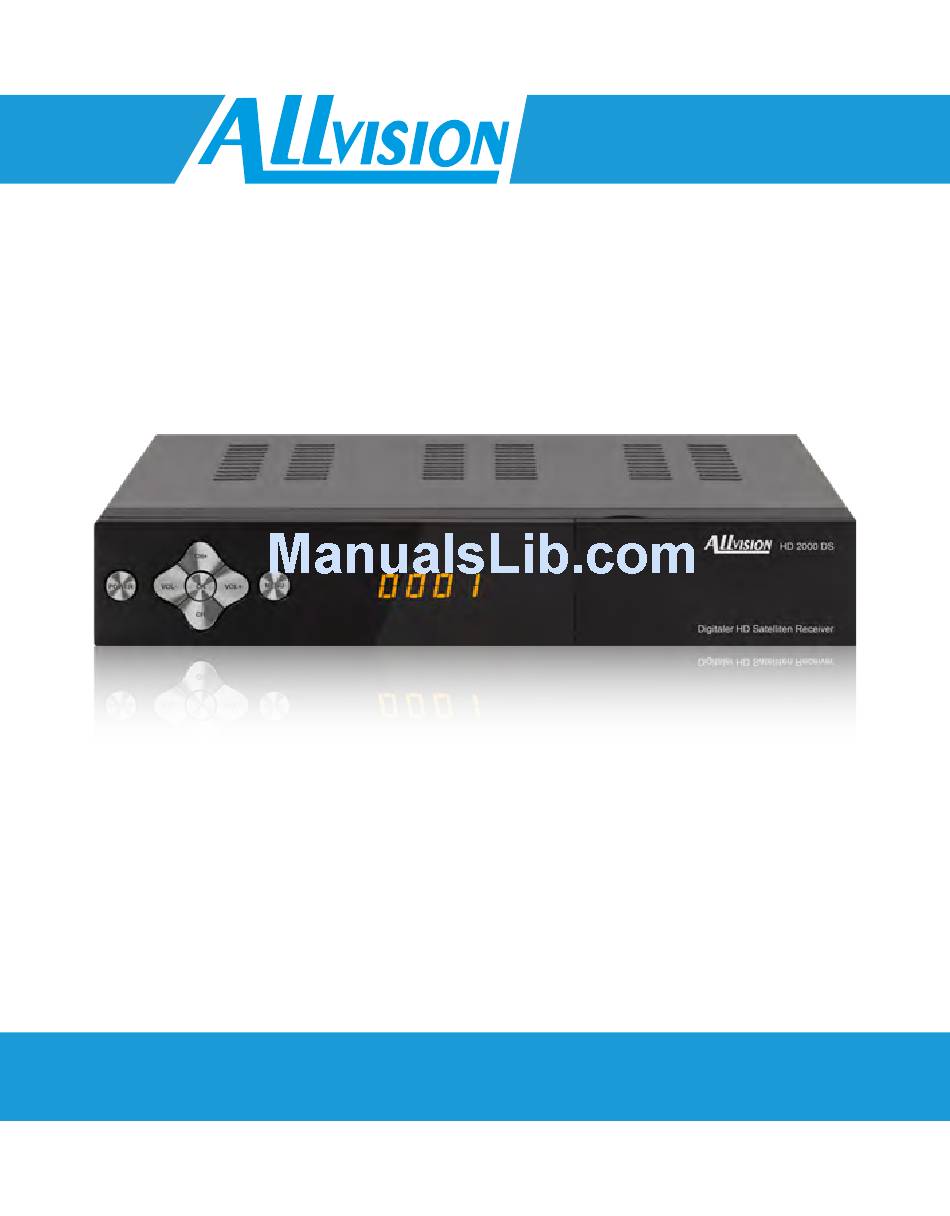

  • Page 1 HD 2000 DS User manual...

  • Page 2: Table Of Contents

    Content Safety instructions ......................03 1. Referenz 1.1 General Features ......................04 1.2 Delivery ..........................04 2. Names and key assignment 2.1 Front view ........................05 2.2 Rear view .......................... 05 2.3 Remote control ......................06 3. Connecting the set-top box 3.1 Connecting the set-top box .................

  • Page 3: Safety Instructions

    Safety instructions Please read the manual thoroughly before operating the equipment. In case of incorrect or improper handling, the warranty becomes void. Power supply: Before start please check the correct operation voltage of the power point. The operating voltage of this device is 12 V DC, 1 A AC 100~240 V, 50/60Hz.

  • Page 4: Referenz

    • USB 2.0 port (Mediaplayer) • Digital Audio output (coaxial) • RS232 port • Scart AV Output • 12/230 Volt Power supply 1.2 Delivery • Allvision HD 2000 DS • Remote control • Batteries • Power supply • User manual ENGLISH...

  • Page 5: Names And Key Assignment

    2. Names and key assignment 2.1 Front view On / Off Menu Navigation button Display (behind the panel) 2.2 Rear view LNB input HDMI RS232 Digital Audio Scart Power supply ENGLISH...

  • Page 6: Remote Control

    2. Names and key assignment 2.4 Remote control Zone 1 POWER Turn on/off the unit (Standby) MUTE Muting the sound NUMERIC KEYS (0~9) Program change / Enter numbers TV/RADIO Switches between TV and radio reception RECALL Changes between last and current program INFO Displays information about the current program REPEAT / SAT Switches between satellite TV and repeat mode ZOOM Enlarge the image section...

  • Page 7: Connecting The Set-Top Box

    3. Connecting the set-top box 3.1 Connecting the set-top box 1. Connect the coaxial cable to the LNB. (You can connect an LNB directly to the LNB IN, or more LNBs through a DiSEqC switch or multiswitch. 2. Connect the HDMI cable with your TV. 3.

  • Page 8: Main Menu

    4. Main Menu After connecting to any other required components, turn on the set-top box. Press the MENU button to enter the menu. The main menu consists of: • Channel list Note: • Installation The default password for • System the menu access is: 0000 •...
  • Page 9 4. Main Menu LOCK (Red button) Press the red button to activate the lock mode. Now select a channel you want to lock and press OK to confirm. You will see a password prompt. The default password is „0000“. After entering the password, the channel is locked. This is recognized by a lock icon. Repeat the process for all the channels you want to lock.

  • Page 10: Installation

    4. Main Menu 4.2 Installation Press the MENU button to enter the main menu. Go with the t u buttons to „Installati- on“ and confirm with OK. The following submenus are available: 1. Satellit 2. Transponder 1. Satellit: This menu will lists all available satellites. Use the pq buttons to select one or more satellites which you want to receive with the set-top box and confirm with OK.
  • Page 11 4. Main Menu In USALS or DiSEqC 1.3 appear at the bottom of the screen additional settings. Take ad- vantage of this, the corresponding colored button to access the detailed engine settings. USALS settings Set Limit (red button): Choose between „limitation of“, „west border“ and „east border“. Limitation of The dish has no fixed limit to stop at some point.
  • Page 12 4. Main Menu Unicable System Under the menu item LNB type, you can make the settings for single-cable (unicable). The set-top box is programmable for different unicable systems. Depending on the sys- tem can be connected to a system of up to 8 set-to boxes. Megasat, Kathrein, Technisat and identical devices use the following frequencies: IF Channel: 1=1284;...
  • Page 13 4. Main Menu Program search: With the blue button you can scan a satellite for programs. Here you can choose bet- ween single satellite search and multi-satellite search. Single Satellite Search Satellit: Select the desired satellite (eg Astra 19.2° East). Only free: Choose whether only free to air or all encrypted channels are to be searched.

  • Page 14: System

    4. Main Menu 4.3 System In this menu item basic settings can be made. The following submenus are available: 1. Language 2. AV Setting 3. Local Time Settings 4. Timer Setting 5. Childlock 6. OSD Setting 7. Favorites list 8. Other 1.
  • Page 15 4. Main Menu 4. Timer Settings Here you can set one or more timers to start to determine the time your selected pro- gram. The set-top box will automatically switch to the selected time on this channel. Select e.g. the first timerplace and confirm with OK. This will open a new window to adjust the data.

  • Page 16: Accessories

    4. Main Menu 4.4 Accesories In this menu you will find more useful settings. The following submenus are available: 1. Information 2. Factory setting 3. Delete all 4. Upgrade via RS232 5. USB upgrade 6. USB backup 7. Games 1. Information Show information about the software and hardware version of the set-top box.

  • Page 17: Media Center

    4. Main Menu 6. USB backup Here you can store your created program list on a USB Stick and restore them at a later date if necessary. 7. Games Here are some classic games for your pleasure. 4.5 Media Center In this menu you can manage your USB device and Note: play back the data stored on it.
  • Page 18 4. Main Menu Sort tracks: You can sort all tracks in the playlist by pressing the „RED“ button. Select between „Name A-Z“, „Name Z-A“ or the original arrangement (default). Create a playlist: Select a track from the playback with pq buttons. Press the „FAV“ button on the remote control to highlight the title as favorite.
  • Page 19 4. Main Menu 3. Videos On the left side of the screen you will see the contents of your USB storage device. Navi- gate with the pq buttons to select a folder in which you saved videos. Then press the OK button to access the folder.

  • Page 20: Additional Information

    5. Additional Information 5.1 Troubleshooting You might meet abnormal working of this STB with various reasons. Check the following which may help you. Problem Possible causes What to do The LED does not light up Power cable is not connected Check that the power cable is connected properly.

  • Page 21: Specifications

    5. Additional Information 5.2 Specifications Tuner & Demodulator Frequency range 950 MHz to 2150 MHz Input connector F-Type, IEC 169-24, female Signal level -25 bis -65 dBm RF impedance 75 Ω, unbalanced IF bandwidth 55 MHz / 8 Hz (per 5 Msps) LNB Power and polarization Vertical : +13 V, 14 V +/-5 % Horizontal : +18 V, 19 V +/-5 %:...

  • Page 22: Declaration Of Conformity

    Hereby declare the company DOEBIS GmbH that the following devices is in com- pliance with the essential requirements and other relevant provisions of Directive Council 2014/30/EU and 2014/35/EU: Allvision HD 2000 DS The Declaration of Conformity for these products is located the company: DOEBIS GmbH...
  • Page 23 Notes ENGLISH...
  • Page 24 HD 2000 DS Version: 1.0 (Mai 2016) Technical changes, misprints and errors reserved. DOEBIS GmbH Grenzweg 3 WEEE Reg.-Nr. DE11331002 57648 Unnau-Korb ID Nr. 10981 www.doebis.de info@doebis.de...
