Summary of Contents for Power Plus GLYDER

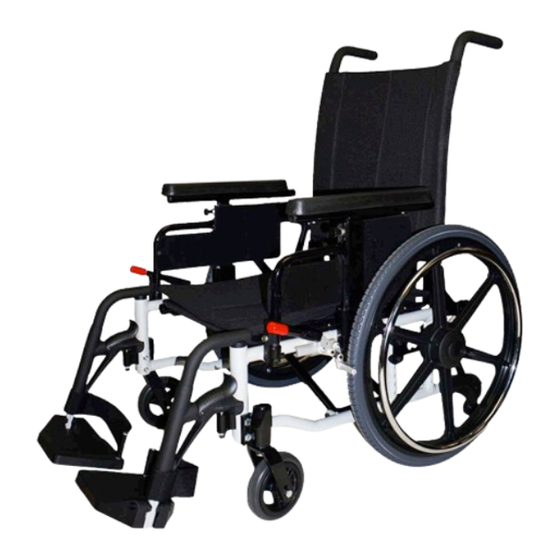

- Page 2 Valued Customer, Thank you for purchasing a Power Plus Mobility product. At Power Plus Mobility we manufacture top quality “Canadian Made” products. Your wheelchair should provide you with many years of service, but like any piece of equipment, it will require proper care and service for it to perform efficiently.
-
Page 3: Limited Warranty
LIMITED WARRANTY Power Plus Mobility guarantees all parts of our wheelchair to be free of defects in workmanship and materials for a period of two years from the date of purchase. “Wear” items such as tires, tubes, armpads and upholsteries are excluded from this warranty. -
Page 4: Safety And Handling
MAINTENANCE GUIDE Your wheelchair is designed to give you many years of trouble-free use with proper care. Some servicing can be done at home, but we recommend that periodic maintenance be performed at your dealer. Service frequency depends strongly on the type of use and your dealer can best advise you on the time interval. -
Page 5: Transferring In A Wheelchair
MANOUVERING RAMPS, CURBS, STAIRS Lean forward in chair, putting weight over front casters when going up inclines. When going on descending inclines do so slowly by controlling your speed using the handrims and not the wheel. To mount a curb use the tipping method, pull the chair backwards and over the curb. - Page 6 OPENING AND CLOSING YOUR CHAIR To Open: Make sure the wheel locks are disengaged. Then push down on one or both seat rails until they are completely open to the chair’s maximum width. Your chair is now fully opened and ready for use.
- Page 7 To Lift: Fold both footplates up, then close chair following instructions on the previous page. Engage wheel locks to prevent wheels from rotating, and lift chair by holding on to the seat rail and push handle. Do not lift chair by holding on to any detachable or moving parts.
-
Page 8: Anti-Tippers
ANTI-TIPPERS Your Anti-Tippers are used to prevent your chair from tipping over while in tilt. These can be removed. However, they must never be removed when using chair. # Description Quantity 1 Bolt 1 2 Height Extension 1 Tube 3 Housing 1 4... - Page 9 FOOTREST The footrest on your chair is designed to swing away and removes easily. To swing away, remove feet from the footplate (1) and fold footplates up. Then push the release handle (2) on the footrest locking mechanism. It will swing to the side of your chair, and could then be removed by lifting it straight up and off the locating pins (3).
- Page 10 LEGREST Your legrest is designed to be removed and replaced the same as your footrest. However, it is advisable to remove and replace your legrest while it is in a down position. Lifting on the footplate raises the legrest and it will automatically lock at the raised position.
- Page 11 ARMS Your chair has standard fixed height or adjustable height arms. Either style may be easily removed from the chair. To remove the arms, push down on the arm removal latch (3). It will catch and remain in the open position. Then lift arm top (1) straight up evenly near the back of the arm.
- Page 12 Angle Adjustable Back Your wheelchair offers an Angle Adjustable Back feature. This feature is only available with T-Arms and allows 5°, 10° or 15° of adjustment. To Adjust Back Angle: X – Angle Adjustable Bracket Y- ¼” x 20 x 1¾” Hex Bolt Y through A on X equals to 90°.
- Page 13 CASTERS Your casters are made of injection molded nylon and will not rust. They are also fitted with sealed precision bearings (10) which require no lubrication. Number Description Quantity 1 Dust Cap 2 2 ½” Lock Nut 4 3 Fork Stem 2 4 Caster Fork...
- Page 14 REAR WHEELS Your wheels are made of injection molded nylon and will not rust. They are also fitted with sealed precision bearings (7) which require no lubrication. However they may need occasional adjustments, due to wear under normal use. Too much side play or looseness or squeaking from your wheel means it needs to be checked.
-
Page 15: Wheel Combinations
WHEEL COMBINATIONS Your wheelchair allows for many different seat heights. Following the chart below will allow you to properly achieve your desired Seat Height. When adjusting your seat height, always remember to square your front casters back to 90°. HEMI REAR WHEEL CASTER FORK... -
Page 16: Wheel Locks
TIRES The standard tires on your chair are solid, maintenance free urethane. These tires are reliable, long lasting and provide a very comfortable ride. However, if your chair is equipped with pneumatic tires, they must be regularly checked for wear and proper inflation.
