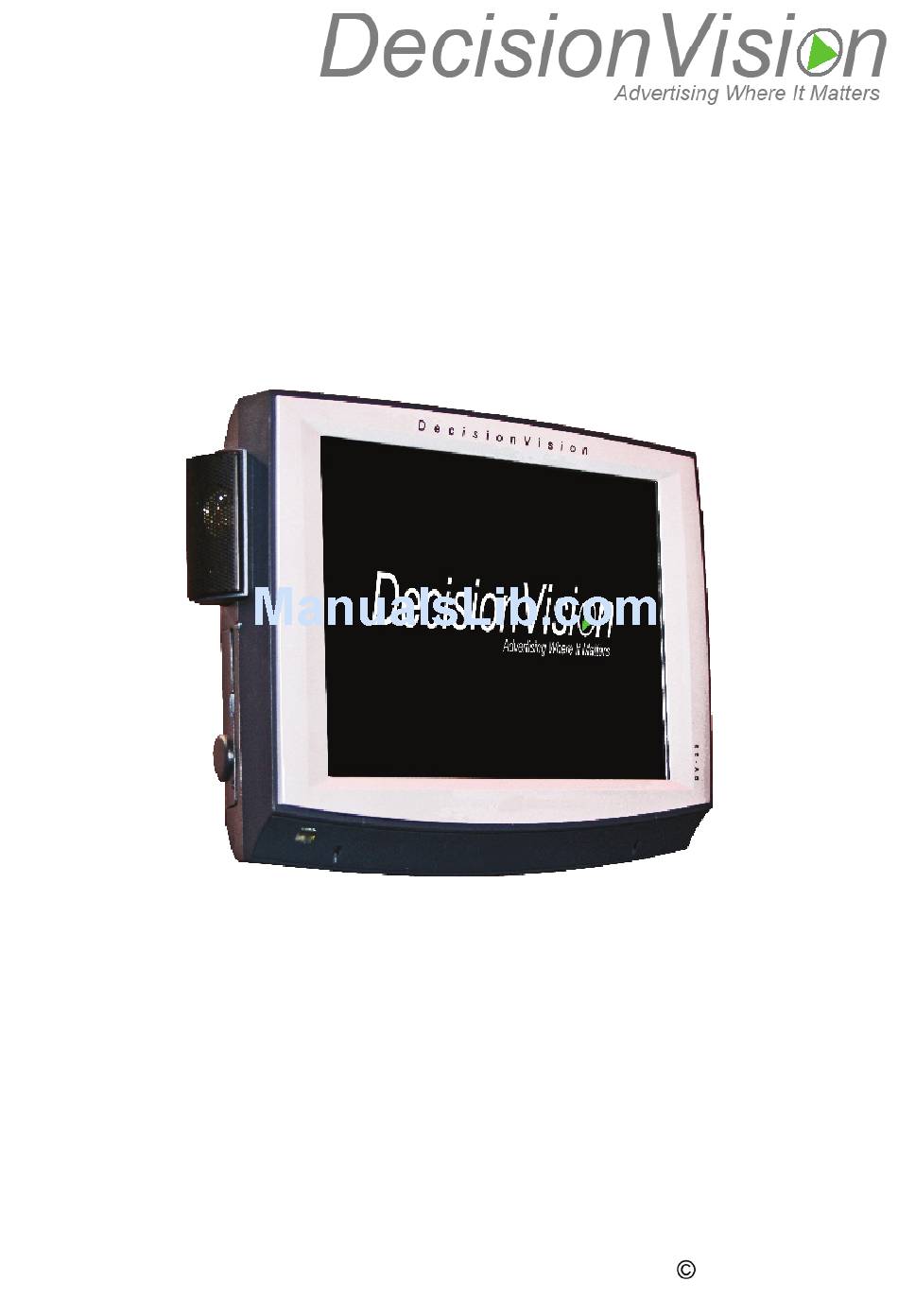

- Page 1 DV-15 Operators Manual DecisionVision LTD...
-
Page 2: Table Of Contents
Table Of Contents Introduction EMC & Safety Standards Applied Unit description Packaging List Key Features & Specifications Components & Fixings Saftey Precautions Hardware Installation Maintenance & Cleaning Troubleshooting Warranty Policy Disposal Technical Support Declaration of Conformity... -
Page 3: Introduction
Congratulations on the purchase of your new DV-15. You are now the owner of a state-of-the-art DV-15, the media unit that offers enhanced features and performance directly at the point of purchase. It is a fully intergrated single board computer with hi performance LCD display, wide viewing angles and antiglare coated acrylic protective window. -
Page 4: Key Features & Specifications
Key Features & Specification Item Description LCD Panel 8.4” TFT 800x600 Resolution, Viewing Angle 170 Degrees Left to Right, Brightness 350 CD Internal Speakers 2 x 2 Watt Stereo Power Consumption 12V / 2.5 A Dimensions 265mm x 190mm x 70mm (WxHxD) Net Weight 1.62kg... -
Page 5: Components & Fixings
Components & Fixings Figure 8 Power DV-15 PSU/ Lead Patch Cable Media Screen Switching Adapter (Optional) Celing Mounting Bracket (Optional) Grommets (Dependent on) Patch Cable Mounting Bracket (Screen Location) -
Page 6: Saftey Precautions
Safety Precautions • Always completely disconnect the power cord from the unit whenever you work with electrical hardware. • Do not make connections while the power is on. Sensitive electronic com- ponents can be damaged by sudden power surges. Only authorised persons should open the unit chassis. -
Page 7: Hardware Installation
Hardware Installation Labels on each unit identify: the model number, serial number, volume and brightnes control labels. Toggle Indicator Serial Port Not Used Lit For Brightness Toggle VGA Port Brightness/Volume Not Used Brightness/ Volume Up RJ45 Port Brightness/ Volume Down RJ45 Port Power Reset Not Used... -
Page 8: Troubleshooting
Press the reset button on the back of the screen to reboot and wait for the startup screen to appear. Contact DecisionVision for further support if any problems persist. Warranty Policy 1 YEAR WARRANTY This product is warranted to be free of defects in materials and workings at the sole discrestion. -
Page 9: Disposal
For more details on available collection facilities please contact your your local authority or DecisionVision. Technical Support Headquarters... -
Page 10: Declaration Of Conformity
Declaration Of Conformity Manufacturer’s Name: DecisionVision LTD Manufacturer’s Address: DecisionVision LTD 2 Wilford Business Park Ruddington Lane NOTTINGHAM NG11 7EP Declares, that the product: Product Name: DecisionVision Model Name: DV-15 Product Options: Conforms to the following Product Specifications: Safety: The Low Voltage Directive applies to all apparatus operating on any AC supply between 50 and 1000 volts. - Page 11 Notes...
- Page 12 DecisionVision LTD...
