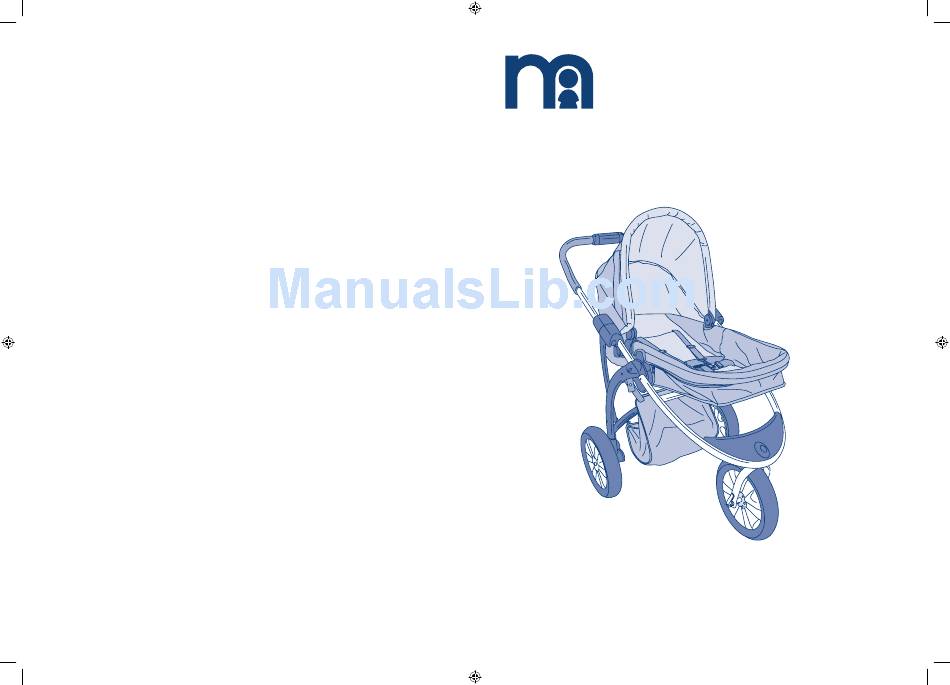

Quantum Travel System
user guide
in the event of a problem with your product, please contact:
Customer Care
Mothercare UK Ltd.
Cherry Tree road
Warning - important
Watford
Keep for future reference
WD24 6SH
QUANTUM D3.indd 1
31/10/07 15:18:23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quantum Travel System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for mothercare Quantum Travel System

  • Page 1 Quantum Travel System user guide in the event of a problem with your product, please contact: Customer Care Mothercare UK Ltd. Cherry Tree road Warning - important Watford Keep for future reference WD24 6SH QUANTUM D3.indd 1 31/10/07 15:18:23...
  • Page 2: Preparation For Use

    The Quantum travel system is designed to withstand use on uneven paths, pavements and fig 1 even in the countryside. The Quantum is suitable from birth, when used in the fully reclined position and on smooth surfaces, up to a maximum weight of 15kg. The Quantum features remove all packaging materials from the chassis.
  • Page 3: Fitting The Front Wheel

    preparation for use preparation for use fitting the front wheel fitting the rear wheels fig 1 fig 1 Losen the quick release lever enough so the wheel can insert the spindle on each wheel into the wheel joint. be fitted to the forks. When fully in, stop pressing the release button and pull gently on each wheel to check that they are secure.
  • Page 4 2 The seat unit on the Quantum travel system is reversible. To attach the seat unit so that your child faces towards you, simply remove the seat unit from the forward facing...
  • Page 5: Attaching The Hood

    preparation for use in use attaching the hood harness fig 1 fig 1 attach the hood to the seat unit frame using the plastic TO aTTaCH THE HarnESS clips on either side. Push the clips firmly over the metal insert both fasteners securely into the clasp. adjust each frame as shown in the diagram.
  • Page 6: Reclining The Seat

    in use in use locking the front wheel fitting the Weathershield ™ fig 1 fig 1 The front wheel can be locked to prevent it from Fit the weathershield™ on top of the hood. The foot end swivelling. it is recommended that you do this when of the weathershield™...
  • Page 7: After Use

    in use after use attaching the car seat removing the car seat fig 1 fig 1 in order to attach the car seat, you first need to remove To remove the car seat, first engage the brake. the seat unit. Press the release clips located below the connection points on either side.
  • Page 8: Handy Hints

    after use handy hints folding the travel system folding mechanism fig 1 fig 1 Follow the instructions in this guide to remove either the The mechanism should be lubricated at intervals to seat unit or the car seat, depending on which one is avoid stiffness in use.
  • Page 9: Repairing A Puncture

    looking after inflatable tyres repairing a puncture check list removing the tyre fig1 fig 1a Tyre pump remove the wheel with the punctured tyre using any Suitable for a Schrader valve necessary tools. fig 1b Set of 2 or 3 tyre levers Preferably plastic fig 1c Tube of rubber solution...
  • Page 10 repairing a puncture repairing a puncture removing the tyre repair the inner tube fig5 Warning: rubber solution is flammable and gives off a strong vapour. it should only be used in One by one pull each lever down toward the spokes a well-ventilated area, away from heat sources.
  • Page 11: Care Of Your Product

    < Brakes, wheels and tyres are subject to wear and should be replaced if necessary. This can be arranged through your local Mothercare store. The tyres have inner tubes and can be repaired in the same way as conventional bicycle tyres.
  • Page 12: Replacement Parts

    The replacement parts listed are available for your product. in the event that you require any < Warning any load attached to the handle affects the stability of the pushchair. of these parts, please contact your local Mothercare store or contact Customer Care on < Warning this product is not suitable for running or skating.
